SYSTEM (POWER DOOR LOCK SYSTEM)

DLK-23

< SYSTEM DESCRIPTION >

DLK

BCM outputs the lock signal to all door lock actuators when it detects that the power switch is in the ON posi-

tion and the shift signal received from the VCM is shifted from the P position to any position other than P.

Setting change of Automatic Door Lock/Unlock Function

The lock operation setting of the automatic door lock/unlock function can be changed.

With CONSULT

The ON/OFF switching of the automatic door lock function and the type selection of the automatic door lock/

unlock function can be performed at the “Work support” setting of CONSULT.

Without CONSULT

The automatic door lock function ON/OFF can be switched by performing the following operation:
1. Close all doors (door switch OFF)
2. Power switch: OFF

→ON

3. Press and hold the door lock and unlock switch for 5 seconds or more in the lock direction within 20 sec-

onds after turning the power switch ON.

4. The switching complete when the hazard lamp blinks.

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (UNLOCK OPERATION)

The automatic door lock/unlock function is the function that unlocks all doors linked with the power switch

position or shift position. It has 2 types as per the following items:

POWER OFF Interlock Door Unlock

All doors are unlocked when the power switch position is changed from ON to OFF.

BCM outputs the unlock signal to all door lock actuators when it detects that the power switch position is

changed from ON to OFF.

P Position Interlock Door Unlock

All doors are unlocked when shifting the selector lever from any position other than P to P position.

BCM outputs the unlock signal to all door lock actuators when it detects that the power switch is in the ON

position and the shift signal received from VCM is shifted from any position other than P to P position.

Setting change of Automatic Door Lock/Unlock Function

The unlock operation setting of the automatic door lock/unlock function can be changed.

With CONSULT

The ON/OFF switching of the automatic door lock/unlock function and the type selection of the automatic door

lock/unlock function can be performed at the “Work support” setting of CONSULT.

Without CONSULT

The automatic door lock/unlock function ON/OFF can be switched by performing the following operation:
1. Close all doors below (door switch OFF)
2. Power switch: OFF

→ON

3. Press and hold the door lock and unlock switch for 5 seconds or more in the unlock direction within 20

seconds after turning the power switch position ON.

4. The switching is complete when the hazard lamp blinks.

OFF

→ ON

: 2 blinks

→ OFF

: 1 blink

OFF

→ ON

: 2 blinks

→ OFF

: 1 blink

DLK-24

< SYSTEM DESCRIPTION >

SYSTEM (INTELLIGENT KEY SYSTEM)

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM
INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000010119724

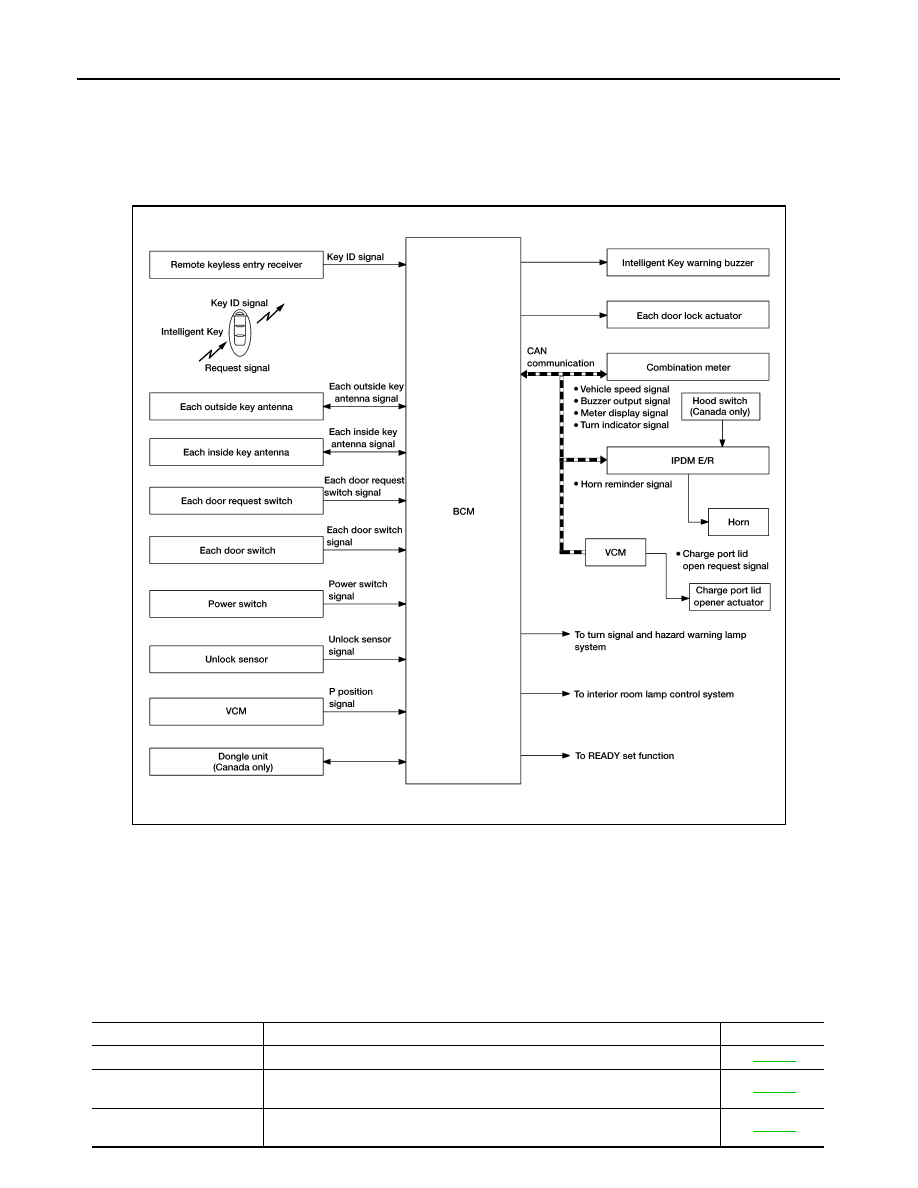

SYSTEM DIAGRAM

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-

tion using two-way communication between the Intelligent Key and the vehicle (BCM).

NOTE:

The driver should always carry the Intelligent Key.

• The settings for each function can be changed with CONSULT.

• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

ALKIA3113GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch

DLK-25

Back door opener

The back door can be opened by carrying the Intelligent Key and pressing the
back door opener switch

DLK-27

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the In-
telligent Key

DLK-29

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-25

< SYSTEM DESCRIPTION >

DLK

DOOR LOCK FUNCTION
DOOR LOCK FUNCTION : System Description

INFOID:0000000010119725

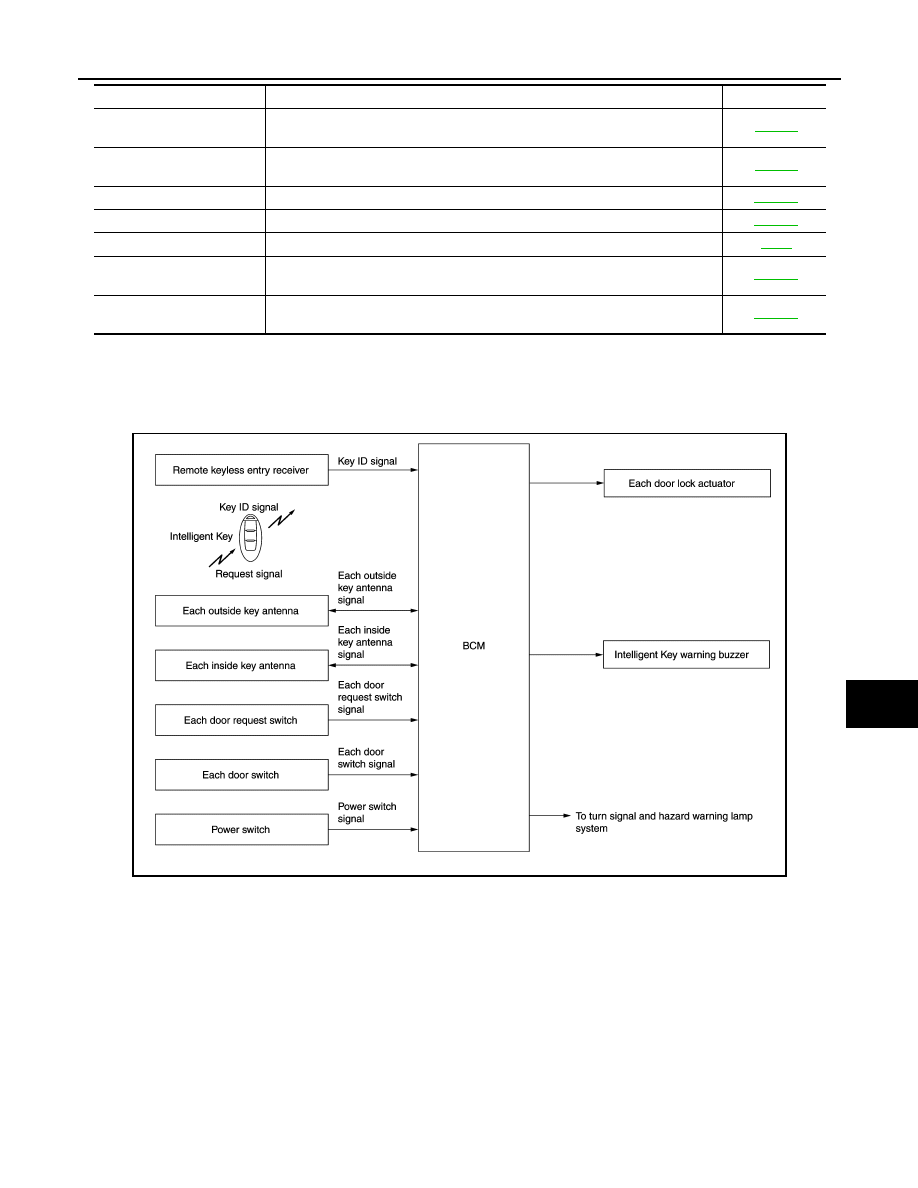

SYSTEM DIAGRAM

DOOR REQUEST SWITCH OPERATION

When pressing the door request switch, it is possible to lock and unlock the door by carrying the Intelligent

Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it activates the outside key antenna and

inside key antenna corresponding to the pressed door request switch and transmits the request signal to the

Intelligent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.

• BCM transmits door lock/unlock signal and operates each door lock actuator. At the same time, BCM blinks

hazard warning lamp (lock: 2 times, unlock: 1 time) and sounds Intelligent Key buzzer (lock: 2 times, unlock:

1 time) as a reminder.

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle

DLK-31

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver

DLK-32

READY set function

The vehicle can be set READY while carrying the Intelligent Key

SEC-12

Panic alarm

When Intelligent Key panic alarm button is pressed, horn sounds

SEC-18

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state

INL-8

Charge connector unlock

Charge connector unlock can be performed by a long press of the charge port
lid opener button on the Intelligent Key

EVC-61

Charge port lid open

Charge port lid open can be performed by a long press of the charge port lid
opener button on the Intelligent Key

EVC-61

Function

Description

Refer

JMKIA6214GB

DLK-26

< SYSTEM DESCRIPTION >

SYSTEM (INTELLIGENT KEY SYSTEM)

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is

operated:

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be locked and unlocked from outside of the vehicle
with a spare Intelligent Key as long as key IDs are different.

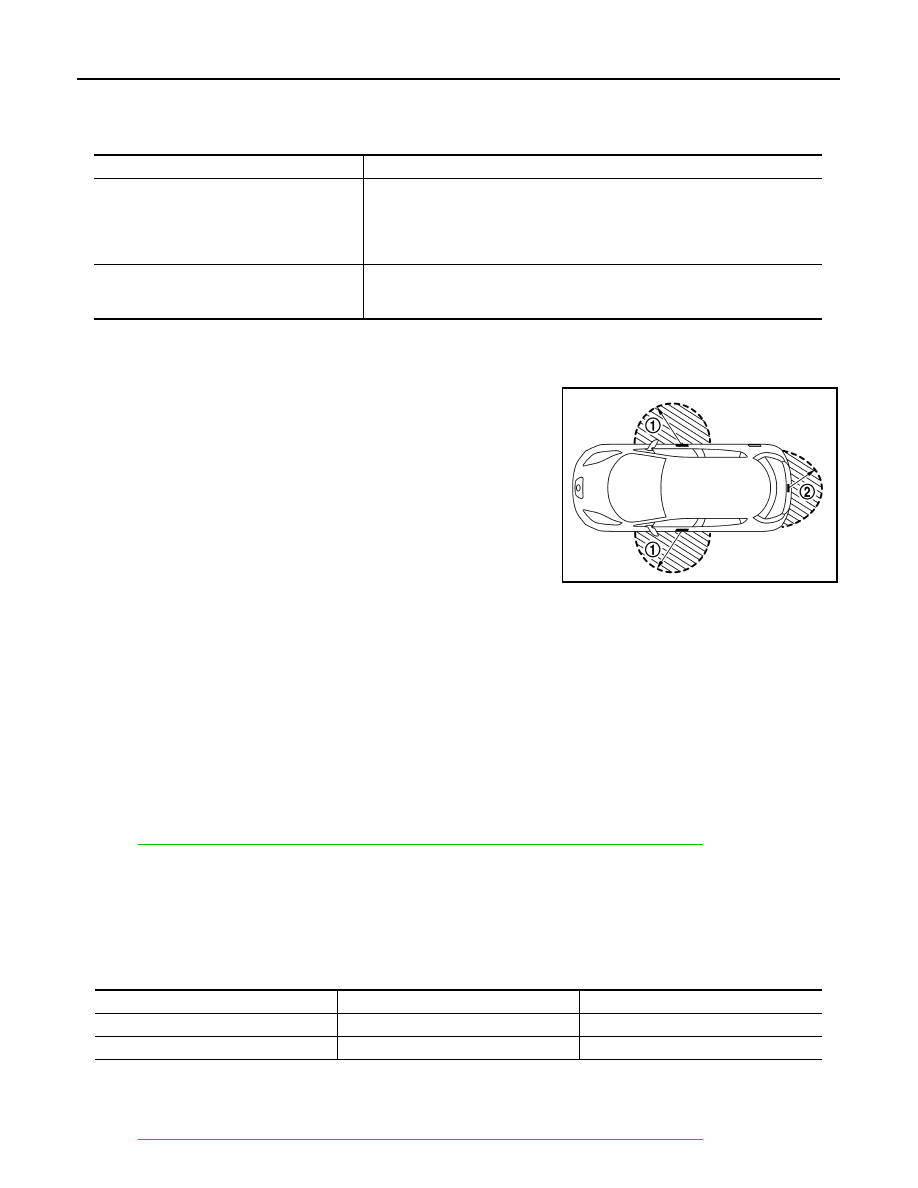

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function

is in the range of approximately 80 cm (31.50 in) surrounding the

driver, passenger door handles (1) and back door handle (2). How-

ever, this operating range depends on the ambient conditions.

SELECTIVE UNLOCK FUNCTION

Lock Operation

When a LOCK signal is sent from door request switch (LH, RH or back door), all doors are locked.

Unlock Operation

• When an UNLOCK signal from front door request switch (LH) is transmitted, LH door unlocks. When another

UNLOCK signal is transmitted within 60 seconds, all door unlocks.

• When an UNLOCK signal from front door request switch (RH) is transmitted, RH door unlocks. When

another UNLOCK signal is transmitted within 60 seconds, all door unlocks.

• When an UNLOCK signal from back door request switch is transmitted, back door unlocks. When another

UNLOCK signal is transmitted within 60 seconds, all door unlocks.

How to Change Selective Unlock Operation Mode

Selective unlock operation mode can be changed using CONSULT.

Refer to

BCS-20, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

HAZARD AND BUZZER REMINDER FUNCTION

During lock, unlock, operation by each request switch, the hazard warning lamps and Intelligent Key warning

buzzer will blink or honk as a reminder.

When doors are locked, unlocked by each request switch, BCM honks Intelligent Key warning buzzer as a

reminder and blinks.

Operating Function of Hazard and Buzzer Reminder

Hazard and buzzer reminder does not operate if power switch ON position.

How to Change Hazard and Buzzer Reminder Operation Mode

Hazard and buzzer reminder operation mode can be changed using CONSULT.

Refer to

BCS-20, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

Each door request switch operation

Operation condition

Lock

• All doors are closed
• Panic alarm is not activated
• Power switch is in the OFF position
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

Unlock

• Power switch is in the OFF position
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

JMKIA6140ZZ

Operation

Hazard warning lamp blinks

Intelligent Key warning buzzer honk

Unlock

Once

Lock

Twice
