DEF-6

< SYSTEM DESCRIPTION >

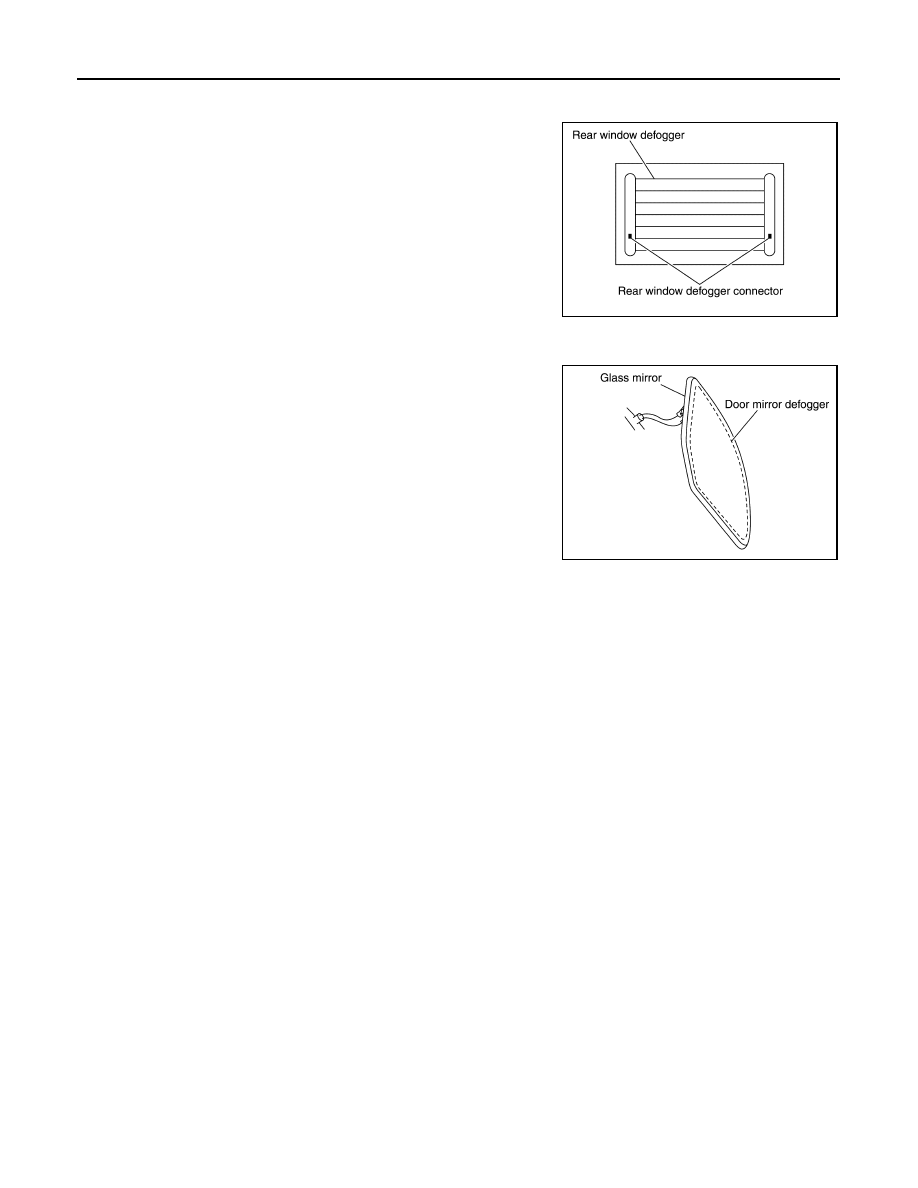

COMPONENT PARTS

Rear window defogger

INFOID:0000000010119485

Heats the heating wire with the power supply from the rear window

defogger relay to prevent the rear window from fogging up.

Door mirror defogger

INFOID:0000000010119486

Heats the heating wire with the power supply from the rear window

defogger relay to prevent the door mirror from fogging up.

JMLIA2595GB

JMLIA2596GB

SYSTEM

DEF-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

SYSTEM

System Description

INFOID:0000000010119487

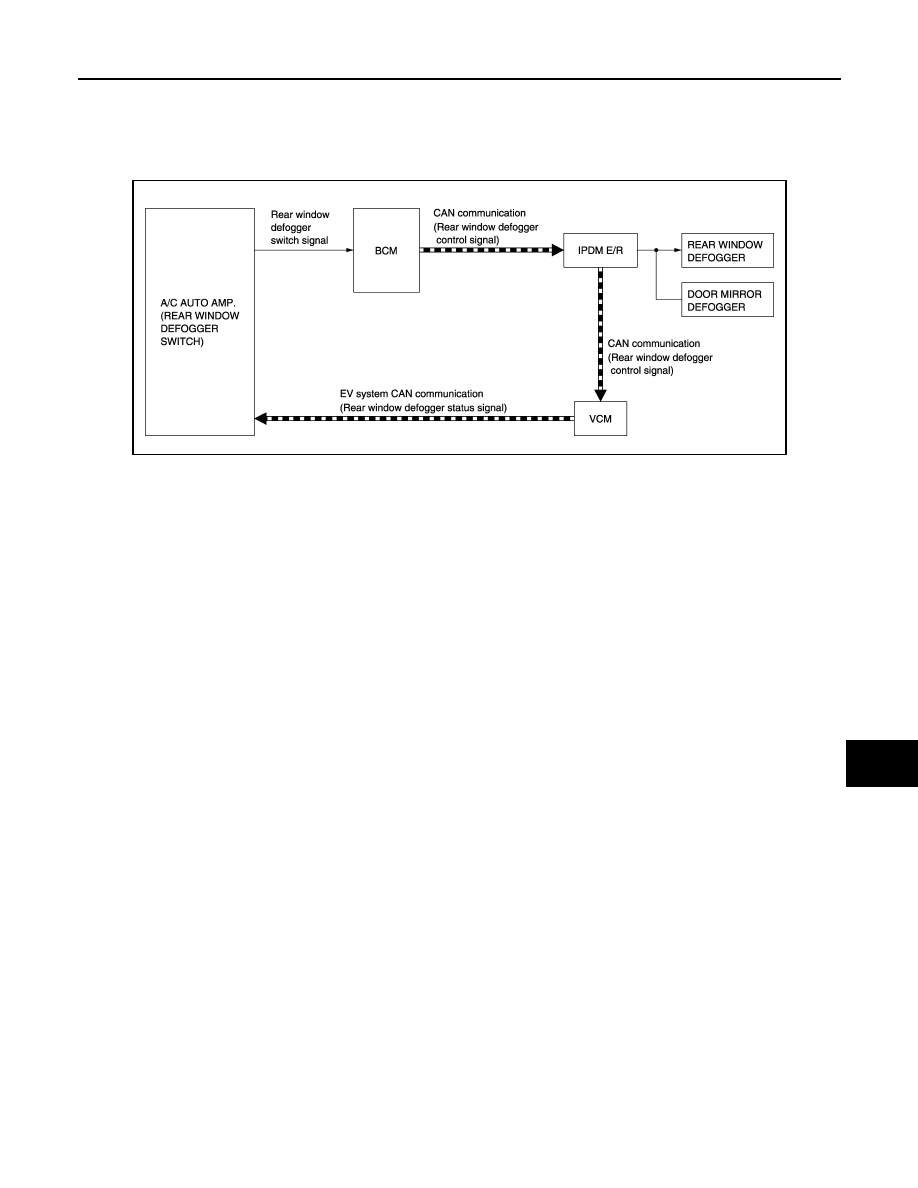

SYSTEM DIAGRAM

OPERATION DESCRIPTION

• Turn rear window defogger switch ON while power switch is ON. Then A/C auto amp. transmits rear window

defogger switch signal to BCM.

• BCM transmits rear window defogger control signal to IPDM E/R via CAN communication for approximately

15 minutes.

• IPDM E/R turns rear window defogger relay ON when rear window defogger control signal is received.

• When rear window defogger relay turns ON, IPDM E/R transmits rear window defogger control signal to

VCM via CAN communication. VCM transmits rear window defogger status signal to A/C auto amp. via EV

system CAN communication.

• When rear window defogger is activated, indicator lamp on rear window defogger switch turns ON.

TIMER FUNCTION

• BCM transmits the rear window defogger control signal to IPDM E/R for approximately 15 minutes when the

rear window defogger switch turns ON while power switch is ON. Then IPDM E/R activates rear window

defogger and door mirror defogger.

• The timer is cancelled if the rear window defogger switch is pressed again during timer operation. BCM

stops the output of rear window defogger control signal. The same action occurs during timer operation if the

power switch is turned OFF.

JMLIA2389GB

DEF-8

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010384039

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

REAR WINDOW DEFOGGER

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

×

Air conditioner

AIR CONDITIONER

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

DIAGNOSIS SYSTEM (BCM)

DEF-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

REAR WINDOW DEFOGGER : CONSULT Function (BCM - REAR DEFOGGER)

INFOID:0000000010384040

DATA MONITOR

ACTIVE TEST

Monitor Item [Unit]

Description

PUSH SW [On/Off]

Indicates condition of power switch.

REAR DEF SW [On/Off]

Indicates condition of rear window defogger switch.

Test Item

Description

REAR DEFOGGER

This test is able to check rear window defogger operation [Off/On].
