BRM-48

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Unit: mm (in)

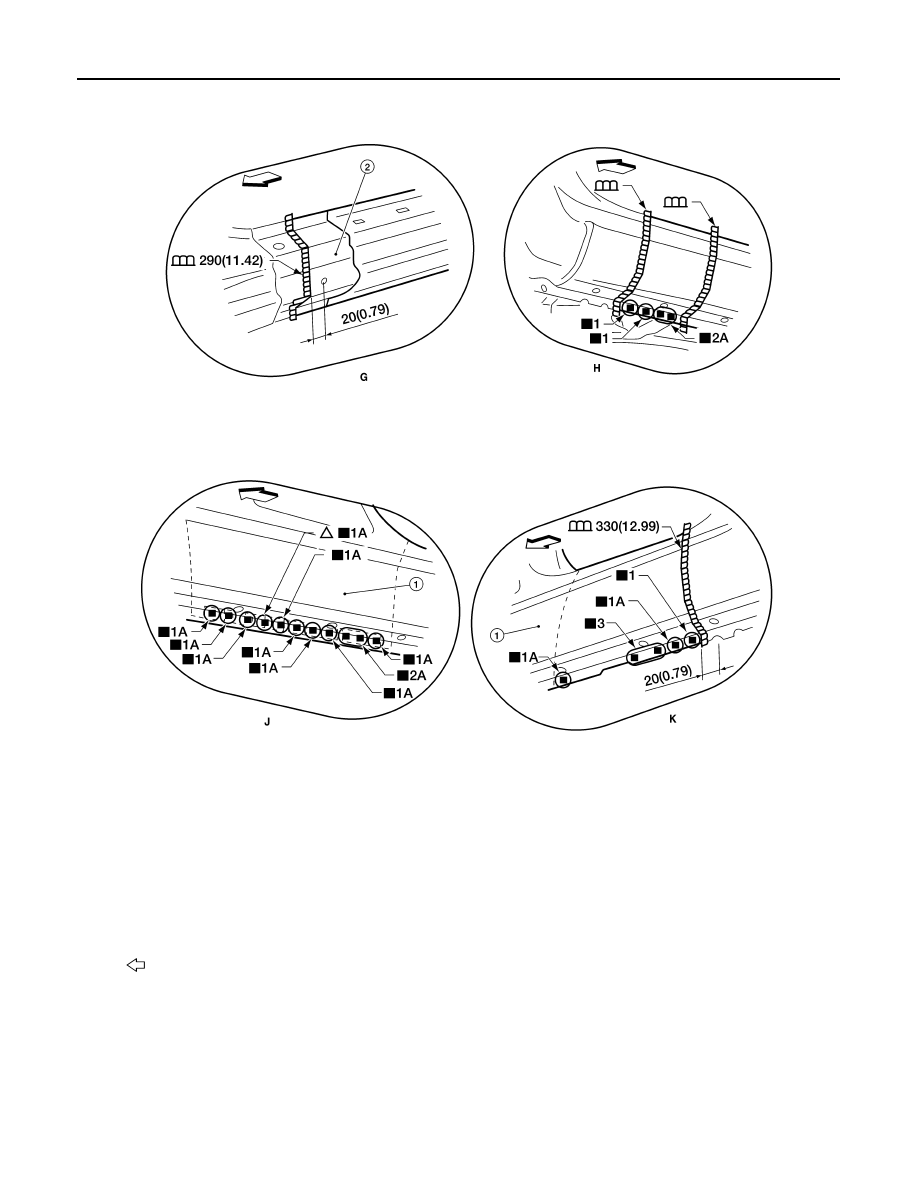

View G: Before installing outer front side body

1.

Inner center pillar assembly

2.

Outer sill reinforcement

 Front

        Drill

φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

AWKIA2396ZZ

REPLACEMENT OPERATIONS

BRM-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

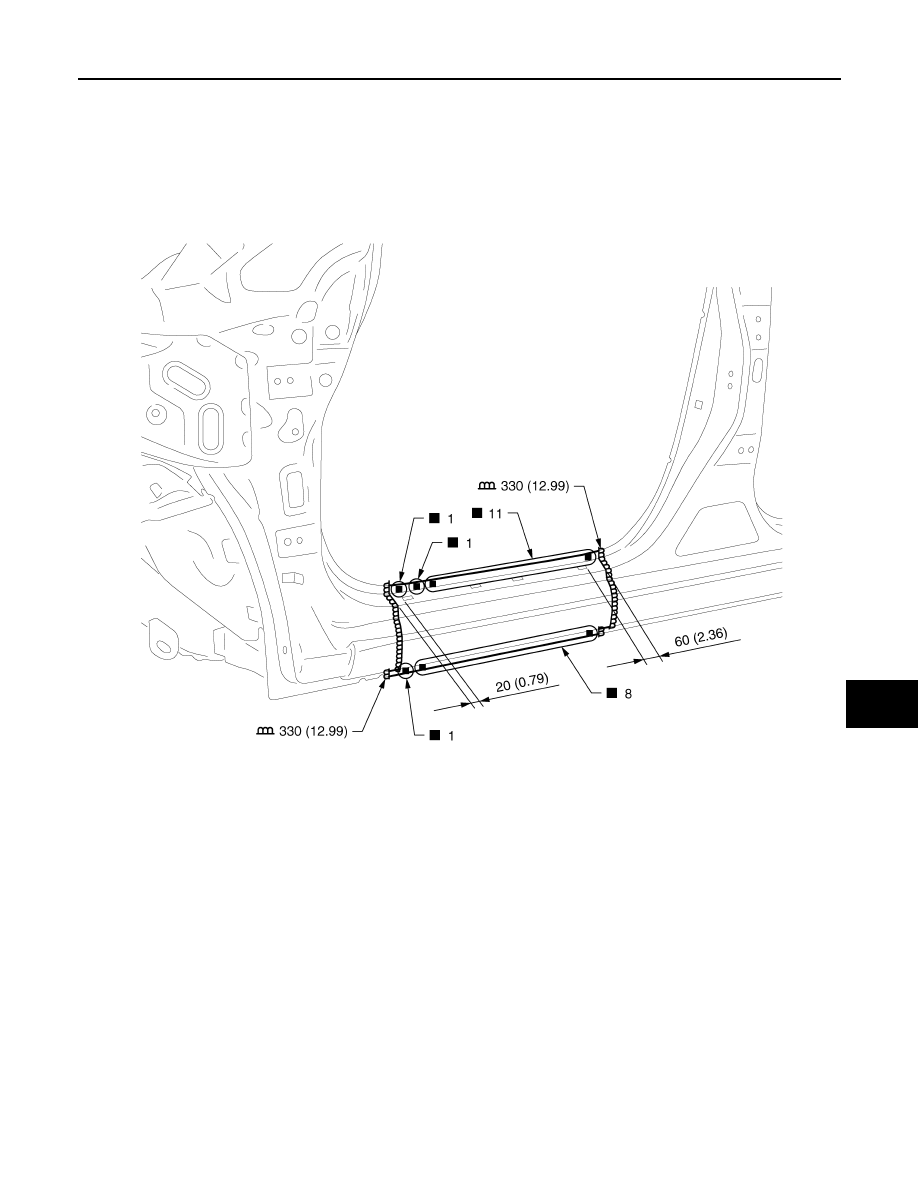

Outer Sill (Partial Replacement)

INFOID:0000000010121705

Unit:mm (in)

Replacement parts

z

Outer sill (LH)

JSKIA2315GB

BRM-50

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

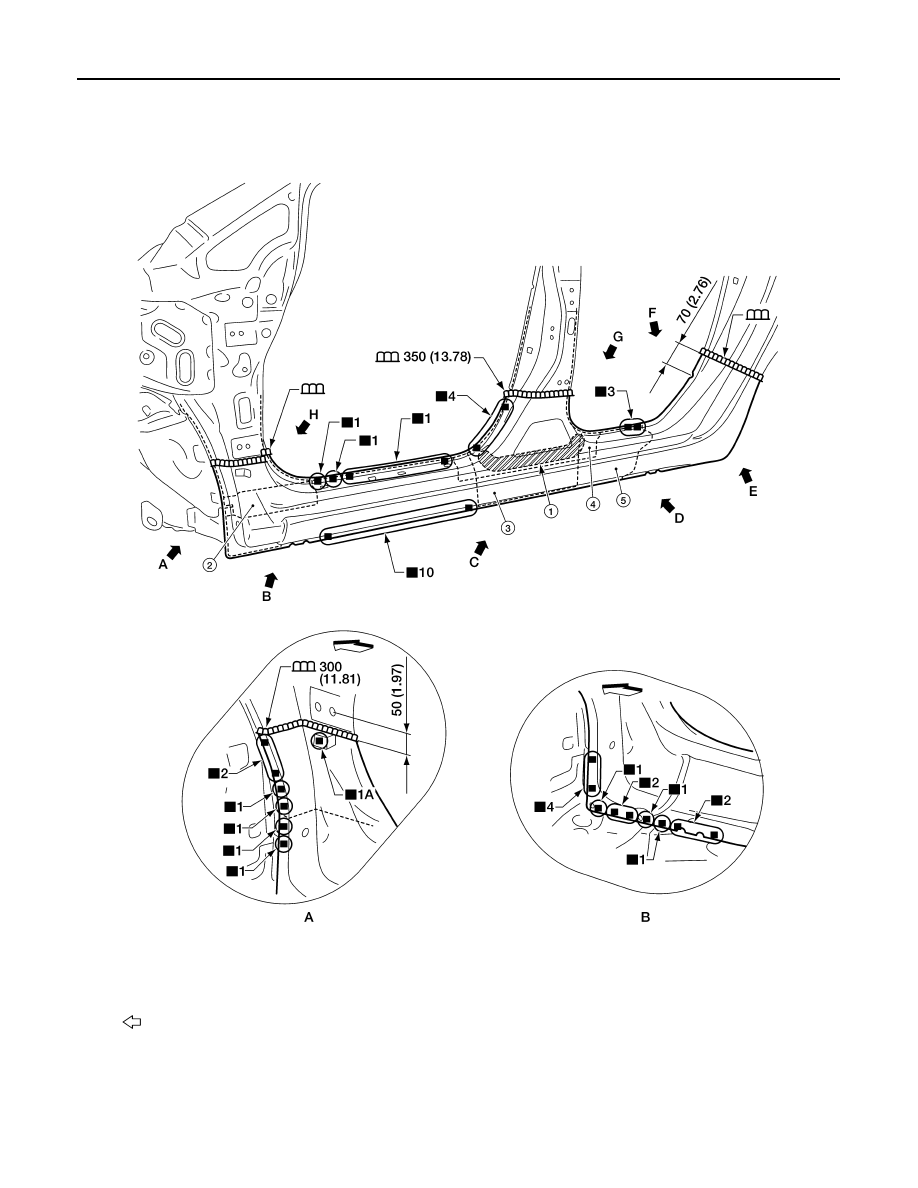

Outer Sill

INFOID:0000000010121706

Unit: mm (in)

1. Urethane foam

2. Front pillar brace

3. Inner center pillar assembly

4. Lower center pillar brace

5. Outer sill reinforcement

 Front

Replacement parts

z

Outer sill (LH)

z

Front fender bracket assembly
(LH)

AWKIA2338ZZ

REPLACEMENT OPERATIONS

BRM-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

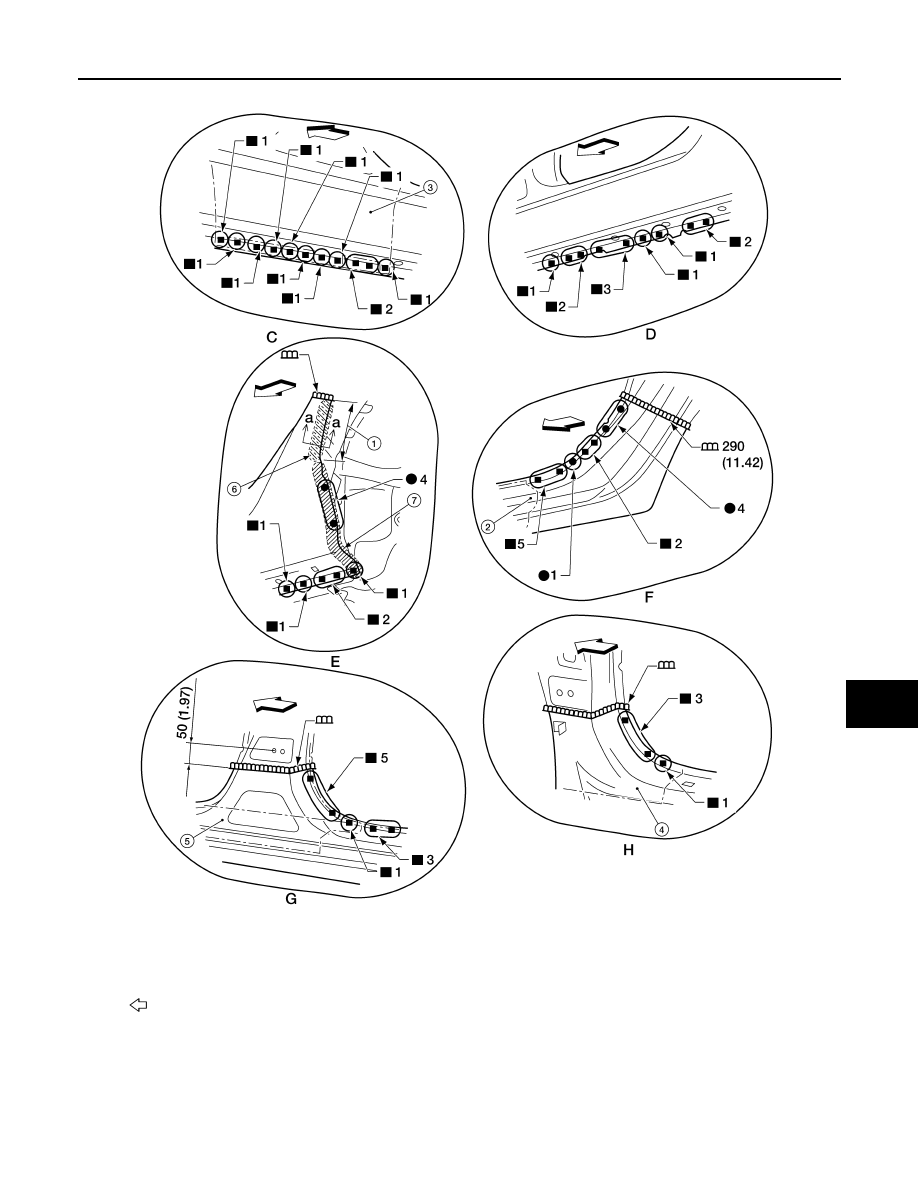

Unit: mm (in)

POINT

1. Hemming portion

2. Outer sill reinforcement

3. Inner center pillar assembly

4. Front pillar brace

5. Lower center pillar brace

6. Adhesive

7. Body sealing

 Front

AWKIA2339ZZ
