Nissan Leaf. Manual - part 317

BRC-58

< WIRING DIAGRAM >

[WITH VDC]

BRAKE CONTROL SYSTEM

WIRING DIAGRAM

BRAKE CONTROL SYSTEM

Wiring Diagram

INFOID:0000000010120048

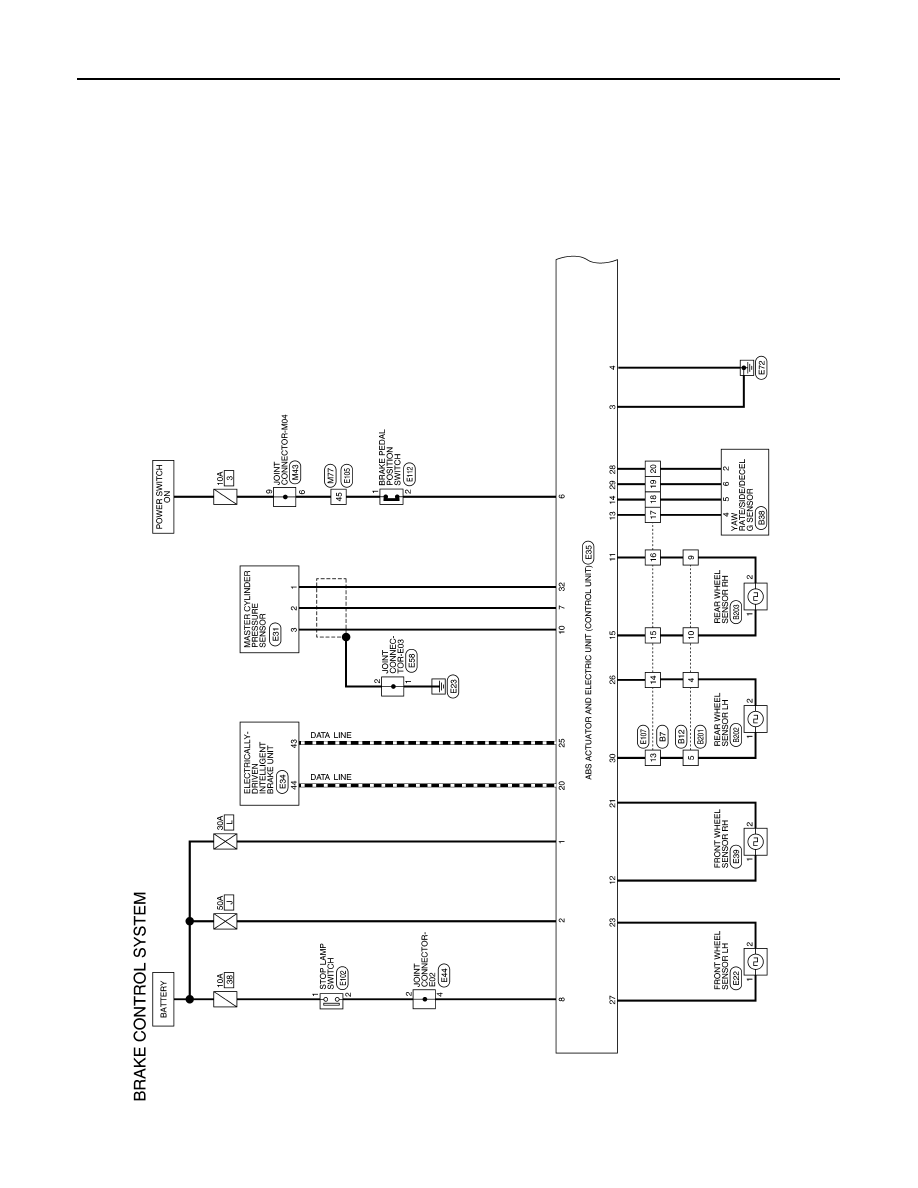

AAFWA0127GB

BRAKE CONTROL SYSTEM

BRC-59

< WIRING DIAGRAM >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

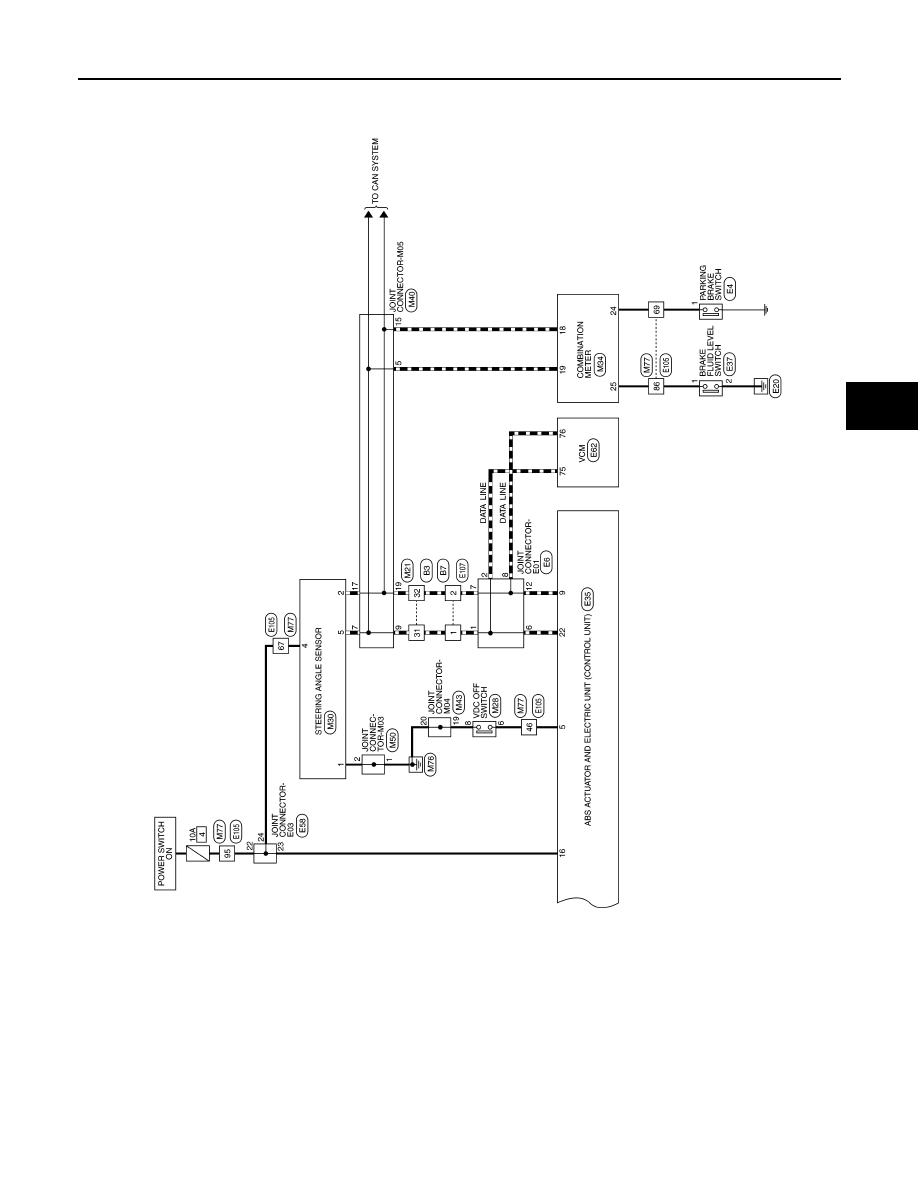

AAFWA0128GB

BRC-60

< WIRING DIAGRAM >

[WITH VDC]

BRAKE CONTROL SYSTEM

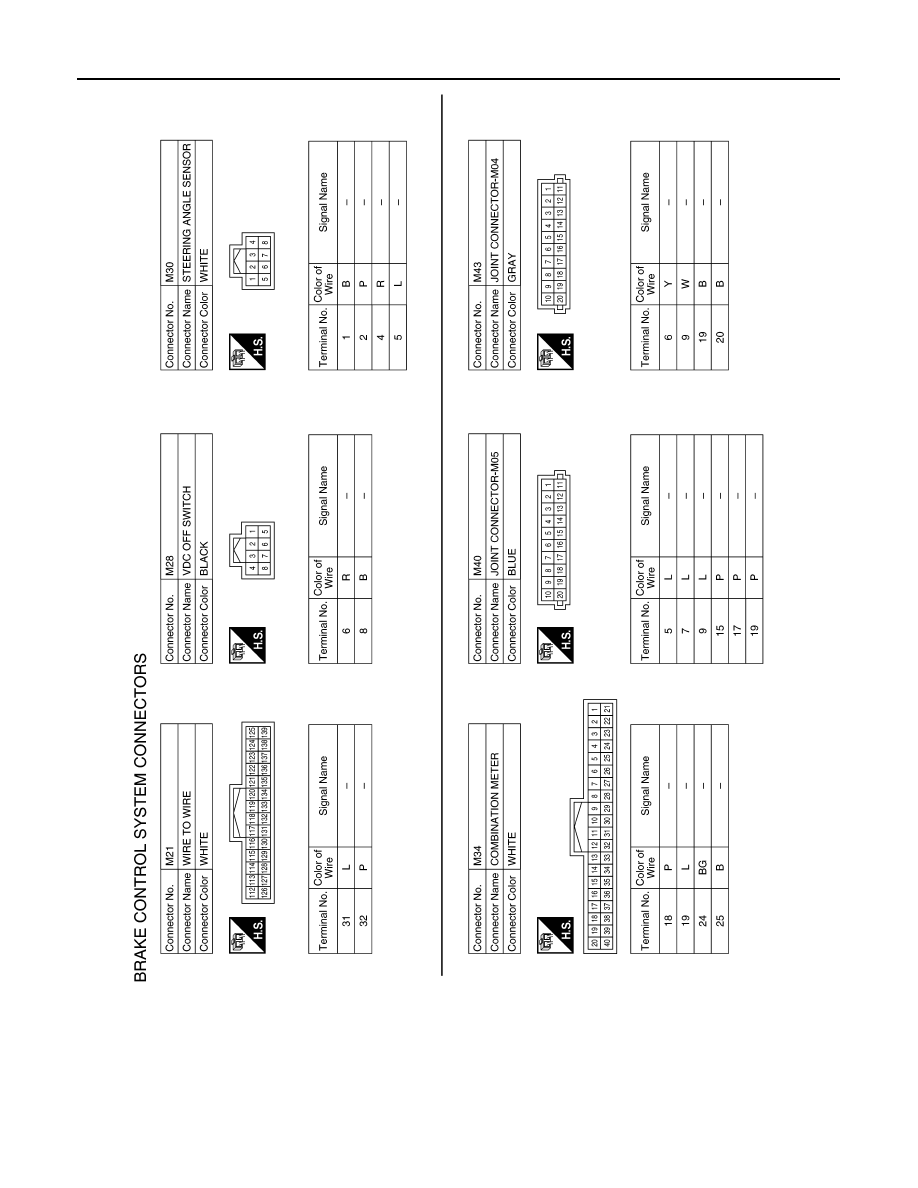

AAFIA0233GB

BRAKE CONTROL SYSTEM

BRC-61

< WIRING DIAGRAM >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

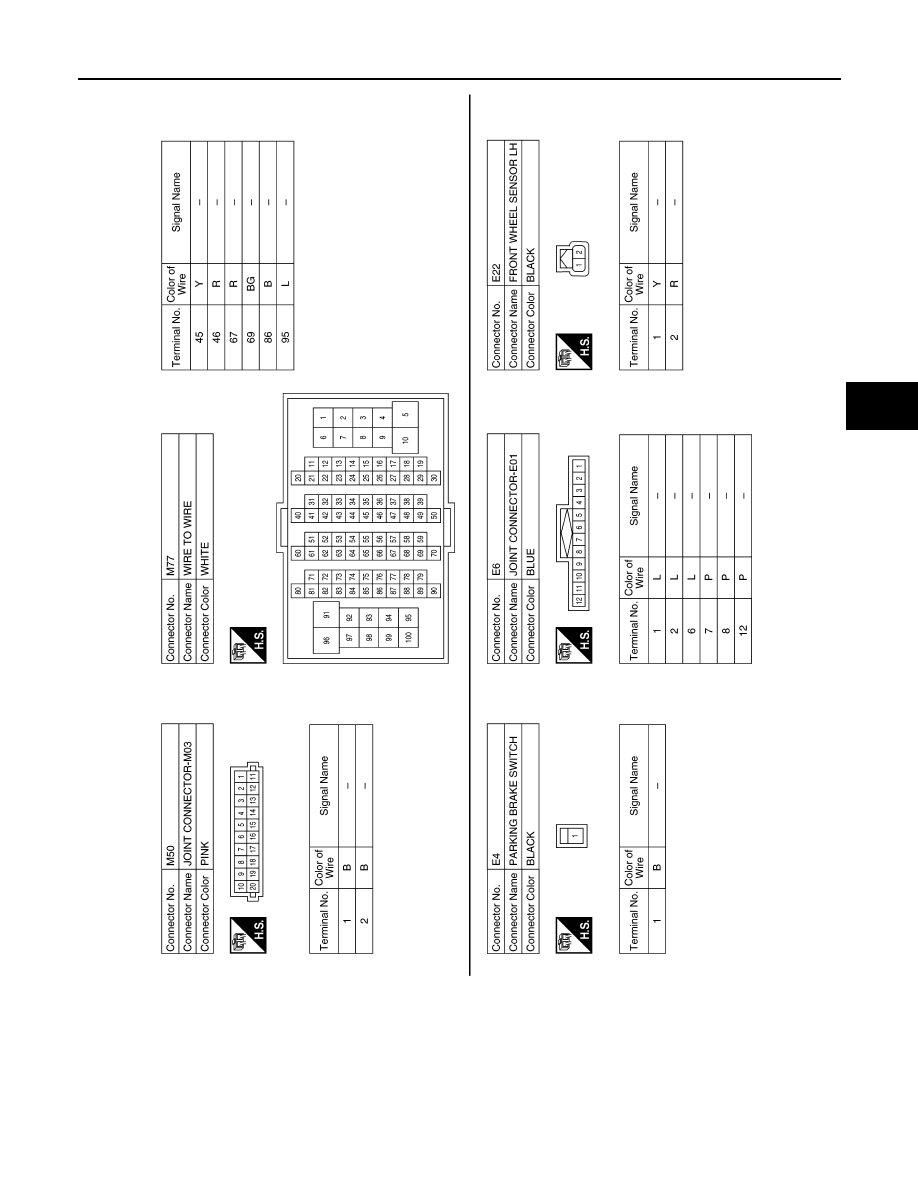

AAFIA0234GB
