OPERATION

AV-523

< SYSTEM DESCRIPTION >

[TELEMATICS SYSTEM]

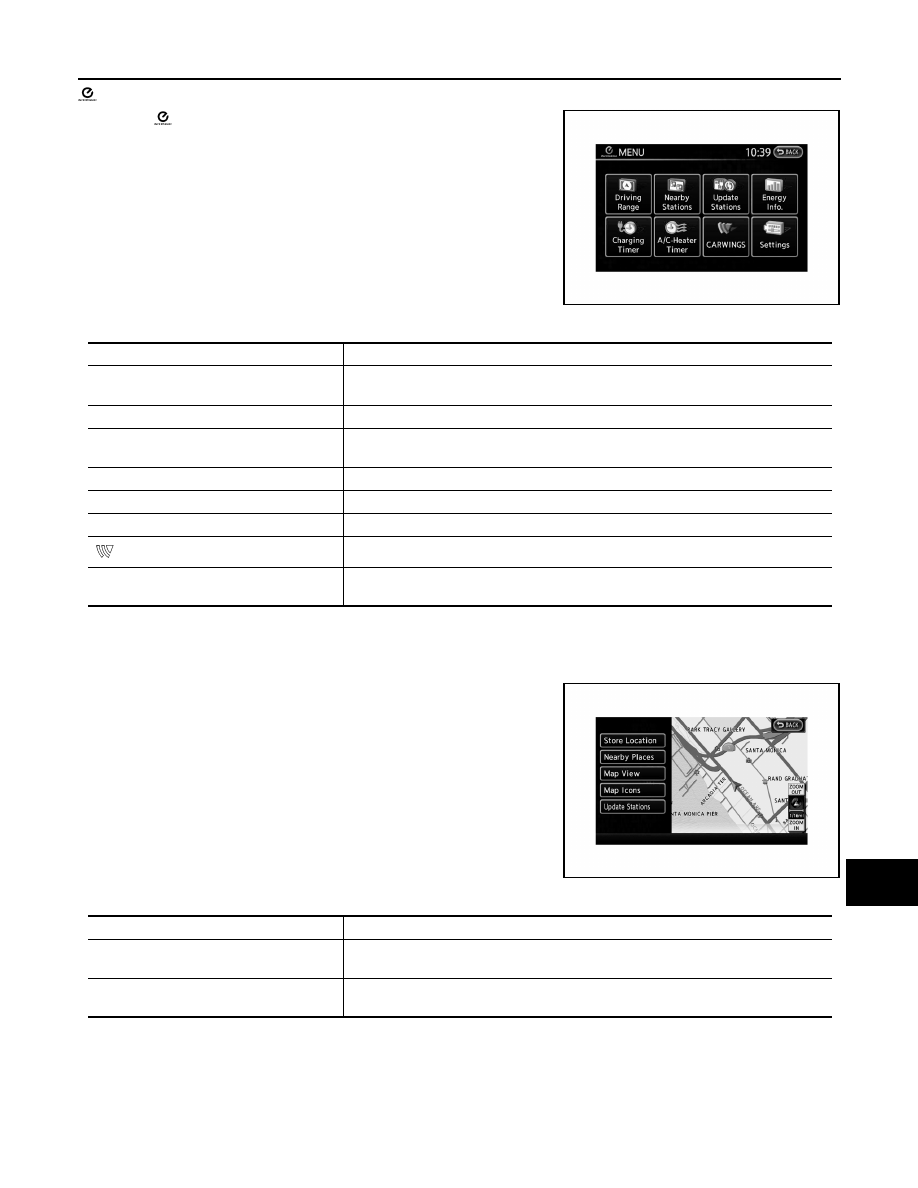

ZERO EMISSION MENU

When the ZERO EMISSION switch is pressed, the menu screen

is displayed.

MAP MENU

Map menu at current location

If the following operation is performed at the current location, the available map menu is displayed.

• Touch the "Map Menu" switch on the map.

AVA1283

Menu list

Description

Driving Range

The estimated driving area within range, including the current position is displayed on
the map screen.

Nearby Stations

Charging station information for the current position area is displayed.

Update Stations

Charging station information is updated through connection to the Nissan CARWINGS
Data Center.

Energy Info.

Energy information is displayed on the screen.

Charging Timer

The timer charge function can be set.

A/C-Heater Timer (Climate Ctrl. Timer)

The A/C-Heater Timer (Climate Ctrl. Timer) function can be set.

CARWINGS

Information channels are displayed and settings for CARWINGS can be performed.

Settings

Setting of the warning message display or the charging status notification can be per-
formed.

AVA1282

Menu item

Description

Store Location

Stores the current vehicle location in the Address Book. The stored location can be re-
trieved as necessary to set it as a destination (waypoint).

Quick Stop

Searches for points of interest near the current vehicle location, such as restaurants
and charging stations, etc.

AV-524

< SYSTEM DESCRIPTION >

[TELEMATICS SYSTEM]

OPERATION

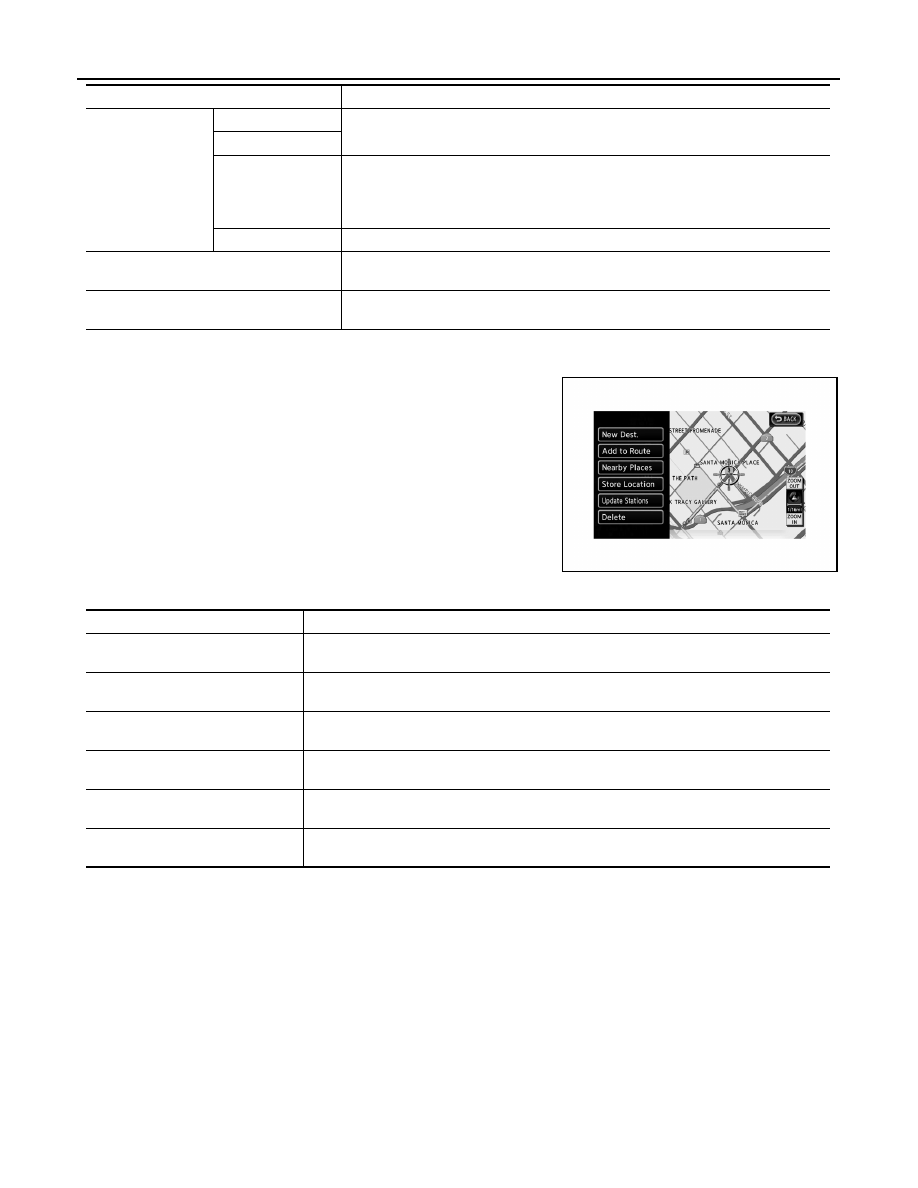

Map menu after scroll of map

If the following operation is performed after scrolling the map, the available map menu is displayed.

• Touch the "Map Menu" switch on the map.

Map Settings

Map View

The screen display [Plan view, Birdview

, split screen (2D/2D), split screen (2D/2D)]

can be changed.

Split Screen

Map Settings

Map Orientation (sets the map direction to North Up or Heading Up), Long Range (on/
off), Birdview Angle (Changes the Birdview

angle), Left Settings (sets the map set-

tings for the left screen of the split map) and Automatic Display of Highway Mode (on/
off) can be set.

Back to Map.

Return to the current position screen.

Landmark Icons

Displays map icons of certain points of interest (such as restaurants and charging sta-
tions, etc.) on the map around the current vehicle location

Update Station

Contact the Nissan CARWINGS Data Center to update charging station around the
current vehicle location.

Menu item

Description

AVA1284

Menu item

Description

New Dest.

Sets the destination to the map location where [New Dest.] is touched. If a destination is al-
ready set, the location is set as the new destination.

Add to Route

Sets the map location where [Add to Route] is touched as the destination or a waypoint. This
is available only when a suggested route is already set.

Quick Stop

Searches for points of interest such as restaurants and charging stations, etc. near the loca-
tion by scrolling the map.

Store Location

Store the map location where [Store location] is touched in the Address Book. The stored lo-
cation can be retrieved to set it as a destination or waypoint.

Update Stations

Contact the Nissan CARWINGS Data Center to update charging station around the point of
the cursor.

Delete

Deletes a destination, waypoint or stored location. To delete, place the cross pointer over the
corresponding icon.

HANDLING PRECAUTION

AV-525

< SYSTEM DESCRIPTION >

[TELEMATICS SYSTEM]

HANDLING PRECAUTION

Telematics&CARWINGS

INFOID:0000000010122737

• In the following cases, no CARWINGS services are available.

- When the user is not subscribed to the service.

- When the vehicle moves out of the radio receiving zone

- When the radio wave reception environment is not suitable for data communication.

- When the vehicle is in a location that may block radio waves such as in an underground parking lot, behind

a building, and in mountainous areas.

• Because the voice exchange with the CARWINGS information center uses the data communication mode,

the service area may be narrower and the connection availability may be worse than the normal telephone

system.

• Communication and calls to the CARWINGS information center require additional charges.

• If the vehicle is outside the communication area of TCU or the radio wave reception condition is poor, the

connection to the CARWINGS information center may not be available or interrupted.

• If the communication is interrupted during a data download through any of the available services, the data

must be downloaded again from the beginning.

• Because each of the available services uses data communication services, the connection to the CAR-

WINGS information center may not be available even when the radio reception symbols indicate a good sta-

tus. This is not a malfunction. In such a case, try to connect again after a short period of time.

• When transferring the vehicle, always cancel the membership. For details about the cancellation procedure,

contact the CARWINGS customer center.

AV-526

< SYSTEM DESCRIPTION >

[TELEMATICS SYSTEM]

DIAGNOSIS SYSTEM (TCU)

DIAGNOSIS SYSTEM (TCU)

CONSULT Function

INFOID:0000000010122738

CONSULT FUNCTIONS

CONSULT performs the following functions via communication with the TCU.

ECU IDENTIFICATION

The part number of TCU is displayed.

SELF DIAGNOSTIC RESULT

Refer to

AV-528, "DTC Index"

DATA MONITOR

WORK SUPPORT

CAN DIAG SUPPORT MNTR

Refer to

LAN-14, "CAN Diagnostic Support Monitor"

Direct Diagnostic Mode

Description

Ecu Identification

The AV control unit part number is displayed.

Self Diagnostic Result

The AV control unit self diagnostic results are displayed.

Data Monitor

The AV control unit input/output data is displayed in real time.

Work support

The settings for AV control unit functions can be changed.

CAN Diag Support Mntr

• The result of transmit/receive diagnosis of AV communication is displayed.
• The result of transmit/receive diagnosis of CAN communication is displayed.

Monitor Item [Unit]

Description

ECHO CANCEL [TYPE 1]

Echo cancel type is displayed.

NOISE CANCEL [TYPE 1]

Noise cancel type is displayed.

TCU STANDBY TIME [2DAYS/14DAYS/30DAYS]

TCU standby time is displayed.

NAD OUTPUT STATUS [On/Off]

TCU activation is displayed.

Conditions

Description

SAVE VIN DATA

VIN data saved in TCU is stored in CONSULT.

CENTER CONNECTION SETTING

Connection to CARWINGS data center can be set.

TCU ACTIVATE SETTING

Off: TCU activation Off.

On: TCU activation On.

WRITE VIN DATA

VIN data from SAVE VIN DATA can be written to new TCU.

WRITE VIN DATA (MANUAL)

VIN data can be manually written to new TCU.
