WW-56

< REMOVAL AND INSTALLATION >

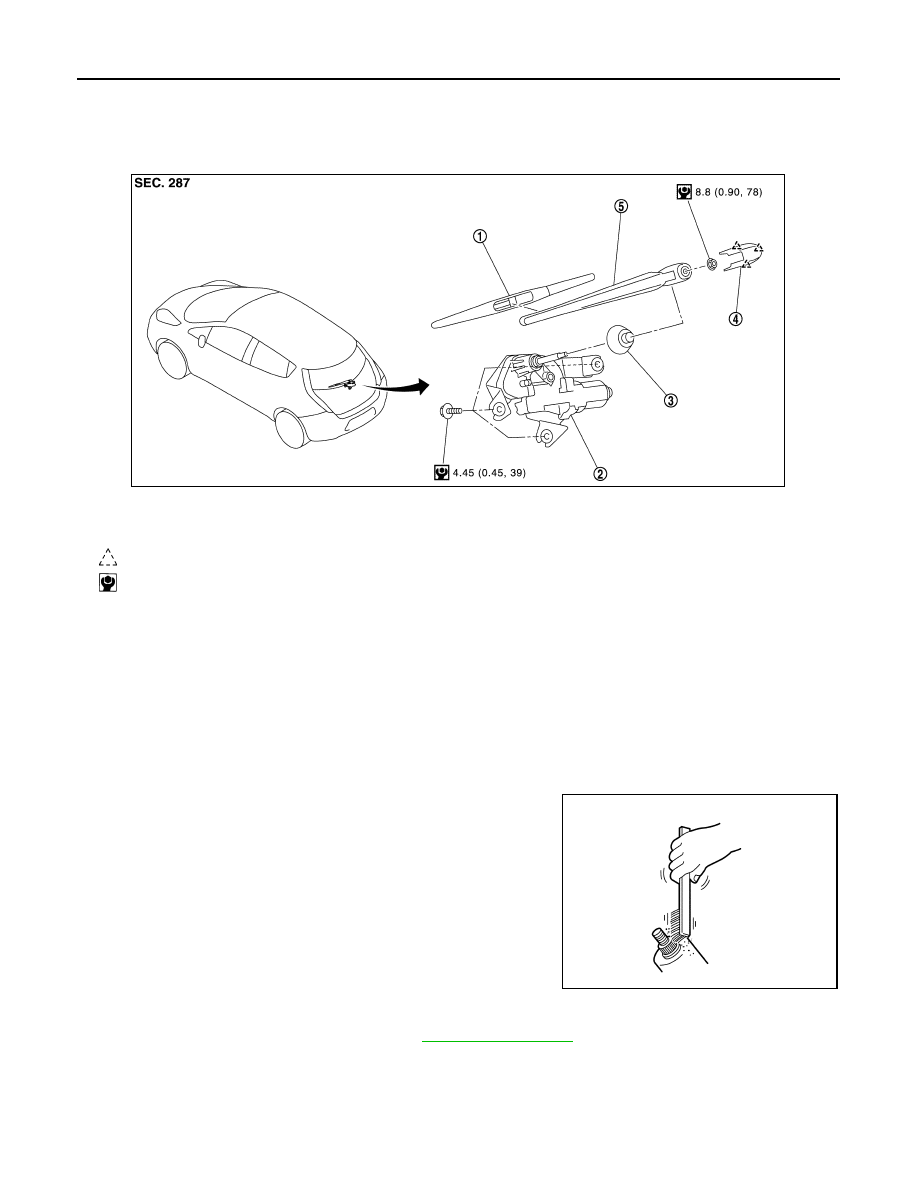

REAR WIPER ARM

REAR WIPER ARM

Exploded View

INFOID:0000000010122246

Removal and Installation

INFOID:0000000010122247

REMOVAL

1. Operate rear wiper to the auto stop position.
2. Remove rear wiper arm cover.
3. Remove rear wiper arm mounting nut.
4. Remove wiper arm from the vehicle.

INSTALLATION

1. Clean wiper arm mount as shown in the figure to prevent nut

from being loosened.

2. Operate the rear wiper motor to the auto stop position.
3. Adjust the rear wiper blade position. Refer to

WW-57, "Adjustment"

.

4. Install the rear wiper arm by tightening the mounting nut.
5. Inject the washer fluid.
6. Operate the rear wiper to the auto stop position.
7. Check that the rear wiper blades stop at the specified position.

1.

Rear wiper blade

2.

Rear wiper motor

3.

Rear wiper pivot seal

4.

Rear wiper arm cover

5.

Rear wiper arm

: Pawl

: N·m (kg-m, in-lb)

JMLIA1680GB

SKIA0082J

REAR WIPER ARM

WW-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

8. Install the rear wiper arm cover.

Adjustment

INFOID:0000000010122248

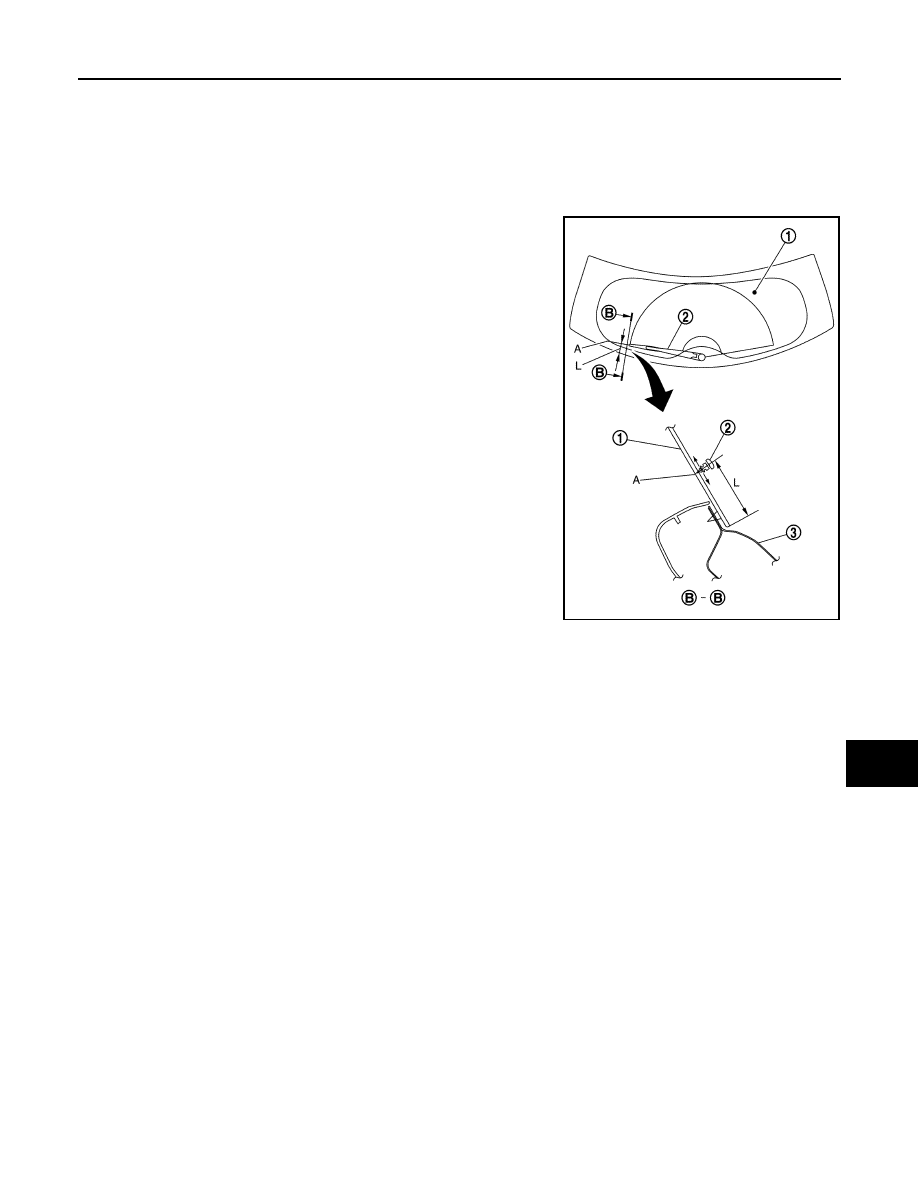

REAR WIPER BLADE POSITION ADJUSTMENT

Set the wiper blade top on the defrosting wire (A) (clearance between the end of back door glass and the top

of wiper blade center).

Standard clearance

1. Back door window glass
2. Rear wiper blade
3. Back door outer panel
A : Rear defogger wire print
L

: 53.1

± 7.5 mm (2.091 ± 0.295in)

JMLIA1681ZZ

WW-58

< REMOVAL AND INSTALLATION >

REAR WIPER MOTOR

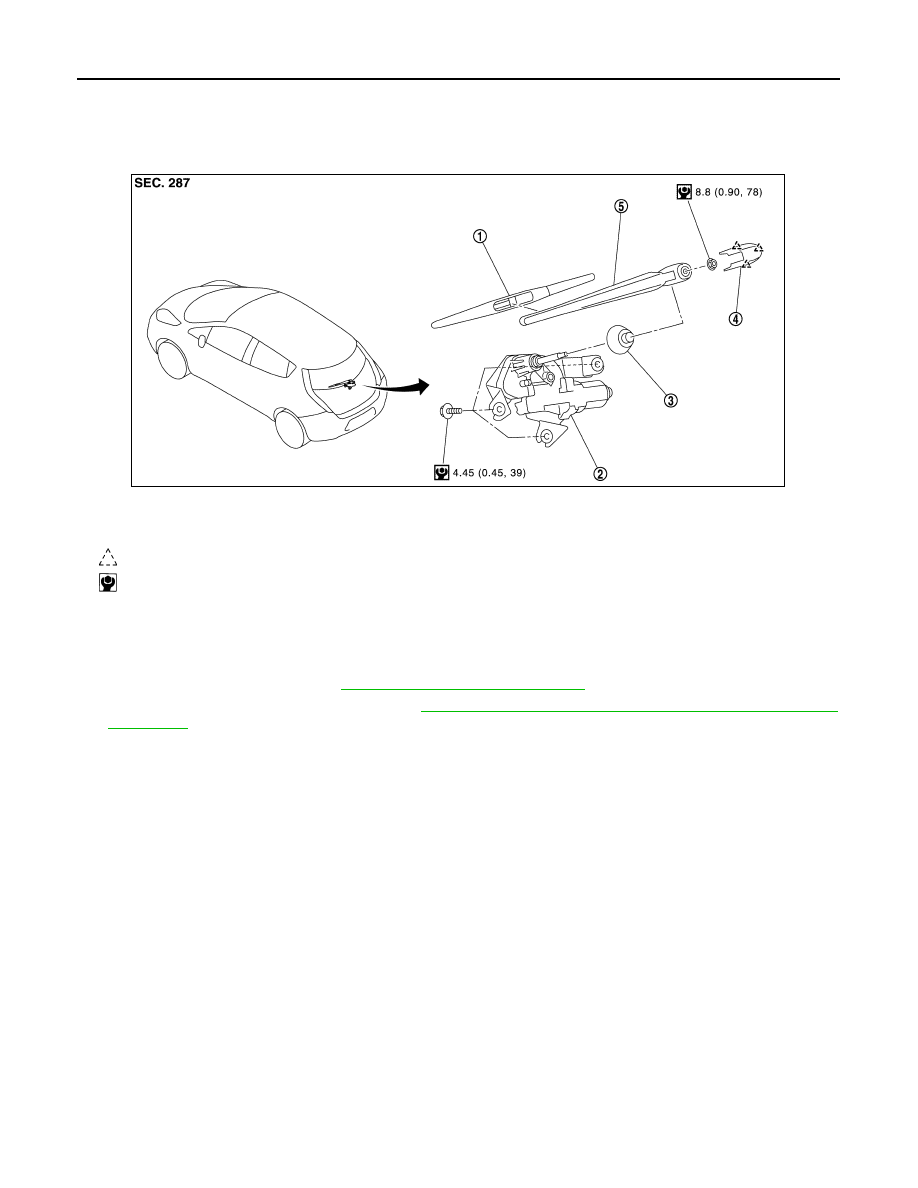

REAR WIPER MOTOR

Exploded View

INFOID:0000000010122249

Removal and Installation

INFOID:0000000010122250

REMOVAL

1. Remove rear wiper arm. Refer to

WW-56, "Removal and Installation"

.

2. Remove back door lower finisher. Refer to

INT-48, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

3. Disconnect rear wiper motor harness connector.
4. Remove rear wiper motor mounting bolts.
5. Remove rear wiper motor from the vehicle.
6. Remove the pivot seal.

INSTALLATION

Install in the reverse order of removal.

1.

Rear wiper blade

2.

Rear wiper motor

3.

Rear wiper pivot seal

4.

Rear wiper arm cover

5.

Rear wiper arm

: Pawl

: N·m (kg-m, in-lb)

JMLIA1680GB

REAR WASHER NOZZLE AND TUBE

WW-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

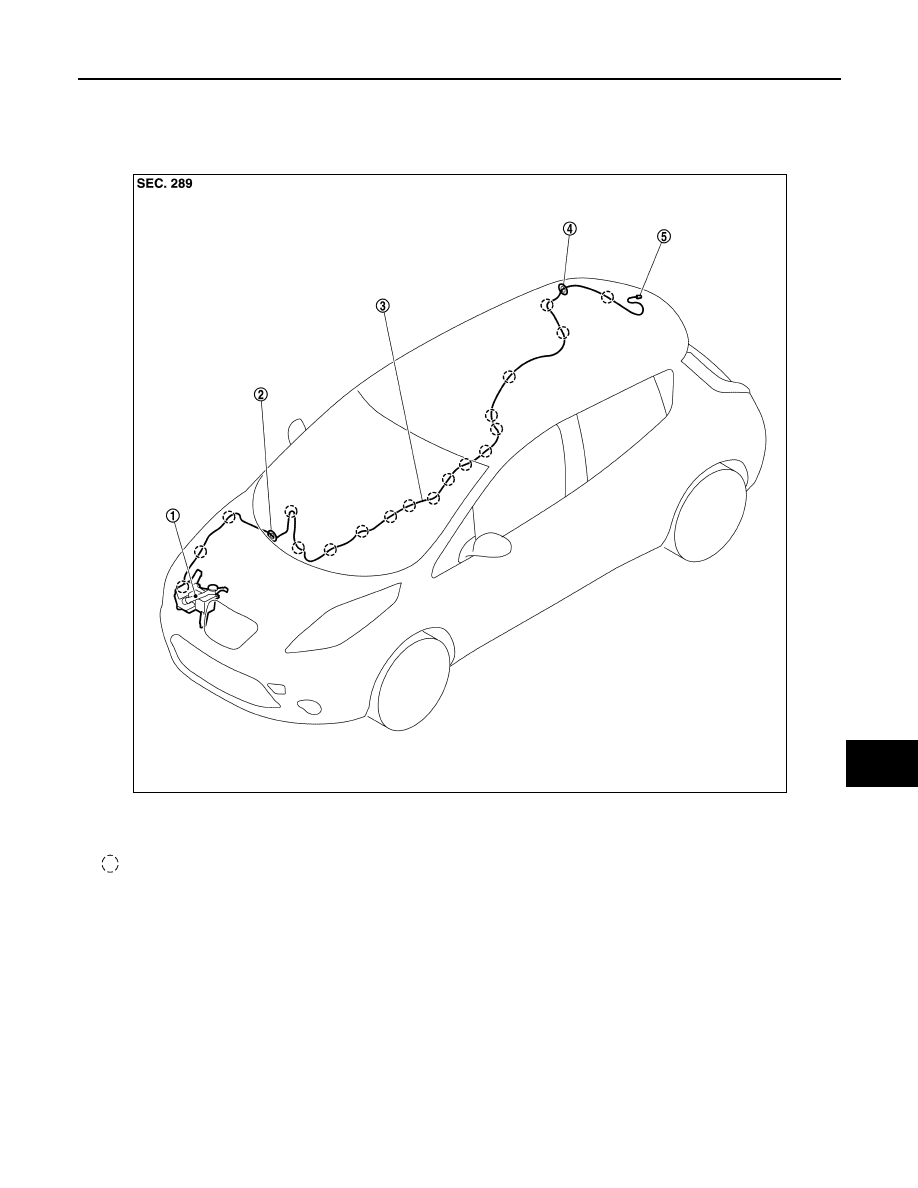

REAR WASHER NOZZLE AND TUBE

Hydraulic Layout

INFOID:0000000010122251

Removal and Installation

INFOID:0000000010122252

REMOVAL

1.

Washer tank

2.

Front grommet

3.

Rear washer tube

4.

Rear grommet

5.

Rear washer nozzle

: Clip

JMLIA1684ZZ
