COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

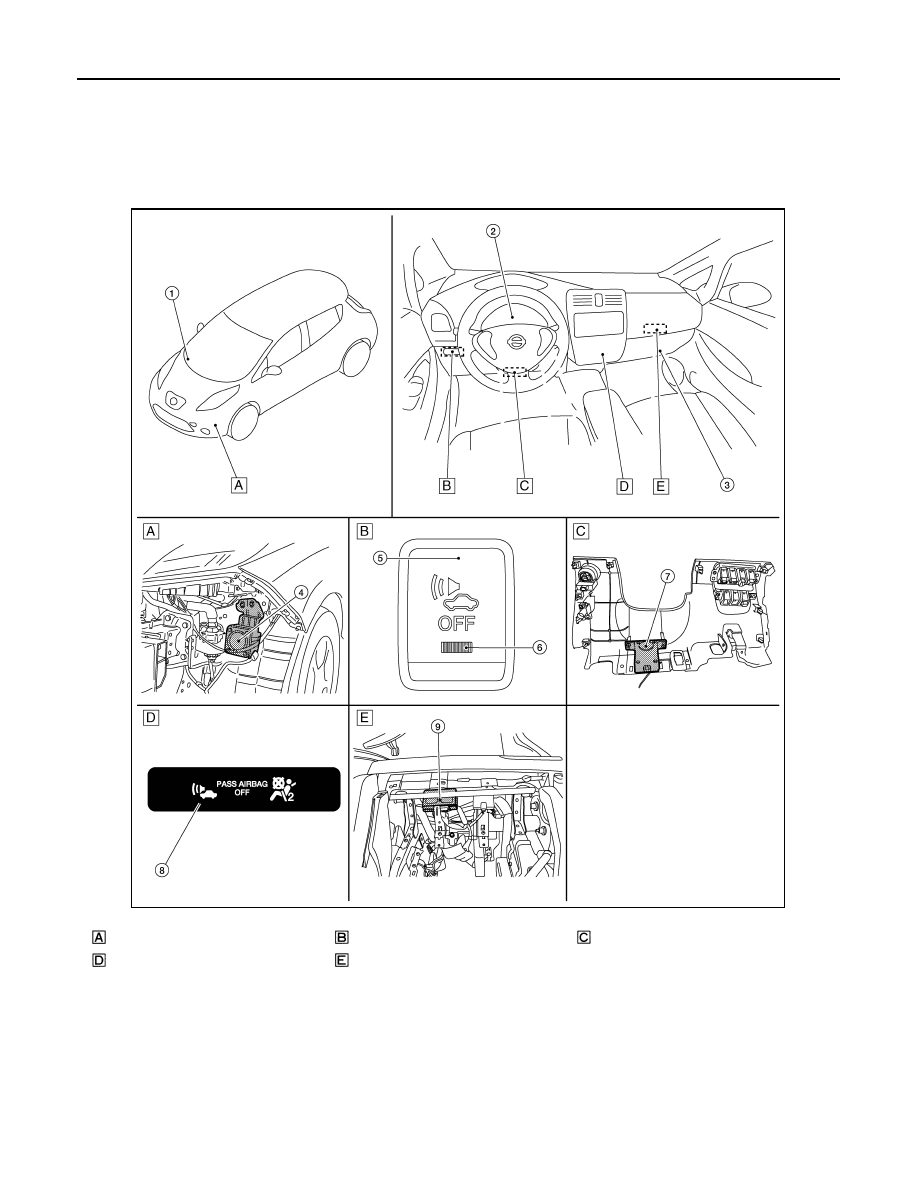

Component Parts Location

INFOID:0000000010121561

Left inside of front bumper

Instrument lower panel LH (Mexico)

Instrument lower panel LH reverse side

Cluster lid C

Inside glove box cover assembly

ALLIA1424ZZ

COMPONENT PARTS

VSP-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

VSP

N

O

P

Approaching Vehicle Sound For Pedestrians (VSP) Speaker

INFOID:0000000010121562

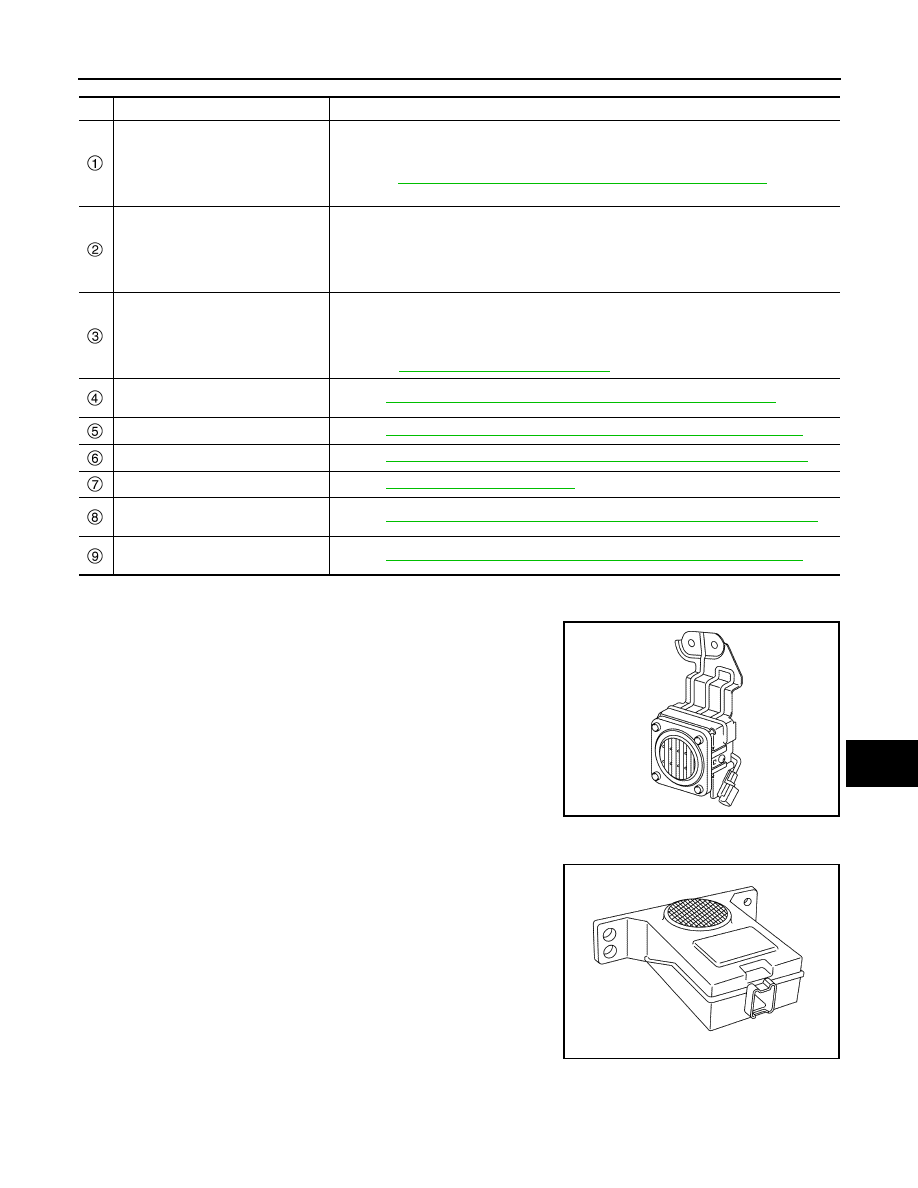

• The VSP speaker is located on the left inside of the front bumper.

• The VSP speaker outputs the approaching vehicle sound for

pedestrians (VSP) and charge sound according to the VSP

speaker signal from the VSP control unit.

Start Up Sound Speaker

INFOID:0000000010121563

• The start up sound speaker is located on the reverse side of instru-

ment lower panel LH.

• The start up sound speaker outputs the start up sound according

to the start up sound speaker signal from the VSP control unit.

Component

Description

BCM

• Transmits the stop lamp switch signal to the VSP control unit via the CAN communica-

tion.

• Outputs the power switch signal to the VSP control unit.
• Refer  to

BCS-5, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed

installation location.

Combination meter

• Transmits the following signals to the VSP control unit via the CAN communication.
- Vehicle speed signal
- Sound set request signal
- Sound signal
• Sets the sound type of the start up sound function.

VCM

• Transmits the following signals to the VSP control unit via the CAN communication.
- READY to drive indicator lamp request signal
- Charge sound request signal
- Shift position signal
• Refer  to

EVC-15, "Component Parts Location"

 for detailed installation location.

Approaching vehicle sound for pe-
destrians (VSP) speaker

Refer to

VSP-9, "Approaching Vehicle Sound For Pedestrians (VSP) Speaker"

.

VSP OFF switch (Mexico)

Refer to

VSP-10, "Approaching Vehicle Sound For Pedestrians (VSP) OFF Switch"

.

VSP OFF indicator (Mexico)

Refer to

VSP-10, "Approaching Vehicle Sound For Pedestrian (VSP) OFF Indicator"

.

Start up sound speaker

Refer to

VSP-9, "Start Up Sound Speaker"

.

Approaching vehicle sound for pe-
destrians (VSP) warning lamp

Refer to

VSP-10, "Approaching Vehicle Sound For Pedestrians (VSP) Warning Lamp"

.

Approaching vehicle sound for pe-
destrians (VSP) control unit

Refer to

VSP-10, "Approaching Vehicle Sound For Pedestrians (VSP) Control Unit"

.

JSMIA0548ZZ

JSMIA0550ZZ

VSP-10

< SYSTEM DESCRIPTION >

COMPONENT PARTS

Approaching Vehicle Sound For Pedestrians (VSP) Control Unit

INFOID:0000000010121564

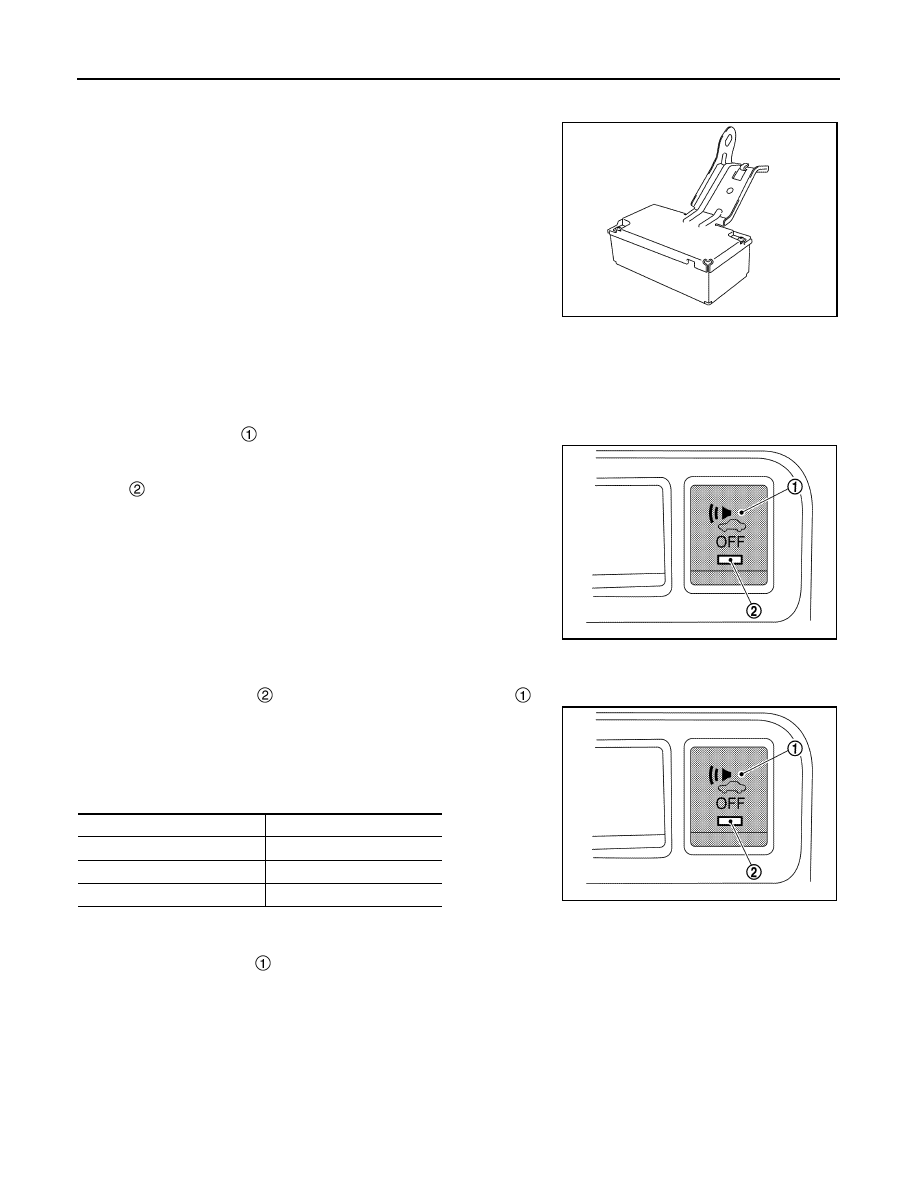

• The VSP control unit is located inside the glove box cover assem-

bly.

• The VSP control unit contains 2 power amplifiers for the VSP

speaker and start up sound speaker.

• The VSP control unit controls the following systems according to

the signals from each unit via CAN communication and the signals

from switches.

- VSP system

- Start up sound system

- Charging sound system

• When the VSP control unit judges that VSP system and charge

sound system operation is necessary, it outputs the VSP speaker

signal to the VSP speaker.

• When the VSP control unit judges that operation of the start up sound system is necessary, it outputs the

start up sound speaker signal to the start up sound speaker.

Approaching Vehicle Sound For Pedestrians (VSP) OFF Switch

INFOID:0000000010309852

• The VSP OFF switch   is located on the instrument lower panel LH.

• The VSP OFF switch can stop operation of the VSP system and

resume operation.

• The VSP OFF switch outputs the VSP OFF switch signal to the

VSP control unit.

Approaching Vehicle Sound For Pedestrian (VSP) OFF Indicator

INFOID:0000000010309885

• The VSP OFF indicator   is located on the VSP OFF switch  .

• The VSP OFF indicator turns ON/OFF according to the VSP OFF

indicator signal from the VSP control unit.

• The VSP OFF indicator can check the operating status of the VSP

system.

Approaching Vehicle Sound For Pedestrians (VSP) Warning Lamp

INFOID:0000000010121565

• The VSP warning lamp   is located on the cluster lid C.

JSMIA0549ZZ

: VSP OFF indicator

JSMIA1192ZZ

VSP system status

VSP OFF indicator

Operating

OFF

Stopped

ON

Error

ON

JSMIA1192ZZ

COMPONENT PARTS

VSP-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

VSP

N

O

P

• The VSP warning lamp can check the operating status of the VSP

system.

VSP system status

VSP warning lamp

Error

ON

JSMIA0833ZZ
