QUICK CHARGE PORT

VC-131

< REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

VC

N

O

P

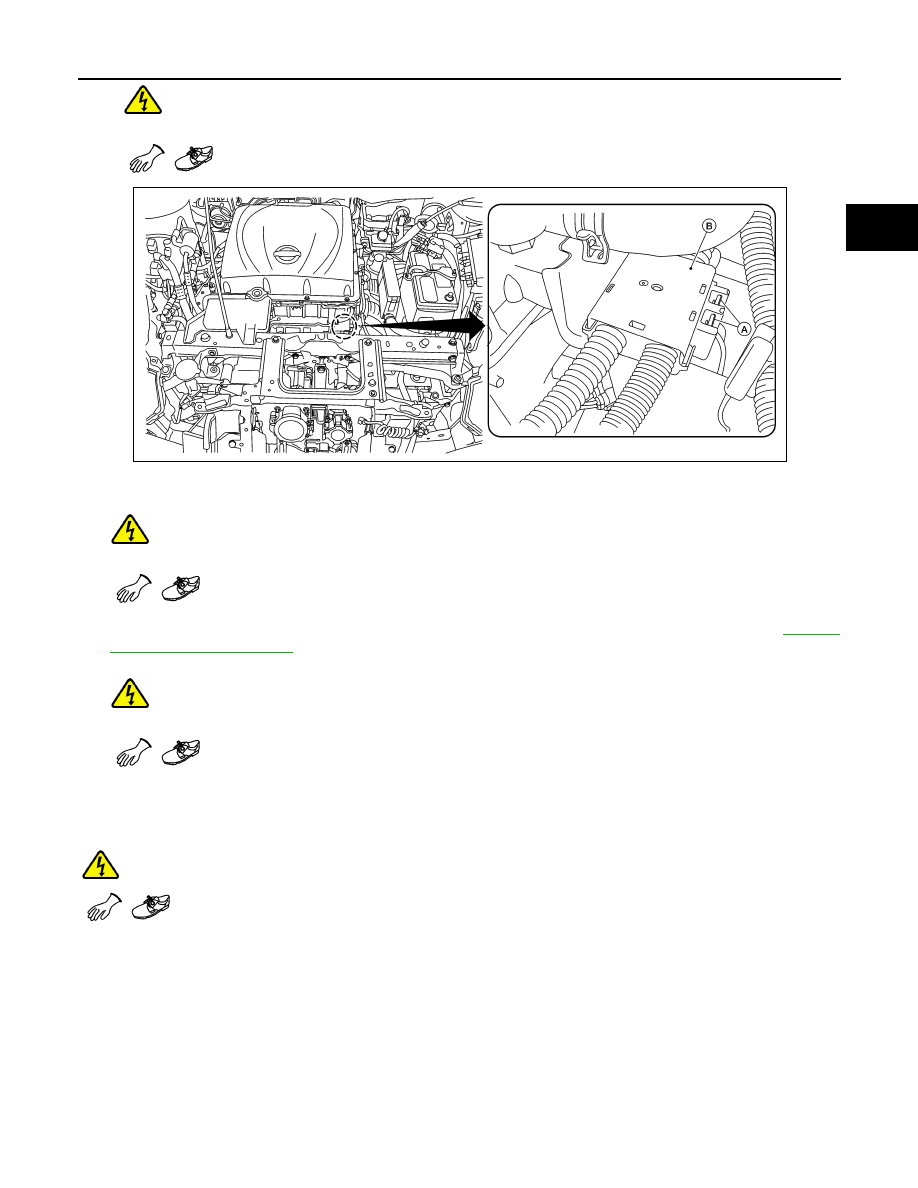

Be sure to put on insulating protective gear before beginning work on the high voltage sys-

tem.

9. Pull out the quick charge port toward the rear of the vehicle.

WARNING:

Be sure to put on insulating protective gear before beginning work on the high voltage sys-

tem.

10. Remove the PDM (Power Delivery Module) before removing the quick charge port. Refer to

VC-112,

"Removal and Installation"

.

WARNING:

Be sure to put on insulating protective gear before beginning work on the high voltage sys-

tem.

INSTALLATION

To install, be careful to the following items and follow procedure in the reverse order of removal.

WARNING:

Be sure to put on insulating protective gear before beginning work on the high voltage system.

CAUTION:

Be sure to reinstall high-voltage harness clips in their original positions. If a clip is damaged, replace it

with a new clip before installing.

Disassembly and Assembly

INFOID:0000000010121298

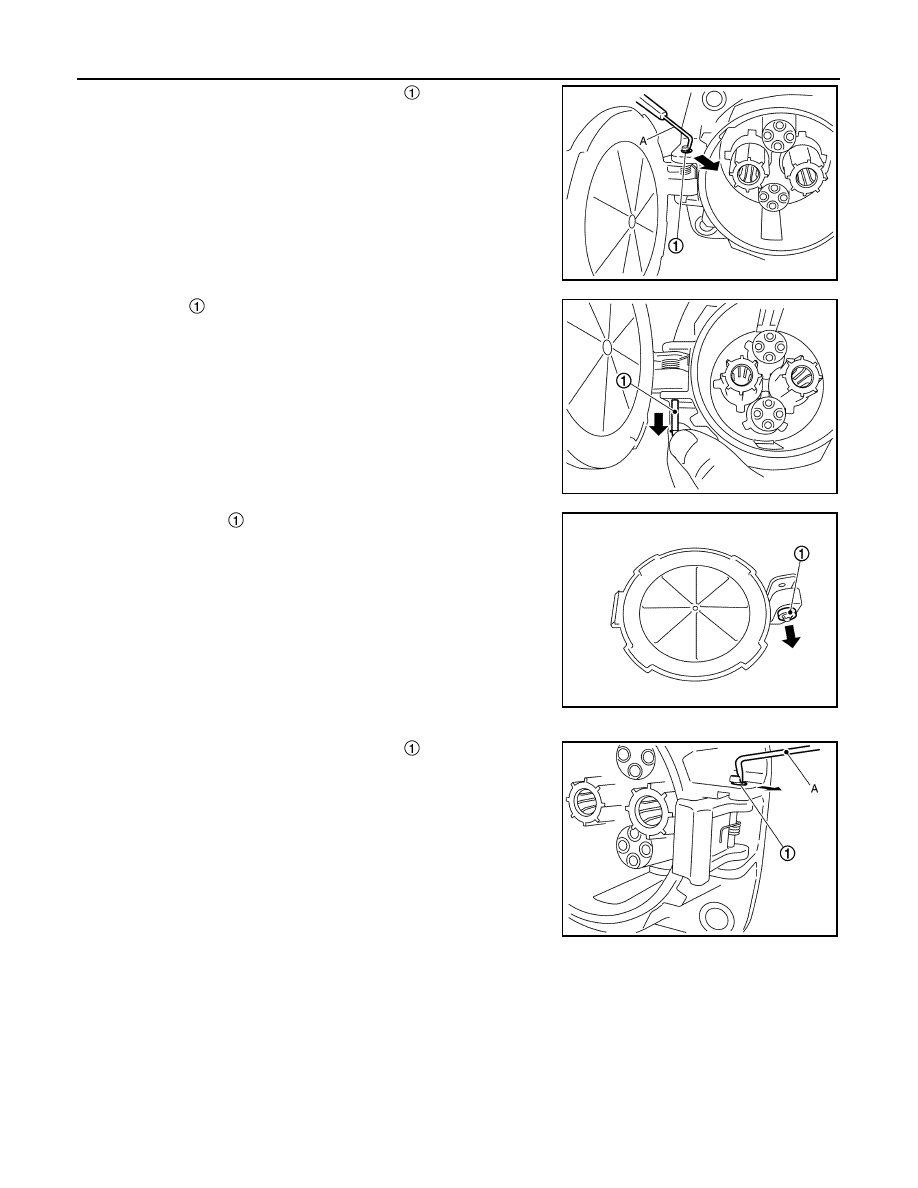

DISASSEMBLY

Cover Side

ALCIA0116ZZ

VC-132

< REMOVAL AND INSTALLATION >

QUICK CHARGE PORT

1. Use a suitable tool (A) to remove the clip   that is attached to

the pin.

2. Pull out pin   of charge port cover.

CAUTION:

When pin is pulled out, the spring will also jump out. Take

care not to lose it.

3. Remove damper   from charge port cover.

Lever Side

1. Use a suitable tool (A) to remove the clip   that is attached to

the pin.

JSCIA0213ZZ

JSCIA0214ZZ

JSCIA0215ZZ

JSCIA0216ZZ

QUICK CHARGE PORT

VC-133

< REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

VC

N

O

P

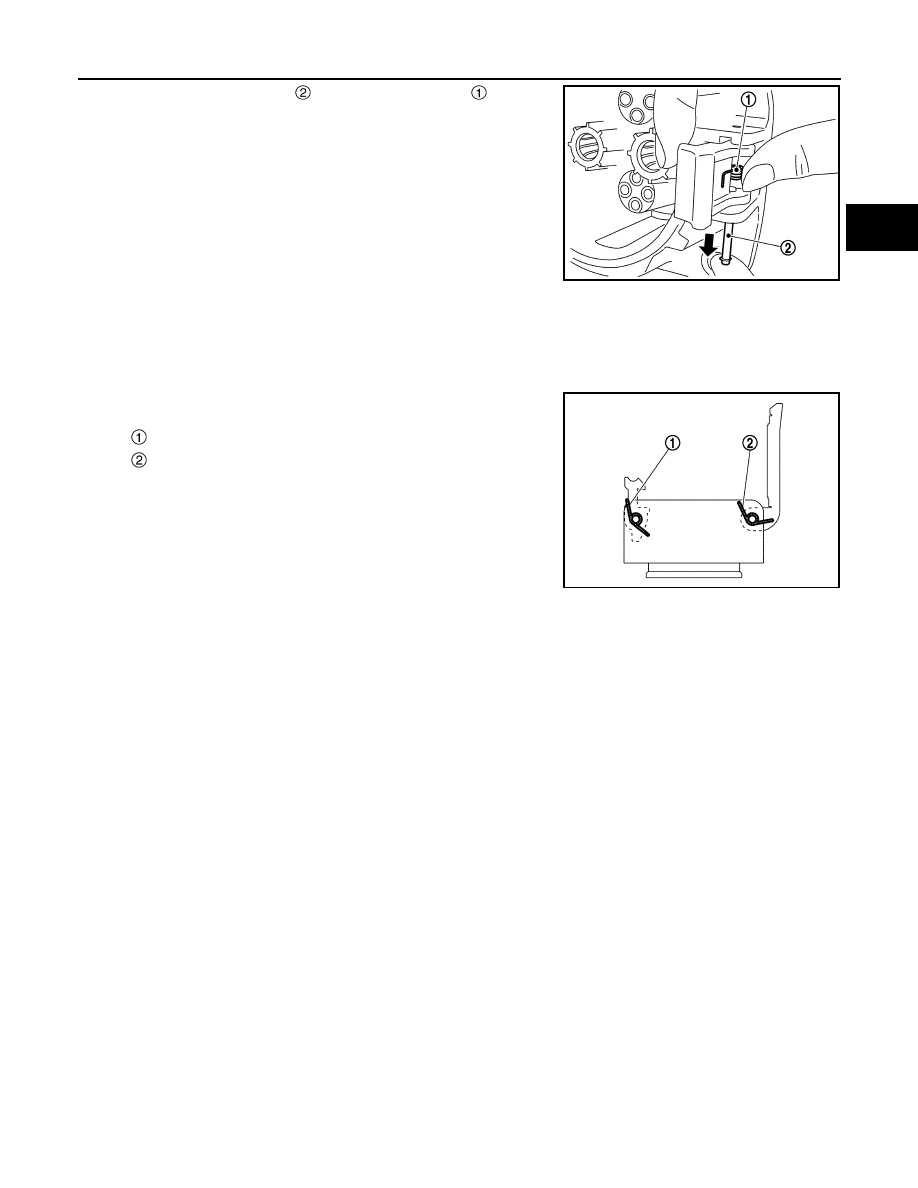

2. Press while removing pin   to ensure that spring   does not

jump out, then remove lever.

ASSEMBLY

Note the following, and assemble in the reverse order of disassembly.

CAUTION:

• Never reuse the clips.

• Pay attention to direction that cover side damper is facing.

• Pay attention to direction that spring is facing.

JSCIA0217ZZ

: Spring (small)

: Spring (large)

JSCIA0381ZZ

VC-134

< REMOVAL AND INSTALLATION >

NORMAL CHARGE PORT

NORMAL CHARGE PORT

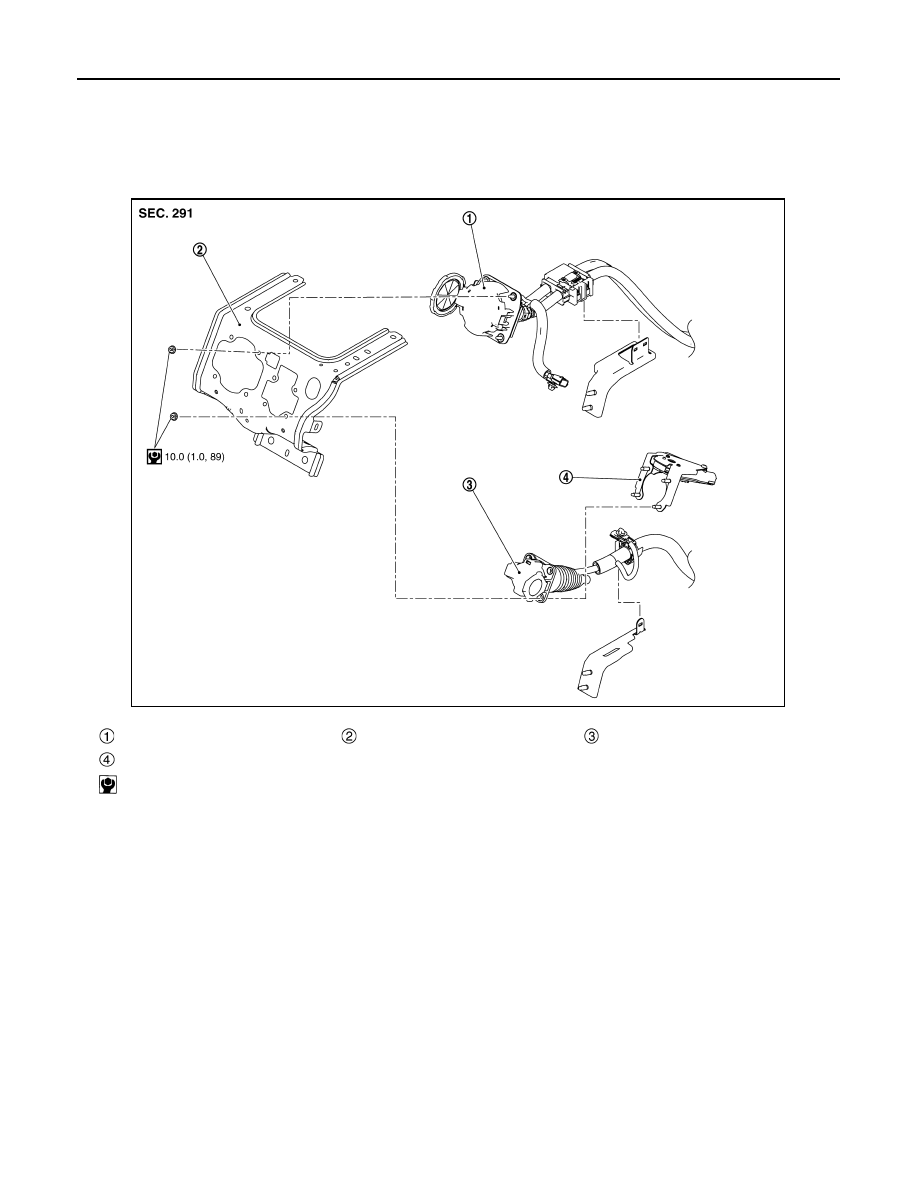

Exploded View

INFOID:0000000010121299

REMOVAL

DISASSEMBLY

Quick charge port

Charge port bracket

Normal charge port

Charge connector lock acutuator

: N·m (kg-m, in-lb)

JPCIA0318GB
