ECU DIAGNOSIS INFORMATION
PDM(POWER DELIVERY MODULE)

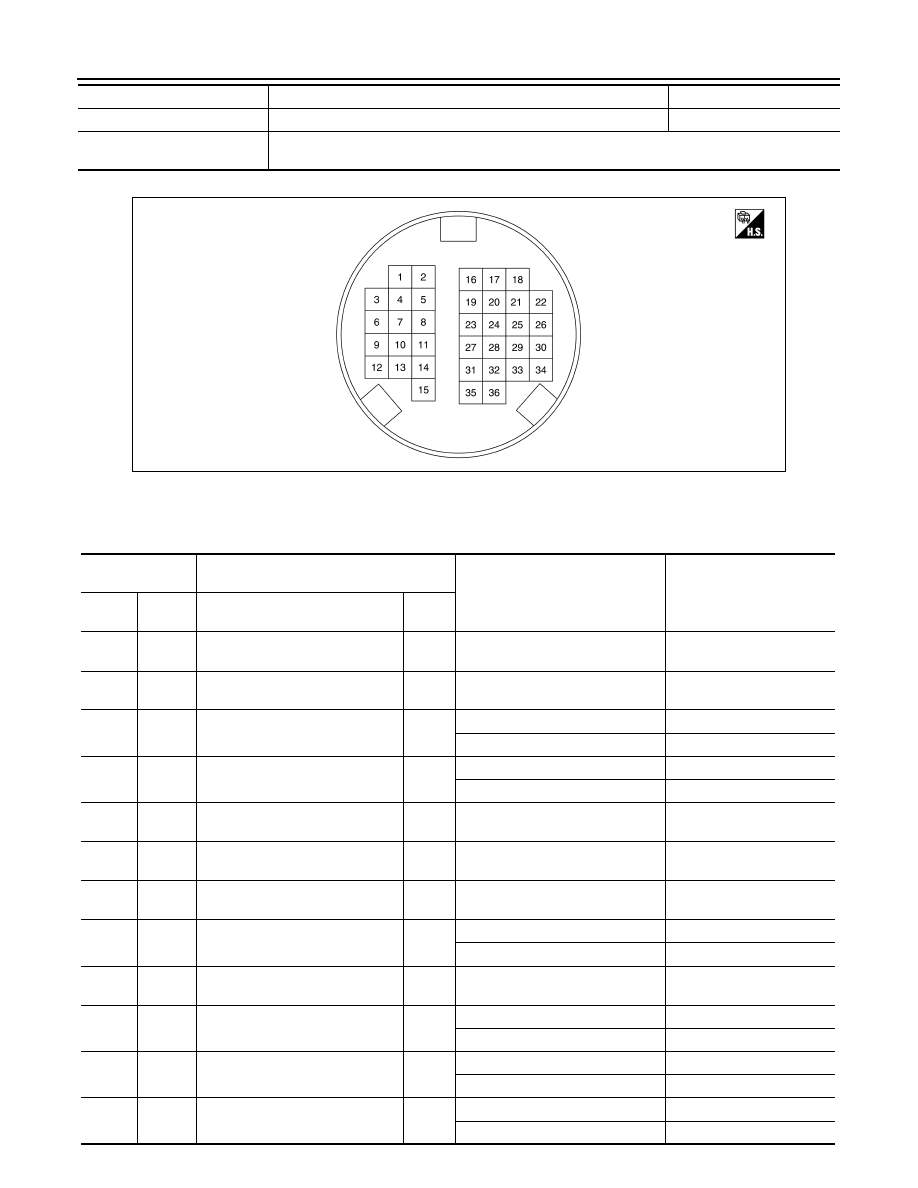

Reference Value
INFOID:0000000010121223
VALUES ON THE DIAGNOSIS TOOL
Specification data represents reference values.
NOTE:
• The displayed data may differ from an actual signal/value/operation, as some of them are calculated by PDM
(Power Delivery Module), based on signals transmitted from PDM (Power Delivery Module)-related sensors
to PDM (Power Delivery Module).
• Li-ion battery charge does not start when the power switch is ON. When it is required to charge with the
power switch ON, start charging before turning ON the power switch.
Monitor item
Condition
Values/status
Q/CHG CONNECT DETECT
POWER ON
Quick charging connector: Con-
nected
CNCT
Quick charging connector: Not
connected
DISCNCT
Q/CHG START/STOP SIG 1
The quick charger start switch is OFF and not under quick charge.
OFF
The quick charger start switch ON or under quick charge.
ON
Q/CHG START/STOP SIG 2
In the process of quick charge after the normal completion of insula-
tion resistance check.
ON
For a few seconds after turning ON the quick charger start switch.
OFF
QUICK CHARGE PERMIT
Quick charger start switch is OFF. Not in process of quick charge.
HIGH
A lapse of a few seconds after turning ON the quick charger start
switch.
HIGH
⇒LOW
Q/CHG RELAY +
Quick charging in progress
On
Not quick charging
Off
Q/CHG RELAY
−
Quick charging in progress
On
Not quick charging
Off
PWM SIGNAL
Normal charging in progress
COMM
Except above
No COM
EVSE STATE JUDG
When the EVSE charge connector is connected
CNCT
Normal charging in progress
INPUT
When the EVSE change connector is not connected
NONE
Except above
NO CNCT OR ERROR
WELD DIAG VOL
Quick charging in progress
PRESENT
Except above
ABSENT
PD MODULE TEMP
Depending on the PDM (Power Delivery Module) temperature.
−40 – 215°C
Indicates depending on the
PDM (Power Delivery Mod-
ule) temperature.
EV SYS W/L REQ
Power switch: ON
EV system warning lamp signal:
Transmission
On
EV system warning lamp signal:
Non-transmission
Off
F/S REQ
Stop charging occurs during norma/quick charging
On
Except above
Off
Q/CHG PORT TEMP
When the quick charge port is abnormally hot
NG
Except above
OK
