DIAGNOSIS AND REPAIR WORK FLOW

TMS-37

< BASIC INSPECTION >

D

E

F

G

H

I

J

K

L

M

A

B

TMS

N

O

P

NOTE:

If no DTC is detected, refer to the freeze frame data.
Is any DTC detected?

YES

>> GO TO 7.

NO

>> Check according to

GI-53, "Intermittent Incident"

.

7.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the detected malfunctioning parts.

Reconnect parts or connector after repairing or replacing, and then erase DTC if necessary.

>> GO TO 8.

8.

FINAL CHECK

Perform “DTC CONFIRMATION PROCEDURE” again to make sure that the repair is correctly performed.

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,

referring to the symptom inspection result in step 4 or 5.
Is DTC or malfunction symptom reproduced?

YES

>> GO TO 2.

NO

>> Before delivering the vehicle to the customer, make sure that DTC is erased.

Question sheet

INFOID:0000000010120919

DESCRIPTION

By understanding those conditions properly, a quick and exact diag-

nosis can be achieved.

In general, customers have their own criteria for a problem. There-

fore, it is important to understand the symptom and status well

enough by asking the customer about the concerns carefully. In

order to systemize all the information for the diagnosis, prepare the

question sheet referring to the question points.

WORKSHEET SAMPLE

SEF907L

Question Sheet

Customer name
MR/MS

Motor No.

Inverter No.

Incident Date

VIN

Model & Year

In Service Date

Trans.

Mileage

km/mile

Symptoms

†

 Does not to READY

†

 EV system warning lamp is on

†

 Power limitation indicator

lamp is on

†

 Water leak*

†

 Noise*

†

 Vibration*

†

 Shock*

†

 Gear noise*

†

 Non driving*

†

 Poor acceleration*

†

 Poor torque*

†

 Radio noise*

†

 Does not charge

†

 Other*

*: If applied, enter in detail

Detailed symptom

Onomatopoeia

Frequency

†

 All the time

†

 Once

†

 Sometimes (

times a day)

†

 Other

Weather
conditions

†

 Not affected

TMS-38

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

Weather

†

 Fine

†

 Clouding

†

 Raining

†

 Snowing

†

 Other (

)

Temp.

†

 Hot

†

 Warm

†

 Cool

†

 Cold

†

 Temp. [Approx.

°C

(

°F)]

Humidity

†

 High

†

 Middle

†

 Low

†

 Humidity (Approx.

%)

Road conditions

†

 Not affected

†

 In town

†

 Freeway

†

 Off road (Up / Down)

†

 Deplorable

road

†

 Flat road

†

 While turning (Right / Left)

†

 Bump

†

 Other

Shift position

†

 Not affected

†

 P position

†

 R position

†

 N position

†

 D position

†

 B position

†

 ECO mode

Driving conditions

†

 Not affected

†

 Power switch ON

→ OFF

†

 Power switch OFF

→ ON

†

 READY (stop the vehicle)

†

 While cruis-

ing

†

 While decel-

erating

†

 Just before

stopping

†

 Just after stop-

ping

†

 D position (stop the vehicle)

†

 While recharging

†

 Other

†

 Vehicle speed [

km/h (

MPH)]

†

 Accelerator pedal (

/ 8)

†

 Battery level (Low / Middle / High)

Moments when mal-
function disappears

†

 Disappears while driving

†

 Disappears when stopped

†

 Disappears with select oper-

ation

†

 Disappears when power switch

is pushed OFF

†

 Disappears when battery charge is

stopped

†

 Does not disappear

†

 Other

Other

Question Sheet

RESOLVER WRITE

TMS-39

< BASIC INSPECTION >

D

E

F

G

H

I

J

K

L

M

A

B

TMS

N

O

P

RESOLVER WRITE

Description

INFOID:0000000010120920

If the work listed below was performed, it is necessary to perform writing of the traction motor resolver offset to

the traction motor inverter.

• Replacement of traction motor

• Replacement of traction motor inverter

• Replacement of traction motor and traction motor inverter

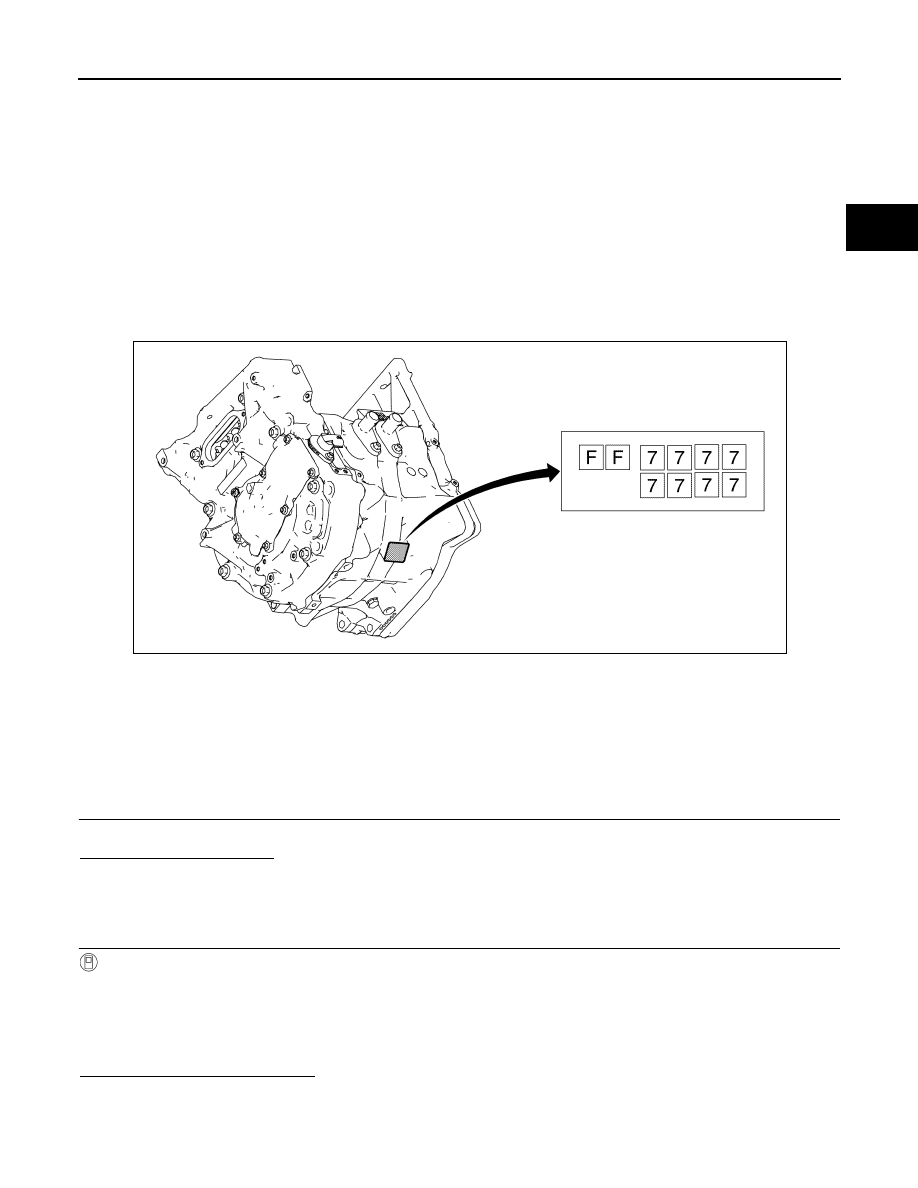

Location of traction motor resolver offset stamp

NOTE:

Because the traction motor resolver offset stamp is located on the lower side of the traction motor, it is neces-

sary to remove the under cover in order to check it.

Work Procedure

INFOID:0000000010120921

CAUTION:

If the traction motor inverter was replaced, then the EV system warning lamp illuminates when the

power switch is turned ON, and DTC “P325C” is detected. Therefore after writing of the traction motor

resolver offset is completed, verify that the EV system warning lamp has turned off and erase DTC

“P325C”.

1.

CHECK BEFORE PERFORMING WRITING OF THE TRACTION MOTOR RESOLVER OFFSET

Check the replaced parts.
Which parts were replaced?

Traction motor>>GO TO 2.

Traction motor inverter>>GO TO 3.

Traction motor and traction motor inverter>>GO TO 3.

2.

WRITING OF THE TRACTION MOTOR RESOLVER OFFSET

With CONSULT

1. Power switch ON.

2. Select “Work Support” in “MOTOR CONTROL”.

3. Select “RESOLVER WRITE”.

4. Enter the traction motor resolver offset.

5. Touch “WRITE”.
Is “Writing is complete”displayed?

YES

>> 1. Power switch OFF.

2. Power switch ON and wait 2 seconds or more.

3. Confirm the value is changed according to the correction value input.

JSCIA0663ZZ

TMS-40

< BASIC INSPECTION >

RESOLVER WRITE

4. Power switch OFF to complete the work.

NO

>> Perform again STEP 2.

3.

WRITING OF THE TRACTION MOTOR RESOLVER OFFSET

With CONSULT

1. Power switch ON.

NOTE:

EV system warning lamp turns on.

2. Select “Work Support” in “MOTOR CONTROL”.

3. Select “RESOLVER WRITE”.

4. Enter the traction motor resolver offset.

5. Touch “WRITE”.
Is “Writing is complete”displayed?

YES

>> GO TO 4.

NO

>> Perform again STEP 3.

4.

STEPS AFTER WRITING OF THE TRACTION MOTOR RESOLVER OFFSET

With CONSULT

1. Power switch OFF.

2. Power switch ON and wait 2 seconds or more.

3. Verify that the EV system warning lamp is off.

4. Select “Work Support” in “MOTOR CONTROL”.

5. Select “RESOLVER WRITE”.

6. Confirm the value is changed according to the correction value input.

7. Perform “Self Diagnostic Results” in “MOTOR CONTROL”.

8. Erase the DTC “P325C”.

9. Power switch OFF.

>> END
