Nissan Leaf. Manual - part 1156

TM-30

< PRECAUTION >

[ELECTRIC SHIFT]

PRECAUTIONS

If the battery is removed within 5 minutes after the power switch is turned OFF, plural DTCs may be

detected.

4. Remove 12V battery terminal within 60 minutes after turning the power switch OFF

→ ON → OFF.

CAUTION:

• After all doors (including back door) are closed, if a door (including back door) is opened before

battery terminals are disconnected, start over from Step 1.

• After turning the power switch OFF, if “Remote A/C” is activated by user operation, stop the air

conditioner and start over from Step 1.

NOTE:

Once the power switch is turned ON

→ OFF, the 12V battery automatic charge control does not start for

approximately 1 hour.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the power switch.

NOTE:

If the power switch is turned ON with any one of the terminals of main battery and sub battery disconnected,

then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

General Precautions

INFOID:0000000010119540

• Never turn the power switch ON while the selector lever is in the D or R position. Otherwise, the vehicle may

start abruptly resulting in an accident.

• Never shift the selector lever to the R position while the vehicle is moving forward, or to the D position while

moving backward, or press the P position switch while the vehicle is in motion. Otherwise, excessive force

may be applied to the drive system causing damage.

• Never allow the vehicle to coast backward while the selector lever is in the D position or forward while the

selector lever is in the R position.

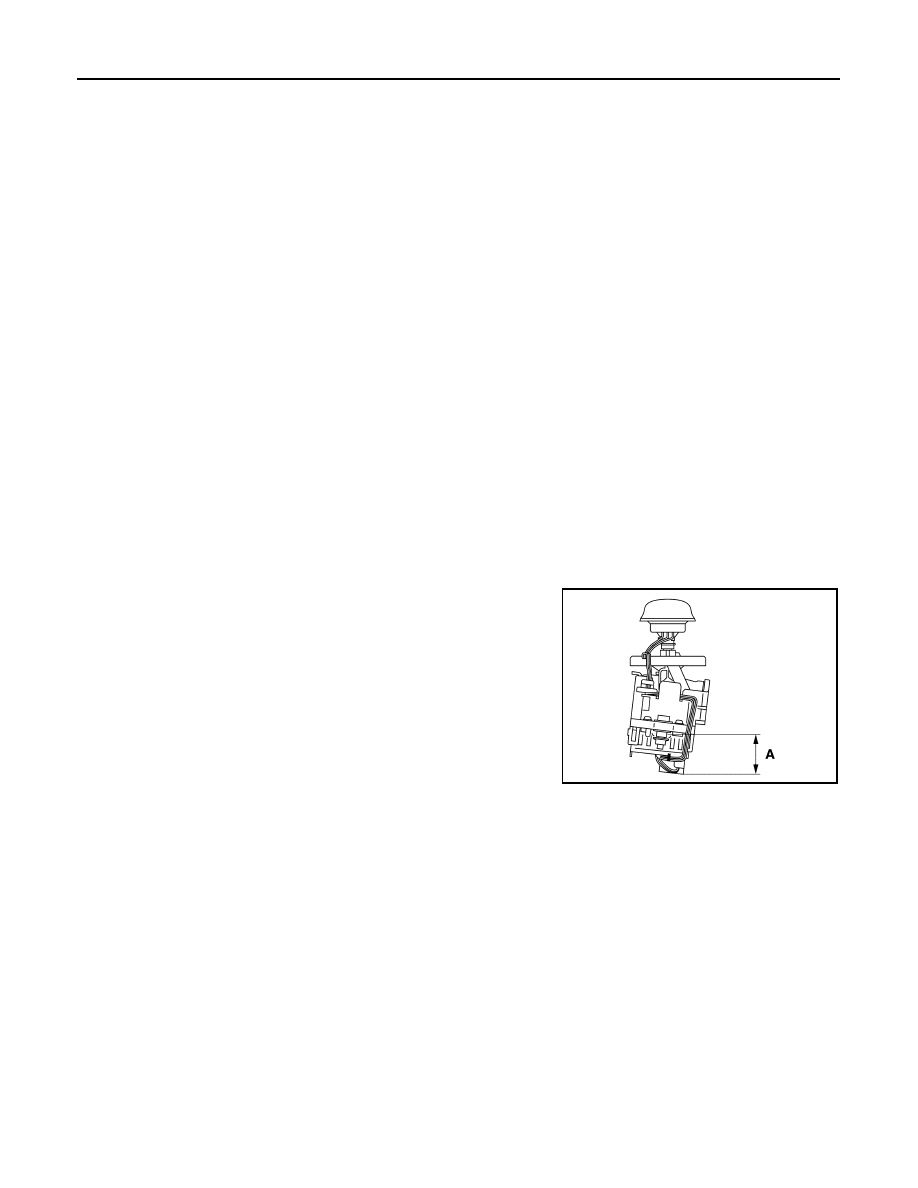

• Part A shown in the figure contains a strong magnet. Persons with

an electro-medical apparatus should keep away from this area.

Otherwise, the magnet may cause the electro-medical apparatus

to malfunction.

• Keep magnetic objects, such as magnetic cards, and metal prod-

ucts (e.g. watches) away from the area surrounding the magnet.

JSDIA2207ZZ

DESCRIPTION

TM-31

< SYSTEM DESCRIPTION >

[ELECTRIC SHIFT]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYSTEM DESCRIPTION

DESCRIPTION

Description

INFOID:0000000010119541

• Instead of the conventional mechanical shift mechanism, the electric shift system is adopted which electri-

cally detects shifting operation and locks/unlocks the parking mechanism by operating the parking actuator.

• The electric shift control module is build into the VCM.

NOTE:

In this section, the electric shift control module built in VCM is referred to as “Electric shift control module” for

describing its functions.

• The momentary-type selector lever is adopted for mouse-like fine shift operability.

• The automatic P position function, which automatically shifts the gear to the P position if the power switch is

turned OFF in the each position, is adopted.

• For improved functionality and operability, the P position switch, which allows direct switching to the P posi-

tion at the touch of the switch, is provided on the top of the selector lever.

TM-32

< SYSTEM DESCRIPTION >

[ELECTRIC SHIFT]

COMPONENT PARTS

COMPONENT PARTS

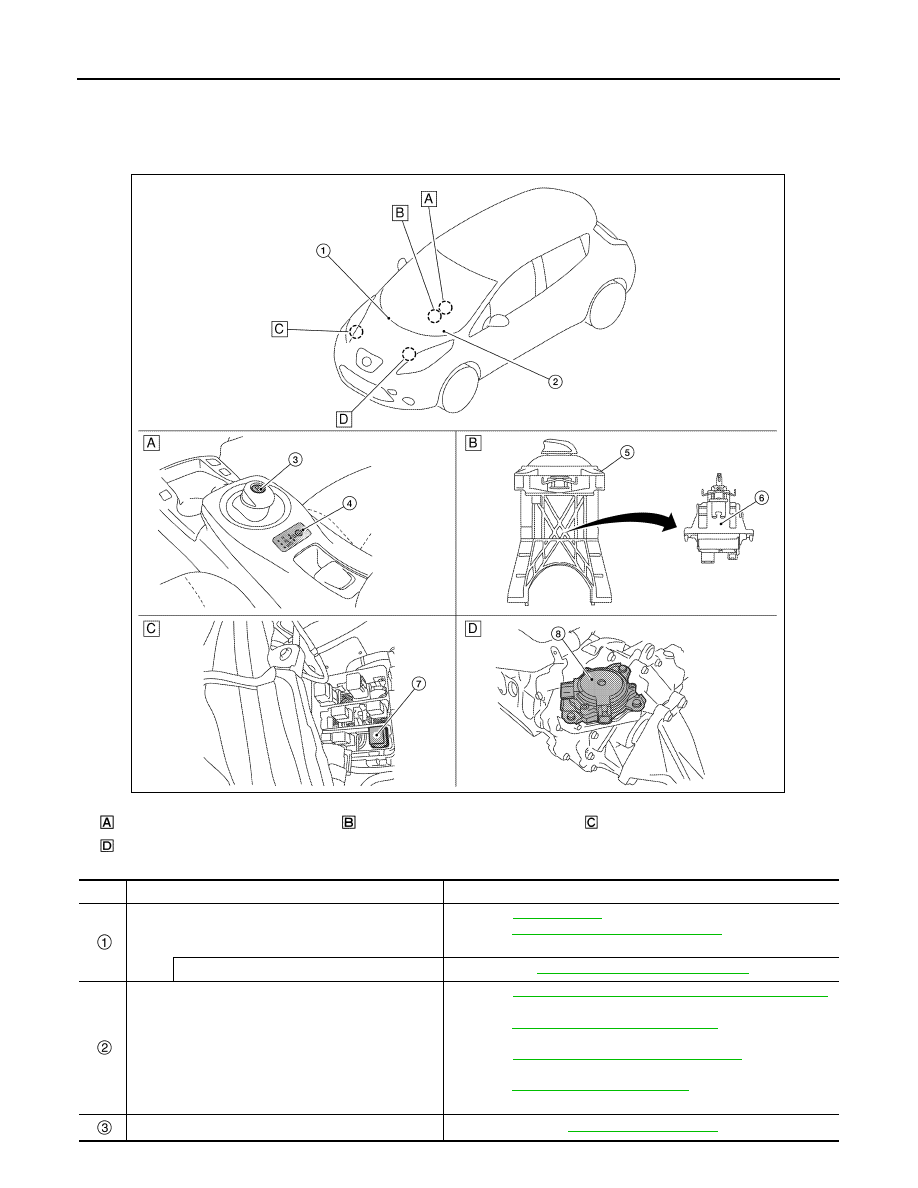

Component Parts Location

INFOID:0000000010119542

Finisher

Electric shift selector

Motor room, RH

Reduction gear, upper

ALDIA0433ZZ

No.

Name

Function

VCM

• Refer to

EVC-18, "VCM"

 for details.

• Refer  to

EVC-15, "Component Parts Location"

 for detailed installa-

tion location.

Electric shift control module

TM-33, "Electric Shift Control Module"

Combination meter
(Electric shift warning lamp, electric shift warning mes-
sage, shift position indicator)

• Refer to

MWI-6, "METER SYSTEM : Component Parts Location"



for detailed installation location.

• Refer  to

TM-35, "Electric Shift Warning Lamp"

 for details of electric

shift warning lamp.

• Refer to

TM-36, "Electric Shift Warning Message"

 for details of

electric shift warning message.

• Refer  to

TM-38, "Shift Position Indicator"

 for details of shift position

indicator.

P position switch

TM-35, "P Position Switch"

COMPONENT PARTS

TM-33

< SYSTEM DESCRIPTION >

[ELECTRIC SHIFT]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Electric Shift Control Module

INFOID:0000000010119543

• The electric shift control module is build into the VCM.

NOTE:

In this section, the electric shift control module built in VCM is referred to as “Electric shift control module” for

describing its functions.

• The electric shift control module is started by the power switch signal and wake-up signal transmitted from

BCM.

• The electric shift control module determines the shift position based on the shift position data (ON/OFF sig-

nal) from the electric shift sensor, and transmits the shift position data to VCM and traction motor inverter via

EV system CAN.

• The electric shift control module operates the parking actuator based on the signal from the P position

switch.

Parking Actuator

INFOID:0000000010119544

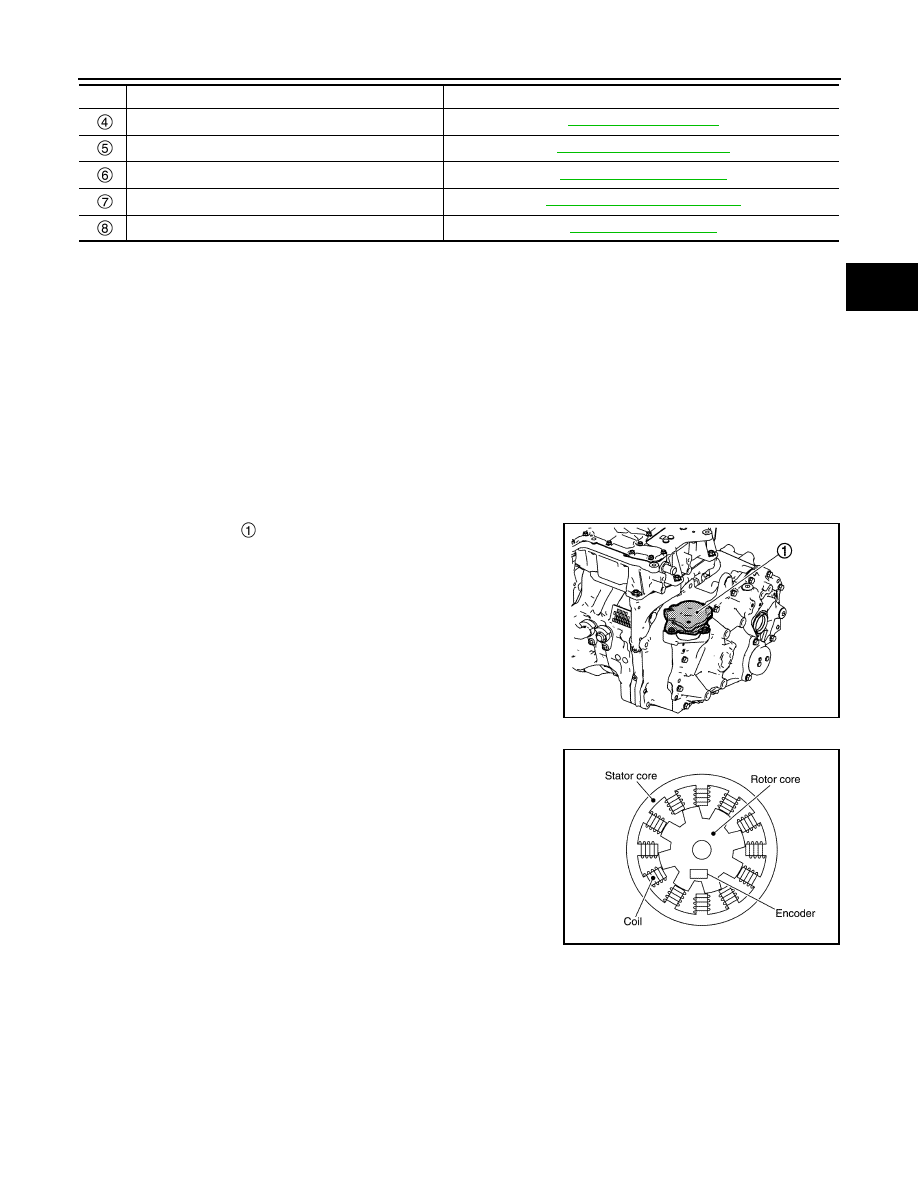

• The parking actuator   is installed above the reduction gear.

• The parking actuator is operated by the signal from the electric

shift control module and locks/unlocks the parking mechanism in

the reducer.

• The parking actuator consists of the motor, encoder, and actuator

reduction gear.

MOTOR

• A 3-phase SR motor is used.

• Coil is placed on the stator core around the motor and the current

that passes through the coil in sequence generates the rotating

force for the inner rotor core.

ENCODER

• The Hall IC type rotation angle sensor is used for higher accuracy in the detection of the rotor rotation angle.

• It detects the rotor rotation angle and outputs pulse signals to the electric shift control module.

• The electric shift control module controls the timing of the current feed to the coils optimally based on the

signal from the encoder.

ACTUATOR REDUCTION GEAR

The actuator reduction gear consists of a cycloidal gear and includes a motor with its torque amplified for

secure operation under high torque-requiring conditions.

Selector indicator

TM-35, "Selector Indicator"

Electric shift selector

TM-34, "Electric Shift Selector"

Electric shift sensor

TM-35, "Electric Shift Sensor"

Parking actuator relay A

TM-34, "Parking Actuator Relay A"

Parking actuator

TM-33, "Parking Actuator"

No.

Name

Function

JSDIA3885ZZ

JSDIA2057GB
