 If the battery is removed within 5 minutes after the power switch is turned OFF, plural DTCs may be

detected.

4. Remove 12V battery within 1 hour after turning the power switch OFF

→ ON → OFF.

NOTE:

•  The 12V battery automatic charge control may start automatically even when the power switch is in

OFF state.

•  Once the power switch is turned ON

→ OFF, the 12V battery automatic charge control does not start for

approximately 1 hour.

CAUTION:

•  After all doors (including back door) are closed, if a door (including back door) is opened before

battery terminals are disconnected, start over from Step 1.

•  After turning the power switch OFF, if “Remote A/C” is activated by user operation, stop the air

conditioner and start over from Step 1.

SRC-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

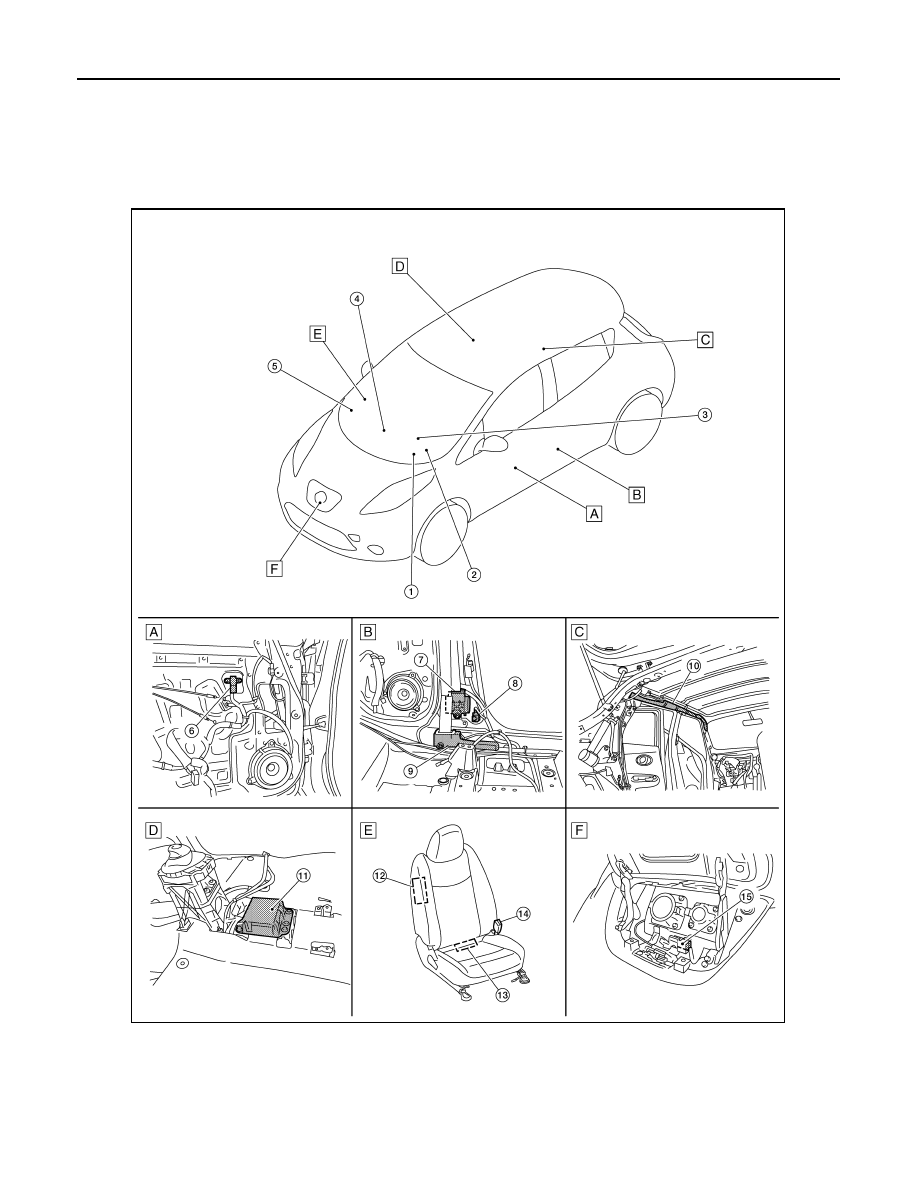

Component Parts Location

INFOID:0000000010122780

A.

View with door finisher removed

B.

Behind center pillar lower garnish

C.

View with headlining assembly
removed

D.

View with center console assembly
removed

E.

Passenger seat

F.

View with charge port lid open

ALHIA0394GB

COMPONENT PARTS

SRC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

No.

Component

Function

1.

Combination meter (air bag, belt warning
lamp)

Refer to

SR-12, "MAIN COMPONENT PARTS AND FUNCTIONS : Air bag

warning lamp"

.

2.

Combination switch (spiral cable)

Refer to

SR-11, "MAIN COMPONENT PARTS AND FUNCTIONS : Spiral ca-

ble"

.

3.

Driver air bag module

Refer to

SR-7, "AIR BAG MODULE : Driver air bag module"

.

4.

Front passenger air bag OFF indicator

Turns the front passenger air bag OFF indicator lamp ON when the front
passenger seat is occupied by a child or a child-seat

5.

Passenger air bag module

Refer to

SR-7, "AIR BAG MODULE : Passenger air bag module"

.

6.

Front door satellite sensor LH

Refer to

SR-11, "MAIN COMPONENT PARTS AND FUNCTIONS : Satellite

sensor"

.

7.

Front LH seat belt pre-tensioner

Refer to

SB-8, "Seat belt pre-tensioner with Load limiter"

.

8.

LH side air bag (satellite sensor)

Refer to

SR-11, "MAIN COMPONENT PARTS AND FUNCTIONS : Satellite

sensor"

.

9.

Lap seat belt pre-tensioner (driver side)

Refer to

SB-9, "Double pre-tensioner seat belt"

.

10.

LH side front curtain air bag module

Refer to

SR-8, "AIR BAG MODULE : Curtain air bag module"

.

11.

Air bag diagnosis sensor unit

Refer to

SR-12, "MAIN COMPONENT PARTS AND FUNCTIONS : Air bag

diagnosis sensor unit"

.

12.

RH side front curtain air bag module

Refer to

SR-10, "INFLATOR : Side air bag inflator"

.

13.

Occupant classification system control unit

Transmits the passenger seat status (occupied or empty) to air bag
diagnosis sensor unit. It is installed in the passenger seat cushion.
Refer to

SE-11, "HEATED SEAT SYSTEM : Component Parts Location"

 for

detailed installation location.

14.

Seat belt buckle switch (passenger side)

Controls deployment timing depending on the seat belt condition that is
fastened or unfastened. It is installed in the seat belt buckle.
Refer to

SB-10, "Exploded View"

 for detailed installation location.

15.

Crash zone sensor

Refer to

SR-11, "MAIN COMPONENT PARTS AND FUNCTIONS : Crash

zone sensor"

.

SRC-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

System Description

INFOID:0000000010122781

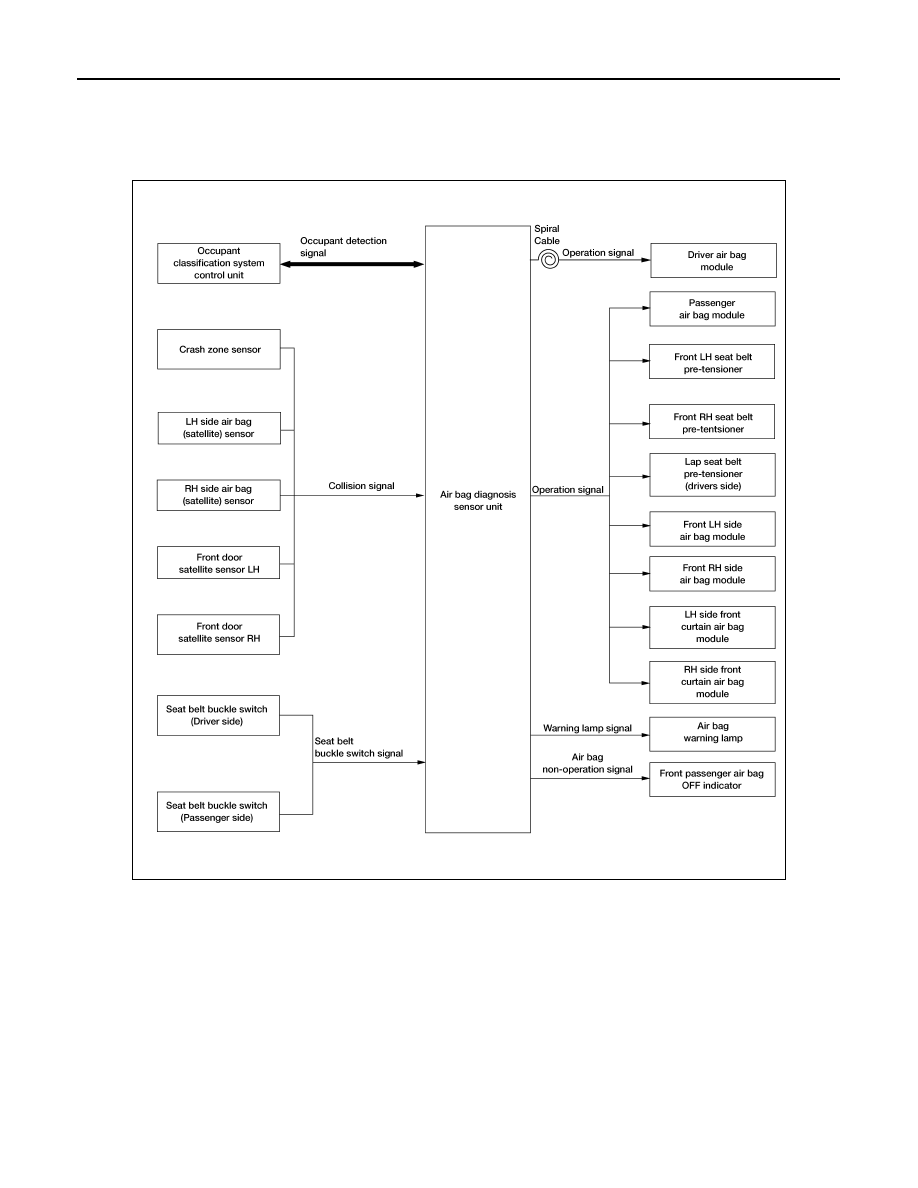

SYSTEM DIAGRAM

DESCRIPTION

Supplemental Restraint System (SRS) activates the air bag module and seat belt pre-tensioner when it

detects a frontal collision or a side collision that is more than the specified limit.

Together with other safety devices, it reduces the impact that occupant receives when vehicle collision occurs.

Air bag diagnosis sensor unit supplies power supply to air bag module and pre-tensioner seat belt when decel-

eration that is more than the specified limit is detected by G sensor in air bag diagnosis sensor unit, crash

zone sensor, satellite sensor, or front door satellite sensor.

Air bag module is composed of electric igniter (squib), filter, pyrotechnic material, and gas generating material.

When air bag module receives a signal from air bag diagnosis sensor unit, air bag module ignites pyrotechnic

material using electric igniter (squib) so that gas generating material generates high temperature nitrogen gas.

The gas through filter activates air bag. At the same time, pre-tensioner seat belt receives power supply from

air bag diagnosis sensor unit, gas generator is activated, and then gas is generated.

Balls in pipe are moved according to generated gas pressure and strike pinion gear on ELR shaft.

ELR shaft rotates and retracts seat belt.

ALHIA0393GB
