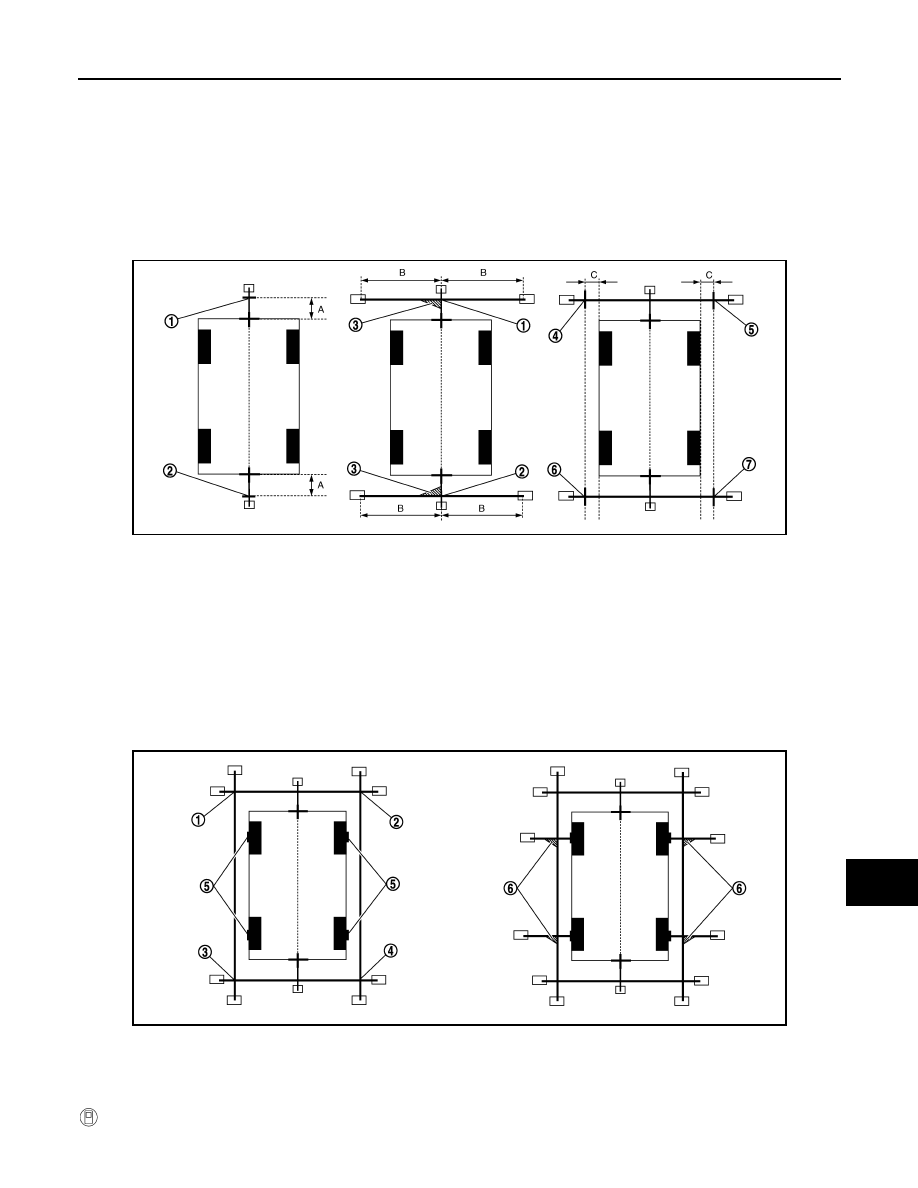

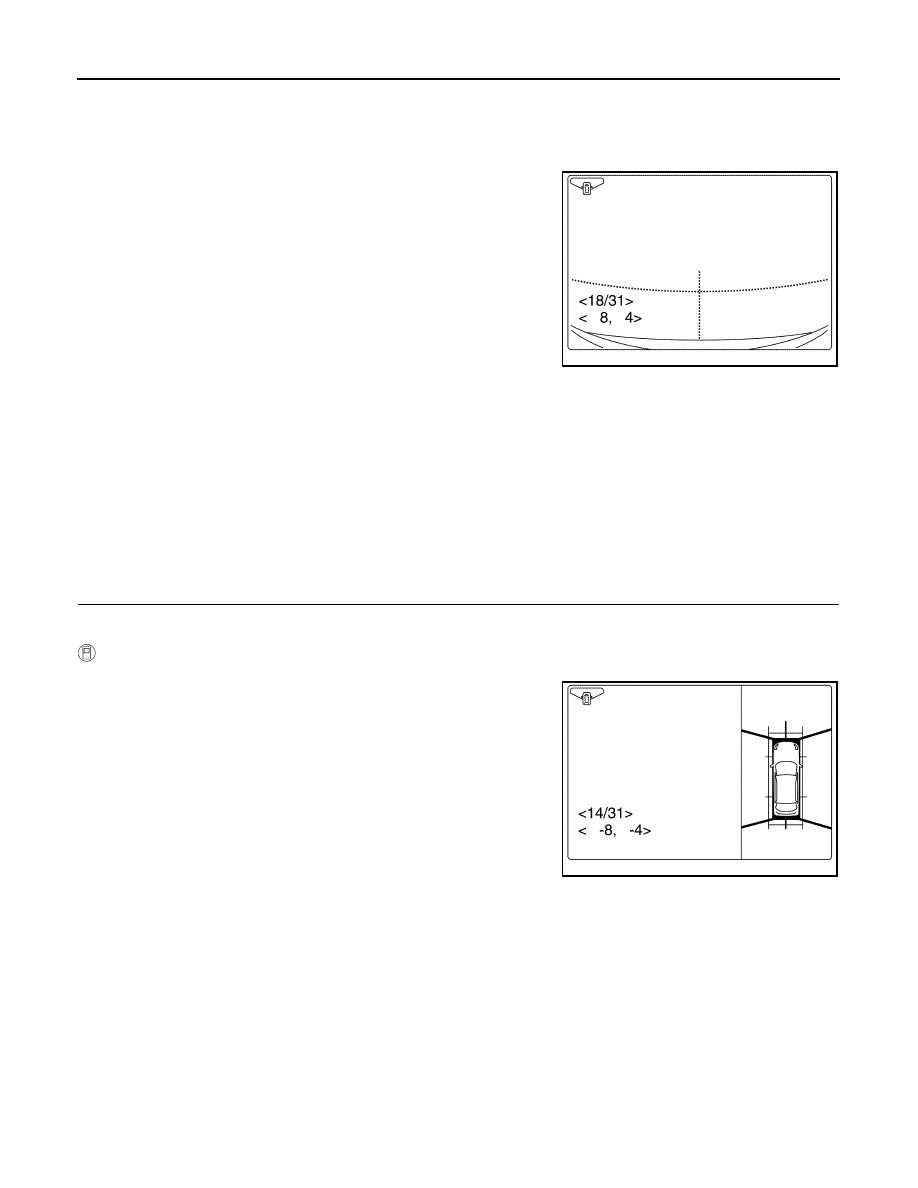

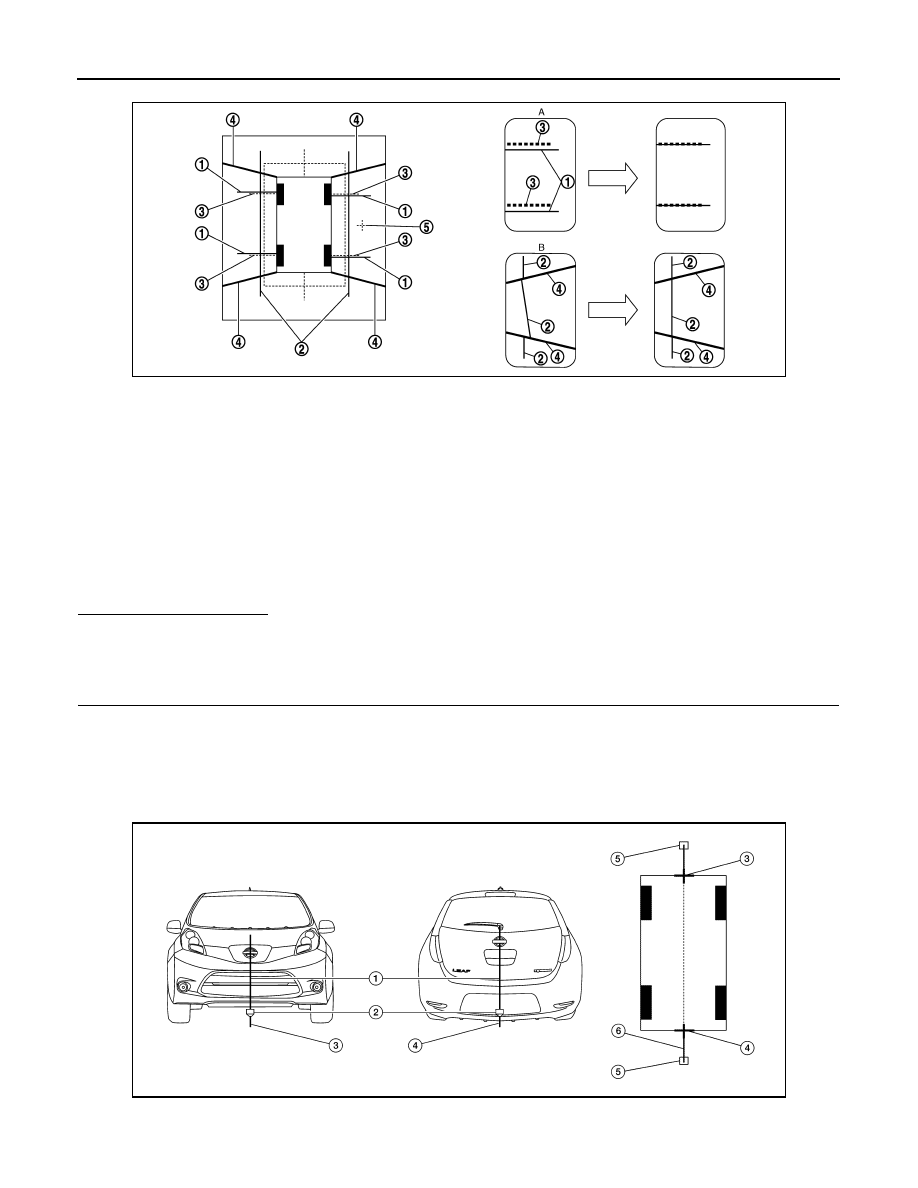

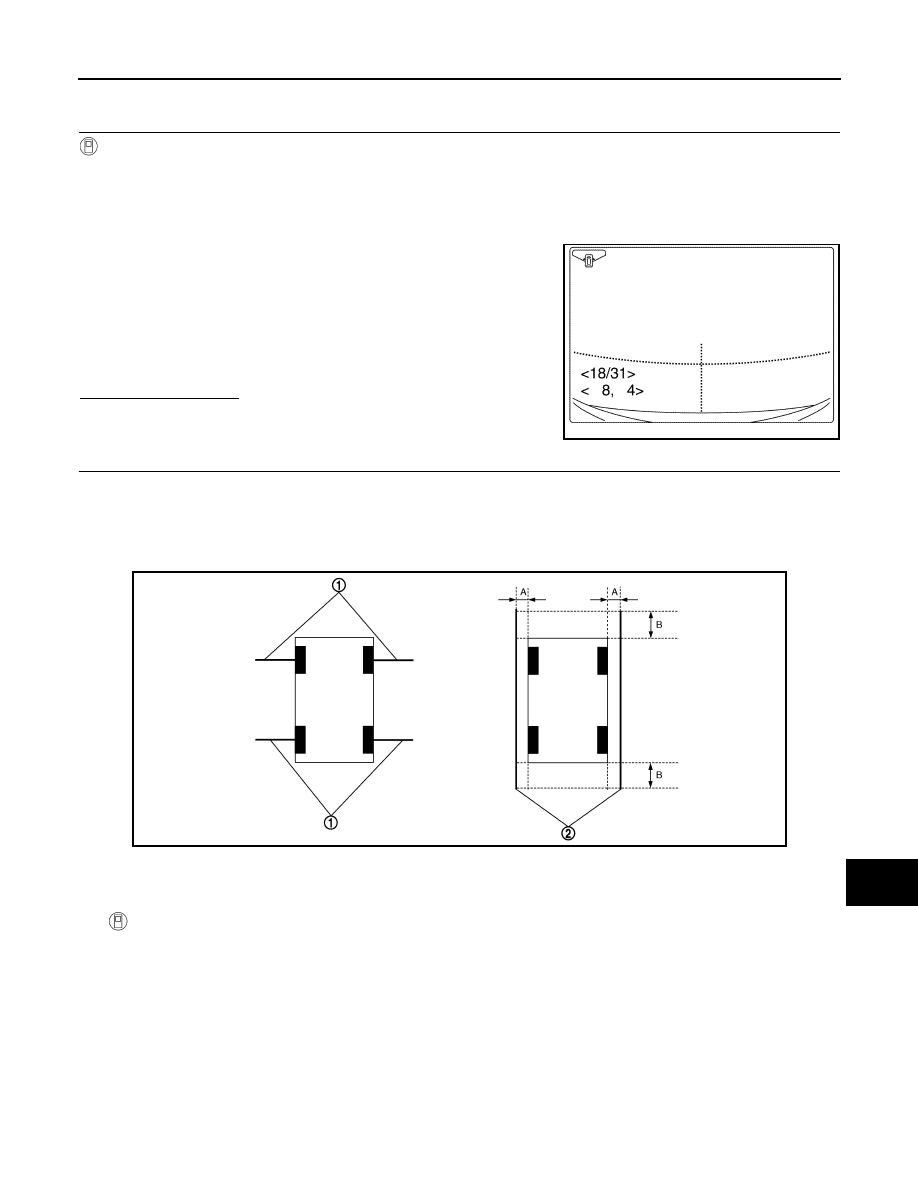

AV INSPECTION AND ADJUSTMENT AV-427 < BASIC INSPECTION > [NAVIGATION WITH BOSE] C D E F G H I J K L M B A O P 3. CANCEL THE INDICATION OF INCOMPLETE CALIBRATION (PERFORM THIS ONLY AFTER REPLAC- ING AROUND VIEW MONITOR CONTROL UNIT.) CONSULT work support 1. On the CONSULT screen, touch “CALIBRATING CAMERA IMAGE (FRONT CAMERA)”, “CALIBRATING CAMERA IMAGE (PASS-SIDE CAMERA)”, “CALIBRATING CAMERA IMAGE (DR-SIDE CAMERA)”, or “CALIBRATING CAMERA IMAGE (REAR CAMERA)” to accept the selection. NOTE: To cancel the indication of Incomplete calibration, select items based on the target camera. 2. On the adjustment screen of each camera, touch “APPLY” but- ton. After this, touch “OK” button. CAUTION: • Never perform operations other than those mentioned above. • Never perform “Initialize Camera Image Calibration”. 3. Display the around view monitor screen to check that there is no errors, such as deviations among the camera images. Is there a malfunction? YES >> Calibration end NO >> GO TO 1. 4. PERFORM SIMPLIFIED CONFIRMATION/ADJUSTMENT BY “FINE TUNING OF BIRDS-EYE VIEW” 1. Put target line 1 on the ground beside each axle using packing tape, etc. 2. Put target lines 2 equal to the vehicle total length + approximately 1.0 m (39.3 in) from the vehicle side (right and left) at approximately 30 cm (11.8 in) away from the vehicle (make the line as parallel with the vehicle as possible) Preparation of simplified target line 3. CONSULT work support Touch “FINE TUNING OF BIRDS-EYE VIEW” on the CONSULT screen. 4. On the CONSULT screen, touch “SELECT” button to select right or left camera and perform camera cali- bration as instructed below: - If the marker on the screen deviates from Target line 1, touch “AXIS X” button and “AXIS Y” button to adjust so that the marker is placed on the Target line 1. - If Target line 2 is misaligned among the cameras, adjust each camera image to bring Target line 2 into a straight line. CAUTION: Never adjust the front camera and rear camera. Only adjust the right and left cameras. JSNIA4212ZZ JSNIA0927ZZ 1. Target lines 1 2. Target lines 2 A. Approx. 30 cm (11.8 in) B. Approx. 1.0 m (39.3 in) |
