Nissan Leaf. Manual - part 1072

SEC-50

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

VEHICLE SECURITY SYSTEM

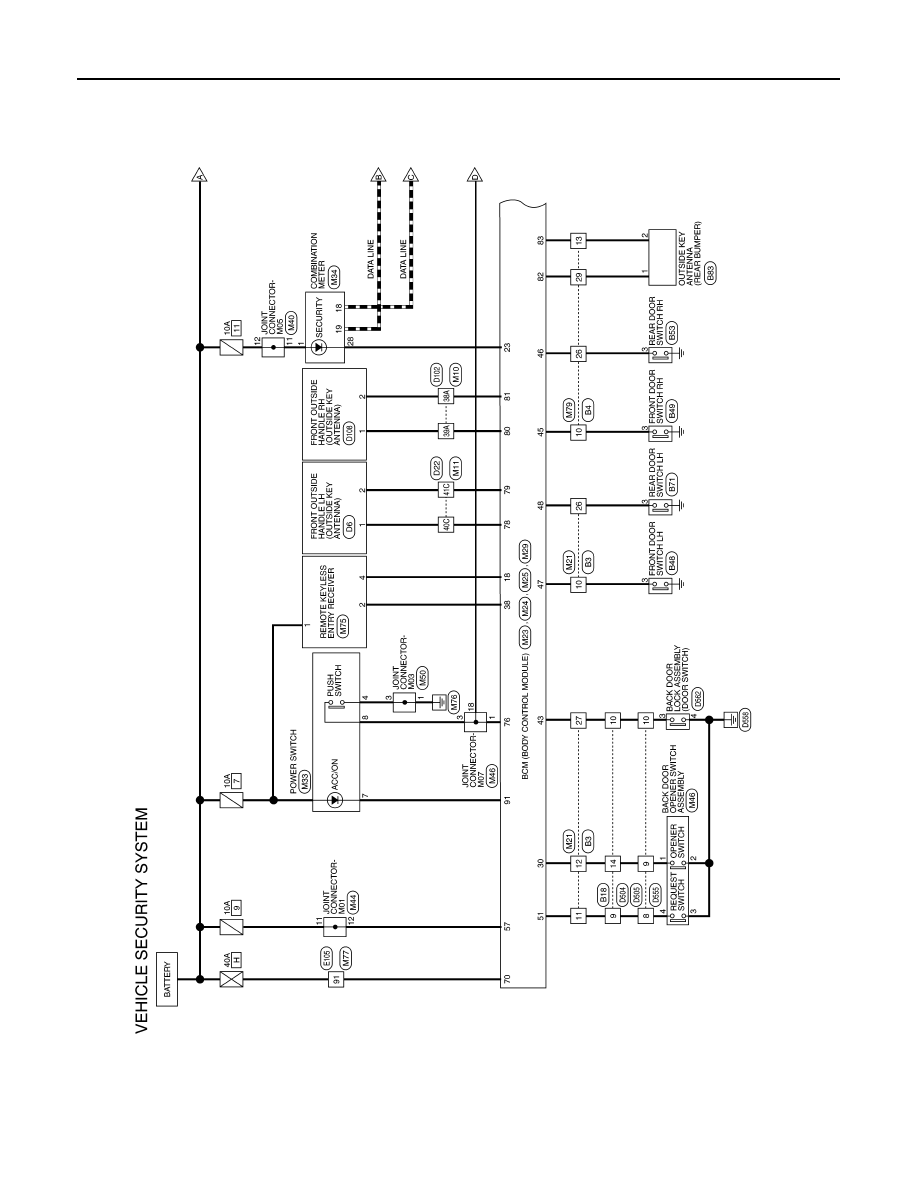

Wiring Diagram

INFOID:0000000010546209

AAKWA0832GB

VEHICLE SECURITY SYSTEM

SEC-51

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKWA0833GB

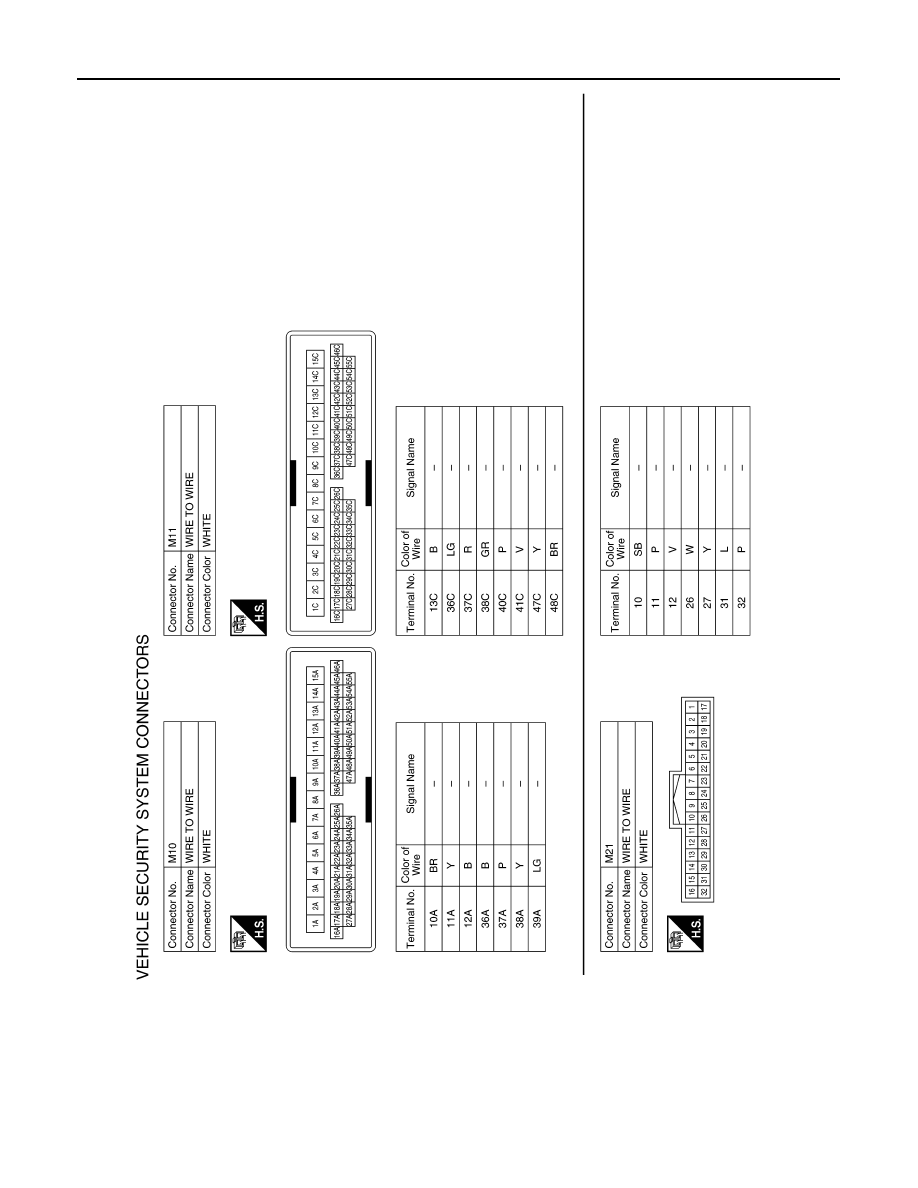

SEC-52

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

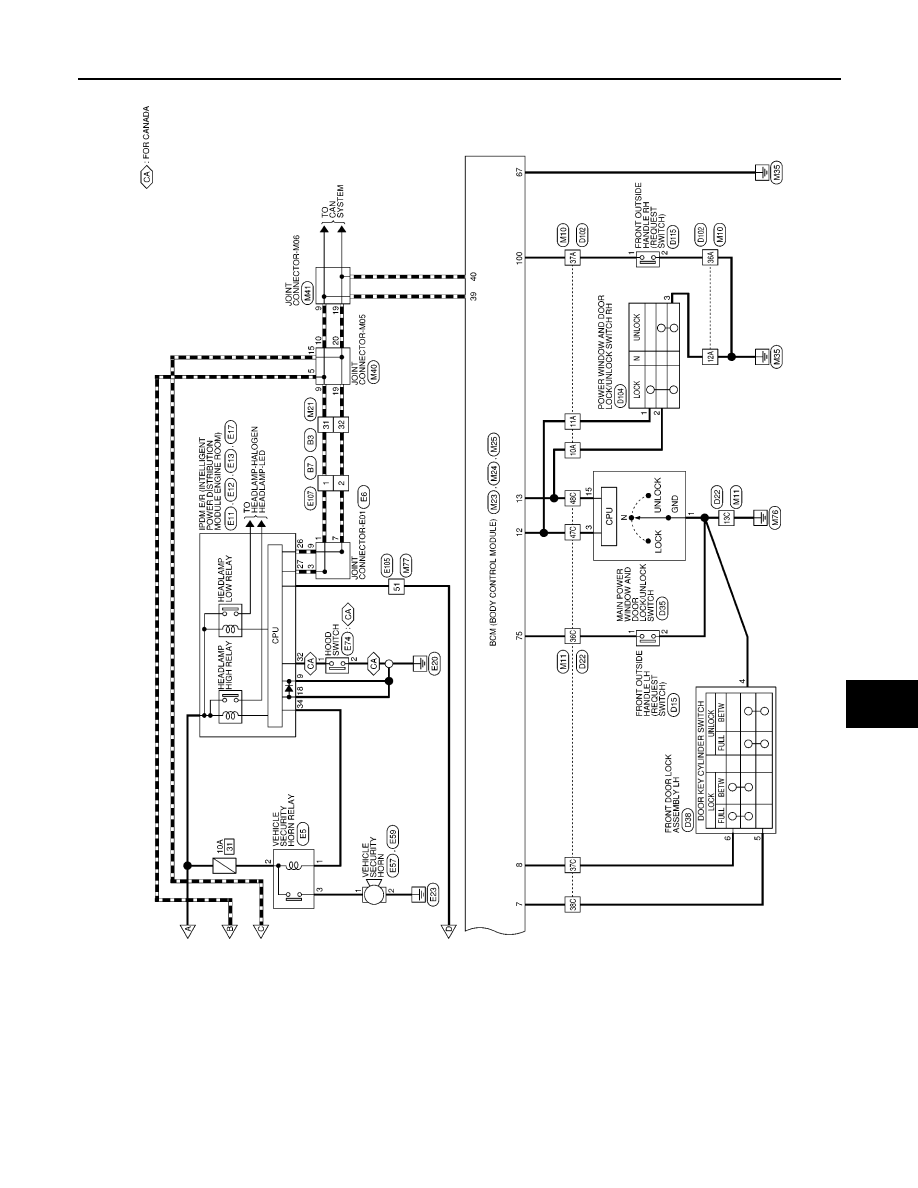

AAKIA2013GB

VEHICLE SECURITY SYSTEM

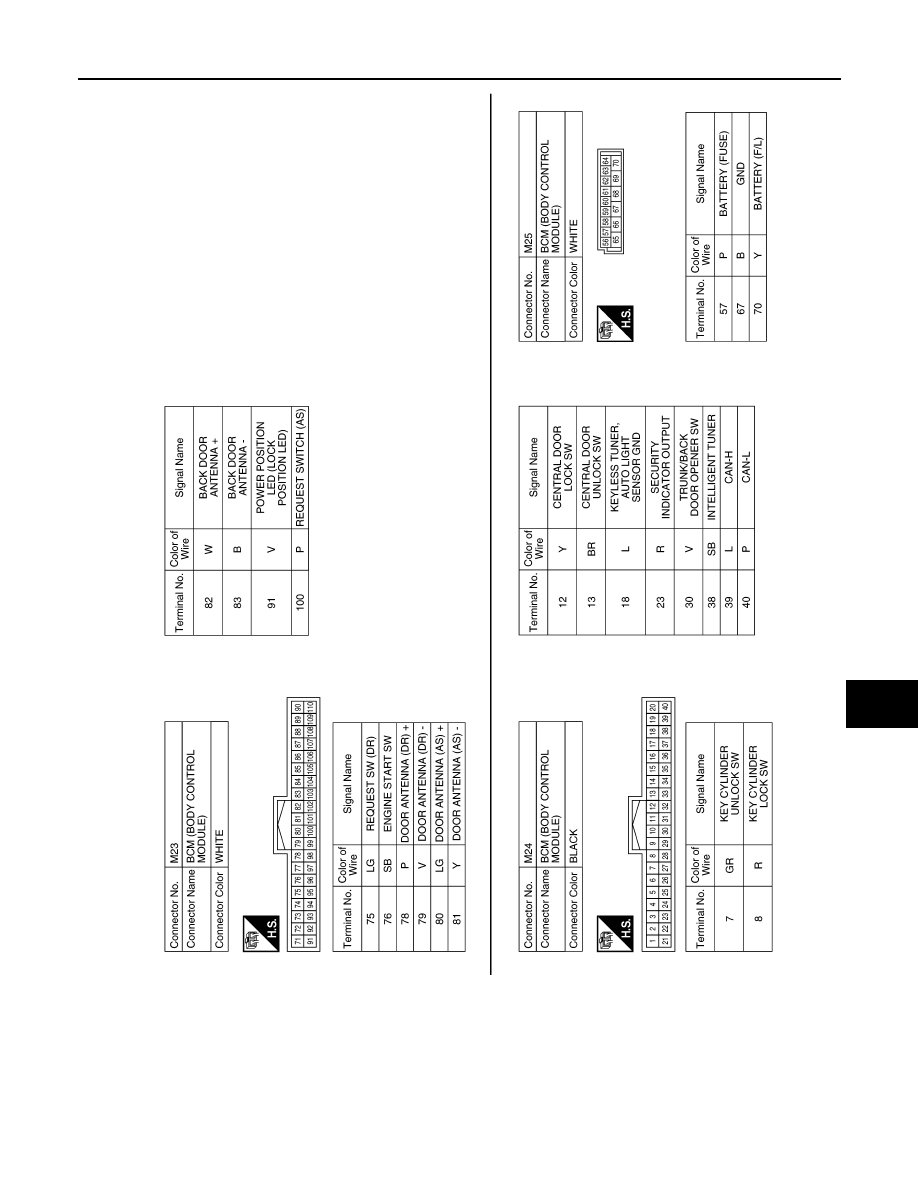

SEC-53

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA2014GB
