HEATED SEAT SYSTEM

SE-15

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

WIRING DIAGRAM

HEATED SEAT SYSTEM

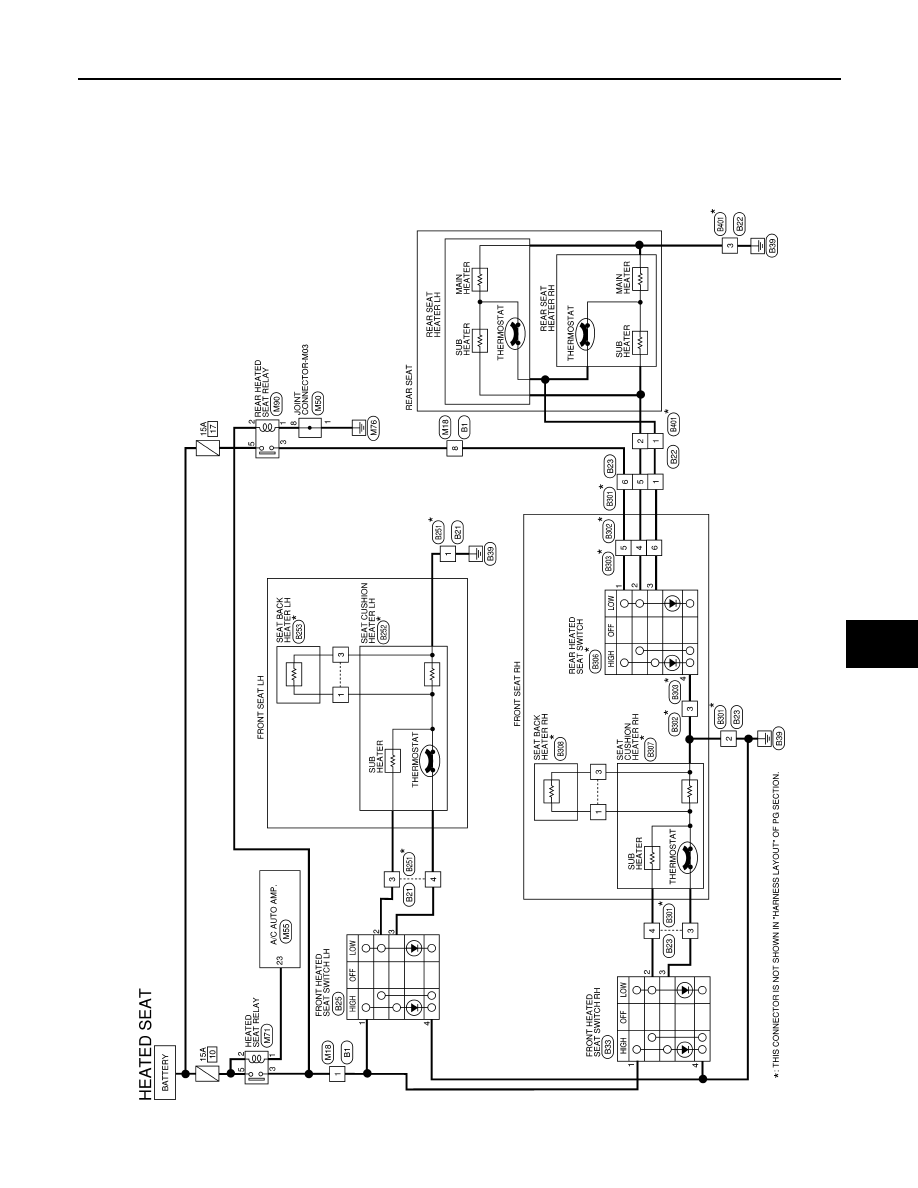

Wiring Diagram

INFOID:0000000010122955

AAJWA0202GB

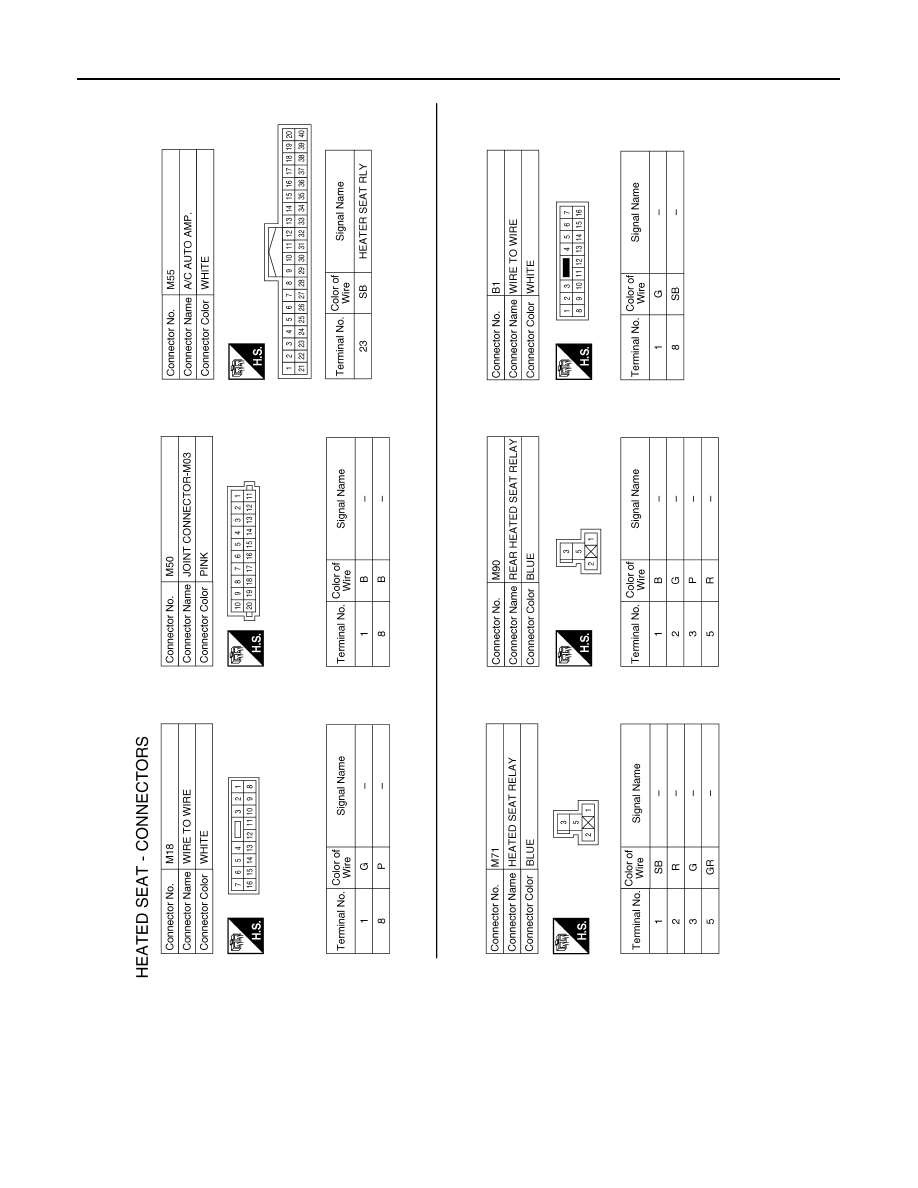

SE-16

< WIRING DIAGRAM >

HEATED SEAT SYSTEM

AAJIA0496GB

HEATED SEAT SYSTEM

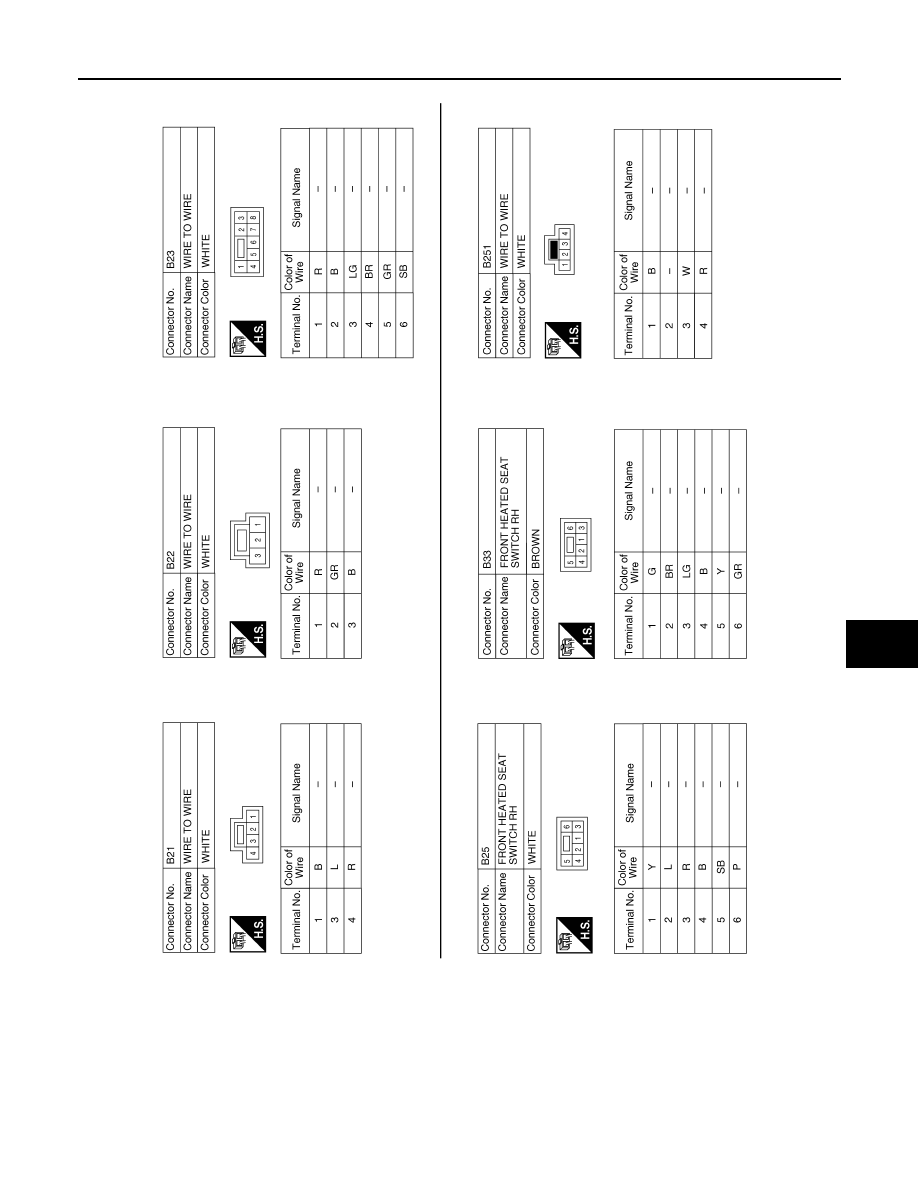

SE-17

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

AAJIA0497GB

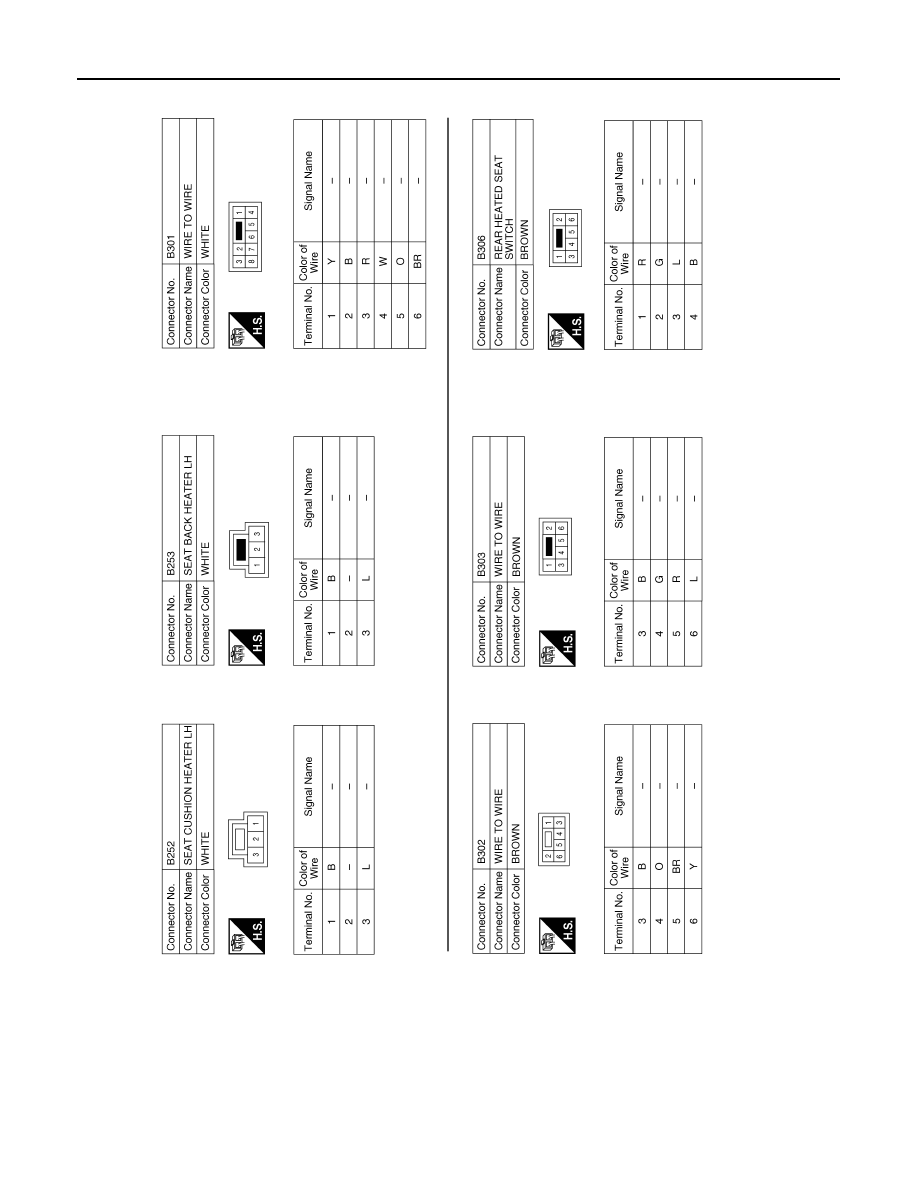

SE-18

< WIRING DIAGRAM >

HEATED SEAT SYSTEM

AAJIA0498GB
