Nissan Leaf. Manual - part 83

AV

GPS ANTENNA

AV-323

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS ANTENNA

Removal and Installation

INFOID:0000000010122578

REMOVAL

1. Remove the instrument panel assembly. Refer to

IP-17,

"Removal and Installation"

.

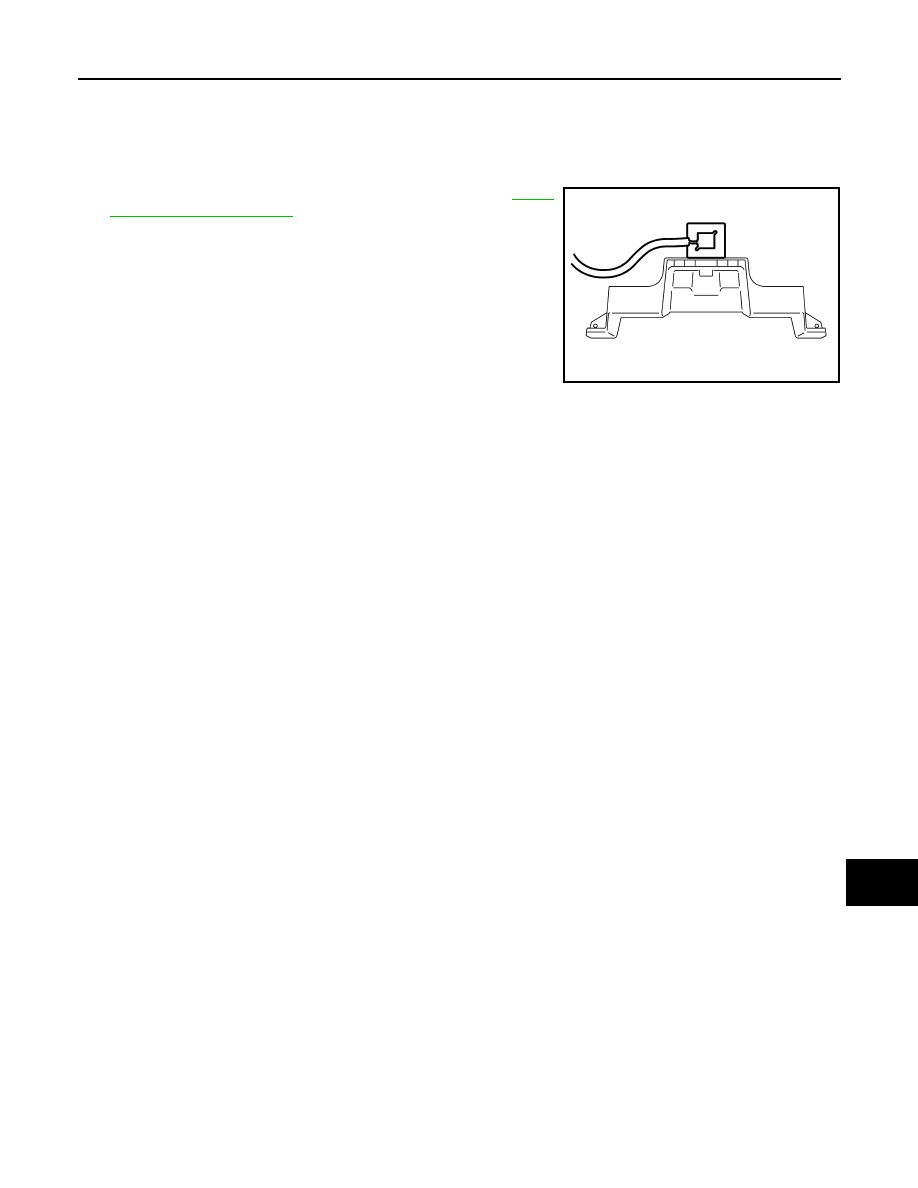

2. Remove the screws, clips and the GPS antenna.

INSTALLATION

Install in the reverse order of removal.

JSNIA3580ZZ

AV-324

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000010122579

REMOVAL

1. Remove the map lamp assembly. Refer to

INL-52, "Removal and Installation"

.

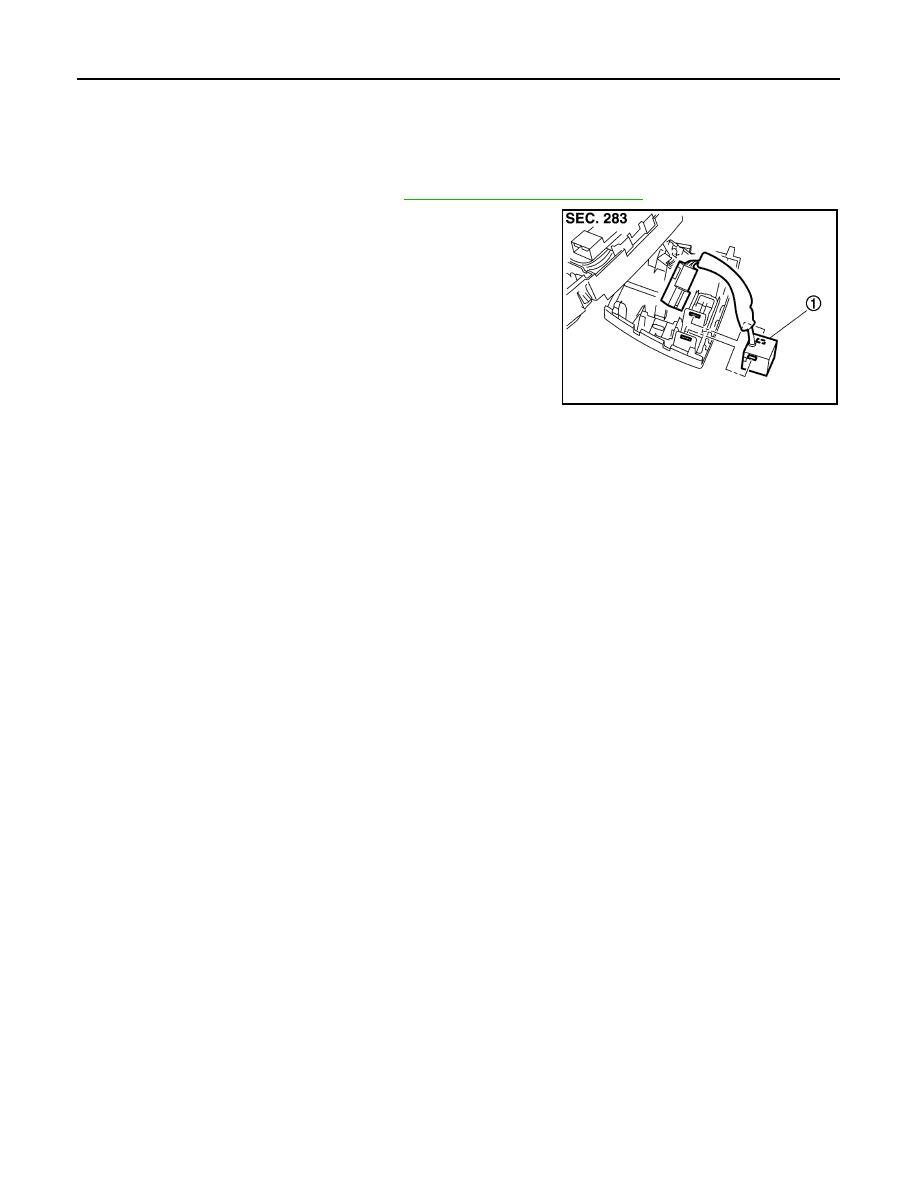

2. Press the pawl to remove the microphone (1) from the map lamp

assembly.

CAUTION:

Use care when handling the microphone pawl to avoid dam-

aging.

INSTALLATION

Install in the reverse order of removal.

NOTE:

Check the microphone for looseness after the installation.

JPNIA1399ZZ

AV

ANTENNA FEEDER

AV-325

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA FEEDER

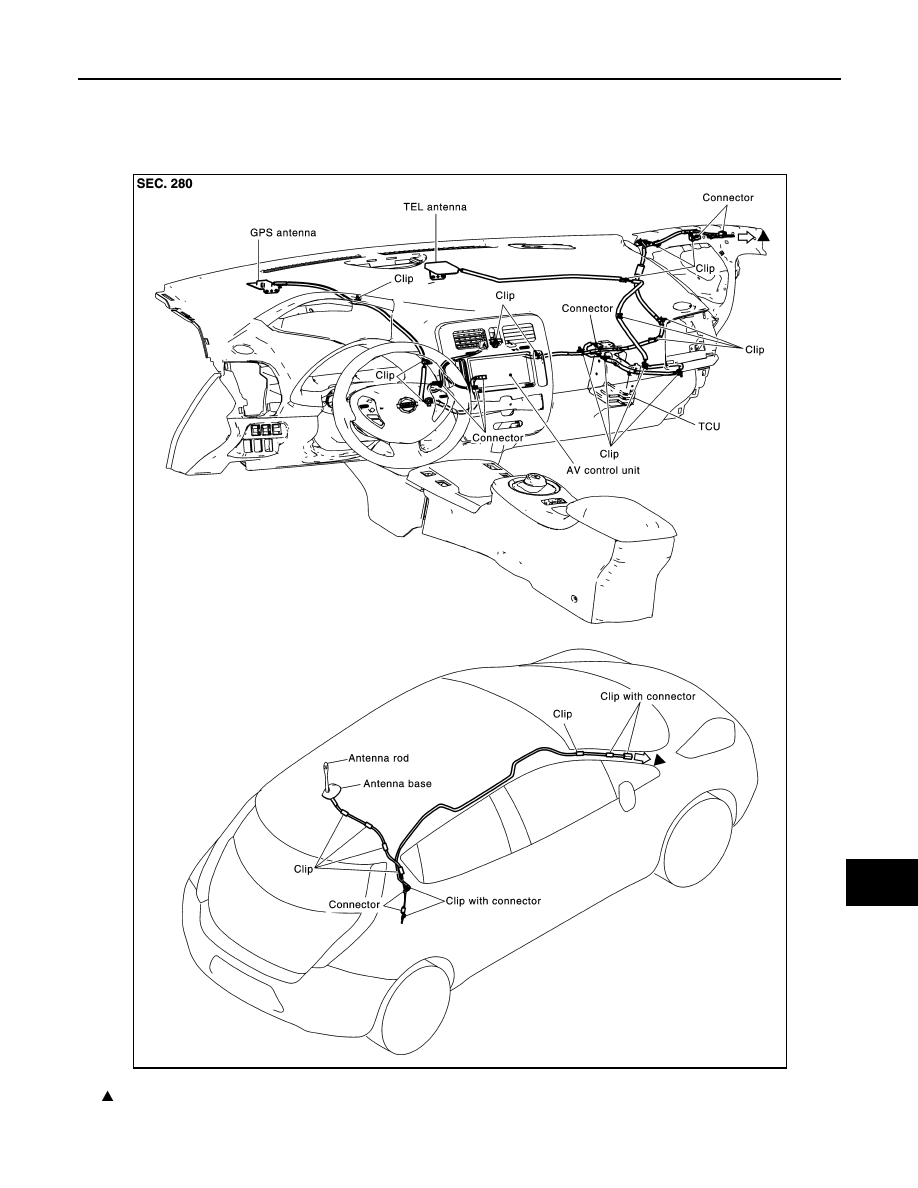

Antenna Feeder

INFOID:0000000010122580

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSNIA3555GB

AV-326

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

ANTENNA BASE

ANTENNA BASE

Removal and Installation

INFOID:0000000010122581

REMOVAL

1. Partially remove the headlining (rear side) to obtain space to work between vehicle and headlining. Refer

to

INT-37, "Removal and Installation"

.

2. Disconnect the antenna feeder connector.

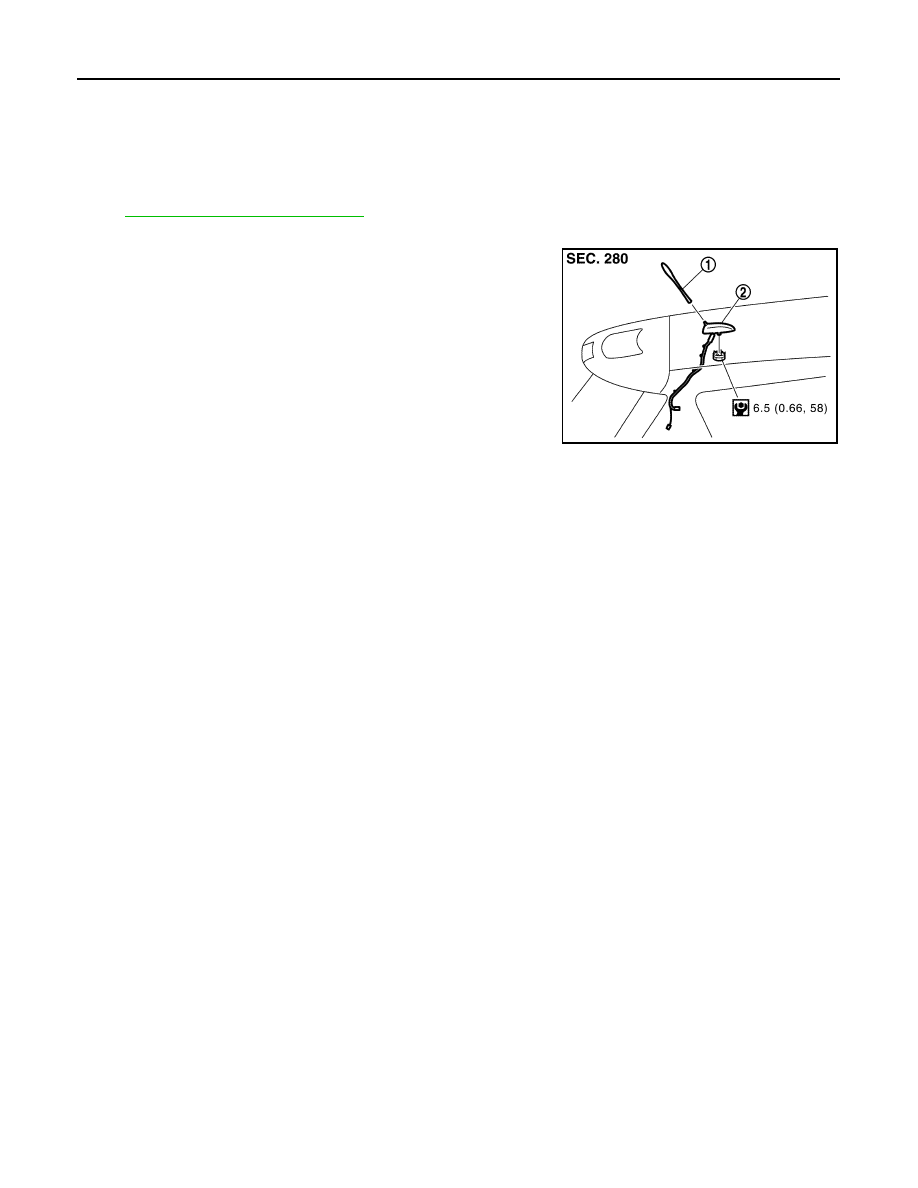

3. Remove the nut and the antenna base (2) from the vehicle.

(1): Antenna rod

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Do not bend headlining when pulling down.

• Tighten the antenna base nut to specification.

- If the antenna base nut is less than the specified torque, it could affect the performance of the

antenna sensitivity.

- If the antenna base nut is greater than the specified torque, it could damage the roof panel.

JSNIA3850GB
