REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000010122491

REMOVAL

1. Remove the rear door finisher. Refer to

INT-22, "Removal and Installation"

.

2. Remove the screws and disconnect the connector to remove the rear door speaker.

INSTALLATION

Install in the reverse order of removal.

AV-72

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000010122492

REMOVAL

1. Remove the map lamp assembly. Refer to

INL-52, "Removal and Installation"

.

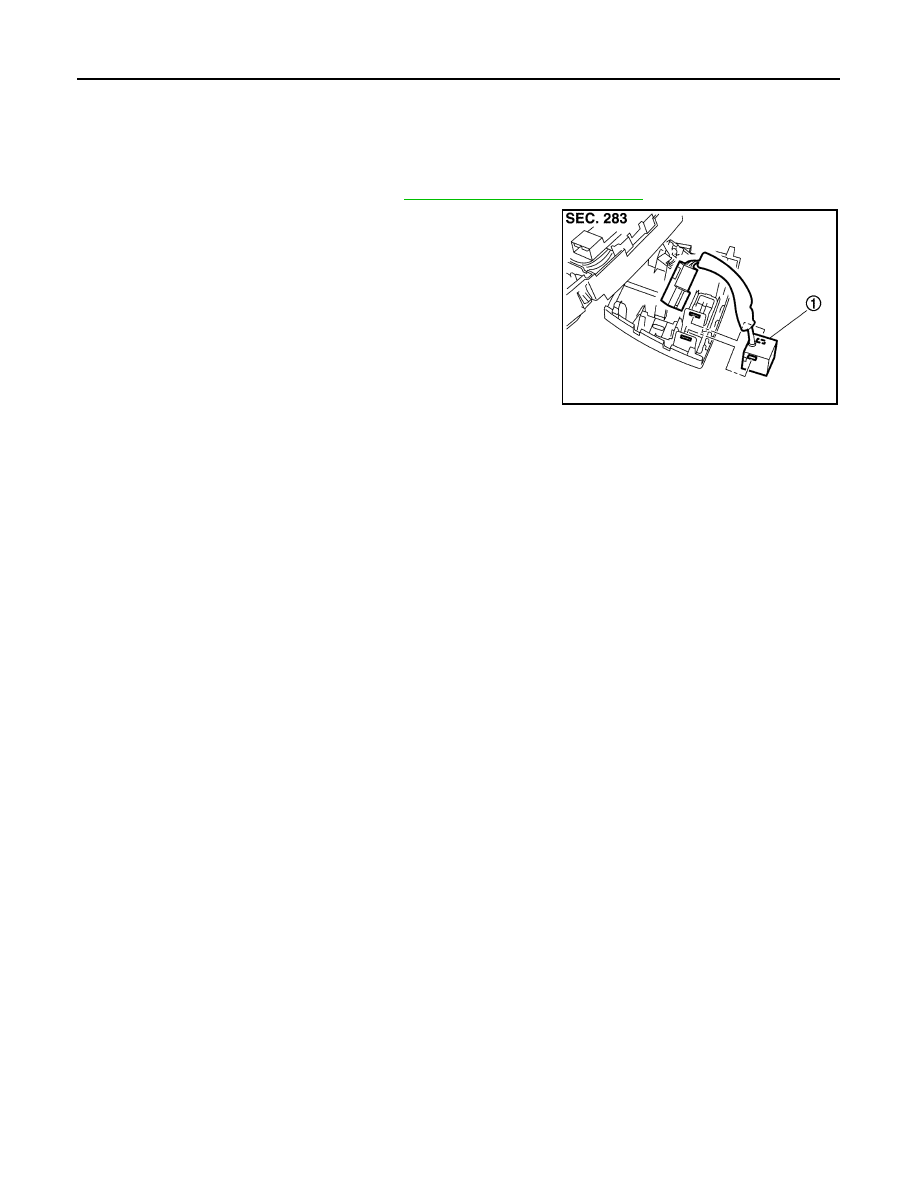

2. Press the pawl to remove the microphone (1) from the map lamp

assembly.

CAUTION:

Use care when handling the microphone pawl to avoid dam-

aging.

INSTALLATION

Install in the reverse order of removal.

NOTE:

Check the microphone for looseness after the installation.

JPNIA1399ZZ

AV

BLUETOOTH CONTROL UNIT

AV-73

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH CONTROL UNIT

Removal and Installation

INFOID:0000000010122493

REMOVAL

1. Remove the luggage side lower finisher (RH). Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

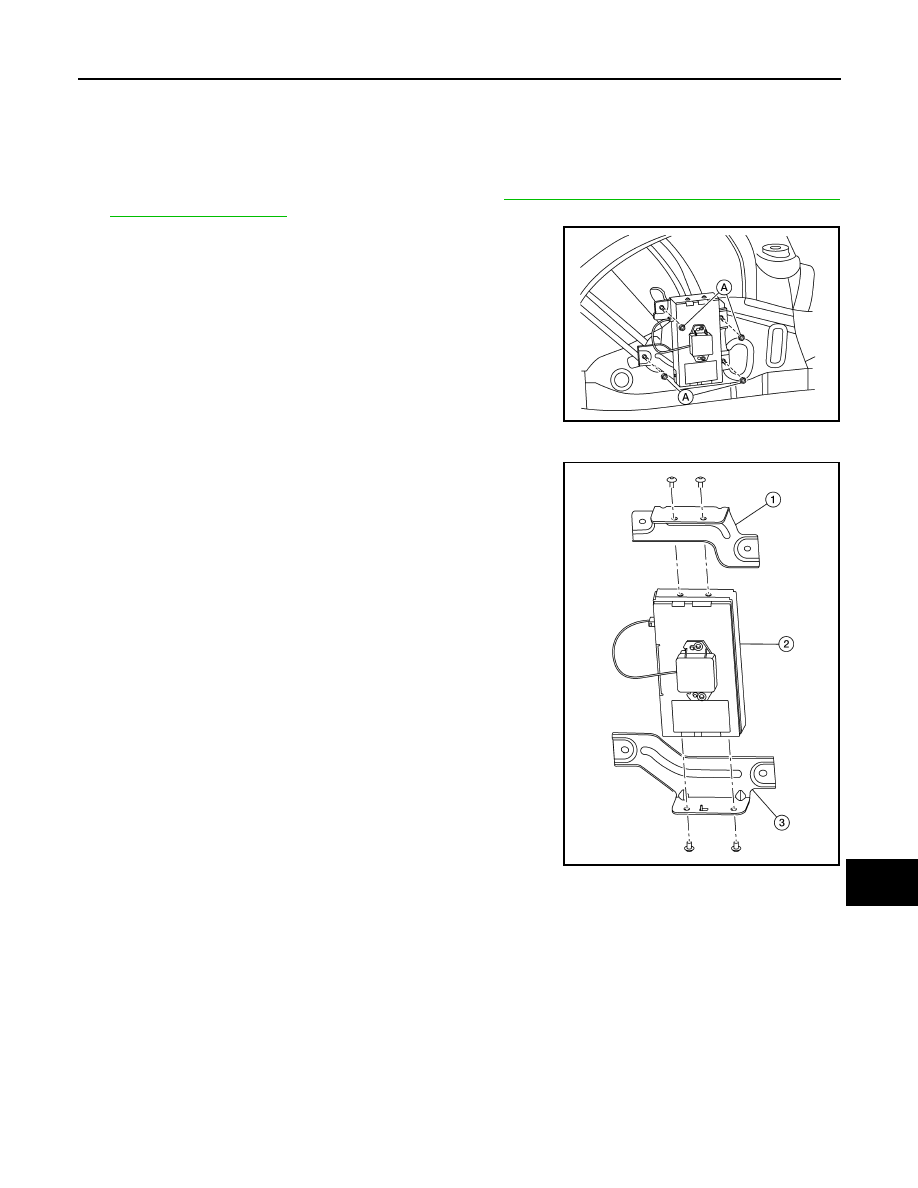

2. Remove the four Bluetooth control unit nuts (A).

3. Disconnect the harness connectors from the Bluetooth control unit and remove.
4. Remove the Bluetooth control unit bracket screws and the

brackets (1, 3) from the Bluetooth control unit (2).

INSTALLATION

Install in the reverse order of removal.

ALNIA1510ZZ

ALNIA1511ZZ

AV-74

< REMOVAL AND INSTALLATION >

[AUDIO W/O NAVI (EXCEPT MEXICO)]

ANTENNA BASE

ANTENNA BASE

Removal and Installation

INFOID:0000000010122494

REMOVAL

1. Partially remove the headlining (rear side) to obtain space to work between vehicle and headlining. Refer

to

INT-37, "Removal and Installation"

.

2. Disconnect the antenna feeder connector.

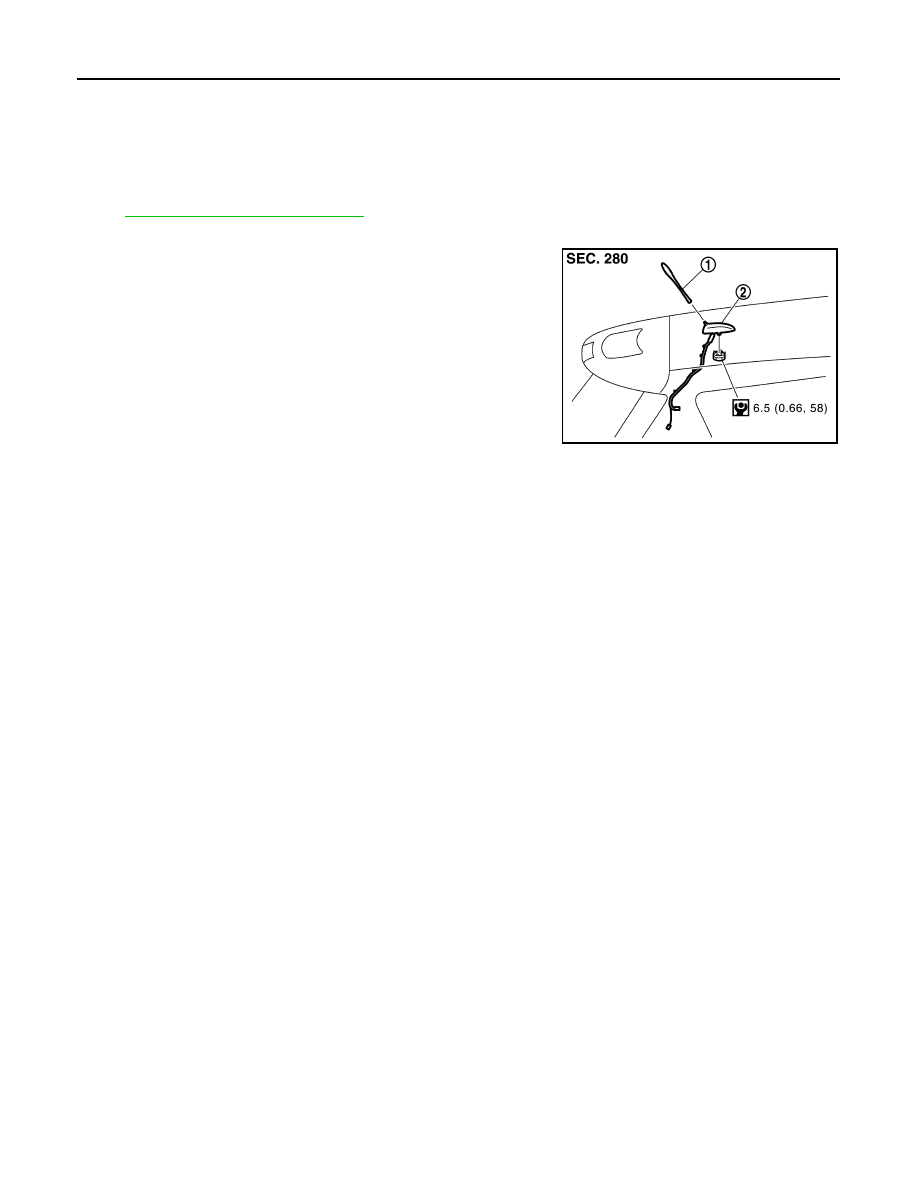

3. Remove the nut and the antenna base (2) from the vehicle.

(1): Antenna rod

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Do not bend headlining when pulling down.

• Tighten the antenna base nut to specification.

- If the antenna base nut is less than the specified torque, it could affect the performance of the

antenna sensitivity.

- If the antenna base nut is greater than the specified torque, it could damage the roof panel.

JSNIA3850GB
