IGNITION POWER SUPPLY — IGNITION SWITCH IN “ON” AND/OR “START”

YEL227C

BATTERY

Refer to
EL-POWER-01,
EL-POWER-02,
EL-POWER-03,
EL-POWER-05

Next
page

IGNITION
SWITCH

To
EC-MAIN
EC-IGN/SG

IGNITION
RELAY

: With gasoline engine

: With diesel engine

Next
page

FUSE
BLOCK
(J/B)

To
BR-ABS

To
EL-WIP/R

To
EL-WIP/R

To
EC-VSS
EC-MIL/DL
EC-GLOW
BR-ABS
RS-SRS
EL-HORN
EL-WARN
EL-METER
EL-CHARGE
EL-ILL
EL-H/AIM
AT-NONDTC

To
EC-VSS
AT-PNP/SW
AT-NONDTC
EL-BACK/L
EL-METER

To
EC-INJECT
EC-MIL/DL
EC-FUEL
EC-MAIN

To
EL-NATS
EL-HLC

To
RS-SRS

To
EL-POWER-10

To
EL-POWER-10

Next
page

To
EL-DTRL
HA-A/C
EC-COOL/F

To
EC-O2S1B1
EC-O2H1B1
EC-O2S2B1
EC-O2H2B1
EC-FUEL
EC-PGC/V
EC-SWL/V
EC-IVC
EC-EGRC/V
EC-HO2S
EC-AAC/V
EC-MAIN
EL-START
EL-DTRL
HA-A/C
EC-COOL/F

REFER TO THE FOLLOWING

FUSE BLOCK -
Junction Box (J/B)

OFF

ACC

ST

ON

POWER SUPPLY ROUTING

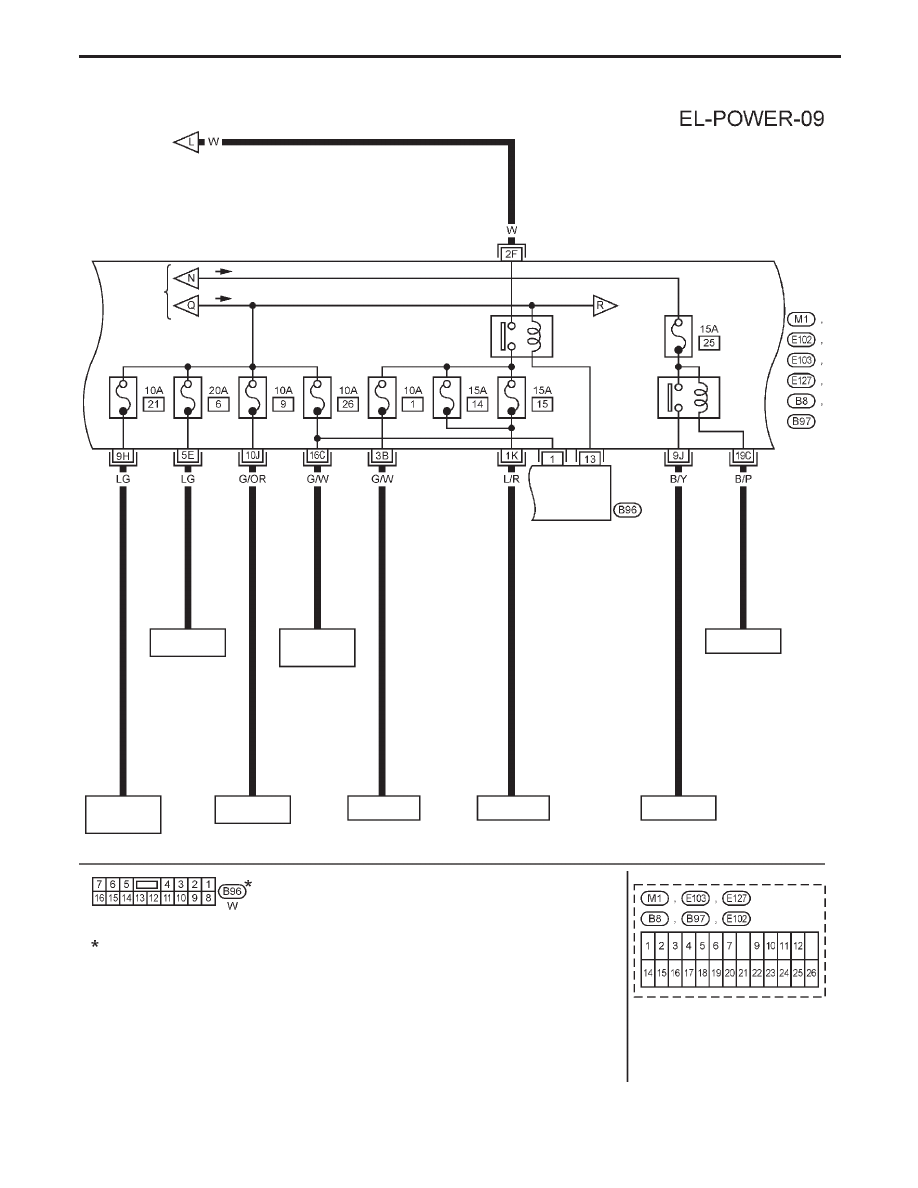

Wiring Diagram — POWER — (Cont’d)

EL-19

YEL228C

Preceding page

Preceding
page

Next page

FUSE
BLOCK
(J/B)

TIME CON-
TROL UNIT

To
EL-WIPER

To
HA-HEATER
HA-A/C

To
EC-F/PUMP

To
EL-WIP/R
EL-WIPER

To
EL-HSEAT

To
EL-DEF

To
EL-DEF

To
EC-F/PUMP

REFER TO THE FOLLOWING

FUSE BLOCK -
Junction Box (J/B)

REAR WINDOW
DEFOGGER
RELAY

FUEL
PUMP
RELAY

: This connector is not shown in “HARNESS LAYOUT” of EL section.

POWER SUPPLY ROUTING

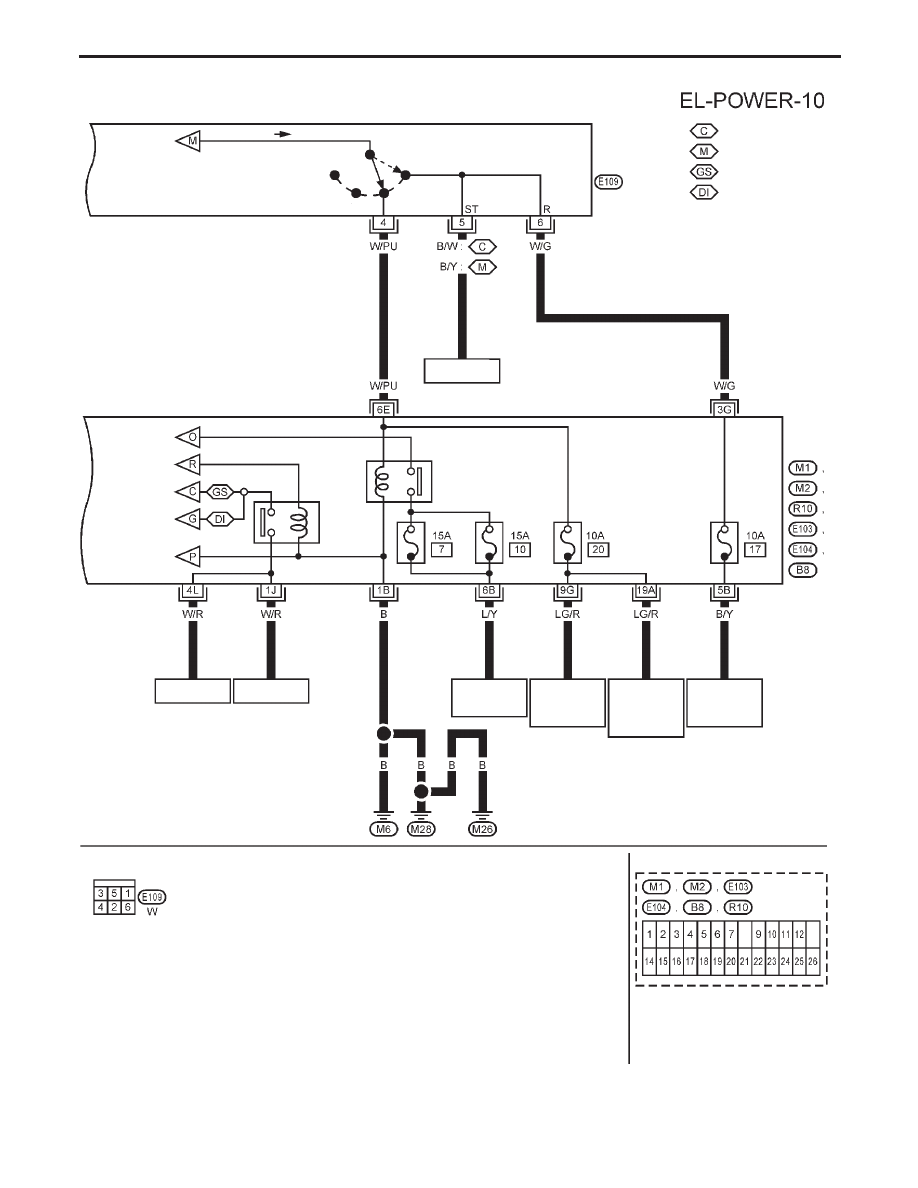

Wiring Diagram — POWER — (Cont’d)

EL-20

YEL250B

To
EL-POWER-08

IGNITION
SWITCH

: CVT models

: M/T models

: With gasoline engine

: With diesel engine

FUSE
BLOCK
(J/B)

To
EL-START

BLOWER
RELAY

POWER WIN-
DOW RELAY

To
EL-SROOF

To
EL-WINDOW

To
HA-HEATER
HA-A/C

To
HA-A/C
EC-FICD
EC-A/CCUT

To
HA-HEATER
HA-A/C
EC-FICD
EC-A/CCUT

To
EL-DTRL
EC-S/SIG
EC-MAIN

REFER TO THE FOLLOWING

FUSE BLOCK -
Junction Box (J/B)

To
EL-POWER-08

Preceding
page

To
EL-POWER-01

To
EL-POWER-02

To
EL-POWER-08

ST

ON

ACC

OFF

POWER SUPPLY ROUTING

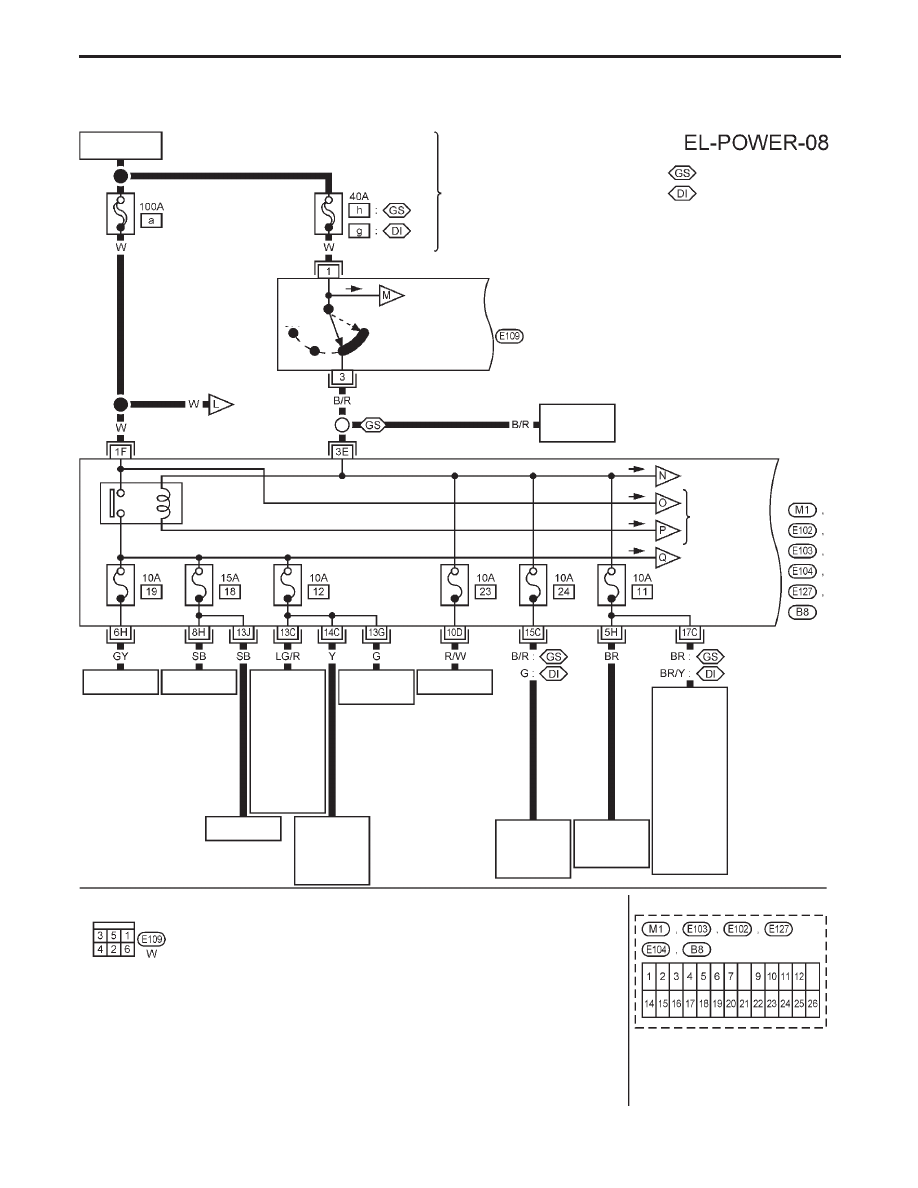

Wiring Diagram — POWER — (Cont’d)

EL-21

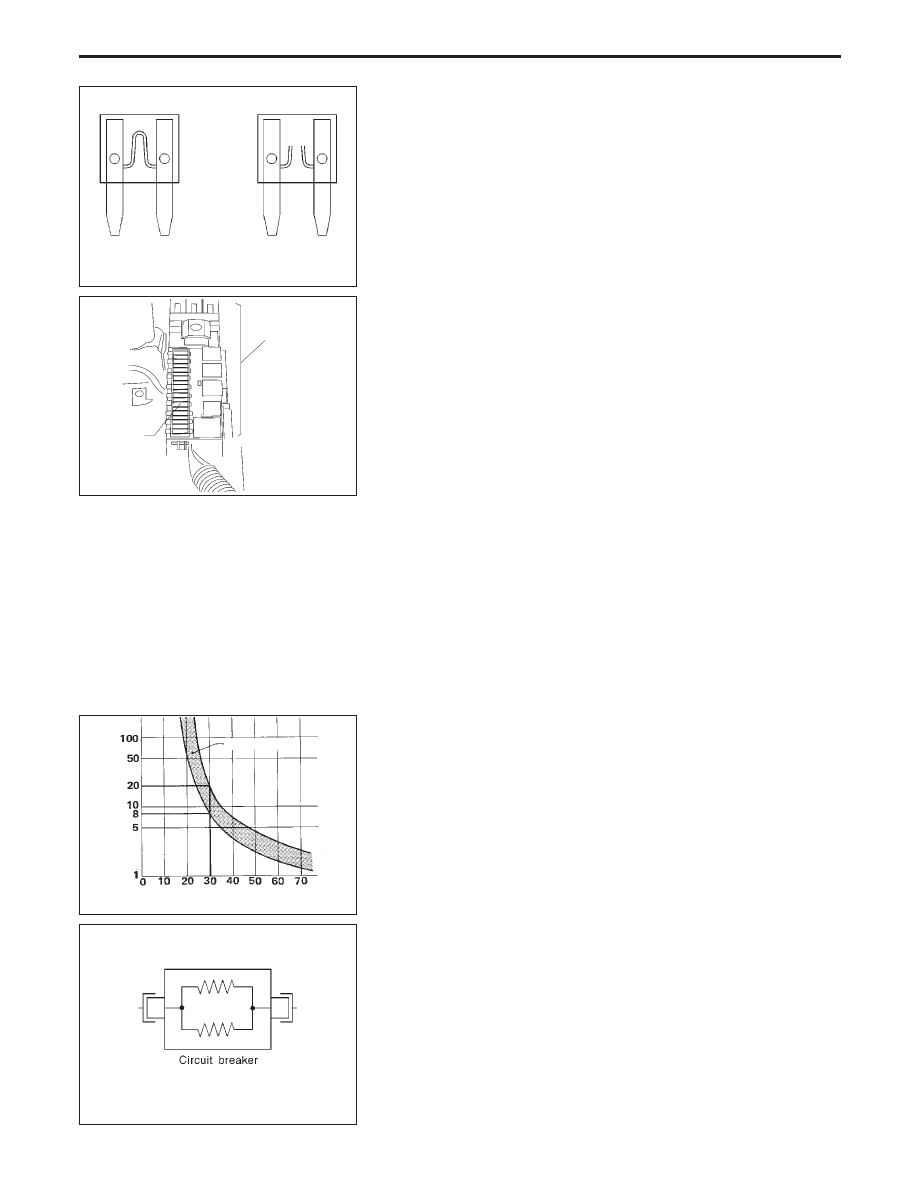

Fuse

a. If fuse is blown, be sure to eliminate cause of problem before

installing new fuse.

b. Use fuse of specified rating. Never use fuse of more than

specified rating.

c. Do not partially install fuse; always insert it into fuse holder

properly.

d. Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is

not used for a long period of time.

Fusible Link

A melted fusible link can be detected either by visual inspection
or by feeling with finger tip. If its condition is questionable, use
circuit tester or test lamp.

CAUTION:

●

If fusible link should melt, it is possible that critical cir-
cuit (power supply or large current carrying circuit) is
shorted. In such a case, carefully check and eliminate
cause of problem.

●

Never wrap outside of fusible link with vinyl tape.
Important: Never let fusible link touch any other wiring
harness or vinyl or rubber parts.

Circuit Breaker Inspection

For example, when current is 30A, the circuit is broken within 8
to 20 seconds.

Circuit Breaker (PTC Thermistor Type)

The PTC thermister generates heat in response to current flow.
The temperature (and resistance) of the thermister element var-
ies with current flow. Excessive current flow will cause the
element’s temperature to rise. When the temperature reaches a
specified level, the electrical resistance will rise sharply to con-
trol the circuit current.
Reduced current flow will cause the element to cool. Resistance
falls accordingly and normal circuit current flow is allowed to
resume.

CEL083

OK

Blown

NEL545

Fuse

Fusible link

SBF284E

Time (sec.)

Break point

Current (A)

SEL109W

POWER SUPPLY ROUTING

EL-22
