Nissan Frontier D22. Manual - part 920

SRS-46

FRONT PASSENGER AIR BAG MODULE

FRONT PASSENGER AIR BAG MODULE

PFP:K8515

Removal and Installation

EHS000TB

REMOVAL

CAUTION:

●

Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait for at
least 3 minutes.

●

Always work from the side of an air bag module.

1.

Open glove box assembly.

2.

Reach up and bend down deformable connector bracket assem-
bly.

3.

Remove passenger air bag module connector clip from bracket.

4.

Disconnect passenger air bag module connector from air bag harness connector.

5.

Remove glove box. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

6.

Remove two hex head bolts.

7.

Remove four mounting nuts.

8.

Remove passenger air bag module by releasing the clips from
the top of the instrument panel.

●

The air bag module is heavy and should be supported using
both hands during removal.

WRS261

WRS229

FRONT PASSENGER AIR BAG MODULE

SRS-47

C

D

E

F

G

I

J

K

L

M

A

B

SRS

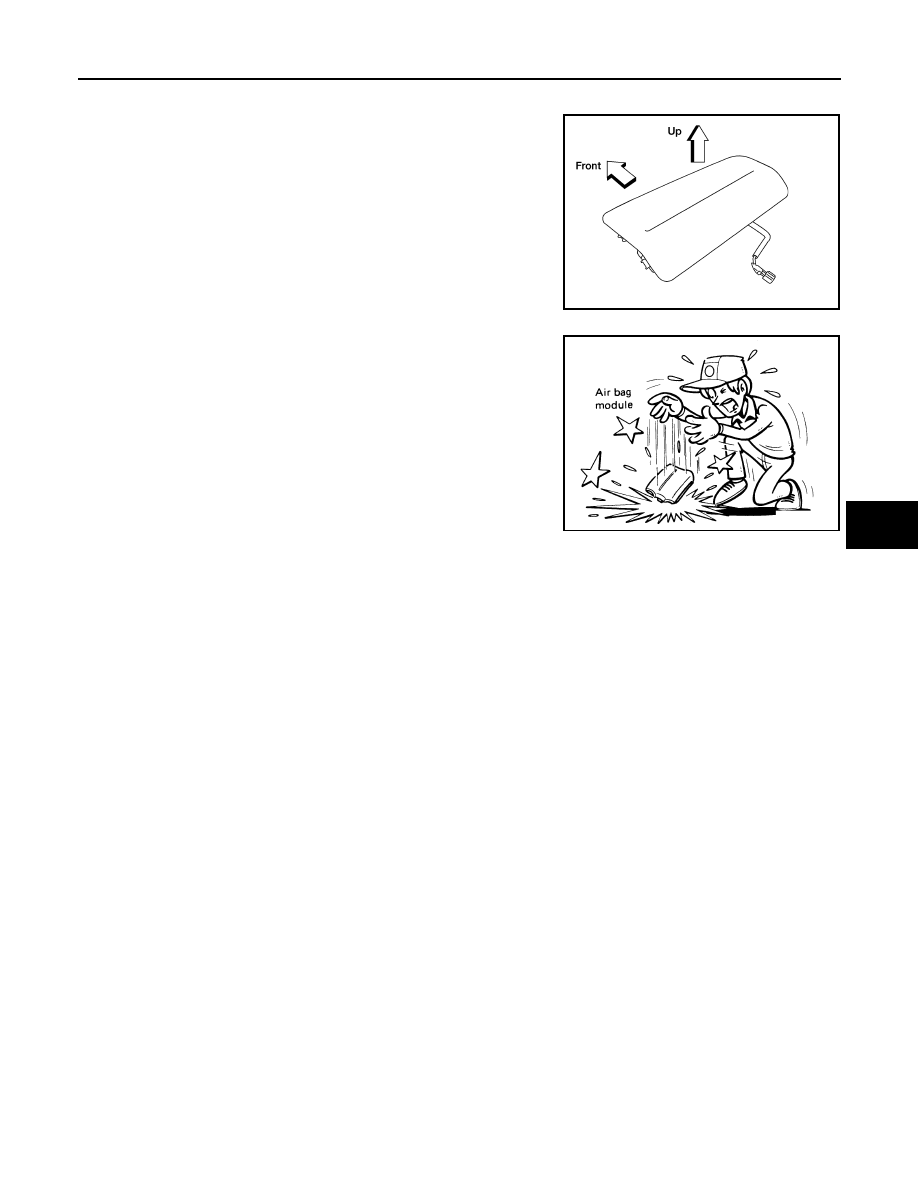

CAUTION:

●

Always place air bag module with pad side facing upward.

●

Do not attempt to disassemble air bag module.

●

Do not use old bolts after removal; replace with new bolts.

●

Do not insert any foreign objects (screwdriver, etc.) into air
bag module connector.

●

Do not drop or impact air bag module. If any portion is
deformed or cracked, replace the module.

●

Do not expose the air bag module to temperatures exceed-
ing 90

°C (194°F).

●

Do not allow oil, grease or water to come in contact with the
air bag module.

●

After air bag inflates, the instrument panel assembly should
be replaced if damaged.

ARS330

SBF814E

SRS-48

FRONT PASSENGER AIR BAG MODULE

INSTALLATION

CAUTION:

●

Always work from the side of an air bag module.

1.

Install passenger air bag module in instrument panel.

1. Insert front edge of passenger air bag module first to ease

installation.

–

Ensure harness is not caught between passenger air bag
module and support bracket.

2. Install four mounting nuts.

3. Install two new hex head bolts.

2.

Install glove box. Refer to

IP-10, "INSTRUMENT PANEL

ASSEMBLY"

 .

3.

Connect air bag harness connector to passenger air bag module
harness connector.

4.

Attach passenger air bag module connector clip to bracket
(Bracket in down position).

5.

Bend bracket up clear of glove box and close glove box.

6.

Connect both battery cables.

7.

Conduct self-diagnosis to ensure entire SRS operates properly
(Use CONSULT-II or “AIR BAG” warning lamp check).

NOTE:

●

After replacement, perform self-diagnosis for SRS. Refer to

SRS-20, "SRS Operation Check"

 .

WRS229

WRS261

PASSENGER AIR BAG DEACTIVATION SWITCH

SRS-49

C

D

E

F

G

I

J

K

L

M

A

B

SRS

PASSENGER AIR BAG DEACTIVATION SWITCH

PFP:25585

Removal

EHS000TC

●

Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait for at
least 3 minutes.

1.

Remove cluster lid-C. Refer to

IP-10, "Removal and Installation"

 .

2.

Disengage the two locking tabs from the passenger air bag deactivation switch lock cylinder and remove
passenger air bag deactivation switch.

Installation

EHS000TD

CAUTION:

Passenger air bag deactivation switch is keyed for proper installation. Improper positioning of the
switch will result in damage to the switch.

NOTE:

●

Be sure that the passenger air bag deactivation switch and lock cylinder is connected and in the
same position as during removal for proper engagement.

●

To install, reverse removal procedure.

●

After replacement, perform self-diagnosis for SRS. Refer to

SRS-20, "SRS Operation Check"

 .

LRS247
