REAR FINAL DRIVE ASSEMBLY

Components

EDS00132

H233B

WDIA0067E

REAR FINAL DRIVE ASSEMBLY

RFD-49

[H233B]

C

E

F

G

H

I

J

K

L

M

A

B

RFD

Pre-Inspection

EDS00133

Before disassembling the final drive, perform the following inspections.

TOTAL PRELOAD

1.

Turn the drive pinion in both directions several times to seat bearing rollers correctly.

2.

Check total preload with Tool.

RING GEAR TO DRIVE PINION BACKLASH

●

Check backlash of ring gear with a dial indicator at several
points.

RING GEAR RUNOUT

●

Check runout of ring gear with a dial indicator.

1.

Pinion mate shaft

2.

Pinion mate gear

3.

Pinion mate thrust washer

4.

Differential case

5.

Ring gear bolt

6.

Side bearing adjuster

7.

Side bearing cap bolt

8.

Side bearing cap

9.

Outer race

10. Inner cone

11.

Side bearing

12. Ring gear

13. Drive pinion

14. Hypoid gear set

15. Drive pinion height adjusting washer

16. Drive pinion bearing adjusting spacer

17. Drive pinion bearing adjusting shim 18. Rear final drive mounting stud

19. Rear final drive mounting nut

20. ABS sensor mounting bolt

21. Washer

22. Pinion nut

23. Companion flange

24. Rear wheel sensor rotor (2WD models)

25. ABS sensor unit (2WD models)

26. Front oil seal

27. Inner cone

28. Pinion front bearing

29. Outer race

30. Gear carrier

31. Gasket

32. Outer race

33. Drive pinion rear bearing

34. Inner cone

35. Lock pin

36. Side gear

37. Side gear thrust washer

Tool number

: ST3127S000 (J-25765-A)

Total preload

: 1.7 - 2.5 N·m (17 - 25 kg-cm,
15 - 22 in-lb)

SPD149

Ring gear-to-drive pinion backlash

: 0.13 - 0.18 mm
(0.0051 - 0.0071 in)

SPD246

Runout limit

: 0.08 mm (0.0031 in)

SPD247

RFD-50

[H233B]

REAR FINAL DRIVE ASSEMBLY

TOOTH CONTACT

●

Check tooth contact. Refer to

RFD-63, "TOOTH CONTACT"

 .

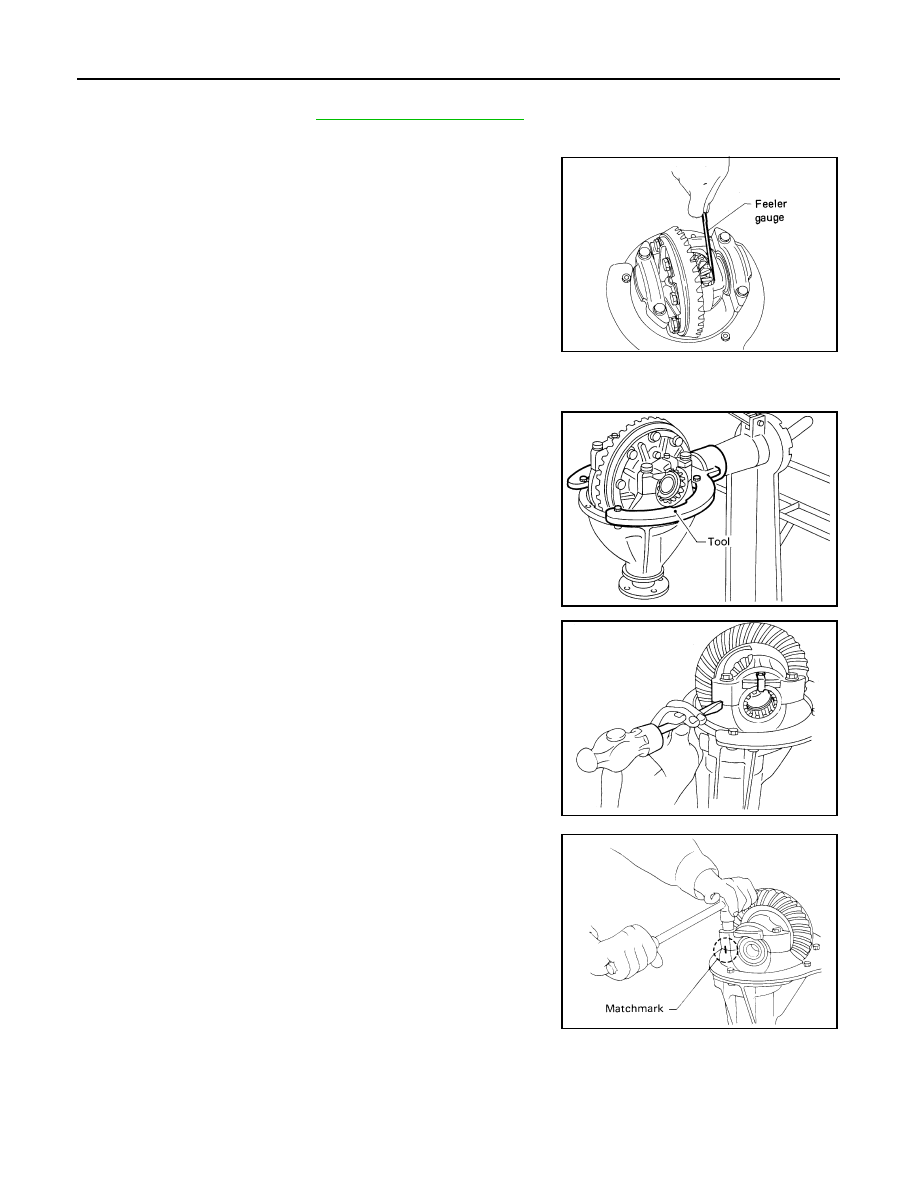

SIDE GEAR TO PINION MATE GEAR BACKLASH

●

Measure clearance between side gear thrust washer and differ-
ential case with a feeler gauge.

Disassembly and Assembly

EDS00134

REMOVAL OF DIFFERENTIAL CASE ASSEMBLY

1.

Mount final drive assembly on Tool.

2.

Put match marks on one side of side bearing cap with paint or
punch to ensure that it is replaced in proper position during reas-
sembly.

3.

Remove side lock fingers and side bearing caps.

●

Bearing caps are line-bored during manufacture and should
be put back in their original places.

Clearance between side gear
thrust washer and differential case

: 0.10 - 0.20 mm
(0.0039 - 0.0079 in)

SPD004

Tool number

: ST06340000 (J-24310, J-34310)

SPD683

SPD249

SPD250

REAR FINAL DRIVE ASSEMBLY

RFD-51

[H233B]

C

E

F

G

H

I

J

K

L

M

A

B

RFD

4.

Remove side bearing adjuster using Tool.

5.

Remove differential case assembly with a pry bar.

●

Keep the side bearing outer races together with their respec-
tive inner cones — do not mix them up.

REMOVAL OF DRIVE PINION ASSEMBLY

1.

Hold companion flange using Tool and remove drive pinion nut.

2.

Remove companion flange with puller.

3.

Remove ABS sensor unit and sensor rotor (2WD models).

Tool number

: ST32580000 (J-34312)

SPD684

SPD685

SPD011

Tool number

: KV38108300 (J-44195)

SPD480A
