PG-32

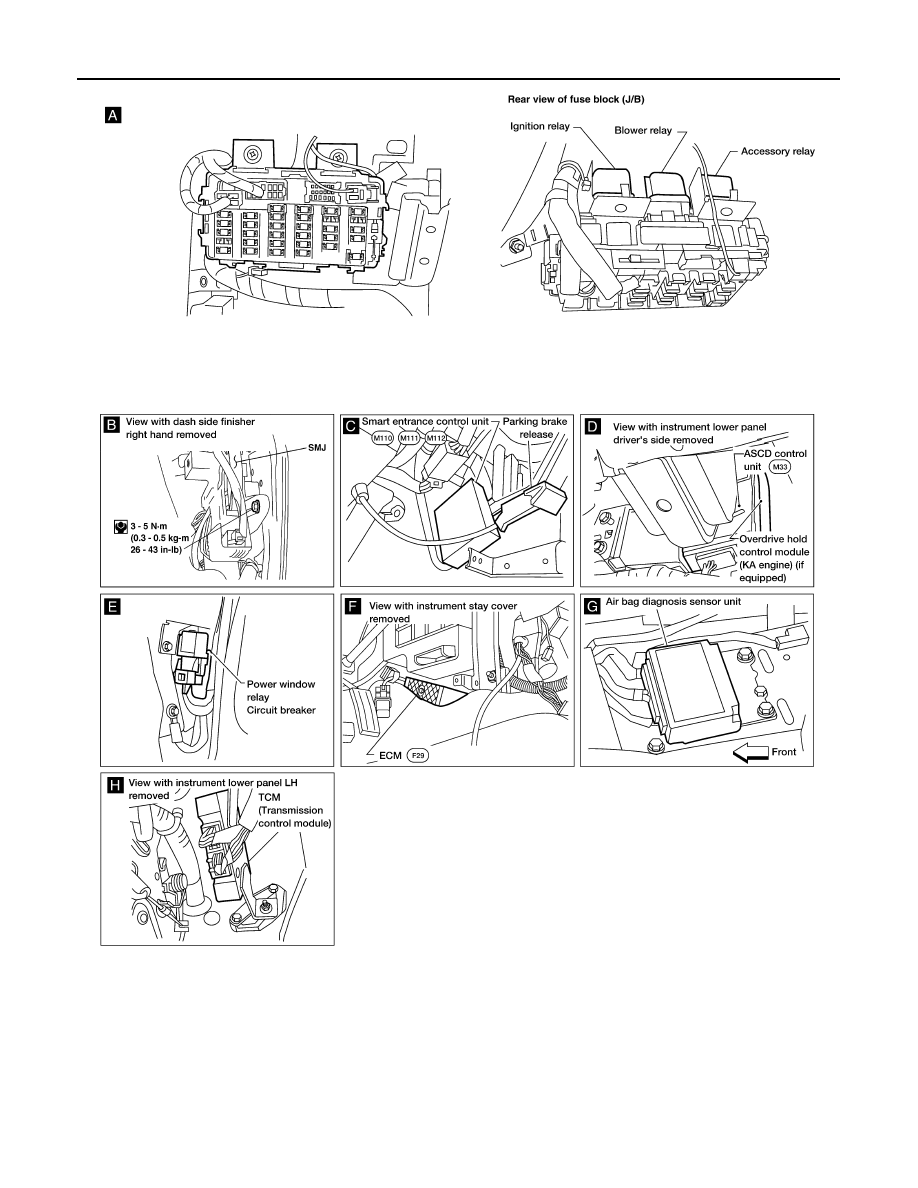

ELECTRICAL UNITS LOCATION

WKIA0326E

HARNESS LAYOUT

PG-33

C

D

E

F

G

H

I

J

L

M

A

B

PG

HARNESS LAYOUT

PFP:24010

How to Read Harness Layout

EKS006XX

The following Harness Layouts use a map style grid to help locate
connectors on the drawings:

●

Main Harness

●

Engine Room Harness (Engine Compartment)

●

Engine Control Harness

TO USE THE GRID REFERENCE

1.

Find the desired connector number on the connector list.

2.

Find the grid reference.

3.

On the drawing, find the crossing of the grid reference letter column and number row.

4.

Find the connector number in the crossing zone.

5.

Follow the line (if used) to the connector.

CONNECTOR SYMBOL

Main symbols of connector (in Harness Layout) are indicated below.

SEL252V

Connector type

Waterproof type

Standard type

Male

Female

Male

Female

●

Cavity: Less than 4

●

Relay connector

●

Cavity: From 5 to 8

●

Cavity: More than 9

●

Ground terminal etc.

—

PG-34

HARNESS LAYOUT

Outline

EKS006XY

NOTE:
For detailed ground distribution information, refer to

PG-17, "Ground Distribution"

 .

LEL425A

HARNESS LAYOUT

PG-35

C

D

E

F

G

H

I

J

L

M

A

B

PG

Main Harness (King Cab Models)

EKS006XZ

WKIA0329E
