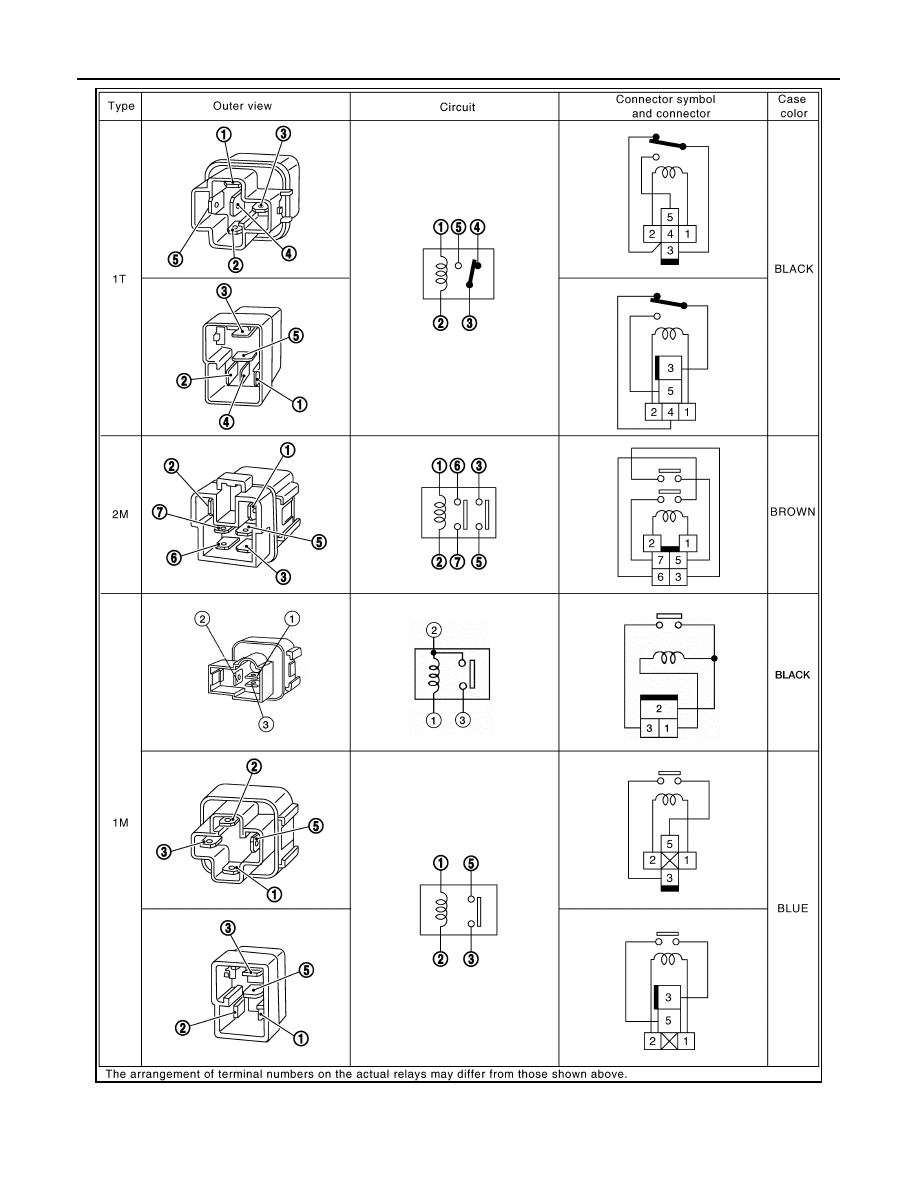

STANDARDIZED RELAY

WKIA0321E

POWER SUPPLY ROUTING

PG-9

C

D

E

F

G

H

I

J

L

M

A

B

PG

POWER SUPPLY ROUTING

PFP:24110

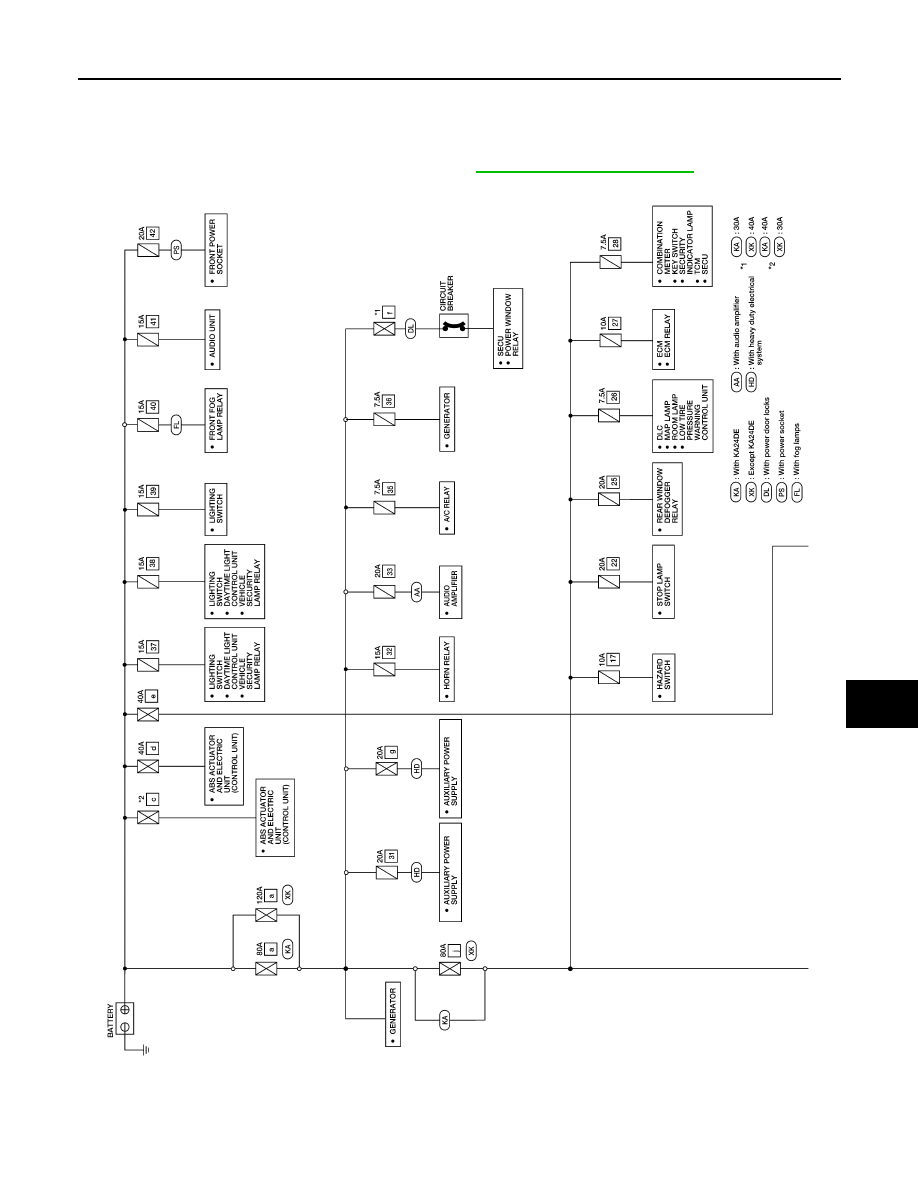

Circuit Diagram

EKS006XR

NOTE:
For detailed ground distribution information, refer to

PG-17, "Ground Distribution"

 .

WKWA1011E

PG-10

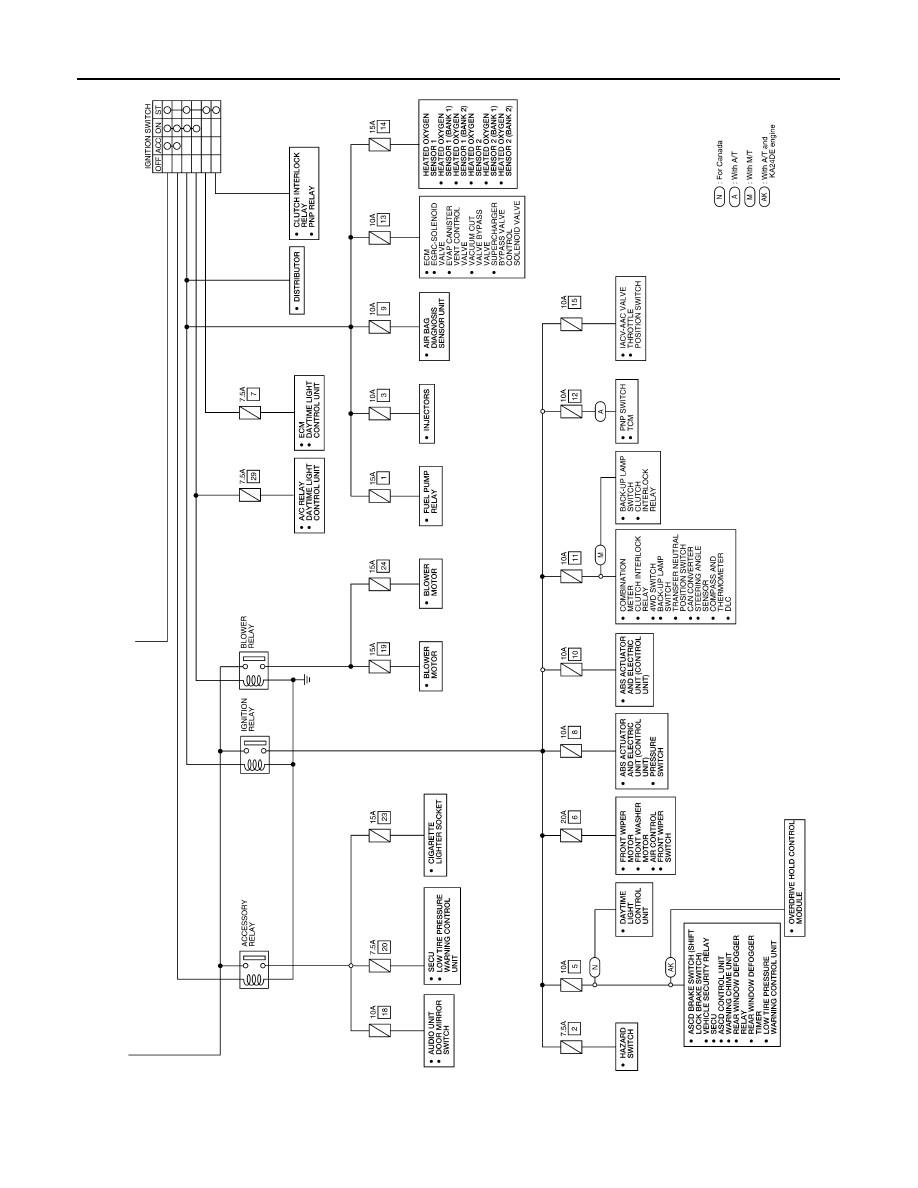

POWER SUPPLY ROUTING

WKWA0653E

POWER SUPPLY ROUTING

PG-11

C

D

E

F

G

H

I

J

L

M

A

B

PG

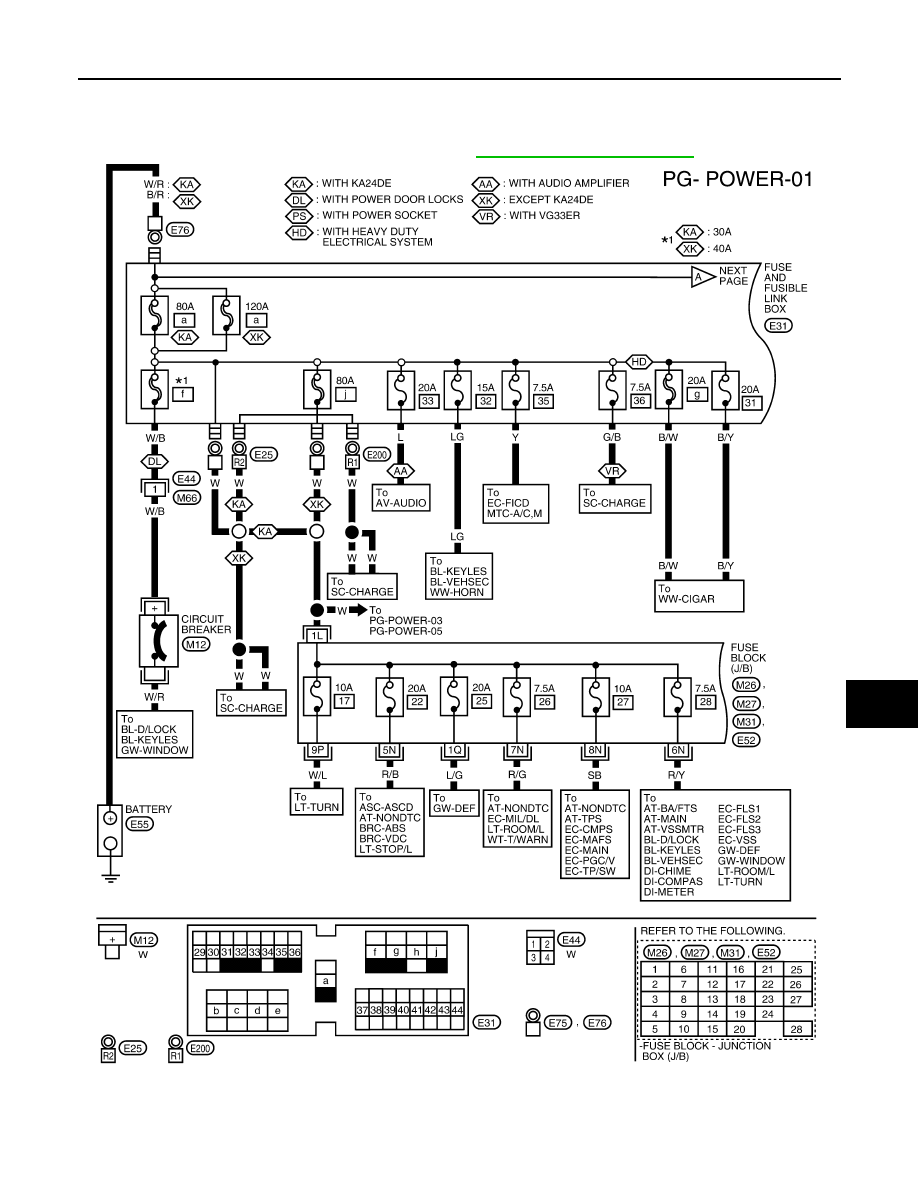

Wiring Diagram — POWER —

EKS006XS

BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION

NOTE:
For detailed ground distribution information, refer to

PG-17, "Ground Distribution"

 .

WKWA1003E
