DRIVE SHAFT

FAX-25

C

E

F

G

H

I

J

K

L

M

A

B

FAX

5.

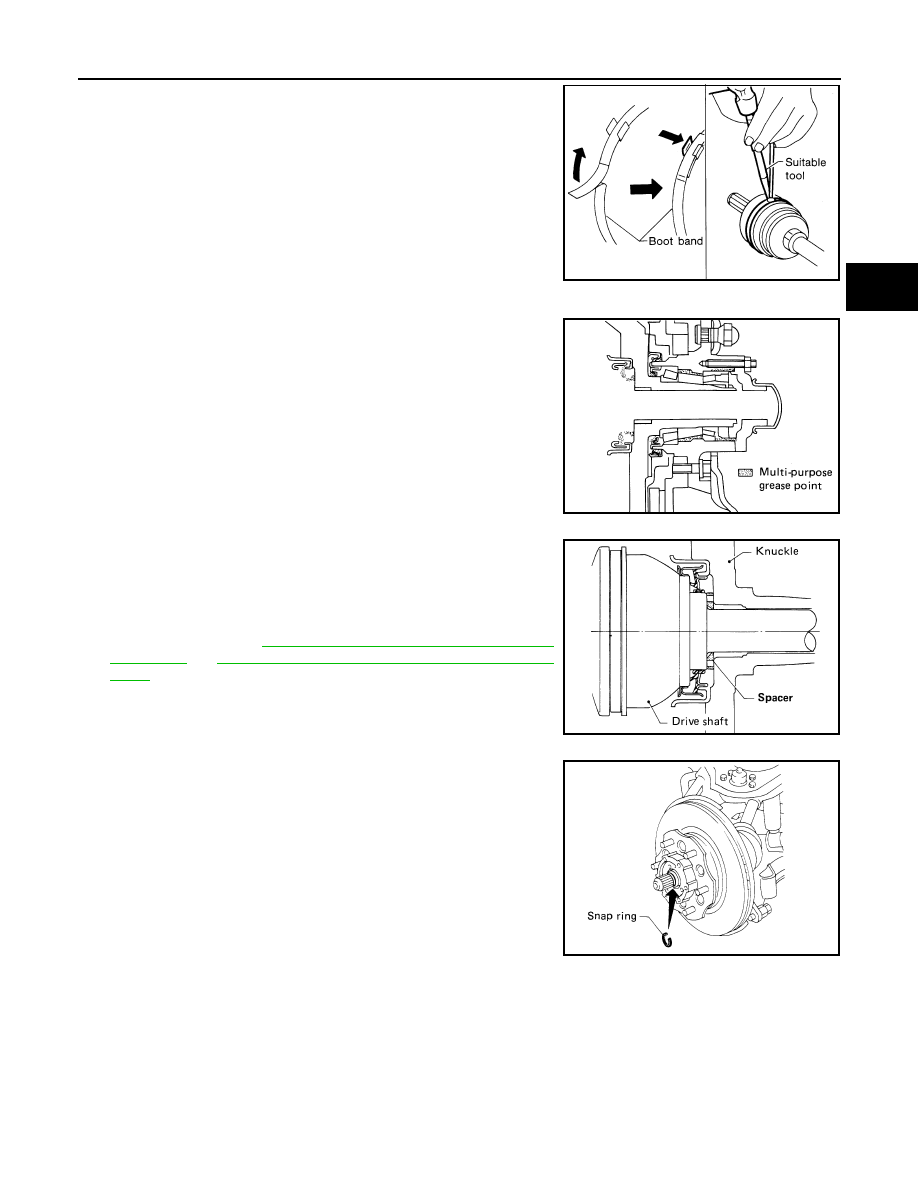

Lock new large boot band securely with a suitable tool, then lock
new small boot band.

Installation

EDS00140

1.

Apply multi-purpose grease.

2.

Install bearing spacer onto drive shaft.

CAUTION:

Make sure that the bearing spacer is facing in the proper
direction.

3.

After installing wheel hub and wheel bearing, adjust wheel bear-
ing preload. Refer to

FAX-5, "PRELOAD ADJUSTMENT (2WD

MODELS)"

  or

FAX-6, "PRELOAD ADJUSTMENT (4WD MOD-

ELS)"

 .

4.

When installing drive shaft, adjust drive shaft axial end play by
selecting a suitable snap ring.

a.

Temporarily install new snap ring on drive shaft in the same
thickness as the one that was removed.

SFA443B

SFA887

SFA846

SFA940

FAX-26

DRIVE SHAFT

b.

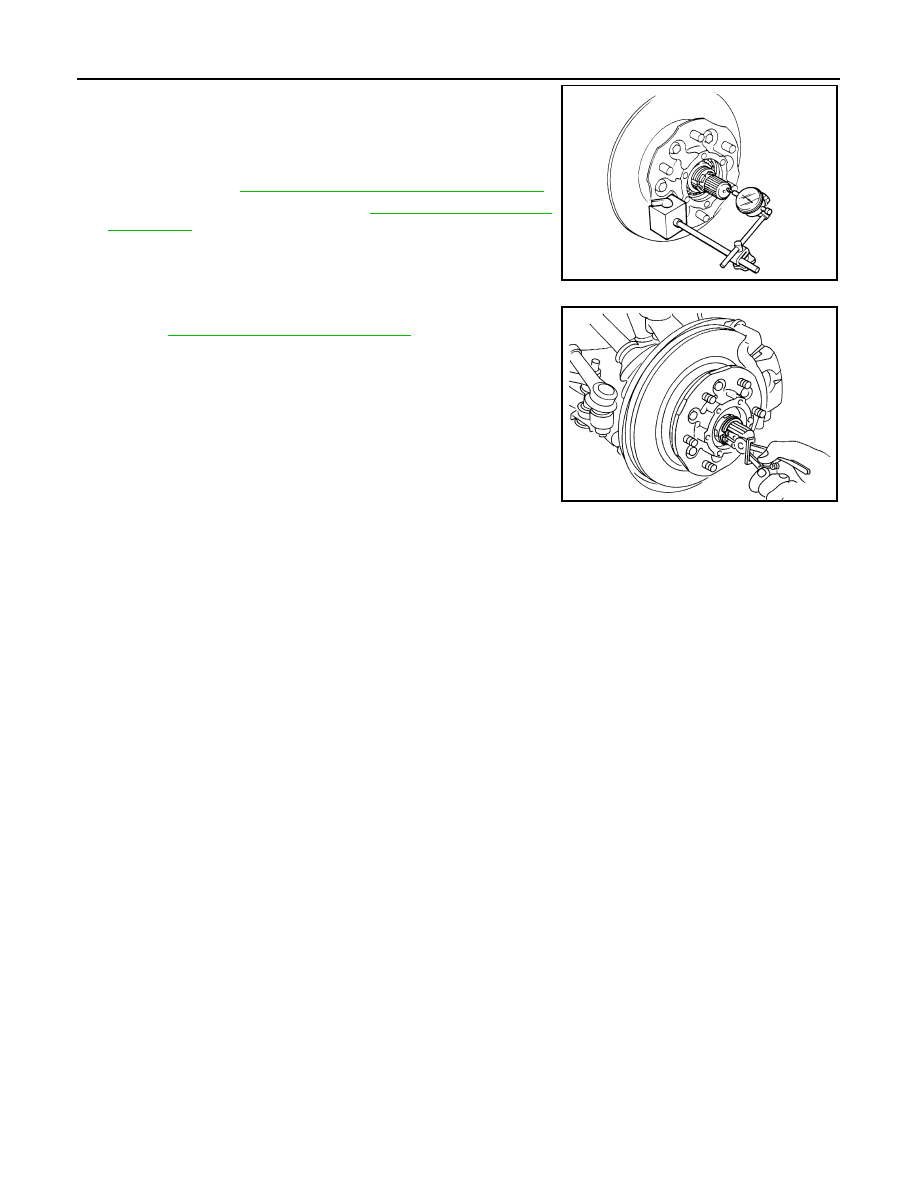

Set dial gauge on drive shaft end.

c.

Measure axial end play of drive shaft.

d.

If axial end play is not within the specified limit, select another
snap ring. Refer to

FAX-27, "DRIVE SHAFT AXIAL END PLAY"

 .

5.

Install torsion bar spring. Refer to

FSU-18, "Installation and

Adjustment"

 .

6.

Install auto-lock free-running hub or drive flange and snap ring.
Refer to

FAX-11, "Removal and Installation"

 .

Axial end play

: 0.10 – 0.45 mm (0.004 – 0.0177 in)

SFA847

SFA832B

SERVICE DATA AND SPECIFICATIONS (SDS)

FAX-27

C

E

F

G

H

I

J

K

L

M

A

B

FAX

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Wheel Bearing (Front)

EDS00141

2WD MODELS

4WD MODELS

Drive Shaft (4WD models)

EDS00142

*: The ZF100 type (wheel side) joint assembly has two types of boot material; one is made of rubber and the other is made of plastic. Do
not disassemble the joint assembly with the plastic boot. If the boot or joint is damaged, replace the drive shaft assembly.

DRIVE SHAFT AXIAL END PLAY

Wheel bearing axial end play

 mm (in)

0 (0)

Wheel bearing lock nut

Tightening torque

 N·m (kg-m, ft-lb)

34 - 39 (3.5 - 4.0, 25 - 29)

Return angle

 degree

45

° - 60°

Wheel bearing starting torque

At wheel hub bolt
With new grease seal

 N (kg, lb)

9.8 - 28.4 (1.0 - 2.9, 2.2 - 6.4)

With used grease seal

 N (kg, lb)

9.8 - 23.5 (1.0 - 2.4, 2.2 - 5.3)

Wheel bearing lock nut

Tightening torque

 N·m (kg-m, ft-lb)

78 - 98 (8 - 10, 58 - 72)

Retightening torque after loosening wheel
bearing lock nut

 N·m (kg-m, in-lb)

0.5 - 1.5 (0.05 - 0.15, 4.3 - 13)

Axial end play

 mm (in)

0 (0)

Turning angle

 degree

15

° - 30°

Wheel bearing preload at wheel hub bolt

 N (kg, lb)

7.06 - 20.99 (0.72 - 2.14, 1.59 - 4.72)

Drive shaft joint type

Final drive side

TS82F

Wheel side

ZF100*

Fixed joint axial end play limit

 mm (in)

1 (0.04)

Diameter

 mm (in)

Wheel side (D

1

 )

29.0 (1.142)

Grease

Quality

Nissan Genuine Grease or

equivalent

Capacity

 g (oz)

Final drive side

95 - 105 (3.35 - 3.70)

Wheel side

115 - 125 (4.06 - 4.41)

Boot length

 mm (in)

Final drive side (L

1

 )

95 - 97 (3.74 - 3.82)

Wheel side (L

2

 )

96 - 98 (3.78 - 3.86)

LDIA0022E

Drive shaft axial end play

 mm (in)

0.10 – 0.45 (0.004 – 0.0177)

FAX-28

SERVICE DATA AND SPECIFICATIONS (SDS)

DRIVE SHAFT END SNAP RING

*: Always check with the Parts Department for the latest parts information.

Thickness mm (in)

Part No.*

1.1 (0.043)
1.3 (0.051)
1.5 (0.059)
1.7 (0.067)
1.9 (0.075)
2.1 (0.083)
2.3 (0.091)

39253-88G10

39253-88G11

39253-88G12
39253-88G13
39253-88G14
39253-88G15
39253-88G16
