SERVICE DATA AND SPECIFICATIONS (SDS)

EM-147

[VG33E and VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

EM

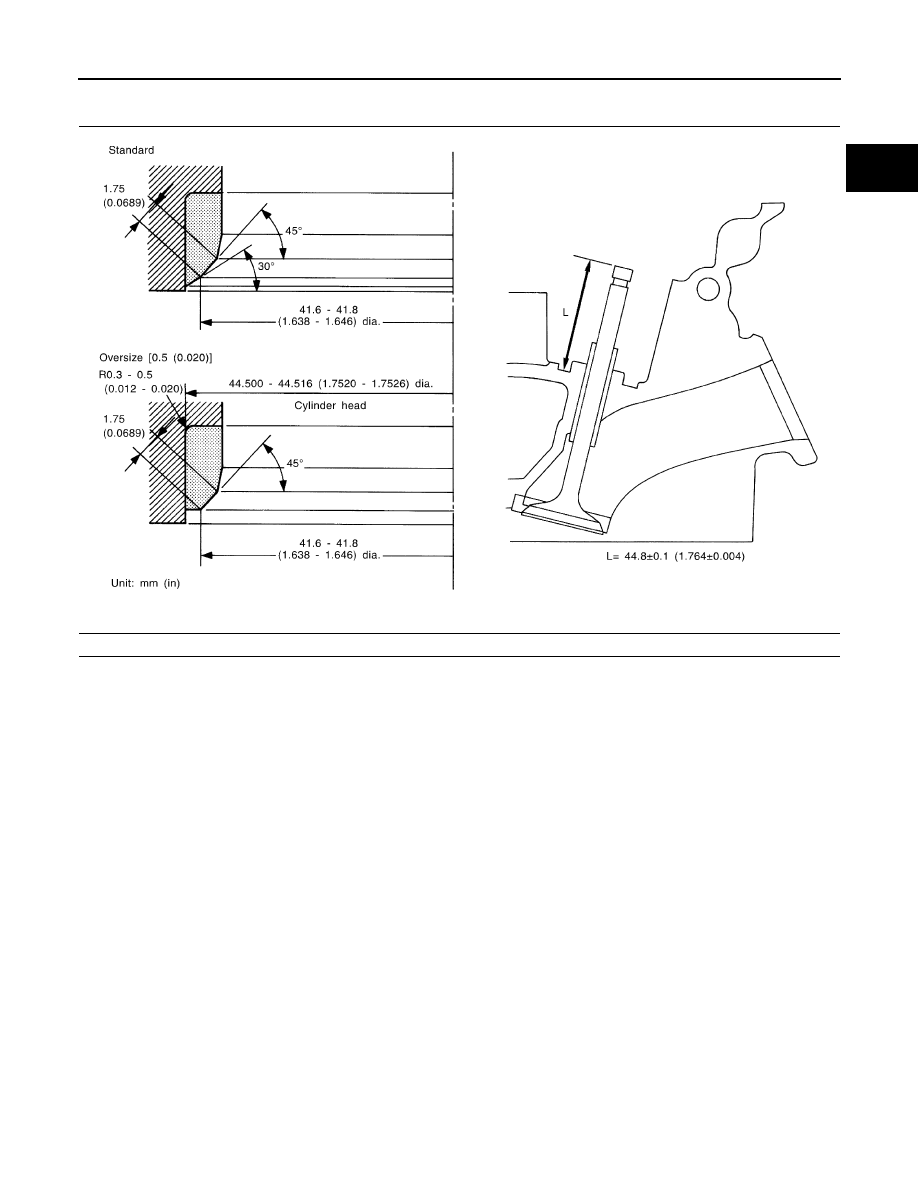

Valve Seat

EBS00GU4

INTAKE VALVE SEAT

Intake "L": 44.7 - 44.9 mm (1.760 - 1.768 in)

SEM639F

EM-148

[VG33E and VG33ER]

SERVICE DATA AND SPECIFICATIONS (SDS)

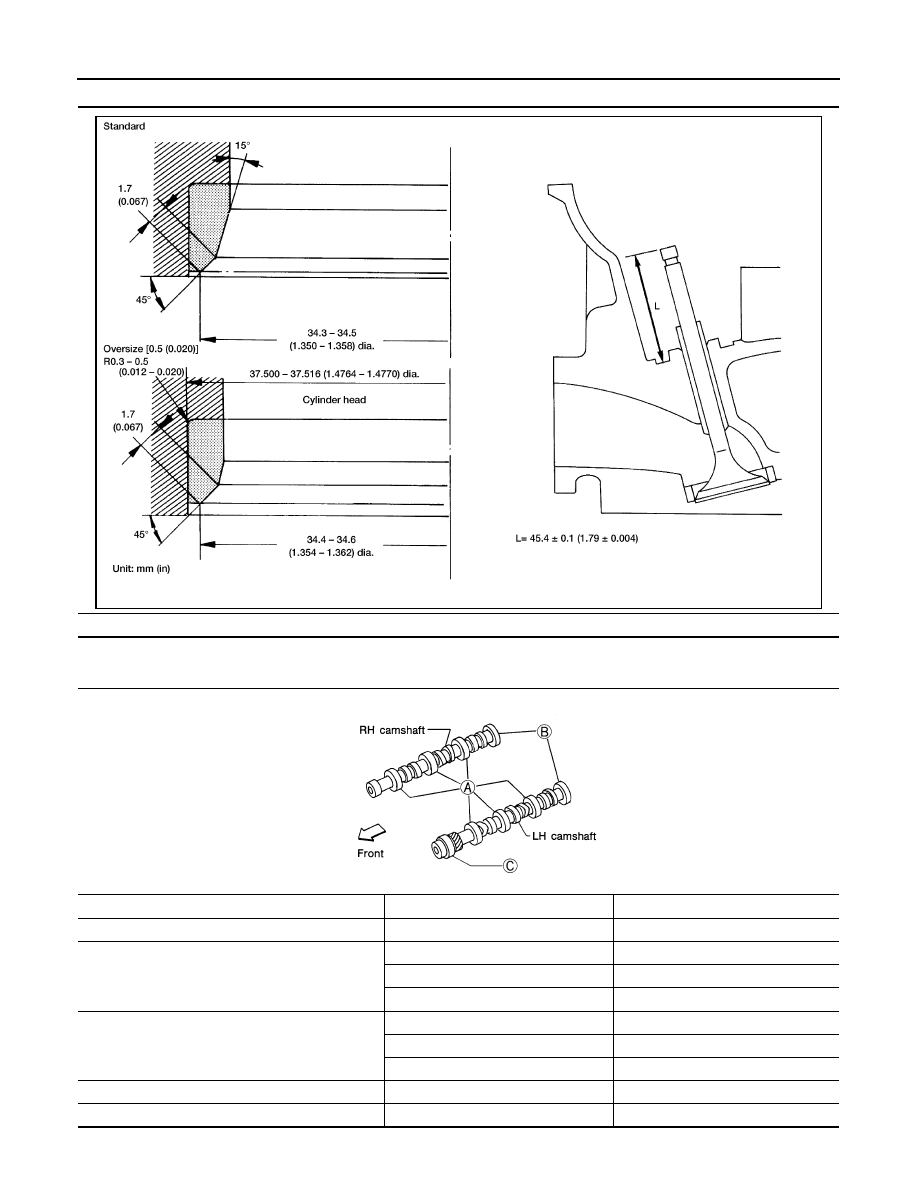

EXHAUST VALVE SEAT

Camshaft and Camshaft Bearing

EBS00GU5

Unit: mm (in)

Exhaust "L": 45.4 - 45.6 mm (1.787 - 1.795 in)

AEM455

Standard

Max. tolerance

Camshaft journal to bearing clearance

0.060 - 0.105 (0.0024 - 0.0041)

0.15 (0.0059)

Inner diameter of camshaft bearing

A: 47.000 - 47.025 (1.8504 - 1.8514)

—

B: 42.500 - 42.525 (1.6732 - 1.6742)

—

C: 48.000 - 48.025 (1.8898 - 1.8907)

—

Outer diameter of camshaft journal

A: 46.920 - 46.940 (1.8472 - 1.8480)

—

B: 42.420 - 42.440 (1.6701 - 1.6709)

—

C: 47.920 - 47.940 (1.8866 - 1.8874)

—

Camshaft runout [TIR*]

Less than 0.04 (0.0016)

0.1 (0.004)

Camshaft end play

0.03 - 0.06 (0.0012 - 0.0024)

—

SEM893BA

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-149

[VG33E and VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

EM

*Total indicator reading

Cylinder Block

EBS00GU6

Unit: mm (in)

Cam height “A”

Intake

38.943 - 39.133 (1.5332 - 1.5407)

Exhaust

38.943 - 39.133 (1.5332 - 1.5407)

Wear limit of cam height

0.15 (0.0059)

EM671

Distortion

Standard

Less than 0.03 (0.0012)

Limit

0.10 (0.004)

Cylinder bore

Inner diameter

Standard (for No. 3 and 4 cylin-
ders)

Grade No. 1

91.500 - 91.505 (3.6024 - 3.6026)

Grade No. 2

91.505 - 91.510 (3.6026 - 3.6027)

Grade No. 3

91.510 - 91.515 (3.6027 - 3.6029)

Grade No. 4

91.515 - 91.520 (3.6029 - 3.6031)

Grade No. 5

91.520 - 91.525 (3.6031 - 3.6033)

Grade No. 6

91.525 - 91.530 (3.6033 - 3.6035)

Standard (for No. 1, 2, and 6 cylin-
ders)

Grade No. 1

91.500 - 91.510 (3.6024 - 3.6027)

Grade No. 2

91.510 - 91.520 (3.6027 - 3.6031)

Grade No. 3

91.520 - 91.530 (3.6031 - 3.6035)

Standard (for No. 5 cylinder)

Grade No. 1

91.515 - 91.520 (3.6029 - 3.6031)

Grade No. 2

91.520 - 91.525 (3.6031 - 3.6033)

Grade No. 3

91.525 - 91.530 (3.6033 - 3.6035)

Grade No. 4

91.530 - 91.535 (3.6035 - 3.6037)

Grade No. 5

91.535 - 91.540 (3.6037 - 3.6039)

Grade No. 6

91.540 - 91.545 (3.6039 - 3.6041)

Wear limit

0.20 (0.0079)

Out-of-round (difference between X and Y)

Less than 0.015 (0.0006)

Taper (difference between A and C)

Less than 0.015 (0.0006)

SEM321AA

EM-150

[VG33E and VG33ER]

SERVICE DATA AND SPECIFICATIONS (SDS)

Piston, Piston Ring and Piston Pin

EBS00GU7

AVAILABLE PISTON

Unit: mm (in)

PISTON RING

Unit: mm (in)

Main journal inner diameter

No. 1 main

journal

Grade No.3

66.645 - 66.651 (2.6238 - 2.6240)

Grade No. 4

66.651 - 66.657 (2.6240 - 2.6243)

Grade No. 5

66.657 - 62.663 (2.6243 - 2.6245)

Grade No. 6

66.663 - 66.669 (2.6245 - 2.6248)

Except No. 1

main journal

Grade No. 0

66.645 - 66.654 (2.6238 - 2.6242)

Grade No. 1

66.654 - 66.663 (2.6242 - 2.6245)

Grade No. 2

66.663 - 66.672 (2.6245 - 2.6249)

Difference in inner diameter
between cylinders

Standard

Less than 0.05 (0.0020)

Piston skirt diame-
ter “A”

Standard (for No. 3,
4 and 5 cylinders)

Grade No. 2-1

91.480 - 91.485 (3.6016 - 3.6018)

Grade No. 3-2

91.485 - 91.490 (3.6018 - 3.6020)

Grade No. 3-3

91.490 - 91.495 (3.6020 - 3.6022)

Grade No. 4-4

91.495 - 91.500 (3.6022 - 3.6024)

Grade No. 4-5

91.500 - 91.505 (3.6024 - 3.6026)

Grade No. 5-6

91.505 - 91.510 (3.6026 - 3.6027)

Standard (for No. 1,
2 and 6 cylinders)

Grade No. 1

91.465 - 91.475 (3.6010 - 3.6014)

Grade No. 2

91.475 - 91.485 (3.6014 - 3.6018)

Grade No. 3

91.485 - 91.495 (3.6018 - 3.6022)

0.25 (0.0098) oversize (Service)

91.715 - 91.745 (3.6108 - 3.6120)

0.50 (0.0197) oversize (Service)

91.965 - 91.995 (3.6207 - 3.6218)

Height “a”

49.0 (1.929)

Piston pin hole diameter "d"

Grade No. 0

20.969 - 20.975 (0.8255 - 0.8258)

Grade No. 1

20.975 - 20.981 (0.8258 - 0.8260)

Piston clearance to
cylinder block

Standard

For No. 3 and 4 cylinders

0.015 - 0.025 (0.0006 - 0.0010)

For No. 1, 2 and 6 cylinders (No. 5
cylinder VG33ER only)

0.025 - 0.045 (0.0010 - 0.0018)

For No. 5 cylinder (VG33E only)

0.030 - 0.040 (0.0012 - 0.0016)

SEM804E

Standard

Limit

Side clearance

Top

0.040 - 0.080 (0.0016 - 0.0031)

0.11 (0.0043)

2nd

0.030 - 0.070 (0.0012 - 0.0028)

0.10 (0.0039)

Oil

0.015 - 0.185 (0.0006 - 0.0073)

—
