CYLINDER HEAD

EM-39

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

VALVE SEATS

Check valve seats for pitting at contact surface. Resurface or
replace if excessively worn.

●

Before repairing the valve seats, check the valves and valve
guides for wear as shown. If they are worn, replace them. Then
resurface the valve seat as necessary.

●

Use both hands to resurface the valve seat uniformly using a
suitable tool, as shown.

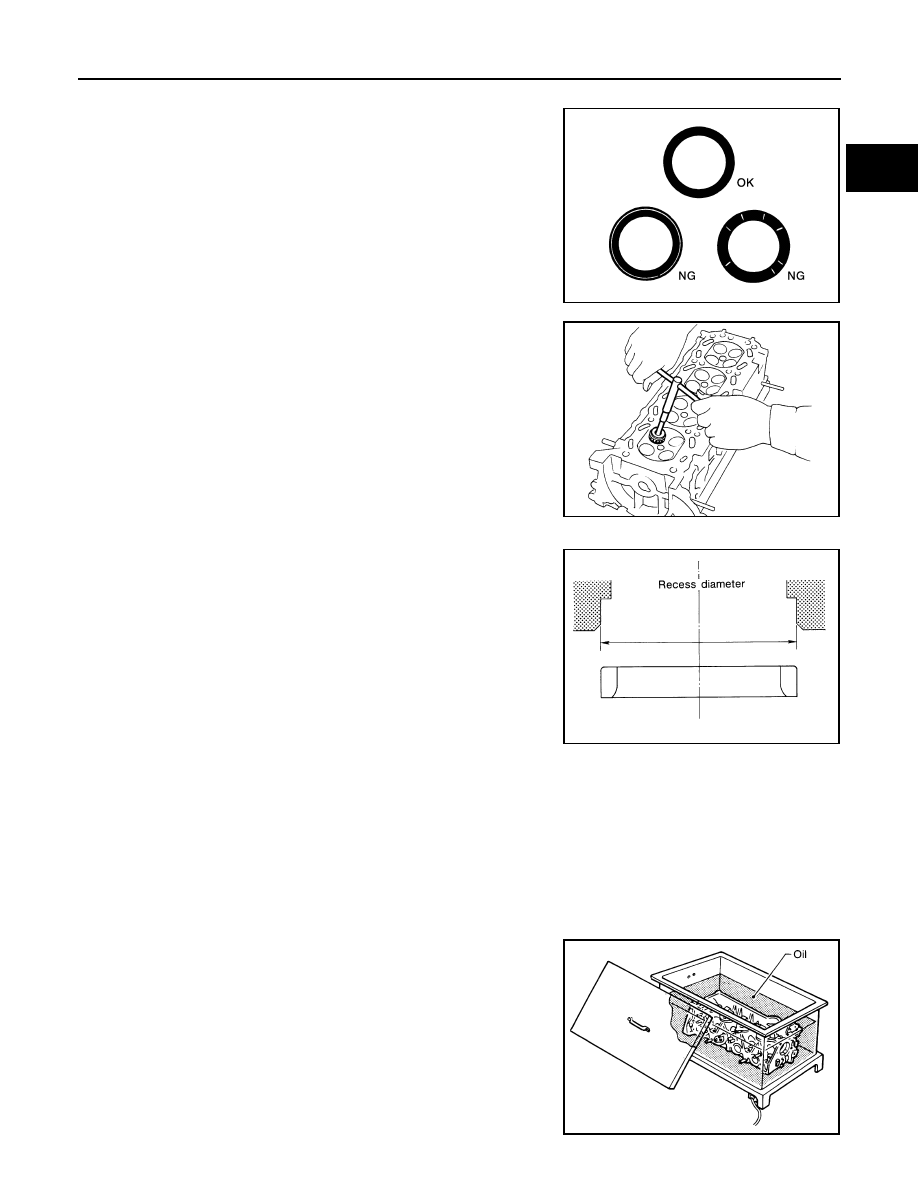

REPLACING VALVE SEAT

1.

Bore out the old seat until it collapses. Boring should not con-
tinue beyond the bottom face of the seat recess in the cylinder
head. Set the machine depth stop to prevent damage.

2.

Ream the cylinder head valve seat recess.

CAUTION:

Use the valve guide center for a reference point for reaming so the valve and valve seat will have
the correct fit.

3.

Heat the cylinder head to 120

° - 140°C (248° - 284°F) in heated

oil.

SBIA0322E

SEM302D

SEM795A

Reaming bore for service valve seat

Oversize

: 0.5 mm (0.020 in)

Intake

: 38.000 - 38.016 mm (1.4961 - 1.4967 in)

Exhaust

: 32.700 - 32.716 mm (1.2874 - 1.2880 in)

SEM008A

EM-40

[KA24DE]

CYLINDER HEAD

4.

Press fit valve seat until it seats on the bottom of the recess.

5.

Cut or grind valve seat using suitable tool to the specified dimen-
sions.

6.

After cutting, lap valve seat with abrasive compound.

7.

Check the valve seat dimensions. Refer to

EM-66, "VALVE SEAT"

 .

8.

Use a depth gauge to measure the distance between the mount-
ing surface of the cylinder head spring seat and the valve stem
end. If the distance is shorter than specified, repeat step 5
through 7 above, to adjust it. If it is longer, replace the valve seat
with a new one.

VALVE DIMENSIONS

Check dimensions of each valve. Refer to

EM-63, "VALVE"

 . When

valve head has been worn down to less than the margin thickness
"T", replace the valve. Do not grind the valve stem more than the
grinding limit specification.

VALVE SPRING
Squareness

1.

Measure the spring out-of-square dimension “S” as shown.

2.

If the out-of-square measurement exceeds the limit, replace the
spring.

Seat face “

α” :  45° 15′ - 45° 45′ degrees

Contacting width “W”

Intake

: 1.48 - 1.63 mm (0.0583 - 0.0642 in)

Exhaust

: 1.8 - 2.0 mm (0.071 - 0.079 in)

SEM892B

Valve seat resurface limit - height “L”

Intake

: 42.02 - 42.52 mm (1.6543 - 1.6740 in)

Exhaust

: 42.03 - 42.53 mm (1.6547 - 1.6744 in)

SEM621F

Margin thickness "T"

: 0.5 mm (0.020 in)

Valve stem tip grinding limit

: 0.2 mm (0.008 in)

SEM188A

Out-of-square “S”

: less than 2.2 mm (0.087 in)

SEM288A

CYLINDER HEAD

EM-41

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

Pressure

1.

Check the valve spring pressure at the specified spring height.

2.

If not within specification, replace the spring.

VALVE LIFTER AND ADJUSTING SHIM

1.

Visually check the valve lifter and adjusting shim contact and
sliding surfaces for wear and scratches.

2.

Check the diameter of the valve lifter as shown.

3.

Check the diameter of the valve lifter guide bore as shown.

4.

If the measurements exceed the standard diameter or clearance, replace valve lifter or cylinder head as
necessary.

Pressure

: N (kg, lb) at height mm (in)

Standard

: 418.0 (42.6, 93.9) at 29.17 (1.1484)

Limit

: 393.0 (40.1, 88.4) at 29.17 (1.1484)

EM113

AEM499

AEM502

SEM303D

Valve lifter outer diameter

: 33.960 - 33.975 mm (1.3370 - 1.3376 in)

Lifter guide bore diameter

: 34.000 - 34.021 mm (1.3386 - 1.3394 in)

Valve lifter to valve lifter guide clearance

: 0.025 - 0.061 mm (0.0010 - 0.0024 in)

EM-42

[KA24DE]

CYLINDER HEAD

Assembly

EBS00GSK

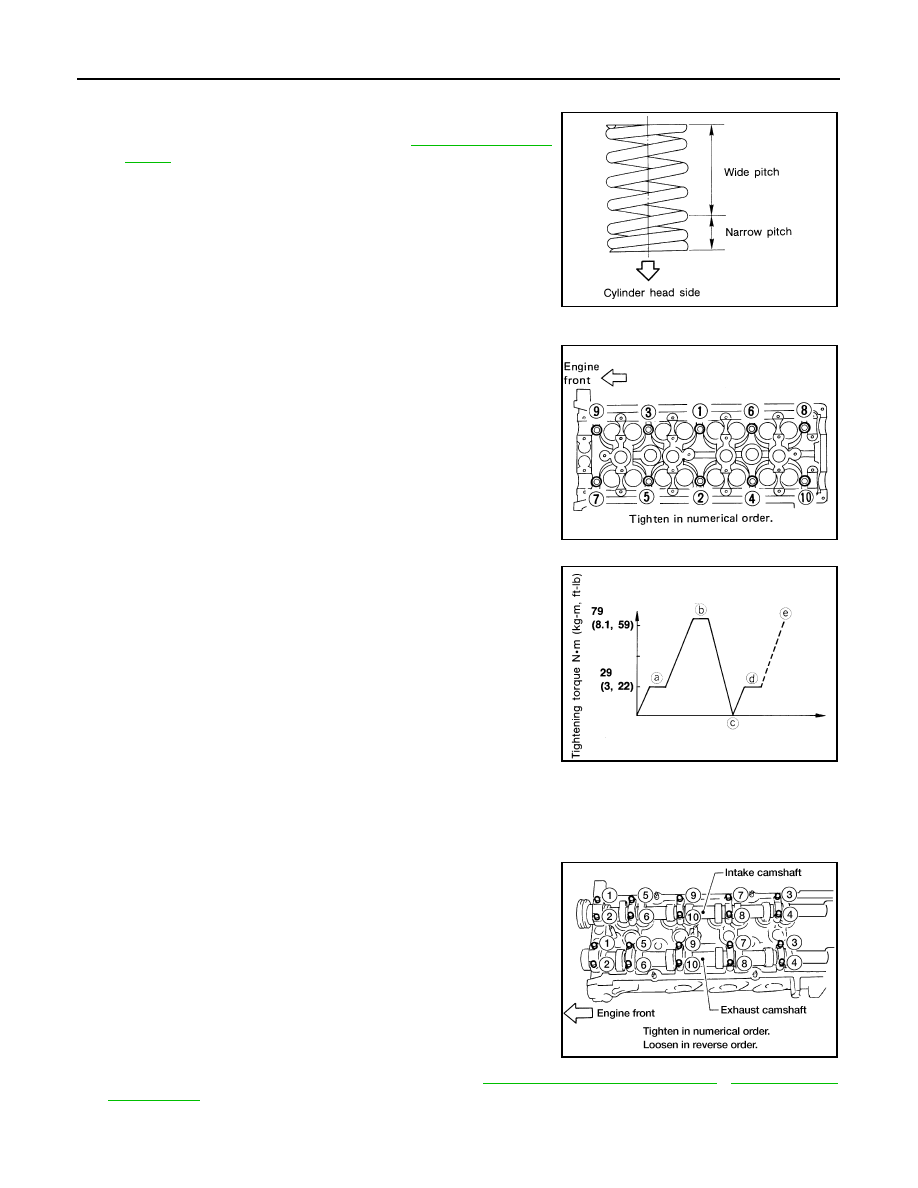

1.

Install valve component parts.

●

Always use new valve oil seal. Refer to

EM-28, "VALVE OIL

SEAL"

 .

●

Before installing valve oil seal, install valve spring seat.

●

Install outer valve spring (uneven pitch type) with its narrow
pitch side toward cylinder head side.

2.

After installing the valve component parts, tap valve stem tip
with a plastic hammer to assure a proper fit.

Installation

EBS00GSL

1.

Tighten the cylinder head bolts in the numerical order as shown,
using the five step procedure:

NOTE:
If an angle wrench is not available, mark all of the cylinder head
bolts on the side facing engine front. Then turn each cylinder
head bolt to the specified angle.

2.

Set camshafts and camshaft brackets.

●

Set the dowel pins of both the intake and exhaust camshafts at 12 o'clock position when installing the
camshafts.

3.

Tighten the camshaft bracket bolts in the order shown using two
steps:

●

Apply new engine oil to bolt threads and seat surfaces.

4.

Install upper timing chain and idler sprocket. Refer to

EM-26, "UPPER TIMING CHAIN"

 ,

EM-26, "IDLER

SPROCKET"

 .

SEM638B

SEM275D

Cylinder head bolt tightening steps:

Step "a"

: 29 N·m (3.0 kg-m, 22 ft-lb)

Step "b"

: 79 N·m (8.1 kg-m, 59 ft-lb)

Step "c"

: Loosen all bolts completely.

Step "d"

: 25 - 34 N·m (2.5 - 3.5 kg-m, 18 - 25 ft-lb)

Step "e"

: 86

° - 91° degrees clockwise

SEM276D

Camshaft bracket bolt tightening steps

Step 1

: 2 N·m (0.2 kg-m, 17 in-lb)

Step 2

: 9 - 11.8 N·m (0.92 - 1.2 kg-m, 79.9 - 104.2 in-lb)

AEM352
