Nissan Frontier D22. Manual - part 573

DTC P0133, P0153 HO2S1

EC-1395

[VG33ER]

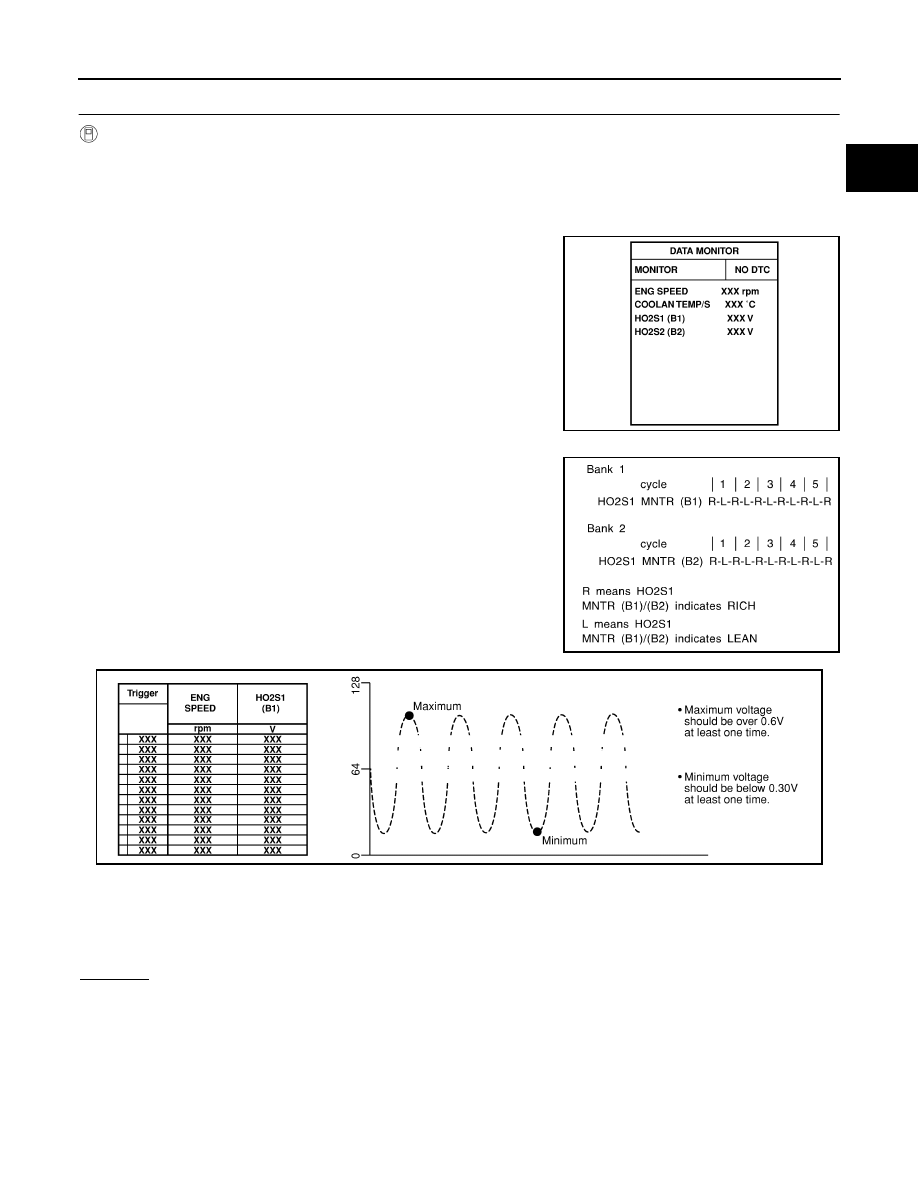

CHECK HEATED OXYGEN SENSOR 1

With CONSULT-II

Start engine and warm it up to normal operating temperature.

Select “MANU TRIG” in “DATA MONITOR” mode with CONSULT-II, and select “HO2S1 (B1)/(B2)” and
“HO2S1 MNTR (B1)/(B2)”.

Hold engine speed at 2,000 rpm under no load during the following steps.

Touch “RECORD” on CONSULT-II screen.

Check the following.

–

“HO2S1 MNTR (B1)/(B2)” in “DATA MONITOR” mode changes
from “RICH” to “LEAN” to “RICH” more than 5 times in 10 sec-
onds.
5 times (cycles) are counted as shown below.

–

“HO2S1 (B1)/(B2)” voltage goes above 0.6V at least once.

–

“HO2S1 (B1)/(B2)” voltage goes below 0.3V at least once.

–

“HO2S1 (B1)/(B2)” voltage never exceeds 1.0V.

CAUTION:

●

Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.

●

Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

OK or NG

>> GO TO 11.

>> Replace malfunctioning heated oxygen sensor 1.

SEF967Y

SEF647Y

SEF648Y

EC-1396

[VG33ER]

DTC P0133, P0153 HO2S1

10.

CHECK FRONT HEATED OXYGEN SENSOR 1

Without CONSULT-II

Start engine and warm it up to normal operating temperature.

Set voltmeter probes between ECM terminal 50 [HO2S1 (B1) signal] or 51 [HO2S1 (B2) signal] and
engine ground.

Check the following with engine speed held at 2,000 rpm con-
stant under no load.

●

The voltage fluctuates between 0 to 0.3V and 0.6 to 1.0V more
than 5 times within 10 seconds.

●

The maximum voltage is over 0.6V at least 1 time.

●

The minimum voltage is below 0.3V at least 1 time.

●

The voltage never exceeds 1.0V.

1 time: 0 - 0.3V

→ 0.6 - 1.0V → 0 - 0.3V

2 times: 0 - 0.3V

→ 0.6 - 1.0V → 0 - 0.3V → 0.6 - 1.0V → 0 - 0.3V

CAUTION:

●

Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new
one.

●

Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

OK or NG

>> GO TO 11.

>> Replace malfunctioning heated oxygen sensor 1.

11.

CHECK INTERMITTENT INCIDENT

Refer to

EC-1297, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

>> INSPECTION END.

Removal and Installation

UBS00DVB

HEATED OXYGEN SENSOR 1

Refer to

EM-80, "OUTER COMPONENT PARTS"

PBIB2157E

DTC P0134, P0154 HO2S1

EC-1397

[VG33ER]

DTC P0134, P0154 HO2S1

PFP:22690

Component Description

UBS00DVC

The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amount of oxygen in the exhaust gas compared to the
outside air. The heated oxygen sensor 1 has a closed-end tube
made of ceramic zirconia. The zirconia generates voltage from
approximately 1V in richer conditions to 0V in leaner conditions. The
heated oxygen sensor 1 signal is sent to the ECM. The ECM adjusts
the injection pulse duration to achieve the ideal air-fuel ratio. The
ideal air-fuel ratio occurs near the radical change from 1V to 0V.

CONSULT-II Reference Value in Data Monitor Mode

UBS00DVD

Specification data are reference values.

On Board Diagnosis Logic

UBS00DVE

Under the condition in which the heated oxygen sensor 1 signal is
not input, the ECM circuits will read a continuous approximately
0.3V. Therefore, for this diagnosis, the time that output voltage is
within 200 to 400 mV range is monitored, and the diagnosis checks
that this time is not inordinately long.

SEF463R

SEF288D

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S1 (B1)
HO2S1 (B2)

●

Engine: After warming up

Maintaining engine speed at 2,000
rpm

0 - 0.3V

←→ Approx. 0.6 - 1.0V

HO2S1 MNTR
(B1)
HO2S1 MNTR
(B2)

LEAN

←→ RICH

Changes more than 5 times during
10 seconds.

SEF237U

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0134
(Bank 1)

Heated oxygen sensor
1 circuit no activity
detected

The voltage from the sensor is constantly
approx. 0.3V.

●

Harness or connectors
(The sensor circuit is open or shorted)

●

Heated oxygen sensor 1

P0154
(Bank 2)

EC-1398

[VG33ER]

DTC P0134, P0154 HO2S1

DTC Confirmation Procedure

UBS00DVF

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 5 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.

WITH CONSULT-II

Start engine and warm it up to normal operating temperature.

Select “HO2S1 (B1)/(B2) P0134/P0154” of “HO2S1” in “DTC
WORK SUPPORT” mode with CONSULT-II.

Touch “START”.

Let it idle for at least 3 minutes.

NOTE:
Never raise engine speed above 2,800 rpm after this step. If
the engine speed limit is exceeded, return to step 4.

When the following conditions are met, “TESTING” will be dis-
played on the CONSULT-II screen. Maintain the conditions con-
tinuously until “TESTING” changes to “COMPLETED”. (It will
take approximately 10 to 60 seconds.)

If “TESTING” is not displayed after 5 minutes, retry from
step 2.

Make sure that “OK” is displayed after touching “SELF-DIAG
RESULTS”. If “NG” is displayed, refer to

EC-1404, "Diagnostic

Procedure"

During this test, P1148 and P1168 may be stored in ECM.

Overall Function Check

UBS00DVG

Use this procedure to check the overall function of the heated oxygen sensor 1 circuit. During this check, a
DTC might not be confirmed.

WITH GST

Start engine and warm it up to normal operating temperature.

Set voltmeter probes between ECM terminal 50 [HO2S1 (B1) signal] or 51 [HO2S1 (B2) signal] and
engine ground.

LEC068A

ENG SPEED

1,400 - 2,700 rpm

Vehicle speed

More than 64 km/h (40 MPH)

B/FUEL SCHDL

2.0 - 14.0 msec

Selector lever

Suitable position

LEC069A

LEC034A
