DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

EC-351

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

11.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

 With CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following condi-
tions.

 Without CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following condi-
tions.

OK or NG

OK

>> GO TO 12.

NG

>> Replace EVAP canister purge volume control solenoid valve.

12.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR HOSE

1.

Turn ignition switch OFF.

2.

Check disconnection or improper connection of hose connected to EVAP control system pressure sensor.

OK or NG

OK

>> GO TO 13.

NG

>> Repair it.

13.

CHECK EVAP CANISTER VENT CONTROL VALVE-I

1.

Remove EVAP canister vent control valve from EVAP canister.

2.

Check portion B  of EVAP canister vent control valve for being
rusted.

 OK or NG

OK

>> GO TO 14.

NG

>> Replace EVAP canister vent control valve.

SEF334X

SEF335X

BBIA0308E

EC-352

[KA24DE]

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

14.

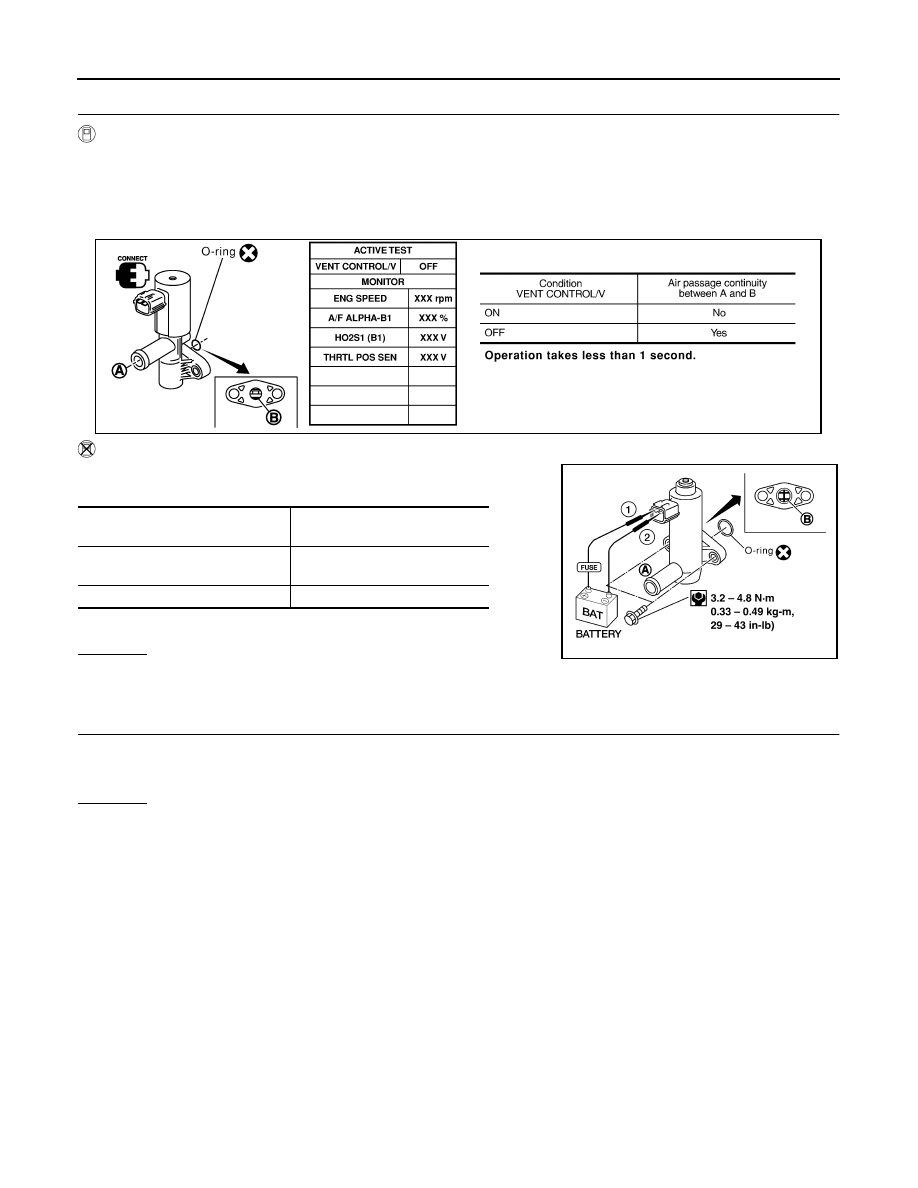

CHECK EVAP CANISTER VENT CONTROL VALVE-II

 With CONSULT-II

1.

Reconnect harness connectors disconnected.

2.

Turn ignition switch ON.

3.

Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.

4.

Check air passage continuity and operation delay time.

 Without CONSULT-II

Check air passage continuity and operation delay time under the fol-
lowing condition.

Operation takes less than 1 second.

OK or NG

OK

>> GO TO 16.

NG

>> GO TO 15.

15.

CHECK EVAP CANISTER VENT CONTROL VALVE-III

1.

Clean the air passage (Portion A  to B ) of EVAP canister vent control valve using an air blower.

2.

Perform Test No. 13 again.

OK or NG

OK

>> GO TO 16.

NG

>> Replace EVAP canister vent control valve.

Condition

Air passage continuity between

A and B

12V direct current supply between
terminals 1 and 2

No

OFF

Yes

SEF803Y

BBIA0309E

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

EC-353

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

16.

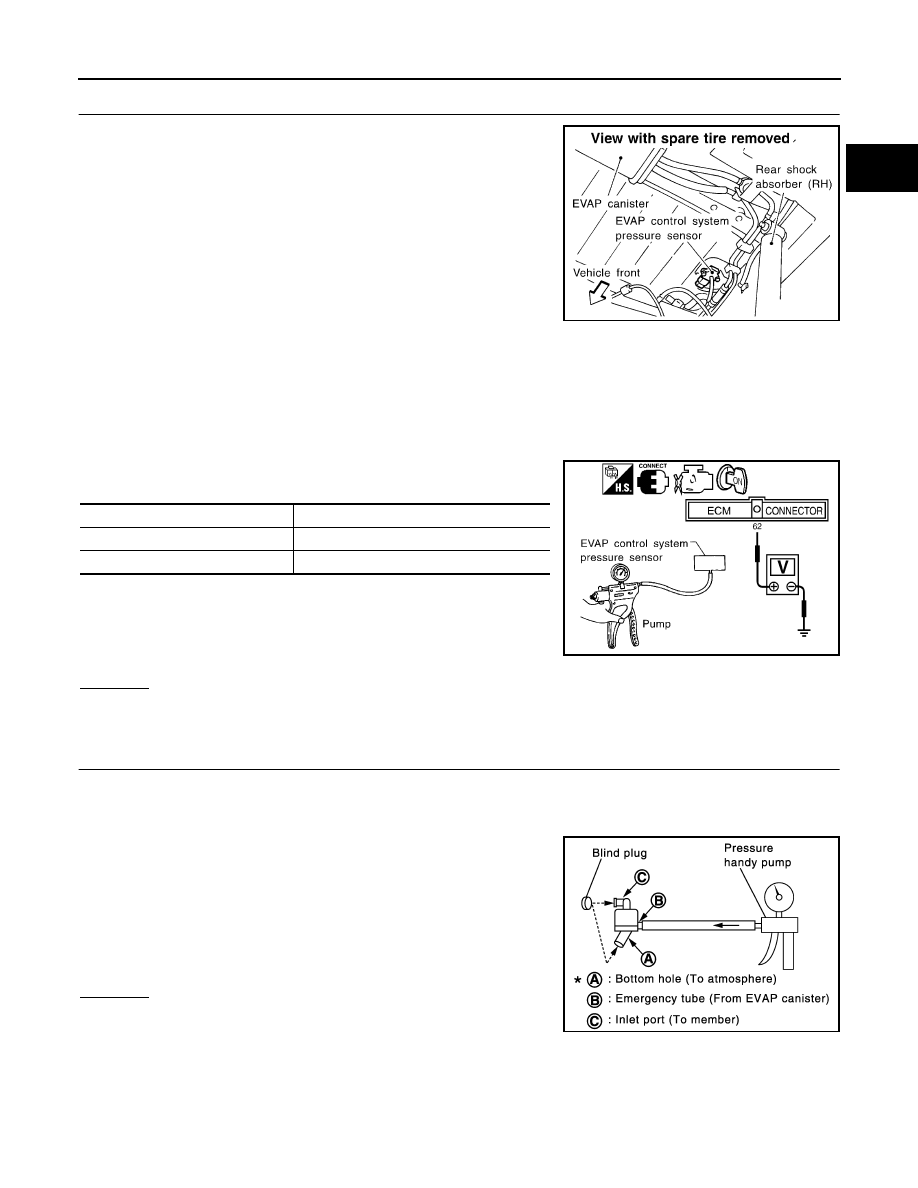

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

1.

Remove EVAP control system pressure sensor with its harness
connector connected.

2.

Remove hose from EVAP control system pressure sensor.

3.

Use pump to apply vacuum and pressure to EVAP control system pressure sensor as shown in figure.

CAUTION:

●

Always calibrate the vacuum pump gauge when using it.

●

Do not apply below

−93.3 kPa (−700 mmHg, −27.56 inHg) or over 101.3 kPa (760 mmHg, 29.56

inHg) of pressure.

4.

Check output voltage between ECM terminal 62 and engine
ground.

CAUTION:

Discard any EVAP control system pressure sensor which
has been dropped from a height of more than 0.5 m (19.7 in)
onto a hard surface such as a concrete floor; use a new
one.

OK or NG

OK

>> GO TO 17.

NG

>> Replace EVAP control system pressure sensor.

17.

CHECK RUBBER TUBE FOR CLOGGING

Check obstructed water separator and rubber tube to EVAP canister vent control valve and clean the rubber
tube using air blower.
Check water separator.
1.

Check visually for insect nests in the water separator air inlet.

2.

Check visually for cracks or flaws in the appearance.

3.

Check visually for cracks or flaws in the hose.

4.

Check that A  and C  are not clogged by blowing air into B  with
A , and then C  plugged.

5.

In case of NG in items 2 - 4, replace the parts.

●

Do not disassemble water separator.

OK or NG

OK

>> GO TO 18.

NG

>> Clean, repair or replace rubber tube and/or water sepa-

rator.

SEF341V

Applied vacuum kPa (mmHg, inHg)

Voltage [V]

Not applied

1.8 - 4.8

-26.7 (-200, -7.87)

 2.1 to 2.5V lower than above value

SEF198V

PBIB1032E

EC-354

[KA24DE]

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

18.

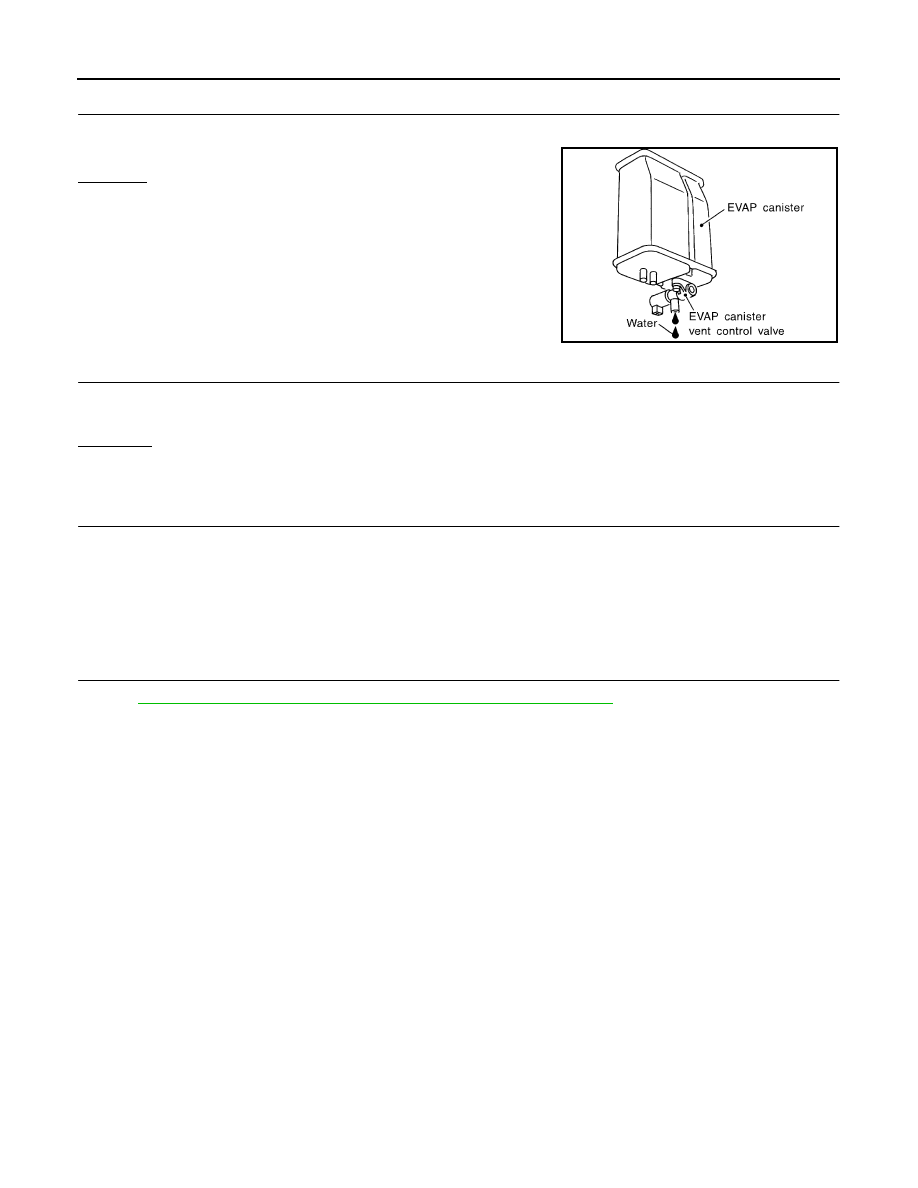

CHECK IF EVAP CANISTER SATURATED WITH WATER

1.

Remove EVAP canister with EVAP canister vent control valve attached.

2.

Check if water will drain from the EVAP canister.

Yes or No

Yes

>> GO TO 19.

No

>> GO TO 21.

19.

CHECK EVAP CANISTER

Weigh the EVAP canister with EVAP canister vent control valve attached.
The weight should be less than 1.8 kg (4.0 lb).

 OK or NG

OK

>> GO TO 21.

NG

>> GO TO 20.

20.

DETECT MALFUNCTIONING PART

Check the following.

1.

Visually check the EVAP canister for damage.

2.

Check hose connection between EVAP canister and water separator for clogging and poor connection.

>> Repair hose or replace EVAP canister or water separator.

21.

CHECK INTERMITTENT INCIDENT

Perform

EC-120, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END.

SEF596U
