DTC P0335 CKP SENSOR (OBD)

EC-267

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E202, E32

●

Harness connectors E41, F25

●

Harness for open or short between crankshaft position sensor (OBD) and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK GROUND CIRCUIT

1.

Reconnect ECM harness connector.

2.

Check harness continuity between crankshaft position sensor (OBD) terminal 1 and engine ground.
Refer to wiring diagram.

3.

Also check harness for short to power.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E202, E32

●

Harness connectors E41, F25

●

Harness for open or short between crankshaft position sensor (OBD) and ECM

>> Repair open circuit or short to power in harness or connectors.

6.

CHECK SHIELD CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect harness connectors E202, E32.

3.

Check harness continuity between harness connector E32 terminal 2 and ground.
Refer to wiring diagram.

4.

Also check harness for short to power.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E41, F25

●

Harness for open or short between harness connector E32 and engine ground

>> Repair open circuit or short to power in harness or connectors.

Continuity should exist.

Continuity should exist.

EC-268

[KA24DE]

DTC P0335 CKP SENSOR (OBD)

8.

CHECK CRANKSHAFT POSITION SENSOR (OBD)

Refer to

EC-268, "Component Inspection"

 .

OK or NG

OK

>> GO TO 9.

NG

>> Replace crankshaft position sensor (OBD).

9.

CHECK INTERMITTENT INCIDENT

Perform

EC-120, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END.

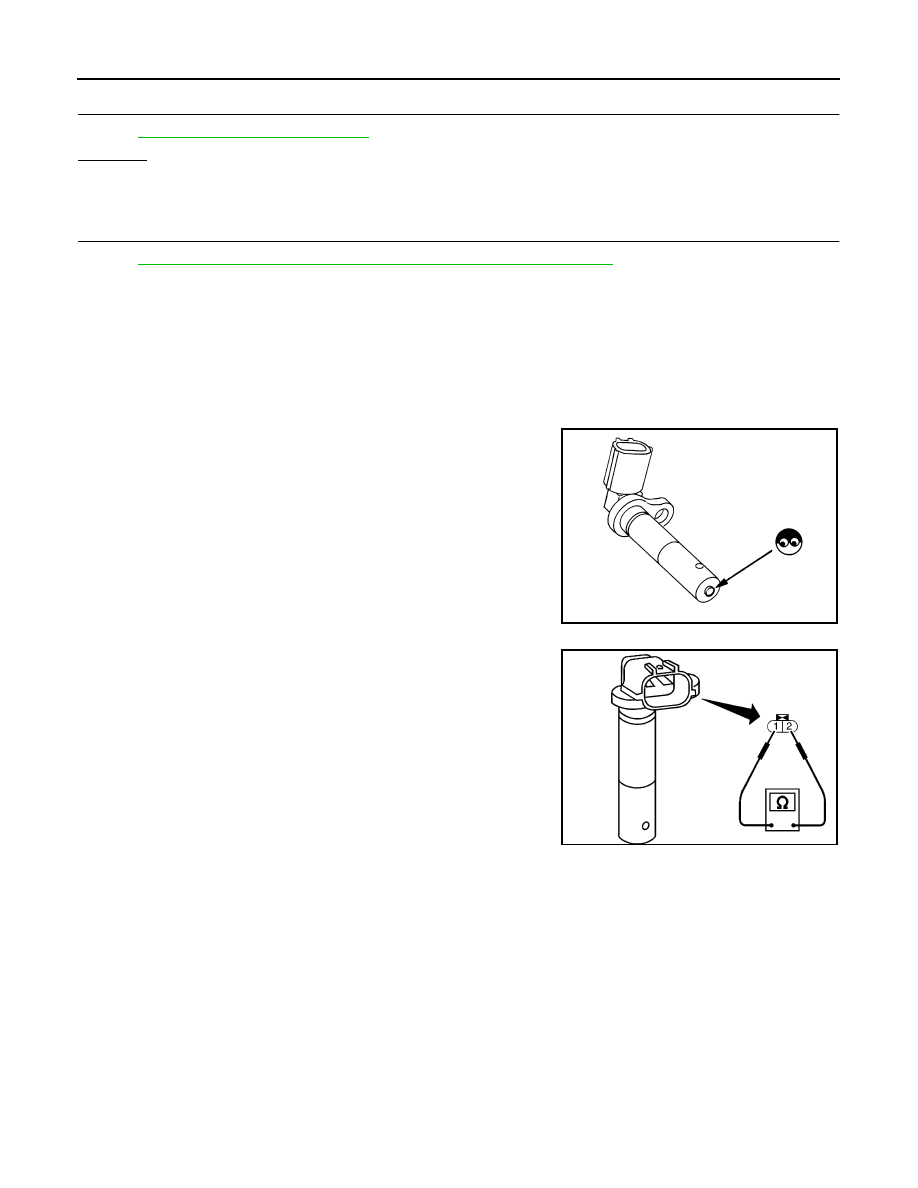

Component Inspection

UBS00D6A

CRANKSHAFT POSITION SENSOR

1.

Disconnect crankshaft position sensor (OBD) harness connector.

2.

Loosen the fixing bolt of the sensor.

3.

Remove the sensor.

4.

Visually check the sensor for chipping.

5.

Check resistance as shown in the figure.

SEF960N

Resistance

: Approximately 512 - 632

Ω

[at 20

°C (68°F)]

SEF231W

DTC P0340 CMP SENSOR

EC-269

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0340 CMP SENSOR

PFP:22100

Component Description

UBS00D6B

The camshaft position sensor is a basic component of the engine
control system. It monitors engine speed and piston position. These
input signals to the engine control system are used to control fuel
injection, ignition timing and other functions.
The camshaft position sensor has a rotor plate and a wave-forming
circuit. The rotor plate has 360 slits for a 1

° (POS) signal and 4 slits

for a 180

° (REF) signal. The wave-forming circuit consists of Light

Emitting Diodes (LED) and photo diodes.
The rotor plate is positioned between the LED and the photo diode.
The LED transmits light to the photo diode. As the rotor plate turns,
the slits cut the light to generate rough-shaped pulses. These pulses
are converted into on-off signals by the wave-forming circuit and
sent to the ECM.
The distributor is not repairable and must be replaced as an assem-
bly except distributor cap and rotor head.

CONSULT-II Reference Value in Data Monitor Mode

UBS00ELW

Specification data are reference values.

On Board Diagnosis Logic

UBS00D6C

SEF928V

SEF853B

MONITOR ITEM

CONDITION

SPECIFICATION

ENG SPEED

●

Run engine and compare the CONSULT-II value with tachometer indica-
tion.

Almost the same speed as the
tachometer indication.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible Cause

P0340

Camshaft position sensor
circuit

A)

Either 1

° or 180° signal is not sent to ECM

for the first few seconds during engine
cranking.

●

Harness or connectors
(The camshaft position sensor circuit is
open or shorted.)

●

Camshaft position sensor

●

Starter motor (Refer to

SC-9

 .)

●

Starting system circuit (Refer to

SC-9

 .)

●

Dead (Weak) battery

B)

Either 1

° or 180° signal is not sent to ECM

often enough while the engine speed is
higher than the specified engine speed.

C)

The relation between 1

° and 180° signal is

not in the normal range during the speci-
fied engine speed.

EC-270

[KA24DE]

DTC P0340 CMP SENSOR

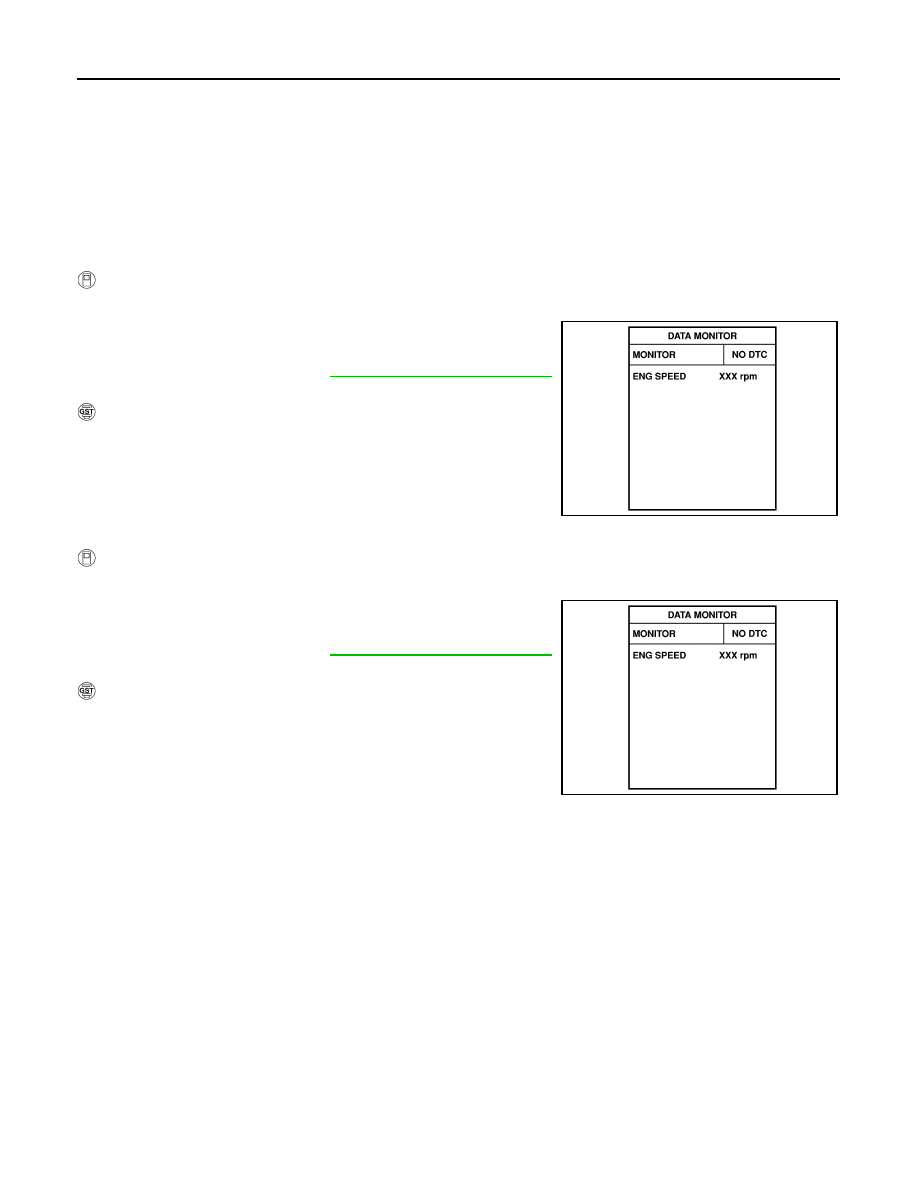

DTC Confirmation Procedure

UBS00D6D

Perform “Procedure for malfunction A” first. If DTC cannot be confirmed, perform “Procedure for mal-
function B and C”.

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and wait at
least 5 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V.

PROCEDURE FOR MALFUNCTION A

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Crank engine for at least 2 seconds.

4.

If 1st trip DTC is detected, go to

EC-273, "Diagnostic Procedure"

.

 With GST

Follow the procedure “With CONSULT-II”.

PROCEDURE FOR MALFUNCTION B AND C

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and run it for at least 2 seconds at idle speed.

4.

If 1st trip DTC is detected, go to

EC-273, "Diagnostic Procedure"

.

 With GST

Follow the procedure “With CONSULT-II”.

SEF058Y

SEF058Y
