PRECAUTIONS

EC-23

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

UBS00EMB

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system may include seat belt switch inputs and dual stage front air bag modules. If
equipped with dual stage front air bag modules, the SRS system uses the seat belt switches to determine the
front air bag deployment, and may only deploy one front air bag, depending on the severity of a collision and
whether the front occupants are belted or unbelted. Information necessary to service the system safely is
included in the SRS and SB section of this Service Manual.

The vehicle may be equipped with a passenger air bag deactivation switch. Because no rear seat exists where
a rear-facing child restraint can be placed, the switch is designed to turn off the passenger air bag so that a
rear-facing child restraint can be used in the front passenger seat. The switch is located in the center of the
instrument panel, near the ashtray. When the switch is turned to the ON position, the passenger air bag is
enabled and could inflate for certain types of collision. When the switch is turned to the OFF position, the pas-
senger air bag is disabled and will not inflate. A passenger air bag OFF indicator on the instrument panel lights
up when the passenger air bag is switched OFF. The driver air bag always remains enabled and is not affected
by the passenger air bag deactivation switch.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

The vehicle may be equipped with a passenger air bag deactivation switch which can be operated
by the customer. When the passenger air bag is switched OFF, the passenger air bag is disabled
and will not inflate. When the passenger air bag is switched ON, the passenger air bag is enabled
and could inflate for certain types of collision. After SRS maintenance or repair, make sure the
passenger air bag deactivation switch is in the same position (ON or OFF) as when the vehicle
arrived for service.

Precautions for On Board Diagnostic (OBD) System of Engine and A/T

UBS00D0Q

The ECM has an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to warn the
driver of a malfunction causing emission deterioration.

CAUTION:

Be sure to turn the ignition switch OFF and disconnect the negative battery terminal before any
repair or inspection work. The open/short circuit of related switches, sensors, solenoid valves,
etc. will cause the MIL to light up.

Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MIL to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)

Certain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector.
For description and how to disconnect, refer to

PG-4, "HARNESS CONNECTOR"

 .

Be sure to route and secure the harnesses properly after work. The interference of the harness
with a bracket, etc. may cause the MIL to light up due to the short circuit.

Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to the malfunction of the EGR system or fuel injection system,
etc.

Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM
before returning the vehicle to the customer.

EC-24

[KA24DE]

PRECAUTIONS

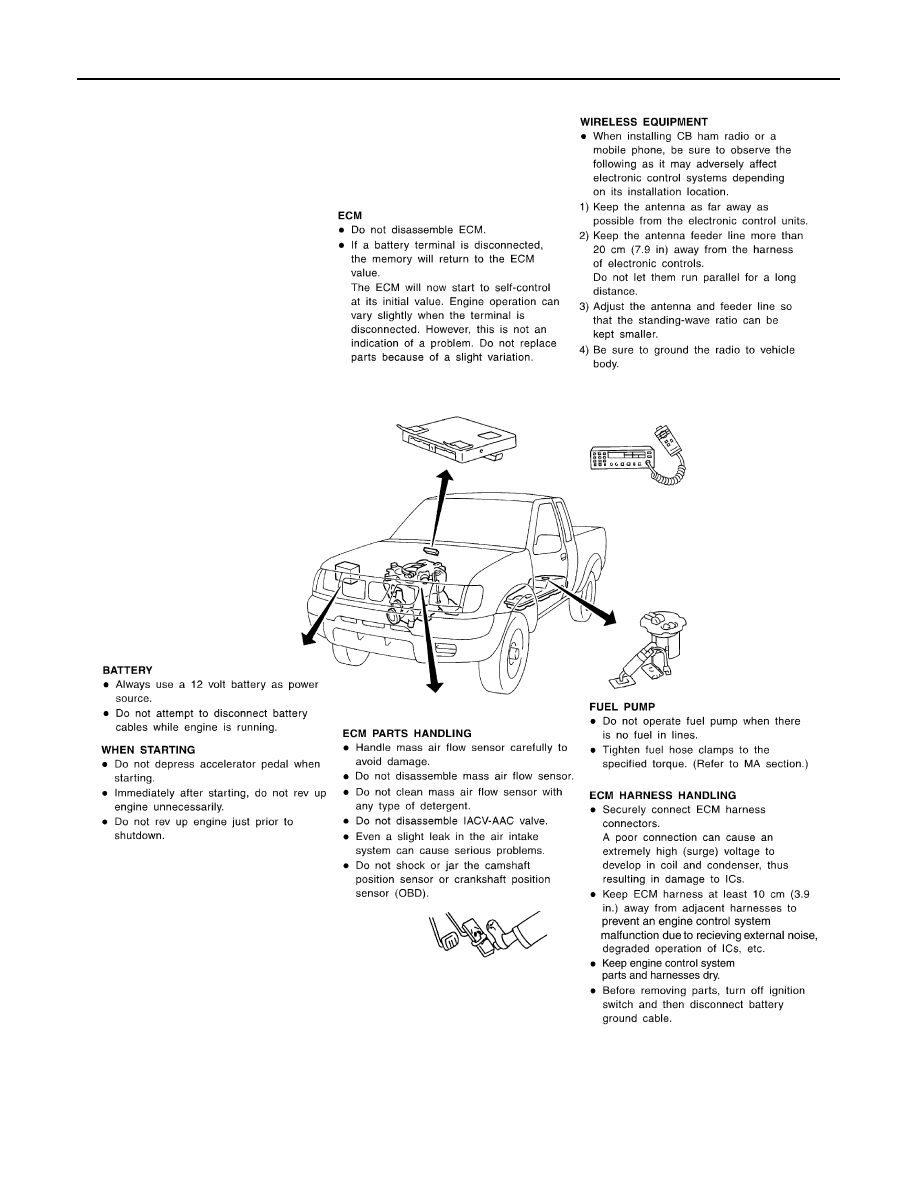

Engine Fuel & Emission Control System

UBS00D0R

LEC027A

PRECAUTIONS

EC-25

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Precautions

UBS00D0S

Before connecting or disconnecting the ECM harness con-
nector, turn ignition switch OFF and disconnect negative
battery terminal. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned OFF.

When connecting ECM harness connector, tighten securing
bolt until the gap between orange indicators disappears.

When connecting or disconnecting pin connectors into or
from ECM, take care not to damage pin terminals (bend or
break).
Make sure that there are not any bends or breaks on ECM
pin terminals when connecting pin connectors.

Before replacing ECM, perform Terminals and Reference
Value inspection and make sure ECM functions properly.
Refer to

EC-91

 .

SEF289H

: 3 - 5 N·m (0.3 - 0.5 kg-m, 26 - 43 in-lb)

SEF308Q

SEF291H

MEF040D

EC-26

[KA24DE]

PRECAUTIONS

After performing each TROUBLE DIAGNOSIS, perform
“Overall Function Check” or “DTC Confirmation Proce-
dure”.
The DTC should not be displayed in the “DTC Confirmation
Procedure” if the repair is completed. The “Overall Func-
tion Check” should be a good result if the repair is com-
pleted.

When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.

Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the ECM's
transistor. Use a ground other than the ECM terminals,
such as the ground.

Wiring Diagrams and Trouble Diagnosis

UBS00D0T

When you read Wiring diagrams, refer to the following:

GI-13, "How to Read Wiring Diagrams"

.

PG-9, "POWER SUPPLY ROUTING"

.

When you perform trouble diagnosis, refer to the following:

GI-9, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES"

.

GI-25, "How to Perform Efficient Diagnosis for an Electrical Incident"

SEF217U

SEF348N
