Nissan Frontier D22. Manual - part 224





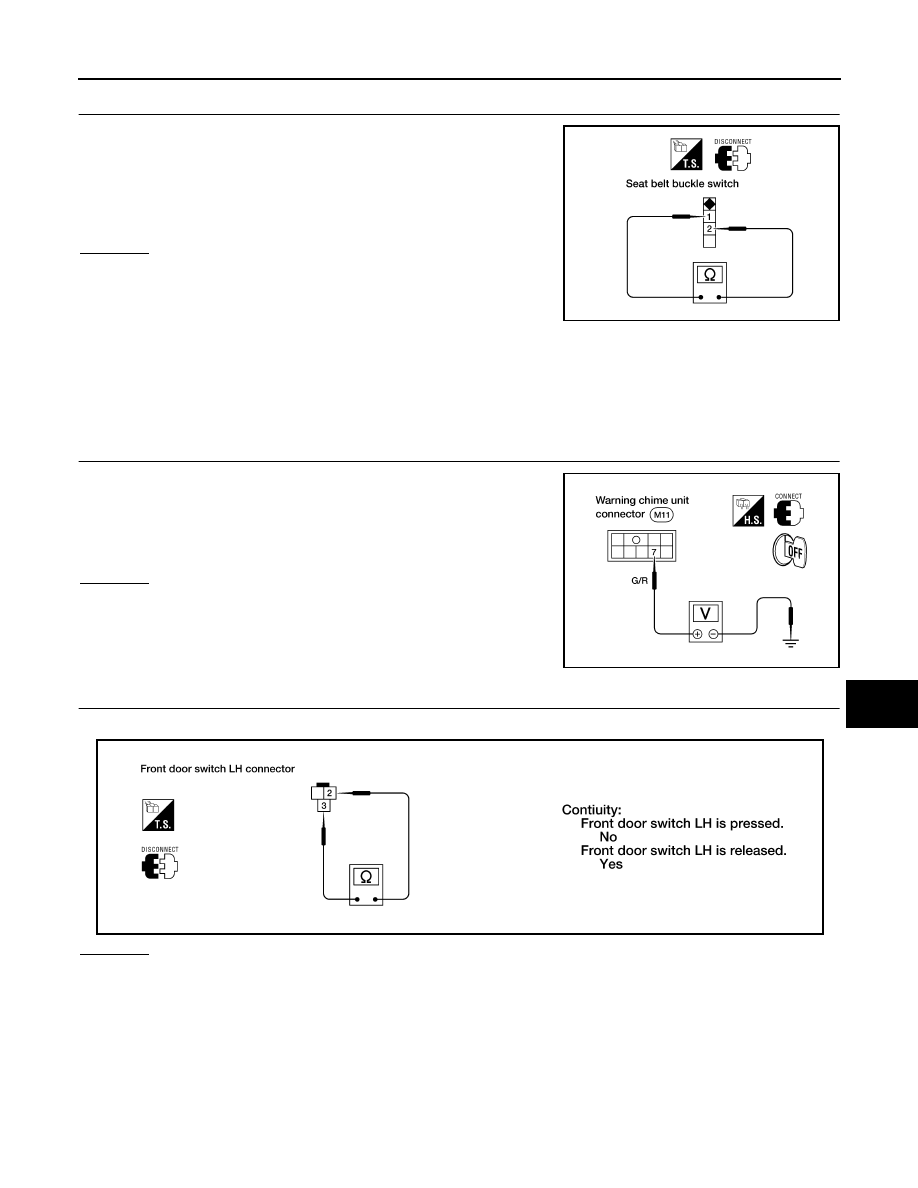

WARNING CHIME

DI-45

C

D

E

F

G

H

I

J

L

M

A

B

DI

2.

CHECK SEAT BELT BUCKLE SWITCH LH

Check continuity between terminals 1 and 2 when seat belt is fas-
tened and unfastened.

OK or NG

OK

>> Check the following.

Seat belt buckle switch LH ground circuit

Harness for open or short between smart entrance
control unit and seat belt buckle switch LH

NG

>> Replace seat belt buckle switch LH.

FRONT DOOR SWITCH LH CHECK
Models without Power Door Locks

1.

CHECK FRONT DOOR SWITCH LH INPUT SIGNAL

Check voltage between warning chime unit terminal 7 and ground.

OK or NG

OK

>> Front door switch LH is OK.

NG

>> GO TO 2.

2.

CHECK FRONT DOOR SWITCH LH

Check continuity between front door switch LH terminals 2 and 3.

OK or NG

OK

>> Check the following.

Front door switch LH ground circuit

Harness for open or short between warning chime unit and front door switch LH

NG

>> Replace front door switch LH.

Continuity:

Seat belt is FASTENED.

: No

Seat belt is UNFASTENED.

: Yes

LKIA0157E

Voltage (V) (Approx.):

Front door LH is CLOSED.

: 12V

Front door LH is OPEN.

: 0V

AEL378B

LEL366A

DI-46

WARNING CHIME

Models with Power Door Locks

1.

CHECK FRONT DOOR SWITCH LH INPUT SIGNAL

Check voltage between smart entrance control unit connector M110
terminal 1 (G/R) and ground.

OK or NG

OK

>> Front door switch LH is OK.

NG

>> GO TO 2.

2.

CHECK FRONT DOOR SWITCH LH

Check continuity between front door switch LH connector M20 terminals 2 and 3.

OK or NG

OK

>> Check the following.

Front door switch LH ground circuit

Harness for open or short between smart entrance control unit and front door switch LH

NG

>> Replace front door switch LH.

Voltage (V) (Approx.):

Front door LH is CLOSED.

: 12V

Front door LH is OPEN.

: 0V

LKIA0159E

LEL319A

EC-1

ENGINE CONTROL SYSTEM

B  ENGINE

CONTENTS

C

D

E

F

G

H

I

J

K

L

M

SECTION

A

EC

KA24DE

INDEX FOR DTC  ...................................................... 18

Alphabetical Index .................................................. 18
DTC No. Index  ....................................................... 20

PRECAUTIONS ........................................................ 23

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................ 23
Precautions for On Board Diagnostic (OBD) System
of Engine and A/T  .................................................. 23
Engine Fuel & Emission Control System  ............... 24
Precautions ............................................................ 25
Wiring Diagrams and Trouble Diagnosis ................ 26

PREPARATION ......................................................... 27

Special Service Tools  ............................................. 27
Commercial Service Tools ...................................... 27

ENGINE CONTROL SYSTEM  .................................. 29

System Diagram ..................................................... 29
Vacuum Hose Drawing ........................................... 30
System Chart  ......................................................... 31
Multiport Fuel Injection (MFI) System  .................... 31
Distributor Ignition (DI) System  .............................. 33
Air Conditioning Cut Control ................................... 34
Fuel Cut Control (at No Load and High Engine
Speed) .................................................................... 34
Fast Idle Cam (FIC) ................................................ 35

BASIC SERVICE PROCEDURE  .............................. 36

Idle Speed/Ignition Timing/Idle Mixture Ratio
Adjustment ............................................................. 36
Fuel Pressure Check .............................................. 46
Fuel Pressure Regulator Check  ............................. 48

ON BOARD DIAGNOSTIC (OBD) SYSTEM  ............ 49

Introduction ............................................................ 49
Two Trip Detection Logic ........................................ 49
Emission-related Diagnostic Information ................ 50
Malfunction Indicator Lamp (MIL) ........................... 62
OBD System Operation Chart  ................................ 63

TROUBLE DIAGNOSIS ............................................ 68

Trouble Diagnosis Introduction ............................... 68
DTC Inspection Priority Chart  ................................ 72

Fail-safe Chart  ........................................................ 73
Basic Inspection  ..................................................... 74
Symptom Matrix Chart ............................................ 84
Engine Control Component Parts Location  ............ 88
Circuit Diagram ....................................................... 90
ECM Harness Connector Terminal Layout  ............. 91
ECM Terminals and Reference Value ..................... 91
CONSULT-II Function ............................................. 99
Generic Scan Tool (GST)  ..................................... 110
CONSULT-II Reference Value in Data Monitor Mode

. 112

Major Sensor Reference Graph in Data Monitor
Mode ..................................................................... 114

TROUBLE DIAGNOSIS - SPECIFICATION VALUE .116

Description ............................................................ 116
Testing Condition  .................................................. 116
Inspection Procedure ............................................ 116
Diagnostic Procedure  ........................................... 117

TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-
DENT ....................................................................... 120

Description ............................................................ 120
Diagnostic Procedure  ........................................... 120

POWER SUPPLY CIRCUIT FOR ECM ................... 121

Wiring Diagram ..................................................... 121
Diagnostic Procedure  ........................................... 122

DTC P0031, P0032 HO2S1 HEATER  ..................... 126

Description ............................................................ 126
CONSULT-II Reference Value in Data Monitor Mode

. 126

On Board Diagnosis Logic .................................... 126
DTC Confirmation Procedure  ............................... 127
Wiring Diagram ..................................................... 128
Diagnostic Procedure  ........................................... 129
Removal and Installation  ...................................... 130

DTC P0037, P0038 HO2S2 HEATER  ..................... 131

Description ............................................................ 131
CONSULT-II Reference Value in Data Monitor Mode

. 131

On Board Diagnosis Logic .................................... 131
DTC Confirmation Procedure  ............................... 132

EC-2

Wiring Diagram  ..................................................... 133
Diagnostic Procedure  ........................................... 134
Removal and Installation  ...................................... 135

DTC P0101 MAF SENSOR  ..................................... 136

Component Description  ........................................ 136
CONSULT-II Reference Value in Data Monitor Mode

. 136

On Board Diagnosis Logic  .................................... 136
DTC Confirmation Procedure  ............................... 137
Overall Function Check  ........................................ 138
Wiring Diagram  ..................................................... 139
Diagnostic Procedure  ........................................... 140

DTC P0102, P0103 MAF SENSOR ......................... 143

Component Description  ........................................ 143
CONSULT-II Reference Value in Data Monitor Mode

. 143

On Board Diagnosis Logic  .................................... 143
DTC Confirmation Procedure  ............................... 144
Wiring Diagram  ..................................................... 145
Diagnostic Procedure  ........................................... 146

DTC P0112, P0113 IAT SENSOR  ........................... 149

Component Description  ........................................ 149
On Board Diagnosis Logic  .................................... 149
DTC Confirmation Procedure  ............................... 150
Wiring Diagram  ..................................................... 151
Diagnostic Procedure  ........................................... 152

DTC P0117, P0118 ECT SENSOR .......................... 154

Component Description  ........................................ 154
CONSULT-II Reference Value in Data Monitor Mode

. 154

On Board Diagnosis Logic  .................................... 154
DTC Confirmation Procedure  ............................... 155
Wiring Diagram  ..................................................... 156
Diagnostic Procedure  ........................................... 157
Component Inspection .......................................... 158

DTC P0121 TP SENSOR  ........................................ 159

Component Description  ........................................ 159
CONSULT-II Reference Value in Data Monitor Mode

. 159

On Board Diagnosis Logic  .................................... 160
DTC Confirmation Procedure  ............................... 160
Wiring Diagram  ..................................................... 162
Diagnostic Procedure  ........................................... 163
Component Inspection .......................................... 166

DTC P0122, P0123 TP SENSOR ............................ 168

Component Description  ........................................ 168
CONSULT-II Reference Value in Data Monitor Mode

. 168

On Board Diagnosis Logic  .................................... 168
DTC Confirmation Procedure  ............................... 169
Wiring Diagram  ..................................................... 170
Diagnostic Procedure  ........................................... 171
Component Inspection .......................................... 172

DTC P0125 ECT SENSOR ...................................... 174

Component Description  ........................................ 174
On Board Diagnosis Logic  .................................... 174
DTC Confirmation Procedure  ............................... 175
Wiring Diagram  ..................................................... 176

Diagnostic Procedure ............................................177
Component Inspection  ..........................................178

DTC P0127 IAT SENSOR ........................................179

Component Description  ........................................179
On Board Diagnosis Logic  ....................................179
DTC Confirmation Procedure ................................180
Wiring Diagram  .....................................................181
Diagnostic Procedure ............................................182
Component Inspection  ..........................................183

DTC P0128 THERMOSTAT FUNCTION  .................184

On Board Diagnosis Logic  ....................................184
DTC Confirmation Procedure ................................184
Diagnostic Procedure ............................................185

DTC P0132 HO2S1  .................................................186

Component Description  ........................................186
CONSULT-II Reference Value in Data Monitor Mode

.186

On Board Diagnosis Logic  ....................................186
DTC Confirmation Procedure ................................187
Wiring Diagram  .....................................................188
Diagnostic Procedure ............................................189
Component Inspection  ..........................................190
Removal and Installation .......................................191

DTC P0133 HO2S1  .................................................192

Component Description  ........................................192
CONSULT-II Reference Value in Data Monitor Mode

.192

On Board Diagnosis Logic  ....................................192
DTC Confirmation Procedure ................................193
Overall Function Check .........................................194
Wiring Diagram  .....................................................195
Diagnostic Procedure ............................................196
Component Inspection  ..........................................199
Removal and Installation .......................................201

DTC P0134 HO2S1  .................................................202

Component Description  ........................................202
CONSULT-II Reference Value in Data Monitor Mode

.202

On Board Diagnosis Logic  ....................................202
DTC Confirmation Procedure ................................203
Overall Function Check .........................................203
Wiring Diagram  .....................................................205
Diagnostic Procedure ............................................206
Component Inspection  ..........................................207
Removal and Installation .......................................208

DTC P0138 HO2S2  .................................................209

Component Description  ........................................209
CONSULT-II Reference Value in Data Monitor Mode

.209

On Board Diagnosis Logic  ....................................209
DTC Confirmation Procedure ................................210
Wiring Diagram  ..................................................... 211
Diagnostic Procedure ............................................212
Component Inspection  ..........................................213
Removal and Installation .......................................215

DTC P0139 HO2S2  .................................................216

Component Description  ........................................216
CONSULT-II Reference Value in Data Monitor Mode

.216















Content   ..  222  223  224  225   ..
