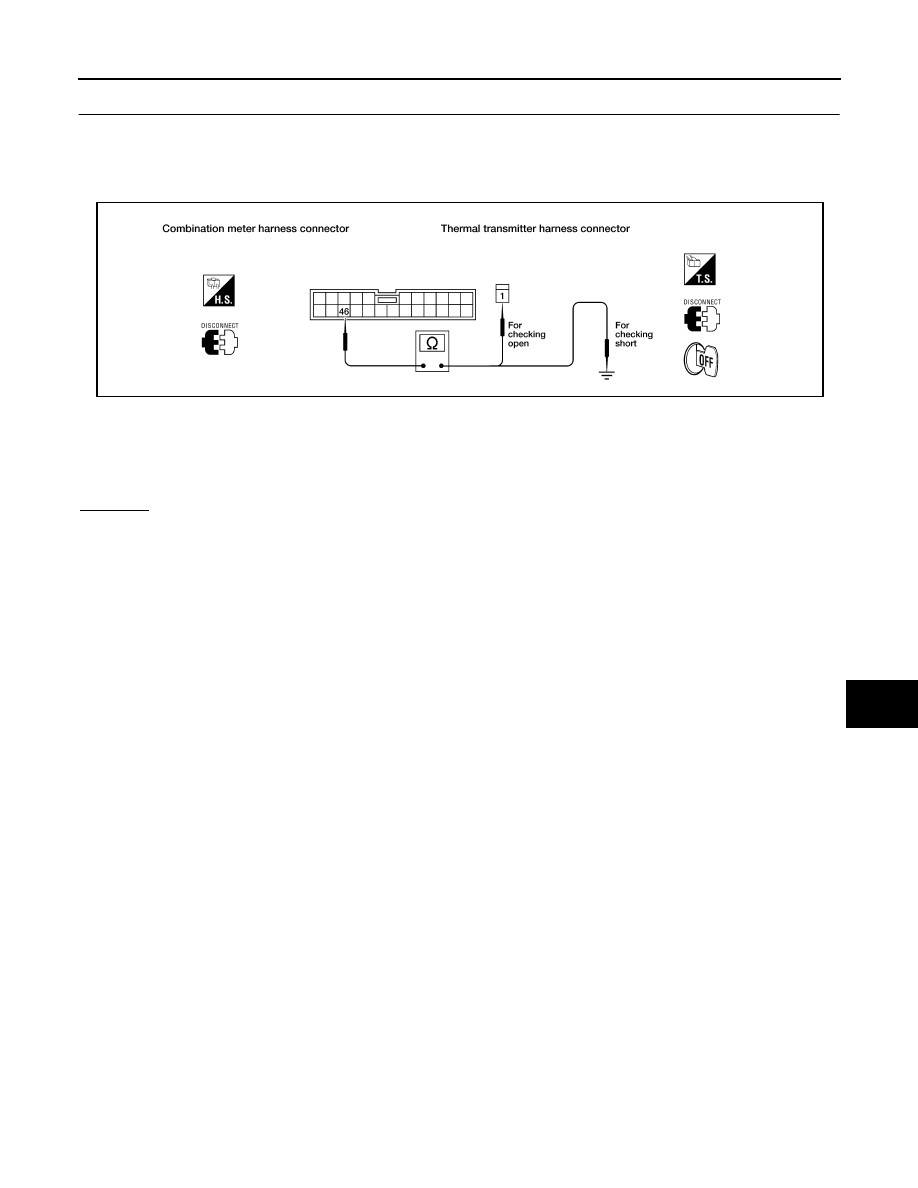

CHECK HARNESS FOR OPEN OR SHORT

1.

Disconnect combination meter harness connector M39 and thermal transmitter harness connector F10
(except VG33ER) or F114 (with VG33ER).

2.

Check continuity between combination meter harness connector M39 terminal 46 (GY) and thermal trans-
mitter harness connector F10 (except VG33ER) terminal 1 (GY) or F114 (with VG33ER) terminal 1 (G/Y).

3.

Check continuity between combination meter harness connector M39 terminal 46 and ground.

OK or NG

OK

>> Thermal transmitter is OK.

NG

>> Repair harness or connector.

Continuity should exist.

Continuity should not exist.

WEL797A

DI-18

METERS AND GAUGES

Electrical Components Inspection

EKS006WA

FUEL LEVEL SENSOR UNIT CHECK

●

For removal, refer to

FL-6, "Removal and Installation"

 .

With KA24DE

Check the resistance between fuel level sensor unit terminals 1 and 4.

*1 and *3: When float rod is in contact with stopper.

With VG33E and VG33ER

Check the resistance between fuel level sensor unit terminals G and E.

*1 and *3: When float rod is in contact with stopper.

THERMAL TRANSMITTER CHECK

Check the resistance between thermal transmitter terminal 1 and
body ground.

MEL827F

Ohmmeter

Float position

mm (in)

Resistance

value

(

Ω)

(Approx.)

(+)

(

−)

1

4

*1

Full

96 (3.78)

4 - 6

*2

1/2

188 (7.40)

30 - 34

*3

Empty

257 (10.12)

80 - 83

Ohmmeter

Float position

mm (in)

Resistance

value

(

Ω)

(Approx.)

(+)

(

−)

G

E

*1

Full

96 (3.78)

4 - 6

*2

1/2

188 (7.40)

30 - 34

*3

Empty

257 (10.12)

80 - 83

Water temperature

Resistance

value (

Ω)

(Approx.)

60

°C (140°F)

170 - 210

Ω

100

°C (212°F)

47 - 53

Ω

MEL424F

METERS AND GAUGES

DI-19

C

D

E

F

G

H

I

J

L

M

A

B

DI

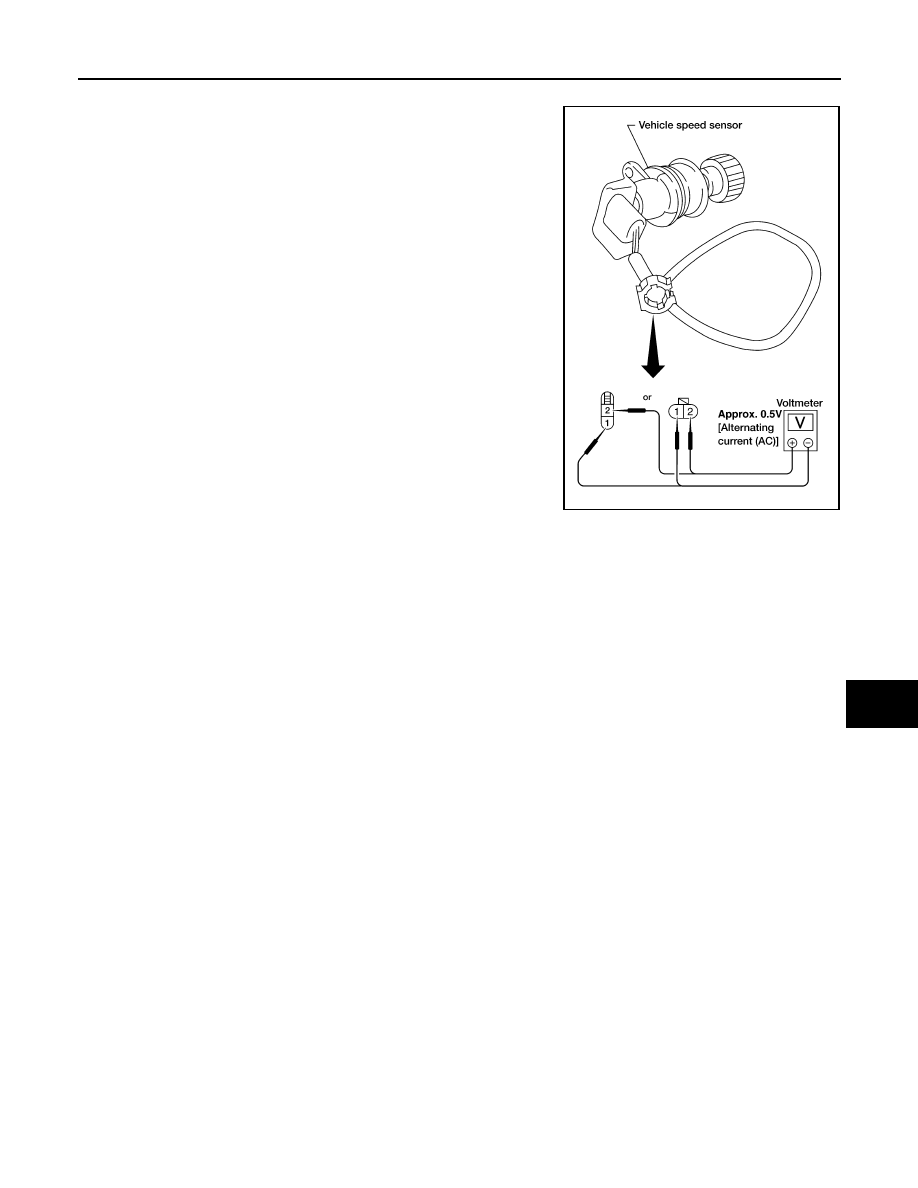

VEHICLE SPEED SENSOR SIGNAL CHECK

1.

Remove vehicle speed sensor.

2.

Turn vehicle speed sensor pinion quickly and measure voltage
across 1 and 2.

LKIA0148E

DI-20

COMPASS AND THERMOMETER

COMPASS AND THERMOMETER

PFP:24835

System Description

EKS006WB

The compass and thermometer unit displays following items:

●

Earth magnetism and heading direction of vehicle.

●

Outside air temperature.

●

Caution for frozen road surfaces.

OUTSIDE TEMPERATURE DISPLAY

Push the mode switch when the ignition switch is in the ON position. The outside temperature will be displayed
in “

°F”.

●

Selecting the indication range
Push the switch to change from “

°F” to “°C”.

●

The indicated temperature on the thermometer is not readily affected by engine heat. It changes only
when one of the following conditions is present.

–

The temperature detected by the ambient air temperature sensor is lower than the indicated temperature
on the thermometer.

–

The vehicle speed is greater than 20 km/h (13 MPH).
(This is to prevent the indicated temperature from being affected by engine heat during low-speed driv-
ing.)

–

The ignition switch has been turned to the OFF position for more than 2 hours. (The engine is cold.)

DIRECTION DISPLAY

Push the switch with the ignition switch in the ON position. The direction will be displayed.

WEL901A
