BODY (ALIGNMENT)

BL-65

C

D

E

F

G

H

J

K

L

M

A

B

BL

ENGINE COMPARTMENT
Measurement

Figure marked with * indicates symmetrically identical dimensions on both right-hand and left-hand sides of
the vehicle.

ABM374

BL-66

BODY (ALIGNMENT)

Measurement Points

WIIA0122E

BODY (ALIGNMENT)

BL-67

C

D

E

F

G

H

J

K

L

M

A

B

BL

UNDERBODY
Measurement — 2WD·4WD Models

WBT181

BL-68

BODY (ALIGNMENT)

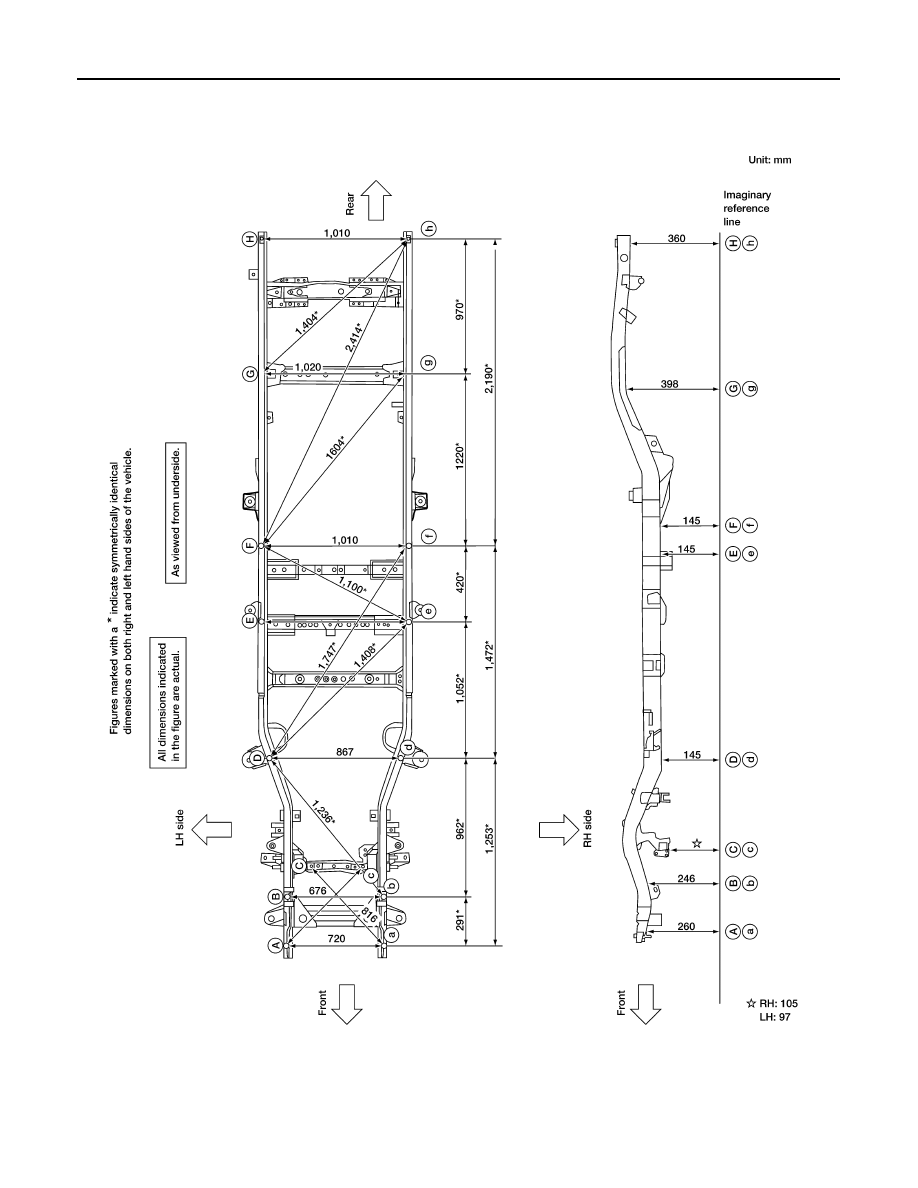

Measurement — Crew Cab Long Bed

WIIA0123E
