REVERSE CLUTCH

AT-449

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

7.

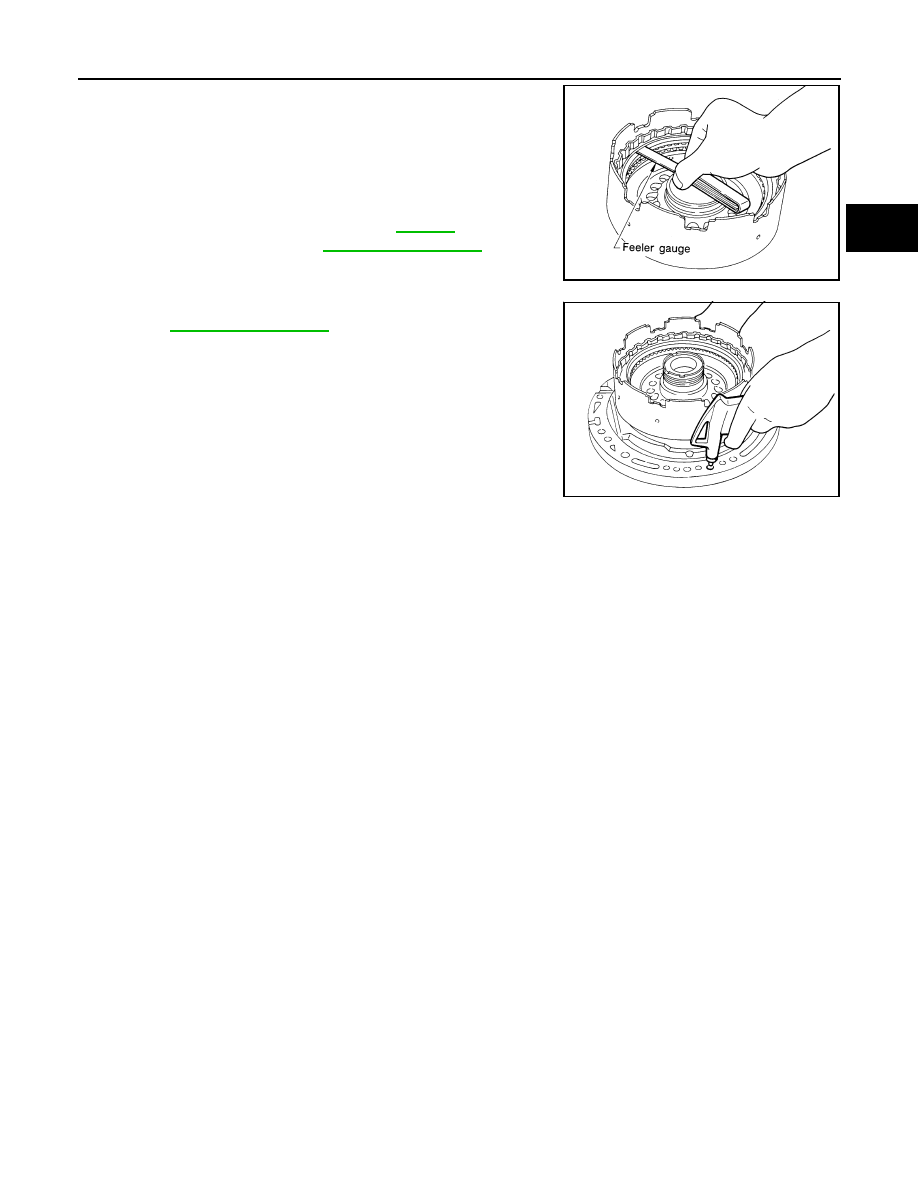

Measure clearance between retaining plate and snap ring. If not
within allowable limit, select proper retaining plate.

8.

Check operation of reverse clutch.
Refer to

AT-445, "Disassembly"

 .

Specified clearance

Standard

: 0.5 - 0.8 mm (0.020 -
0.031 in)

Allowable limit

: 1.2 mm (0.047 in)

Retaining plate

: Refer to

AT-498,

"REVERSE CLUTCH"

 .

SAT852A

SAT841A

AT-450

[RE4R01A]

HIGH CLUTCH

HIGH CLUTCH

PFP:31410

Components

ECS007PW

Disassembly and Assembly

ECS007PX

Service procedures for high clutch are essentially the same as those
for reverse clutch, with the following exception:

LAT437

SAT853A

HIGH CLUTCH

AT-451

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

●

Check of high clutch operation

●

Removal and installation of return spring

●

Inspection of high clutch return springs

●

Inspection of high clutch drive plate

SAT854A

SAT525G

Inspection standard

: Refer to

AT-497, "Return

Springs"

 .

SAT829A

Thickness of drive plate

Standard

: 1.52 - 1.67 mm (0.0598 -
0.0657 in)

Wear limit

: 1.40 mm (0.0551 in)

SAT845A

AT-452

[RE4R01A]

HIGH CLUTCH

●

Measurement of clearance between retaining plate and snap
ring

Specified clearance

Standard

: 1.8 - 2.2 mm (0.071 -
0.087 in)

Allowable limit

VG33E only

: 2.8 mm (0.110 in)

VG33ER only

: 2.2 mm (0.087 in)

Retaining plate

: Refer to

AT-498, "HIGH

CLUTCH"

 .

SAT858A
