Nissan Frontier D22. Manual - part 112

OVERHAUL

AT-417

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

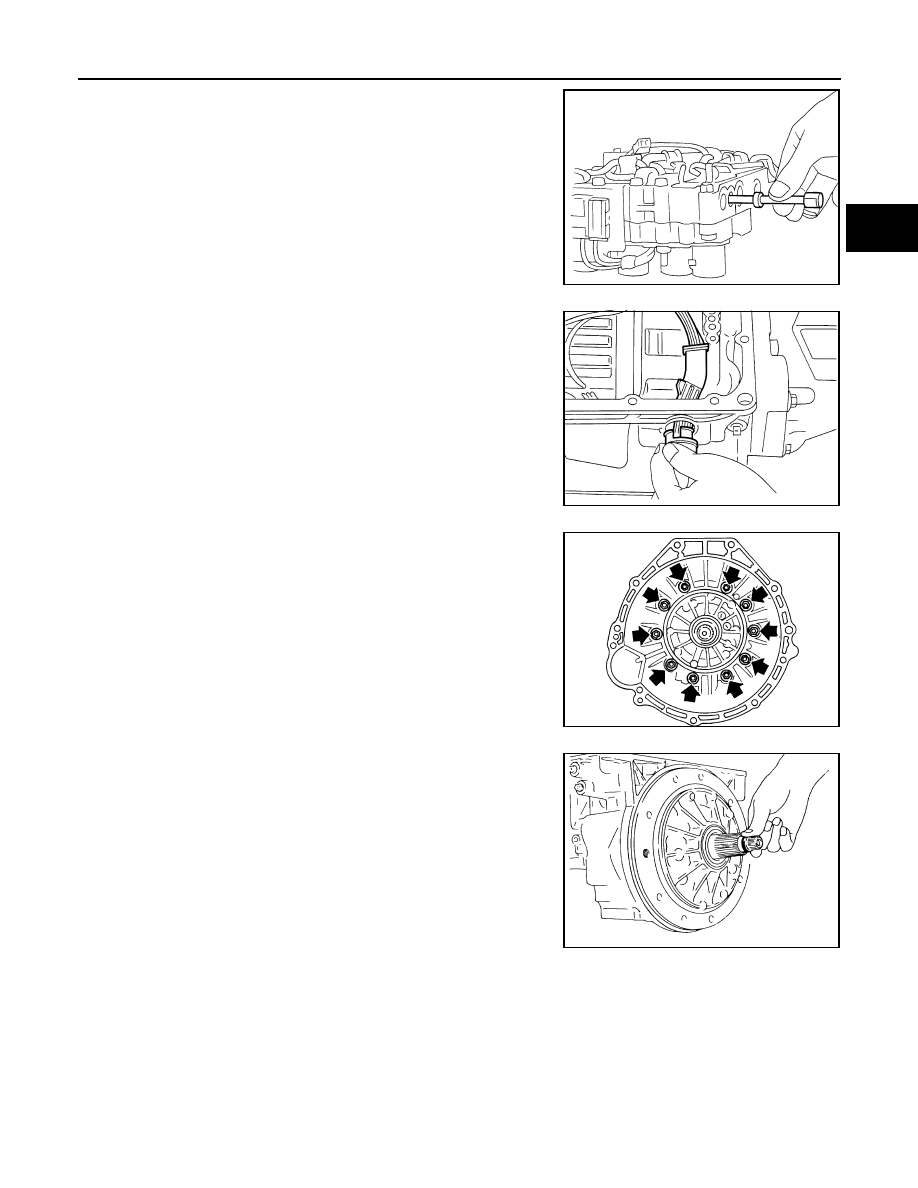

d.

Remove manual valve from control valve assembly.

12. Remove terminal cord assembly from transmission case while

pushing on stopper.

●

Be careful not to damage cord.

●

Do not remove terminal cord assembly unless it is dam-
aged.

13. Remove converter housing from transmission case.

●

Be careful not to scratch converter housing.

14. Remove O-ring from input shaft.

SAT127B

SAT128B

SAT999A

SAT995A

AT-418

[RE4R01A]

OVERHAUL

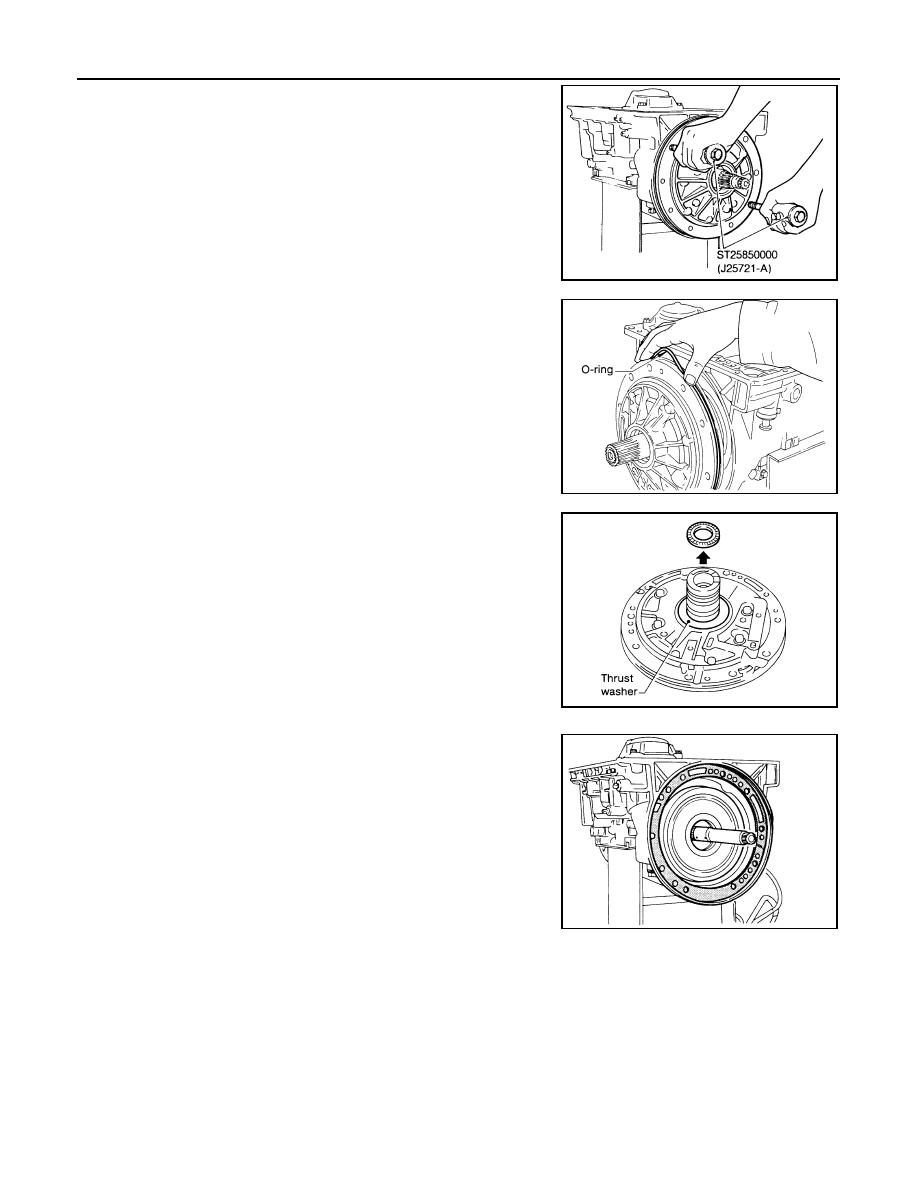

15. Remove oil pump assembly.
a.

Attach Tool to oil pump assembly and extract it evenly from
transmission case.

b.

Remove O-ring from oil pump assembly.

c.

Remove traces of sealant from oil pump housing.

●

Be careful not to scratch pump housing.

d.

Remove needle bearing and thrust washer from oil pump
assembly.

16. Remove input shaft and oil pump gasket.

SAT027B

SAT028B

SAT108B

SAT988A

OVERHAUL

AT-419

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

17. Remove brake band and band strut.
a.

Loosen lock nut and remove band servo anchor end pin from
transmission case.

b.

Remove brake band and band strut from transmission case.

c.

Hold brake band in a circular shape with clip.

18. Remove front side clutch and gear components.
a.

Remove clutch pack (reverse clutch, high clutch and front sun
gear) from transmission case.

b.

Remove front bearing race from clutch pack.

c.

Remove rear bearing race from clutch pack.

SAT029B

SAT986A

SAT655

SAT030B

SAT113B

AT-420

[RE4R01A]

OVERHAUL

d.

Remove front planetary carrier from transmission case.

e.

Remove front needle bearing from front planetary carrier.

f.

Remove rear bearing from front planetary carrier.

g.

Remove rear sun gear from transmission case.

19. Remove rear extension or adapter case.
a.

Remove rear extension or adapter case from transmission case.

b.

Remove rear extension or adapter case gasket from transmis-
sion case.

SAT031B

SAT968A

SAT974A

SAT716C
