PARKING PAWL COMPONENTS

PFP:31991

Components

ECS007KO

Disassembly

ECS007KP

1.

Slide return spring to the front of rear extension flange.

2.

Remove return spring, pawl spacer and parking pawl from rear
extension.

3.

Remove parking pawl shaft from rear extension.

LCIA0287E

SAT226H

SAT227H

AT-130

[RL4R01A]

PARKING PAWL COMPONENTS

4.

Remove parking actuator support from rear extension.

Inspection

ECS007KQ

PARKING PAWL AND PARKING ACTUATOR SUPPORT

●

Check contact surface of parking rod and parking gear for wear.

Assembly

ECS007KR

1.

Install parking actuator support onto rear extension.

2.

Insert parking pawl shaft into rear extension.

3.

Install return spring, pawl spacer and parking pawl onto parking
pawl shaft.

SAT228H

AAT888

SAT229H

SAT227H

PARKING PAWL COMPONENTS

AT-131

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

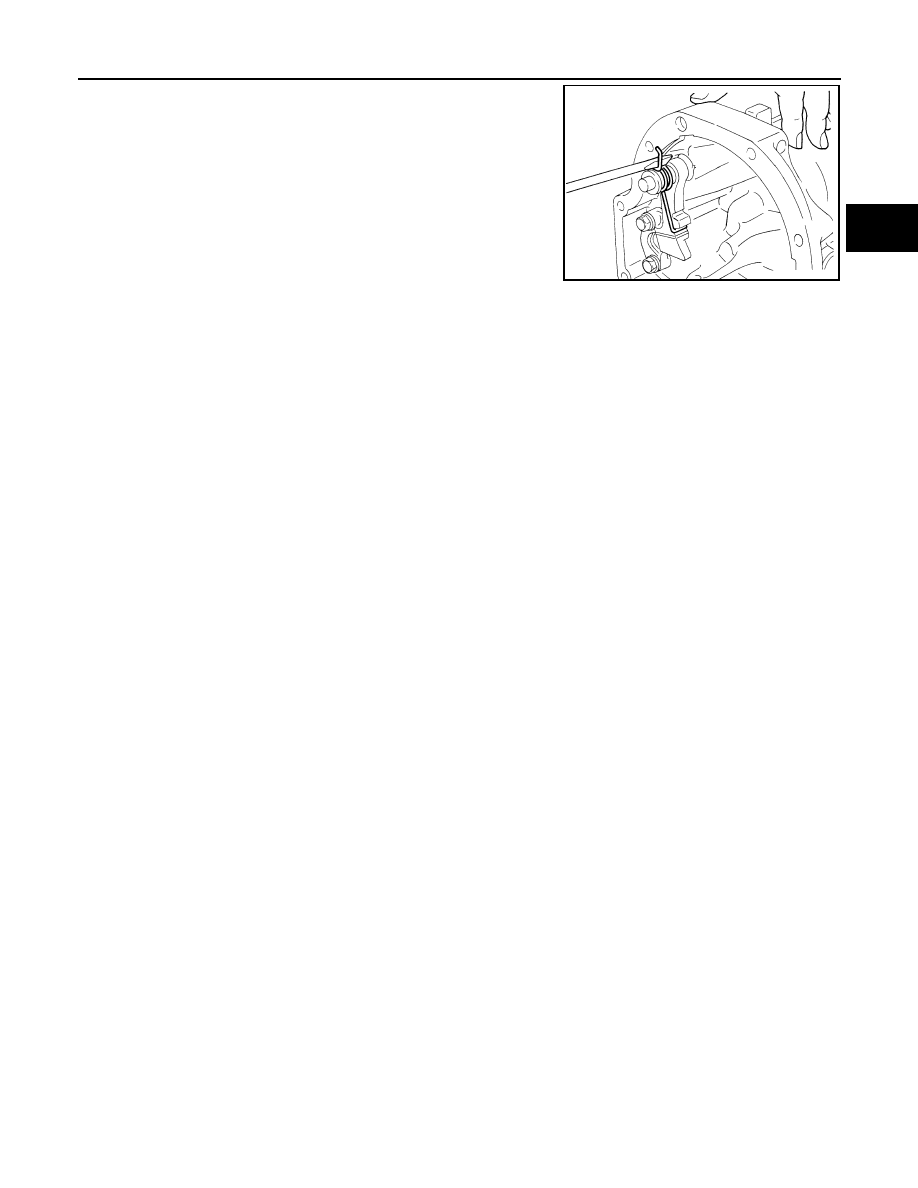

4.

Bend return spring upward and install it onto rear extension.

SAT226H

AT-132

[RL4R01A]

ASSEMBLY

ASSEMBLY

PFP:00000

Assembly (1)

ECS007KS

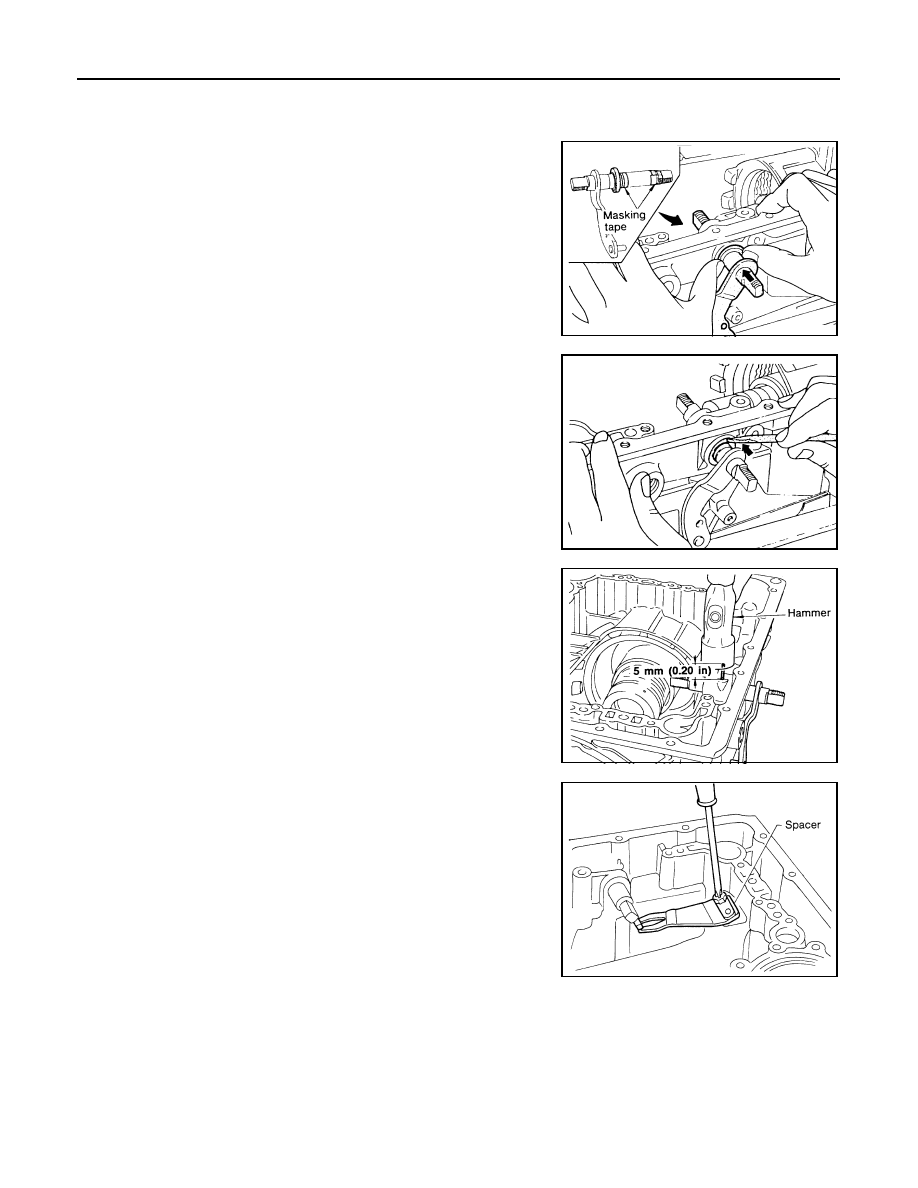

1.

Install manual shaft components.

a.

Install oil seal onto manual shaft.

●

Apply ATF to oil seal.

●

Wrap threads of manual shaft with masking tape.

b.

Insert manual shaft and oil seal as a unit into transmission case.

c.

Remove masking tape.

d.

Push oil seal evenly and install it onto transmission case.

e.

Align groove in shaft with drive pin hole; then drive pin into posi-
tion as shown in figure at left.

f.

Install detent spring and spacer.

SAT931A

SAT932A

SAT933A
