Nissan Frontier D22. Manual - part 34

REVERSE CLUTCH

AT-105

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

REVERSE CLUTCH PISTON

●

Shake piston to assure that balls are not seized.

●

Apply compressed air to check ball oil hole opposite the return
spring to assure that there is no air leakage.

●

Also apply compressed air to oil hole on return spring side to
assure that air leaks past ball.

Assembly

ECS007K3

1.

Install D-ring and oil seal on piston.

●

Apply ATF to both parts.

●

Take care with the direction of oil seal.

2.

Install piston assembly by turning it slowly and evenly.

●

Apply ATF to inner surface of drum.

3.

Install return springs and spring retainer.

SAT846A

SAT847A

SAT848A

SAT849A

AT-106

[RL4R01A]

REVERSE CLUTCH

4.

Set Tool on spring retainer and install snap ring while compress-
ing clutch springs.

●

Do not align snap ring gap with spring retainer stopper.

5.

Install drive plates, driven plates, retaining plate and dish plate.

6.

Install snap ring.

7.

Measure clearance between retaining plate and snap ring. If not
within allowable limit, select proper retaining plate.

SAT620G

SAT850A

SAT842A

Specified clearance

Standard

: 0.5 - 0.8 mm (0.020 -
0.031 in)

Allowable limit

: 1.2 mm (0.047 in)

Retaining plate

: Refer to

AT-104, "Inspec-

tion"

 .

SAT852A

REVERSE CLUTCH

AT-107

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

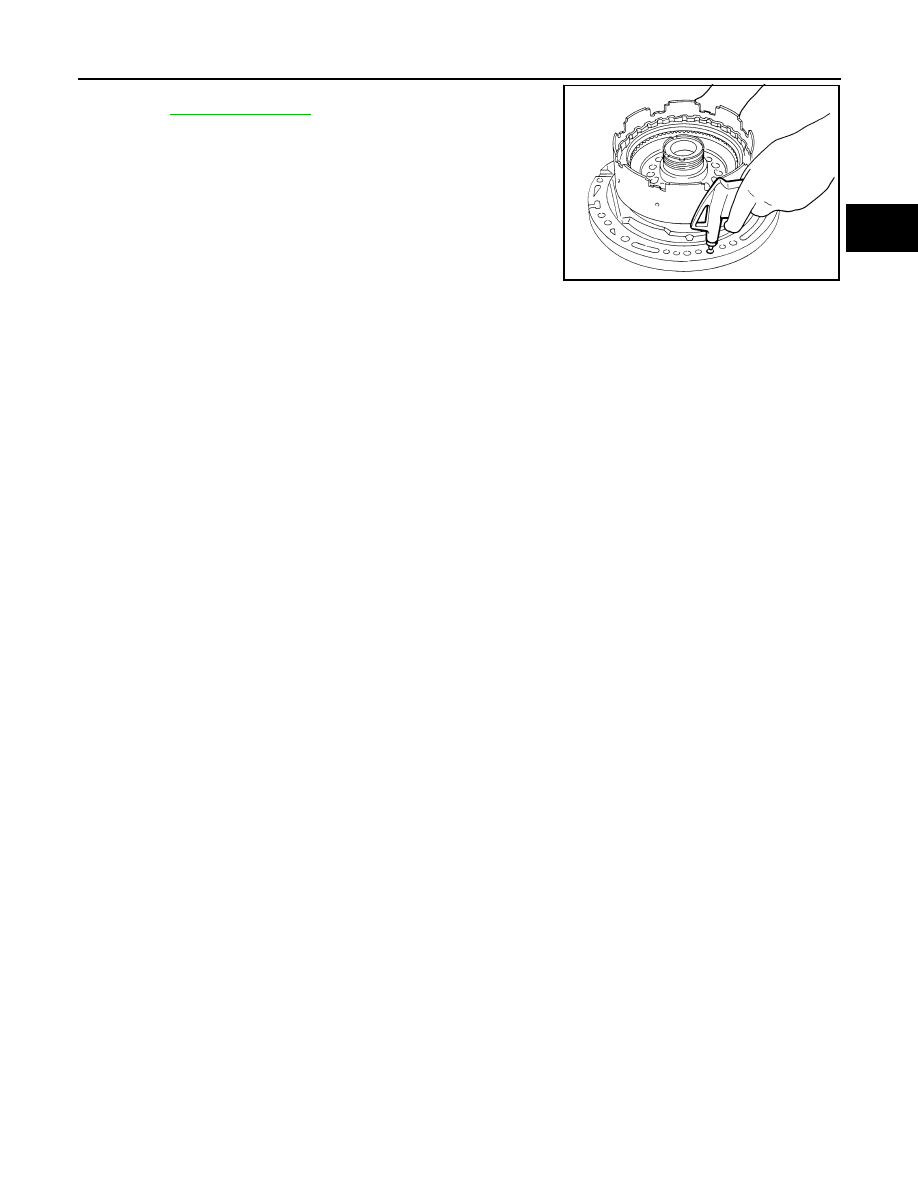

8.

Check operation of reverse clutch.
Refer to

AT-104, "Inspection"

 .

SAT841A

AT-108

[RL4R01A]

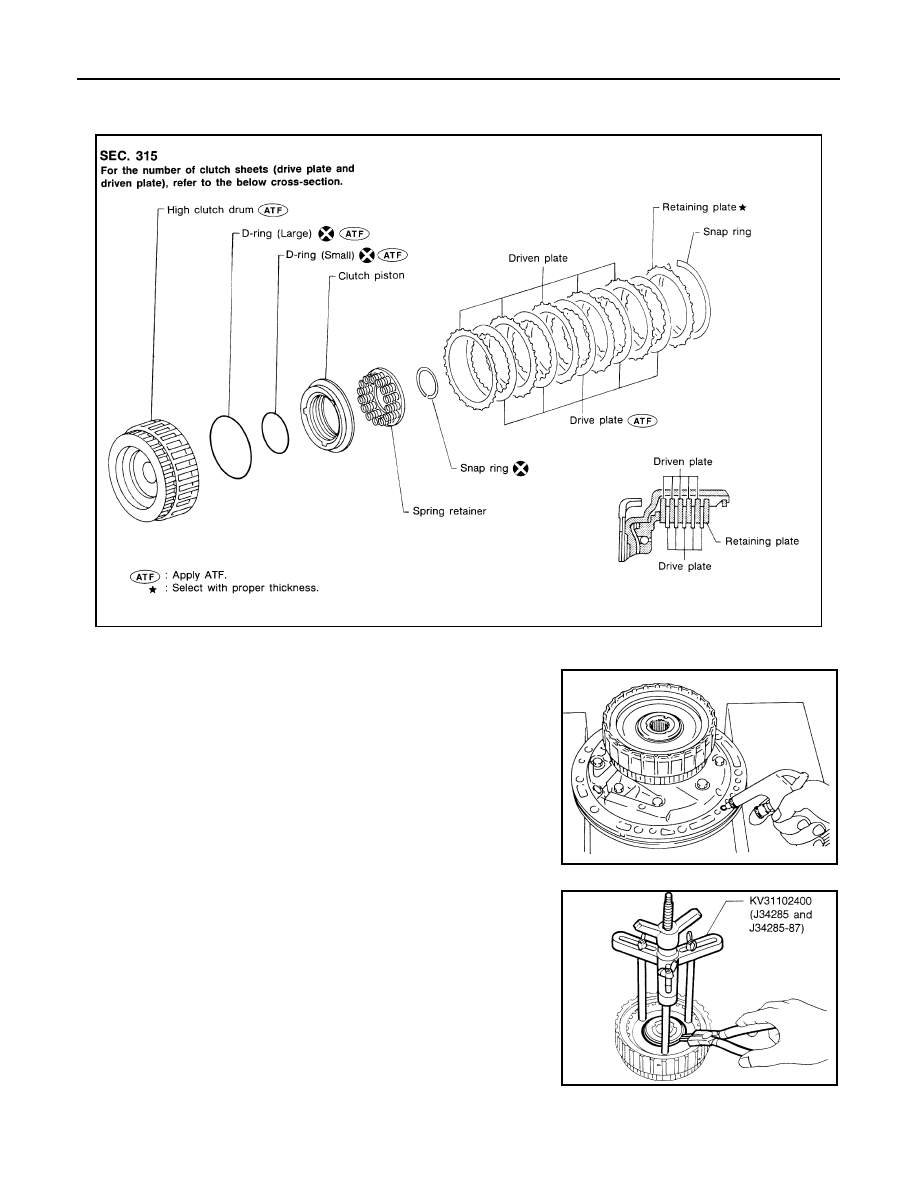

HIGH CLUTCH

HIGH CLUTCH

PFP:31410

Components

ECS007K4

Disassembly and Assembly

ECS007K5

Service procedures for high clutch are essentially the same as those
for reverse clutch, with the following exceptions:

●

Check of high clutch operation

●

Removal and installation of return spring

LCIA0284E

SAT854A

SAT621G
