TROUBLE DIAGNOSES

AT-45

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

4.

CHECK OVERDRIVE CONTROL SWITCH

Check continuity between overdrive control switch terminals 1 and 2.

OK or NG

OK

>> GO TO 5.

NG

>> Replace overdrive control switch.

5.

CHECK OVERDRIVE CANCEL SOLENOID VALVE CIRCUIT

Check resistance between overdrive cancel solenoid valve terminals 1 and 2.

OK or NG

OK

>> GO TO 6.

NG

>> Replace overdrive cancel solenoid valve.

6.

DETECT MALFUNCTIONING ITEM

Check the following items:
1.

Harness continuity between fuse and overdrive cancel solenoid valve

2.

Harness continuity between fuse and overdrive hold control module

3.

Harness continuity between overdrive cancel solenoid valve and overdrive cancel relay

4.

Condition of diode

5.

Harness continuity between overdrive hold control module and overdrive cancel relay

6.

Harness continuity between overdrive hold control module and overdrive control switch

7.

Harness continuity between overdrive hold control module and ground

OK or NG

OK

>> Replace overdrive hold control module.

NG

>> Repair or replace damaged parts.

LAT500

Resistance

: Approximately 25

Ω

AAT132A

AT-46

[RL4R01A]

TROUBLE DIAGNOSES

PARK/NEUTRAL POSITION (PNP) SWITCH

1.

CHECK PNP SWITCH CIRCUIT STEP 1

1.

Turn ignition switch ON.
(Do not start engine).

2.

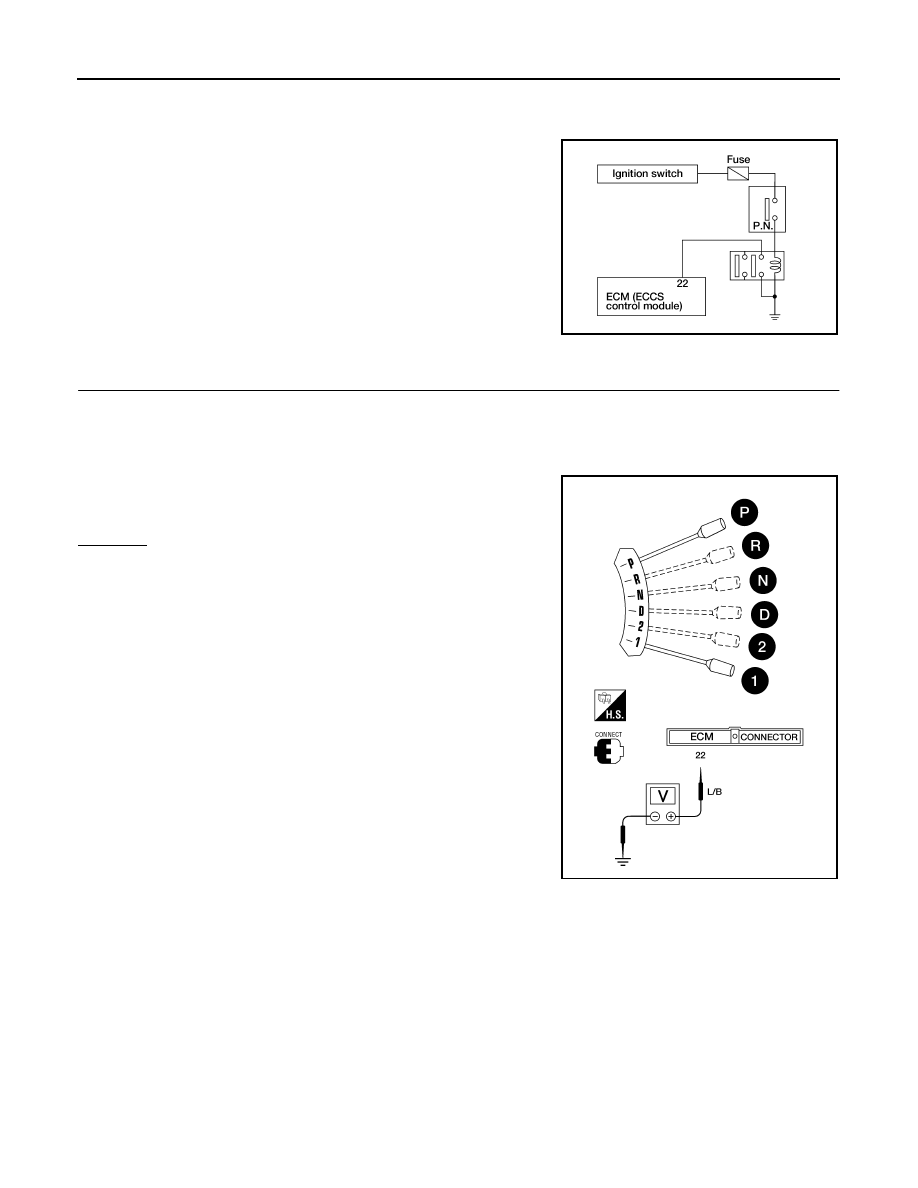

Check voltage between ECM harness connector F29 terminal 22 and ground while moving selector lever
