SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000006044165

Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

RAX-5

—

RAX-4

NVH

in

RAX and RSU sections

NVH in WT section

NVH in WT section

NVH in BR section

Possible cause and SUSPECTED PARTS

Im

p

rop

er i

n

s

ta

lla

tio

n

,

lo

os

en

es

s

P

a

rt

s interference

W

h

e

e

l be

arin

g da

ma

ge

REA

R

 AXLE AND REAR S

U

SPENSION

TI

RE

ROAD W

H

EEL

BR

AK

E

Symptom

REAR AXLE

Noise

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

Shimmy

×

×

×

×

×

×

Judder

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

RAX-4

< PERIODIC MAINTENANCE >

REAR WHEEL HUB

PERIODIC MAINTENANCE

REAR WHEEL HUB

Inspection

INFOID:0000000006044166

COMPONENT PART

Check the mounting conditions (looseness, back lash) of each component and component conditions (wear,
damage) are normal.

WHEEL HUB AND BEARING ASSEMBLY

Check the following items, and replace the part it necessary.
• Move wheel hub and bearing assembly in the axial direction by hand. Check there is no looseness of wheel

bearing.

• Rotate wheel hub and bearing assembly and check there is no unusual noise or other irregular conditions. If

there is any of irregular conditions, replace wheel hub and bearing assembly.

Axial end play

: Refer to

RAX-8, "Wheel Bearing"

.

REAR WHEEL HUB

RAX-5

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

REMOVAL AND INSTALLATION

REAR WHEEL HUB

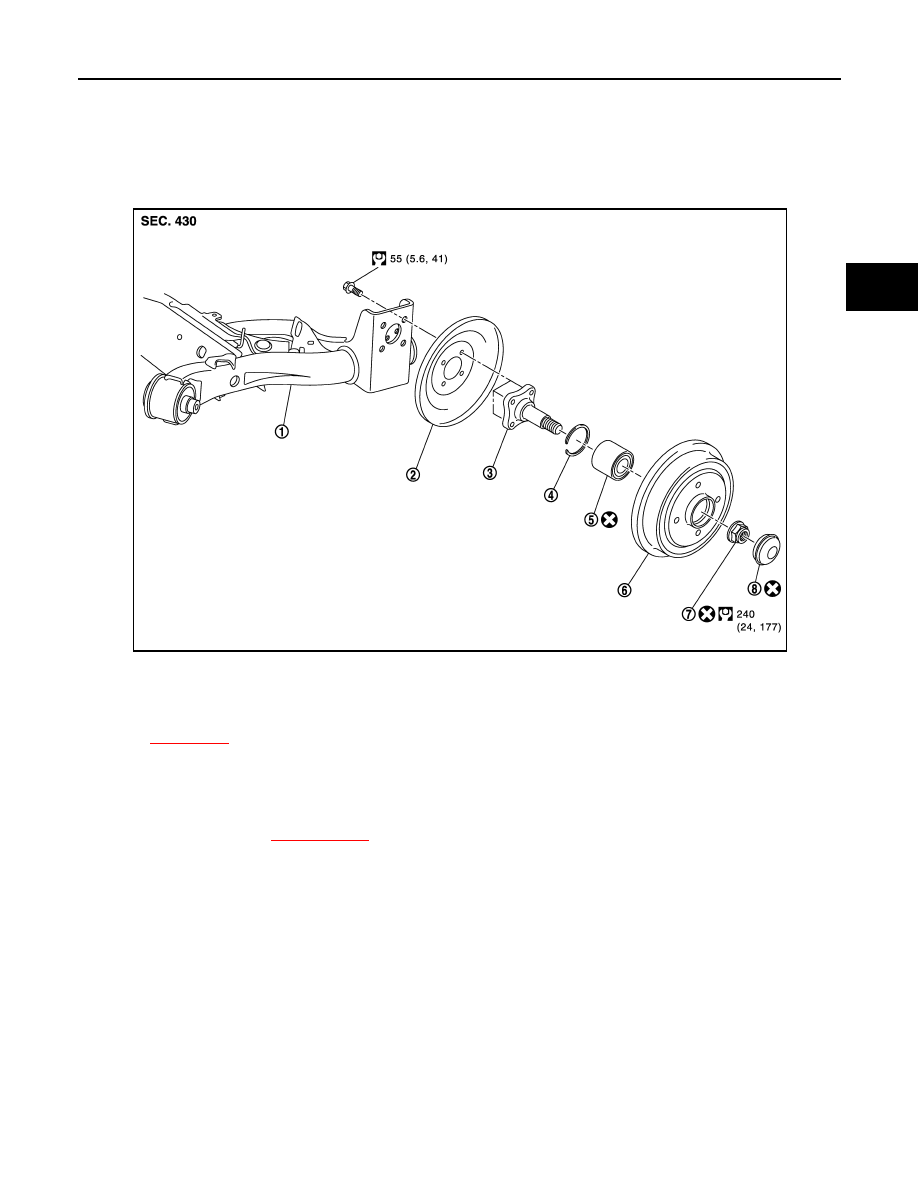

Exploded View

INFOID:0000000006044167

Removal and Installation

INFOID:0000000006044168

REMOVAL

1.

Remove tires. Refer to

XX-XX, "*****"

.

2.

Remove hub cap from brake drum, using a hub cap pliers.

3.

Remove wheel hub lock nut and brake drum.

4.

Remove brake shoe assembly. Refer to

Dummy cross-reference("XX-XX")

.

5.

Remove spindle mounting bolt. Separate back plate and spindle from rear suspension beam.

INSTALLATION

Note the following, and install in the reverse order of removal.

1.

Rear suspension beam

2.

Back plate

3.

Spindle

4.

Snap ring

5.

Wheel bearing

6.

Brake drum

7.

Wheel hub lock nut

8.

Hub cap

Refer to

XX-XX, "*****"

 for symbols in the figure.

JPDIG0188GB

RAX-6

< REMOVAL AND INSTALLATION >

REAR WHEEL HUB

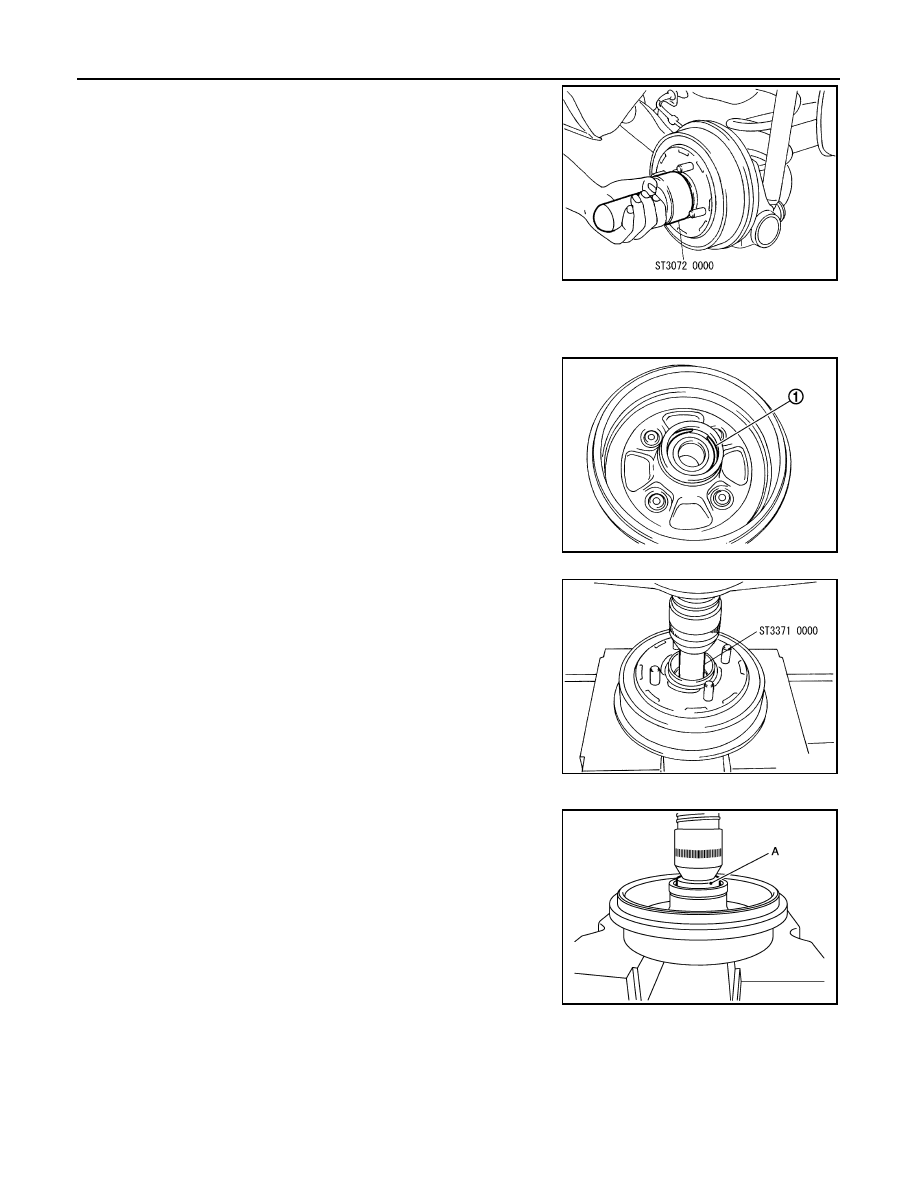

• Using a drift (SST), mount hub cap on brake drum.

CAUTION:

Never reuse hub cap.

• Never reuse wheel lock nut.

Disassembly and Assembly

INFOID:0000000006044295

DISASSEMBLY

1.

Remove snap ring.

2.

Remove wheel bearing, using the drift (SST).

ASSEMBLY

1.

Install wheel bearing, using the drift (A) (SST: KV40104730).

CAUTION:

Never reuse wheel bearing.

2.

Install snap ring.

Inspection

INFOID:0000000006044169

INSPECTION AFTER REMOVAL

Check the brake drum assembly and spindle for wear, cracks, and damage. Replace if necessary.

INSPECTION AFTER DISASSEMBLY

• Check brake drum for wear, cracks, or any other damage. Replace if necessary.

SDIA0766J

JPDIG0092ZZ

JPDIG0079ZZ

JPDIG0189ZZ
