PCS-26

< DTC/CIRCUIT DIAGNOSIS >

[IPDM E/R (WITH I-KEY)]

B2099 IGNITION RELAY OFF STUCK

B2099 IGNITION RELAY OFF STUCK

Description

INFOID:0000000005914132

• IPDM E/R operates the ignition relay when it receives an ignition switch ON signal from BCM via CAN com-

munication.

• Turn the ignition relay OFF by pressing the push-button ignition switch once when the vehicle speed is 4 km/

h (2.5 MPH) or less.

• Turn the ignition relay OFF with the following operation when the vehicle speed is more than 4 km/h (2.5

MPH) or when an abnormal condition occurs in CAN communication from the combination meter (Emer-
gency OFF)

- Press and hold the push-button ignition switch for 2 seconds or more.
- Press the push-button ignition switch 3 times within 1.5 seconds.
NOTE:
The ignition relay does not turn ON for 3 seconds after emergency OFF even if the push-button ignition switch
is pressed.

DTC Logic

INFOID:0000000005914133

DTC DETECTION LOGIC

NOTE:

When IPDM E/R power supply voltage is low (Approx. 7 - 8 V for about 1 second), the “DTC: B2099” may be detected.

Diagnosis Procedure

INFOID:0000000005914134

1.

PERFORM SELF DIAGNOSIS

1.

Turn the ignition switch ON.

2.

Erase “Self Diagnostic Result”.

3.

Turn the ignition switch OFF.

4.

Turn the ignition switch ON. Check “Self Diagnostic Result” again.

Is DTC “B2099” displayed?

YES

>> Replace IPDM E/R. Refer to

PCS-28, "Removal and Installation"

.

NO

>> Refer to

GI-33, "Intermittent Incident"

.

DTC

CONSULT-III dis-

play description

DTC Detection Condition

Possible causes

B2099

IGN RELAY OFF

The ignition relay OFF is detected for 1 second at ignition switch ON
(CPU monitors the status at the contact and excitation coil circuits of
the ignition relay inside it)

Ignition relay malfunction

PCS

POWER SUPPLY AND GROUND CIRCUIT

PCS-27

< DTC/CIRCUIT DIAGNOSIS >

[IPDM E/R (WITH I-KEY)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000005914135

1.

CHECK FUSES AND FUSIBLE LINK

Check that the following IPDM E/R fuses or fusible links are not blown.

Is the fuse fusing?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is

blown.

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check voltage between IPDM E/R harness connector and the ground.

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> Repair the harness or connector.

3.

CHECK GROUND CIRCUIT

Check continuity between IPDM E/R harness connectors and the ground.

Does continuity exist?

YES

>> INSPECTION END

NO

>> Repair the harness or connector.

Signal name

Fuses and fusible link No.

Battery power supply

C (80 A)

D (60 A)

F (40 A)

(+)

(

−

)

Voltage

(Approx.)

IPDM E/R

Connector

Terminal

E9

1

Ground

Battery voltage

2

E11

32

IPDM E/R

Ground

Continuity

Connector

Terminal

E10

10

Existed

E14

55

PCS-28

< REMOVAL AND INSTALLATION >

[IPDM E/R (WITH I-KEY)]

IPDM E/R

REMOVAL AND INSTALLATION

IPDM E/R

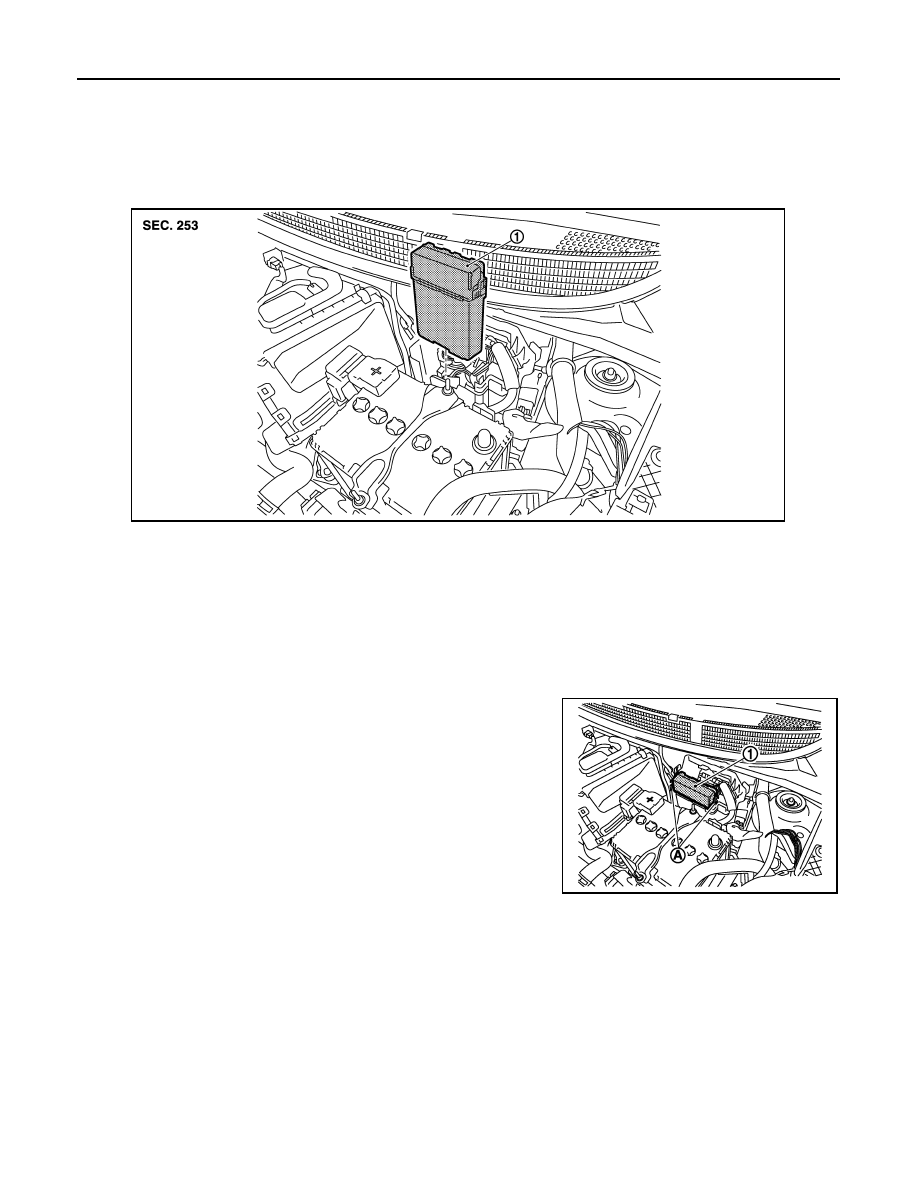

Exploded View

INFOID:0000000005914136

Removal and Installation

INFOID:0000000005914137

CAUTION:

IPDM E/R integrated relays are not serviceable parts, and must not be removed from the unit.

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove the IPDM E/R (1) while disengaging both pawls (A) by
spreading them.

3.

Disconnect the harness connector and then remove the IPDM
E/R.

INSTALLATION

Install in the reverse order of removal.

1.

IPDM E/R

JMMIA0357ZZ

JMMIA0358ZZ

PCS
