Nissan March K13. Manual - part 314

EXL-82

< SYMPTOM DIAGNOSIS >

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

Description

INFOID:0000000005912473

The parking, license plate, tail lamps and each illumination are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000005912474

1.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

BCS-56, "Symptom Table"

.

Is the combination switch normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning part.

2.

CHECK TAIL LAMP RELAY REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1.

Select “TAIL & CLR REQ” of IPDM E/R data monitor item.

2.

With operating the lighting switch, check the monitor status.

Is the item status normal?

YES

>> GO TO 3.

NO

>> Replace BCM. Refer to

BCS-57, "Removal and Installation"

.

3.

PARKING LAMP CIRCUIT INSPECTION

Check the parking lamp circuit. Refer to

EXL-68, "Component Function Check"

.

Is the parking lamp circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-28, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

TAIL & CLR
REQ

Lighting switch

1ST

ON

OFF

OFF

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

EXL-83

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

Description

INFOID:0000000005912475

The front fog lamps are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000005912476

1.

CHECK FUSE

Check that the following fuse is fusing.

Is the fuse fusing?

YES

>> Repair the applicable circuit. And then replace the fuse.

NO

>> GO TO 2.

2.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

BCS-56, "Symptom Table"

 (With Intelligent Key) or

BCS-98, "Symp-

tom Table"

 (Without Intelligent Key).

Is the combination switch normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning part.

3.

CHECK FRONT FOG LAMP REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1.

Select “FR FOG REQ” of IPDM E/R data monitor item.

2.

With operating the front fog lamp switch, check the monitor status.

Is the item status normal?

YES

>> GO TO 4.

NO

>> Replace BCM. Refer to

BCS-57, "Removal and Installation"

 (With Intelligent Key) or

BCS-99,

"Removal and Installation"

 (Without Intelligent Key).

4.

FRONT FOG LAMP RELAY CIRCUIT INSPECTION

Check the front fog lamp relay circuit. Refer to

EXL-76, "Diagnosis Procedure"

.

Is the front fog lamp relay circuit normal?

YES

>> GO TO 5.

NO

>> Repair or replace the malfunctioning part.

5.

FRONT FOG LAMP CIRCUIT INSPECTION

Check the front fog lamp circuit. Refer to

EXL-66, "Component Function Check"

.

Is the front fog lamp circuit normal?

YES

>> Replace IPDM E/R.

NO

>> Repair or replace the malfunctioning part.

Unit

Location

Fuse No.

Capacity

Front fog lamp

IPDM E/R

#39

15 A

Monitor item

Condition

Monitor status

FR FOG REQ

Front fog lamp switch
(With lighting switch 1ST)

ON

ON

OFF

OFF

EXL-84

< PERIODIC MAINTENANCE >

HEADLAMP AIMING ADJUSTMENT

PERIODIC MAINTENANCE

HEADLAMP AIMING ADJUSTMENT

Description

INFOID:0000000006056700

PREPARATION BEFORE ADJUSTING

NOTE:
• For details, refer to the regulations in your own country.
• Perform aiming if the vehicle front body has been repaired and/or the headlamp assembly has been

replaced.

Before performing aiming adjustment, check the following.

• Adjust the tire pressure to the specification.
• Fill with fuel, engine coolant and each oil.
• Maintain the unloaded vehicle condition. (Remove luggage from the passenger compartment and the lug-

gage room.)
NOTE:
Do not remove the temporary tire, jack and on-vehicle tool.

• Wipe out dirt on the headlamp.

CAUTION:

Never use organic solvent (thinner, gasoline etc.)

• Ride alone on the driver seat.
• Headlamp aiming switch sets to “0”.

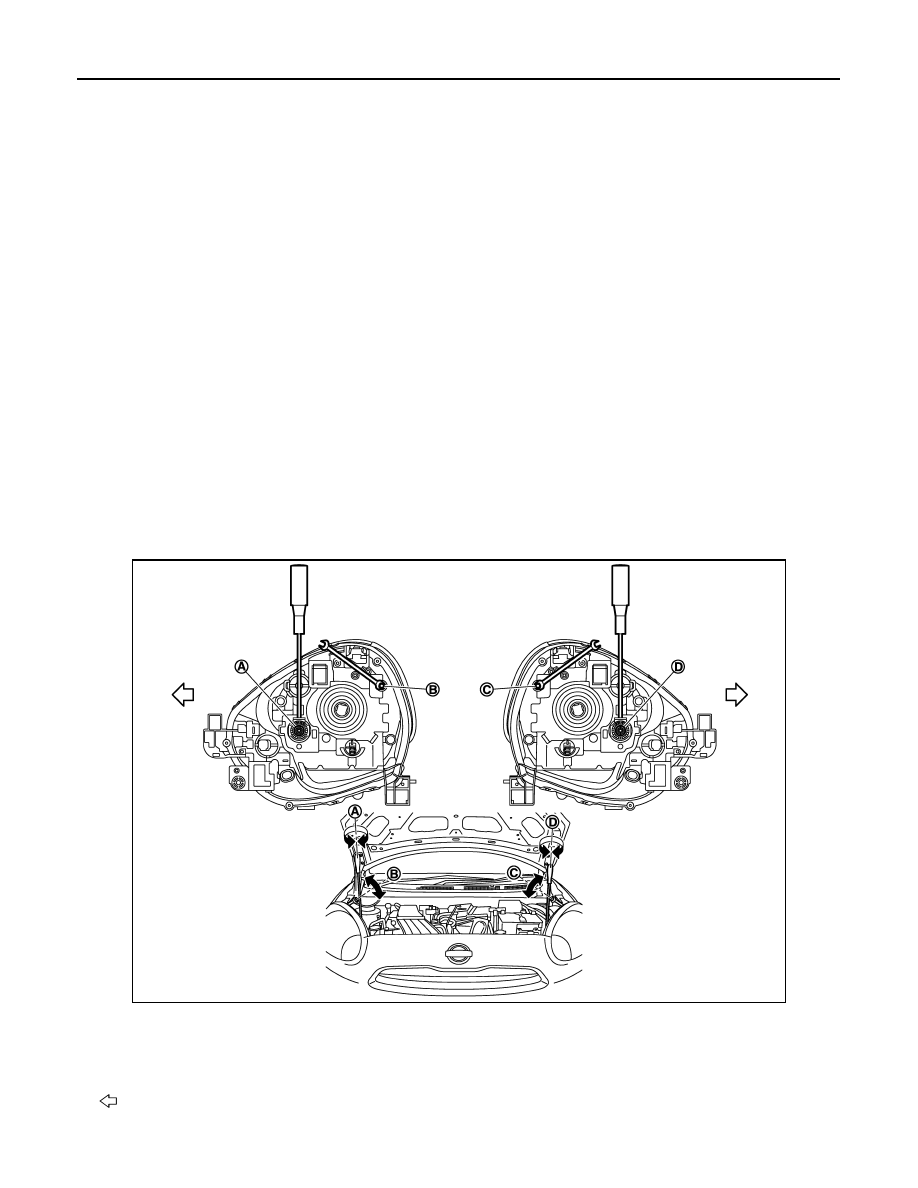

AIMING ADJUSTMENT SCREW

JMLIA1020ZZ

A.

Headlamp RH (UP/DOWN) adjust-
ment screw

B.

Headlamp RH (INSIDE/OUTSIDE)
adjustment screw

C.

Headlamp LH (INSIDE/OUTSIDE)
adjustment screw

D.

Headlamp LH (UP/DOWN) adjust-
ment screw

: Vehicle center

HEADLAMP AIMING ADJUSTMENT

EXL-85

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Aiming Adjustment Procedure

INFOID:0000000006056701

1.

Place the screen.
NOTE:
• Stop the vehicle at the perpendicular angle to the wall.
• Set the screen so that it is perpendicular to a level load surface.

2.

Face the vehicle squarely toward the screen and make the distance between the headlamp bulb center
and the screen 10 m (32.8 ft).

3.

Start the engine and illuminate the headlamp (LO).
NOTE:
Block light from the headlamp that is not being adjusted with a thick fabric or another object, so that it
does not reach the adjustment screen.

CAUTION:

Never cover lens surface with tape, etc. because it is made from plastic.

4.

Use the aiming adjustment screw to adjust the elbow point projected by the low beams on the screen, so
that it is within the aiming adjustment area.

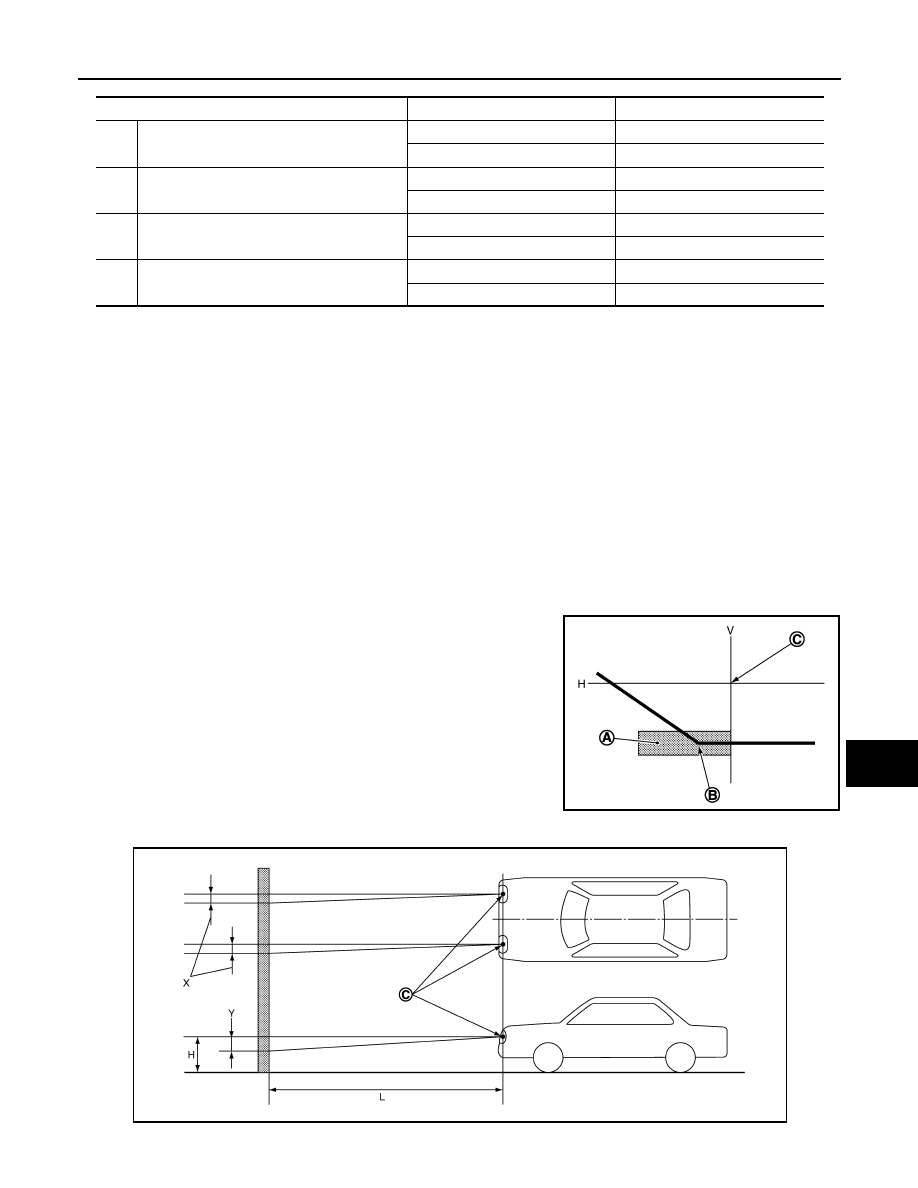

Low beam distribution on the screen

Adjustment screw

Screw driver rotation

Facing direction

A

Headlamp RH (UP/DOWN)

Clockwise

UP

Counterclockwise

DOWN

B

Headlamp RH (INSIDE/OUTSIDE)

Clockwise

INSIDE

Counterclockwise

OUTSIDE

C

Headlamp LH (INSIDE/OUTSIDE)

Clockwise

INSIDE

Counterclockwise

OUTSIDE

D

Headlamp LH (UP/DOWN)

Clockwise

UP

Counterclockwise

DOWN

A.

Aiming adjustment area

B.

Elbow point

C.

Headlamp center

H.

Horizontal center line of headlamp

V.

Vertical center line of headlamp

JSLIA0028ZZ

JSLIA0029ZZ
