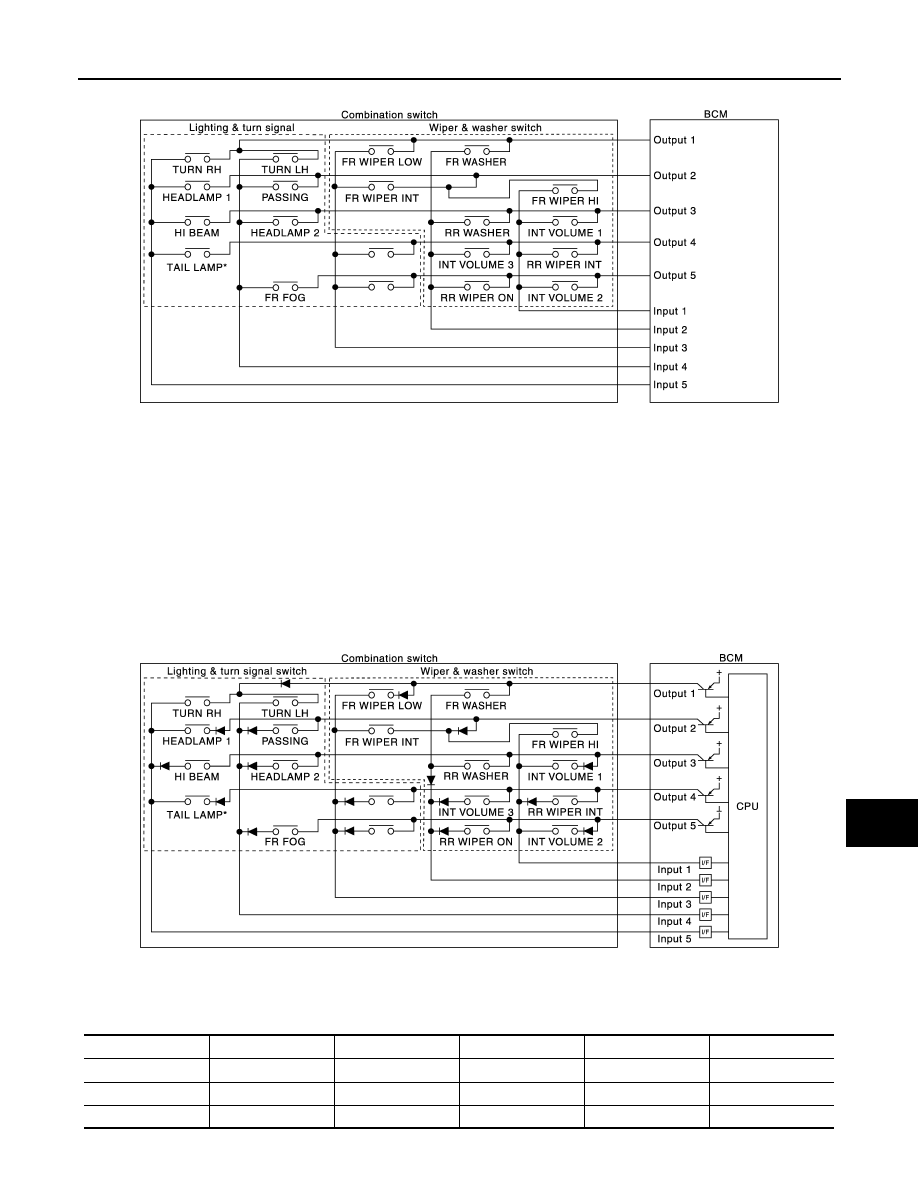

COMBINATION SWITCH READING SYSTEM : System Diagram

INFOID:0000000006014817

NOTE:
*: TAIL LAMP switch links lighting switch 1ST position.

COMBINATION SWITCH READING SYSTEM : System Description

INFOID:0000000006014818

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a

maximum of 20 switch status.

COMBINATION SWITCH MATRIX

Combination switch circuit

NOTE:
*: TAIL LAMP switch links lighting switch 1ST position.

Combination switch INPUT-OUTPUT system list

JMMIA0392GB

JMMIA0393GB

System

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

OUTPUT 1

—

FR WASHER

FR WIPER LOW

TURN LH

TURN RH

OUTPUT 2

FR WIPER HI

—

FR WIPER INT

PASSING

HEADLAMP 1

OUTPUT 3

INT VOLUME 1

RR WASHER

—

HEADLAMP 2

HI BEAM

BCS-10

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

NOTE:

Headlamp has a dual system switch.

COMBINATION SWITCH READING FUNCTION

Description

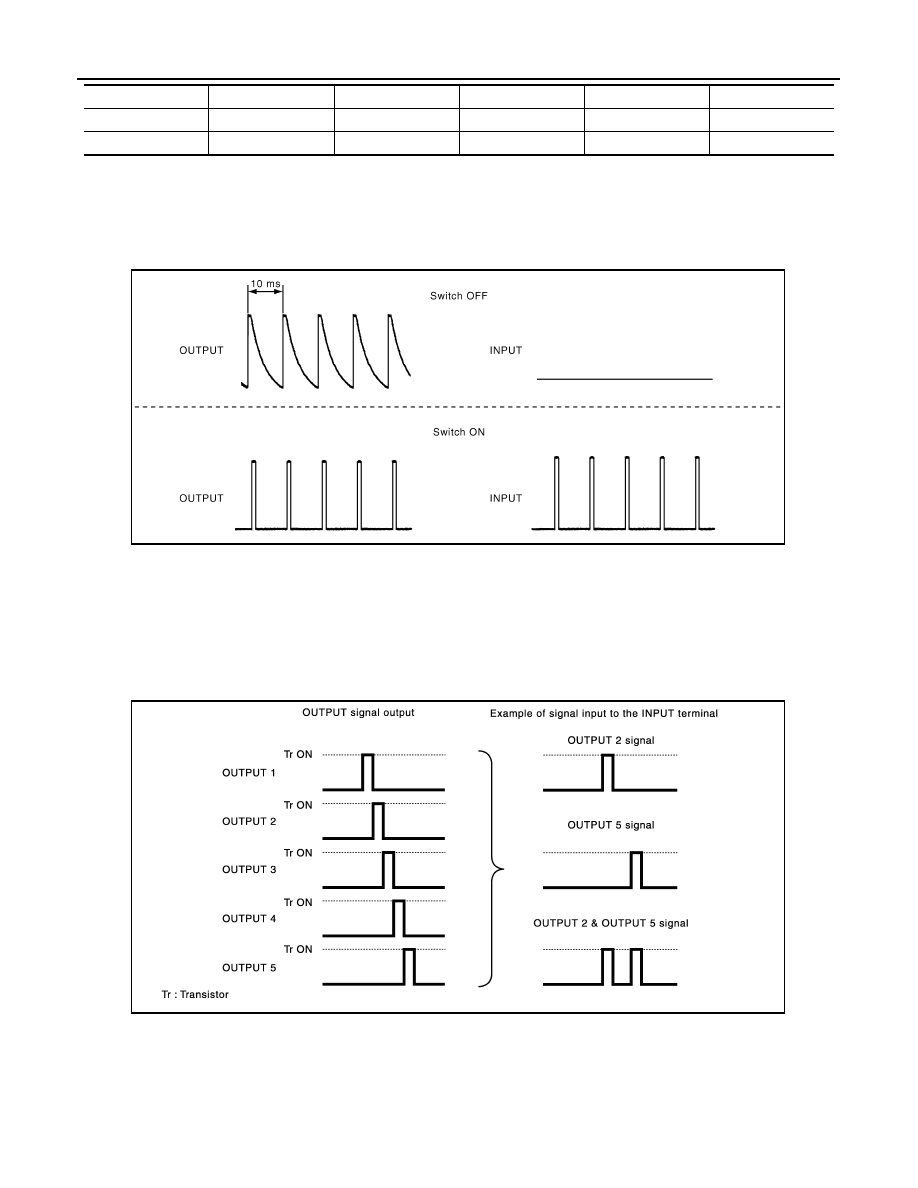

• BCM reads the status of the combination switch at 10 ms interval normally.

NOTE:
BCM reads the status of the combination switch at 60 ms interval when BCM is controlled at low power con-
sumption control mode.

• BCM operates as follows and judges the status of the combination switch.
- It operates the transistor on OUTPUT side in the following order: OUTPUT 1

→

 2

→

 3

→

 4

→

 5, and outputs

voltage waveform.

- The voltage waveform of OUTPUT corresponding to the formed circuit is input into the interface on INPUT

side if any (1 or more) switches are ON.

- It reads this change of the voltage as the status signal of the combination switch.

Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced
as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.

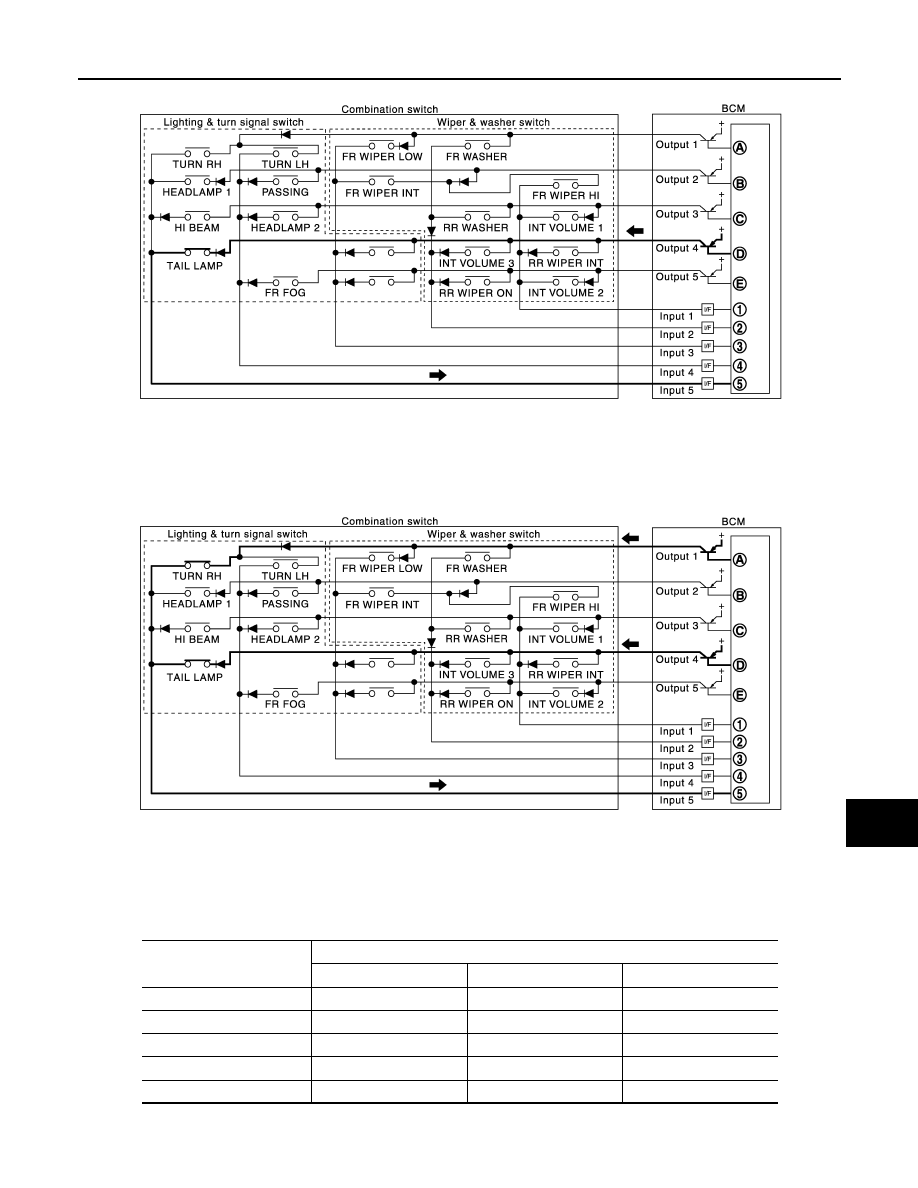

Example 1: When a switch (TAIL LAMP switch) is turned ON

OUTPUT 4

RR WIPER INT

INT VOLUME 3

—

—

TAIL LAMP

OUTPUT 5

INT VOLUME 2

RR WIPER

—

FR FOG

—

System

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

JPMIA0609GB

JMMIA0326GB

BCS

SYSTEM

BCS-11

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

• The circuit between OUTPUT 4 and INPUT 5 is formed when the TAIL LAMP switch is turned ON.

• BCM detects the combination switch status signal “5D” when the signal of OUTPUT 4 is input to INPUT 5.
• BCM judges that the TAIL LAMP switch is ON when the signal “5D” is detected.

Example 2: When some switches (TURN RH switch, TAIL LAMP switch) are turned ON

• The circuits between OUTPUT 1 and INPUT 5 and between OUTPUT 4 and INPUT 5 are formed when the

TURN RH switch and TAIL LAMP switch are turned ON.

• BCM detects the combination switch status signal “5AD” when the signals of OUTPUT 1 and OUTPUT 4 are

input to INPUT 5.

• BCM judges that the TURN RH switch and TAIL LAMP switch are ON when the signal “5AD” is detected.

WIPER INTERMITTENT DIAL POSITION

BCM judges the wiper intermittent dial 1 - 7 by the status of INT VOLUME 1, 2 and 3 switches.

JMMIA0394GB

JMMIA0395GB

Wiper intermittent

dial position

Switch status

INT VOLUME 1

INT VOLUME 2

INT VOLUME 3

1

ON

ON

ON

2

ON

ON

OFF

3

ON

OFF

OFF

4

OFF

OFF

OFF

5

OFF

OFF

ON

BCS-12

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

NOTE:

For details of wiper intermittent dial position, refer to

WW-6, "FRONT WIPER AND WASHER SYSTEM : System Description"

.

SIGNAL BUFFER SYSTEM

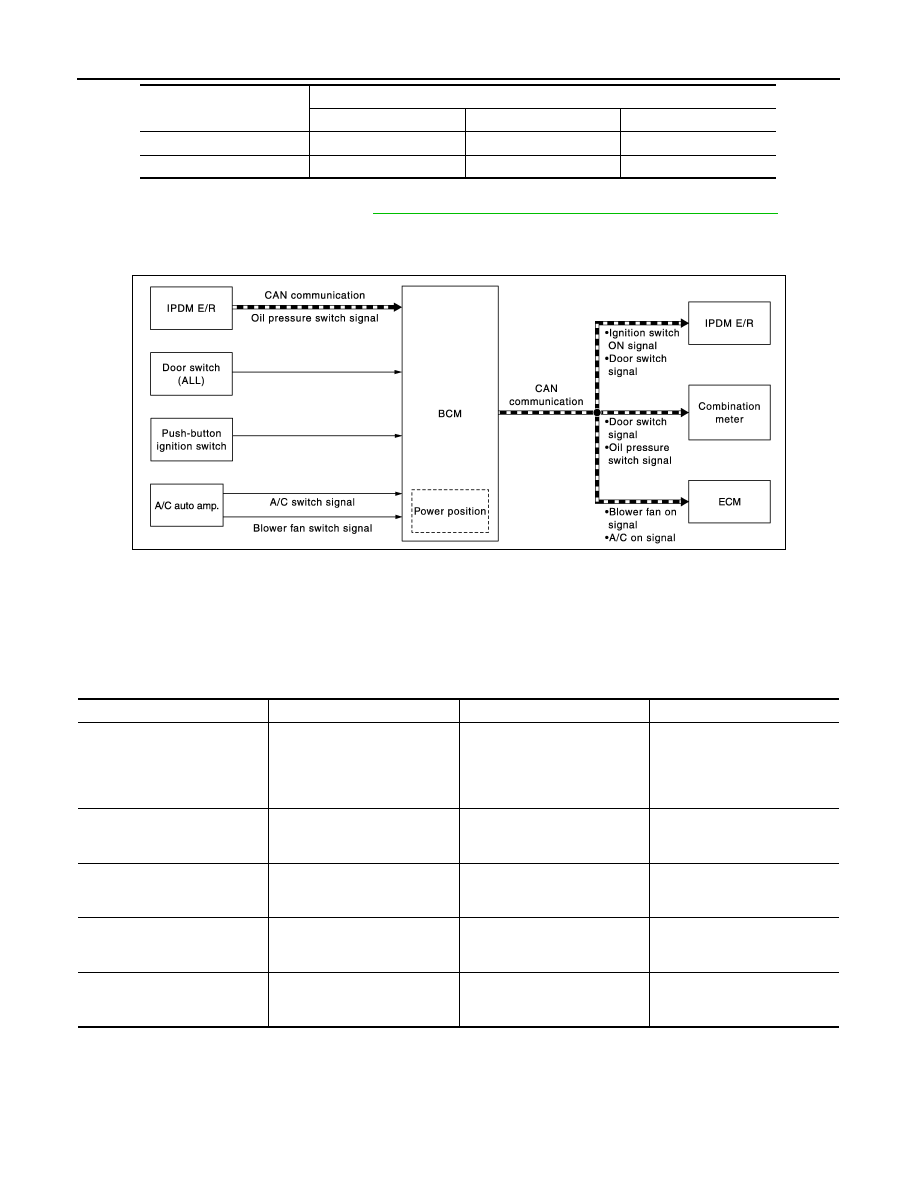

SIGNAL BUFFER SYSTEM : System Diagram

INFOID:0000000006014819

SIGNAL BUFFER SYSTEM : System Description

INFOID:0000000006014820

OUTLINE

BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.

Signal transmission function list

POWER CONSUMPTION CONTROL SYSTEM

6

OFF

ON

ON

7

OFF

ON

OFF

Wiper intermittent

dial position

Switch status

INT VOLUME 1

INT VOLUME 2

INT VOLUME 3

JMMIA0396GB

Signal name

Input

Output

Description

Ignition switch ON signal

Push-button ignition switch
(Push switch)

IPDM E/R (CAN)

Inputs the push-button ignition
switch (push switch) signal and
transmits the ignition switch sta-
tus judged with BCM via CAN
communication.

Door switch signal

Any door switch

• Combination meter (CAN)
• IPDM E/R (CAN)

Inputs the door switch signal
and transmits it via CAN com-
munication.

Blower fan on signal

A/C auto amp.

ECM (CAN)

Input blower fan switch signal,
and transmit the blower fan on
signal via CAN communication.

A/C on signal

A/C auto amp.

ECM (CAN)

Input A/C switch signal, and
transmit the A/C on signal via
CAN communication.

Oil pressure switch signal

IPDM E/R (CAN)

Combination meter (CAN)

Transmits the received oil pres-
sure switch signal via CAN
communication.
