Service Data and Specifications (SDS)

GENERAL SPECIFICATIONS

=NMPD0009

Unit: mm (in)

Applied model

M/T

A/T

Propeller shaft model

3S71A

Number of joints

Coupling method with transmission

Sleeve type

Type of journal bearings

Shell type (Non-disassembly type)

Distance between yokes

63.0 (2.480)

Shaft length (Spider to spider)

1st

416 (16.38)

437 (17.20)

2nd

633 (24.92)

Shaft outer diameter

1st

75.0 (2.953)

63.5 (2.500)

2nd

57 (2.24)

SERVICE DATA

NMPD0010

Unit: mm (in)

Propeller shaft runout limit

0.6 (0.024)

Journal axial play

0 (0)

IDX

PROPELLER SHAFT

Service Data and Specifications (SDS)

PD-9

Preparation

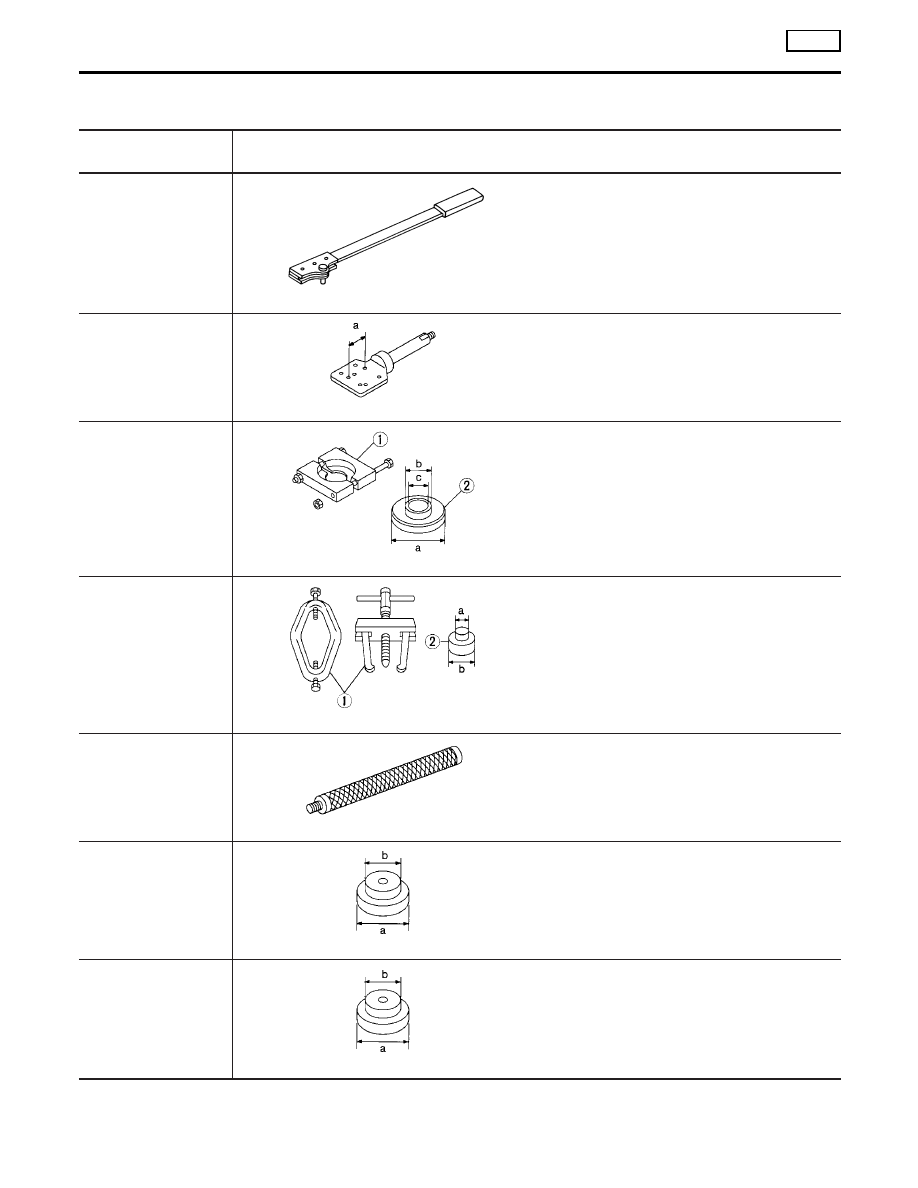

SPECIAL SERVICE TOOLS

NMPD0029

Tool number
Tool name

Description

KV38108300
Companion flange
wrench

NT771

Removing and installing propeller shaft lock nut,
and drive pinion lock nut

KV38100800
Differential attachment

NT119

Mounting final drive
(To use, make a new hole.)
a: 152 mm (5.98 in)

ST3090S000
Drive pinion rear inner
race puller set
1 ST30031000
Puller
2 ST30901000
Base

NT527

Removing and installing drive pinion rear cone
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35 mm (1.38 in) dia.

ST3306S001
Differential side bearing
puller set
1 ST3305S001
Body
2 ST33061000
Adapter

NT072

Removing and installing differential side bearing
inner cone
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

ST30611000
Drift

NT090

Installing pinion rear bearing outer race

ST30613000
Drift

NT073

Installing pinion front bearing outer race
a: 72 mm (2.83 in) dia.
b: 48 mm (1.89 in) dia.

ST30621000
Drift

NT073

Installing pinion rear bearing outer race
a: 79 mm (3.11 in) dia.
b: 59 mm (2.32 in) dia.

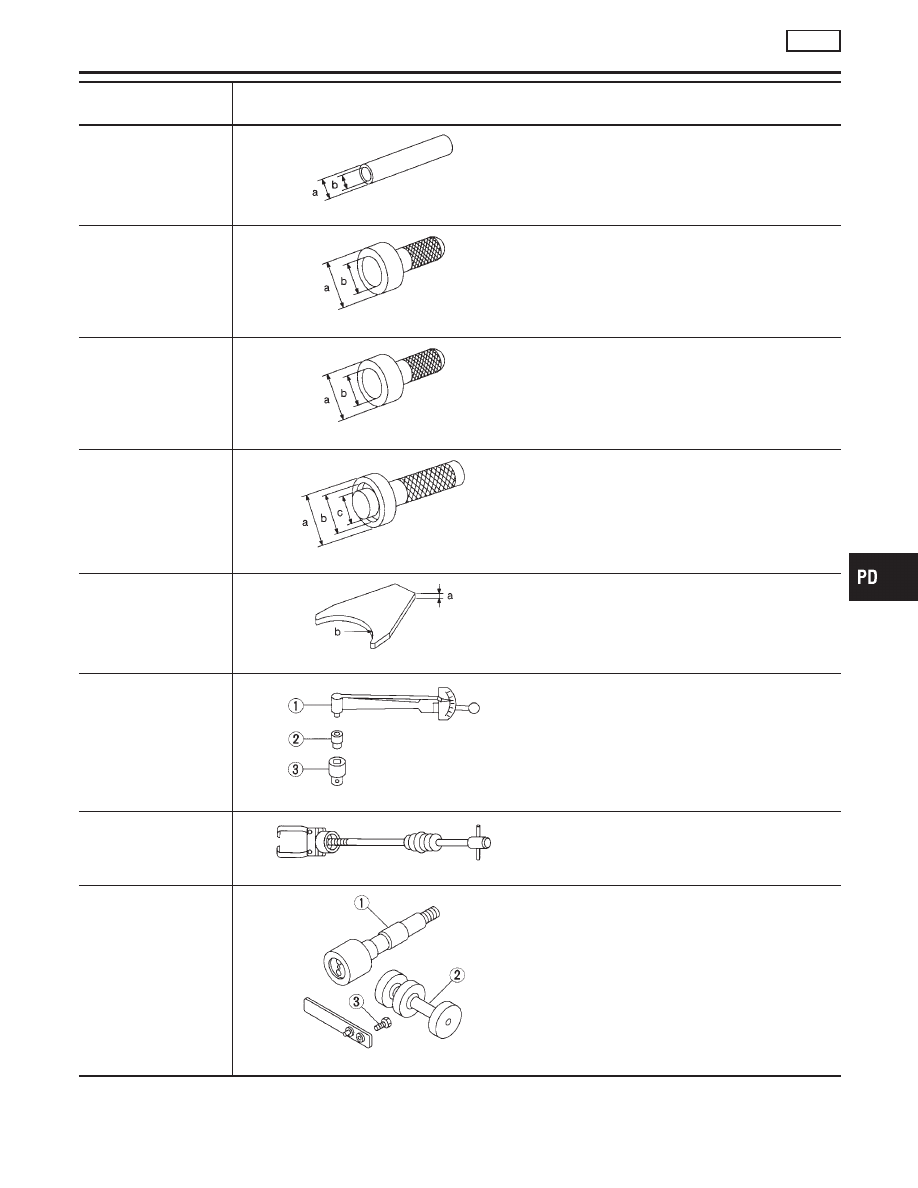

REAR FINAL DRIVE

R200

Preparation

PD-10

Tool number
Tool name

Description

ST23800000
Drift

NT065

Installing side oil seal
a: 44 mm (1.73 in) dia.
b: 31 mm (1.22 in) dia.

KV38100200
Gear carrier side oil
seal drift

NT115

Installing side oil seal
a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

KV38100500
Gear carrier front oil
seal drift

NT115

Installing front oil seal
a: 85 mm (3.35 in) dia.
b: 60 mm (2.36 in) dia.

KV38100300
Differential side bearing
inner cone

NT085

Installing side bearing inner cone
a: 54 mm (2.13 in) dia.
b: 46 mm (1.81 in) dia.
c: 32 mm (1.26 in) dia.

KV38100600
Side bearing spacer drift

NT528

Installing side bearing spacer
a: 8 mm (0.31 in)
b: R42.5 mm (1.673 in)

ST3127S000
Preload gauge
1 GG91030000
Torque wrench
2 HT62940000
Socket adapter
3 HT62900000
Socket adapter

NT124

Measuring pinion bearing preload and total preload

HT72400000
Slide hammer

NT125

Removing differential case assembly

KV381039S0
Drive pinion height set-
ting gauge
1 KV38103910
Dummy shaft
2 KV38100120
Height gauge
3 KV38100140
Stopper

NT226

Selecting pinion height adjusting washer

IDX

REAR FINAL DRIVE

R200

Preparation (Cont’d)

PD-11

Tool number
Tool name

Description

KV38107900
Side oil seal protector

NT129

Installing final drive side flange

Noise, Vibration and Harshness (NVH)
Troubleshooting

NMPD0051

Refer to “NVH TROUBLESHOOTING CHART”, PD-3.

SMA012C

On-vehicle Service

CHECKING DIFFERENTIAL GEAR OIL

NMPD0054

Check oil level and for oil leakage.

Filler plug:

: 39 - 59 N·m (4 - 6 kg-m, 29 - 43 ft-lb)

SMA257A

CHANGING DIFFERENTIAL GEAR OIL

NMPD0055

Drain oil from drain plug and refill with new gear oil.

Check oil level.

Oil grade: API GL-5
Viscosity:

See “RECOMMENDED FLUIDS AND LUBRICANTS”.

Capacity:

1.2 - 1.4

(2-1/2 - 3 US pt, 2-1/8 - 2-1/2 Imp pt)

Drain plug:

: 39 - 59 N·m (4 - 6 kg-m, 29 - 43 ft-lb)

SPD527A

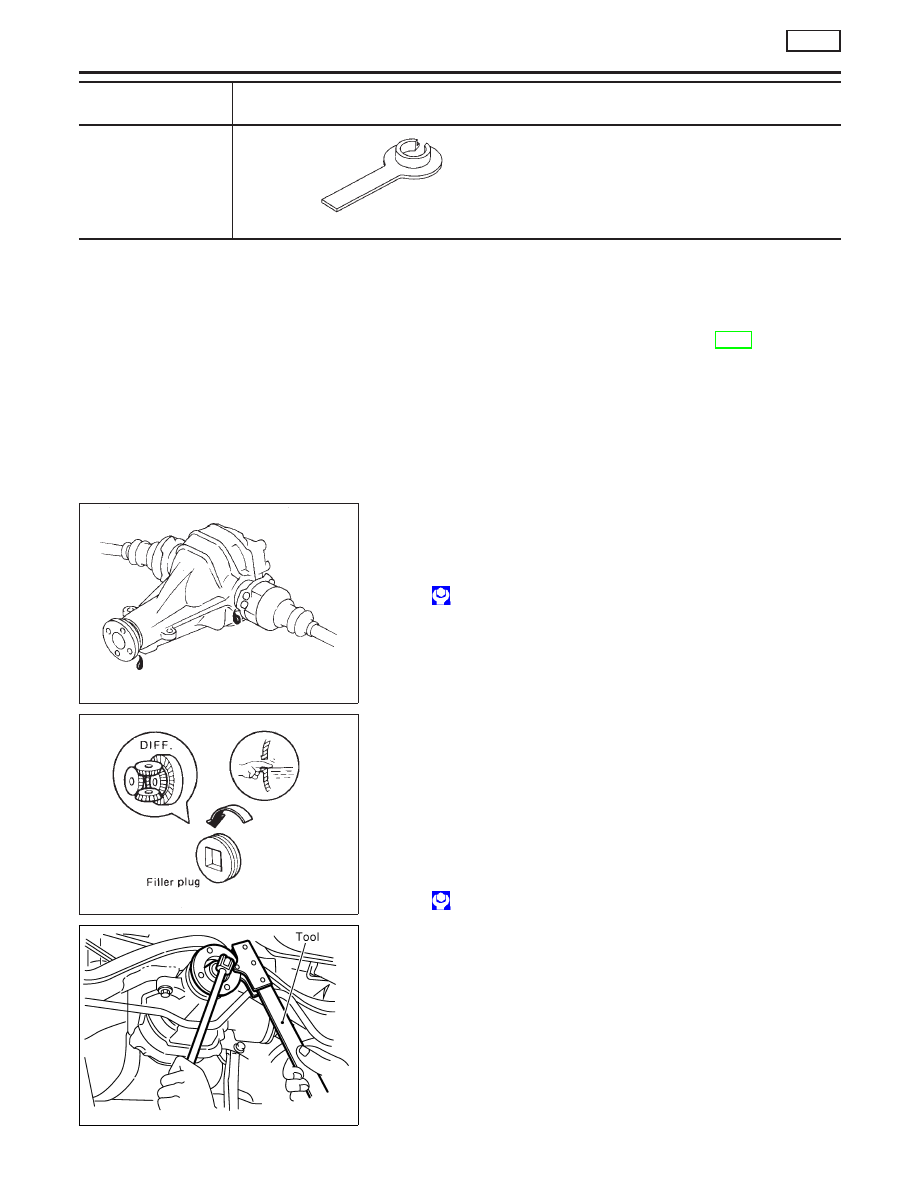

FRONT OIL SEAL REPLACEMENT

NMPD0030

Remove ABS sensor.

Remove propeller shaft.

Loosen drive pinion nut with tool.

Tool number: KV38108300

REAR FINAL DRIVE

R200

Preparation (Cont’d)

PD-12
