Nissan Almera Tino V10. Manual - part 812





3

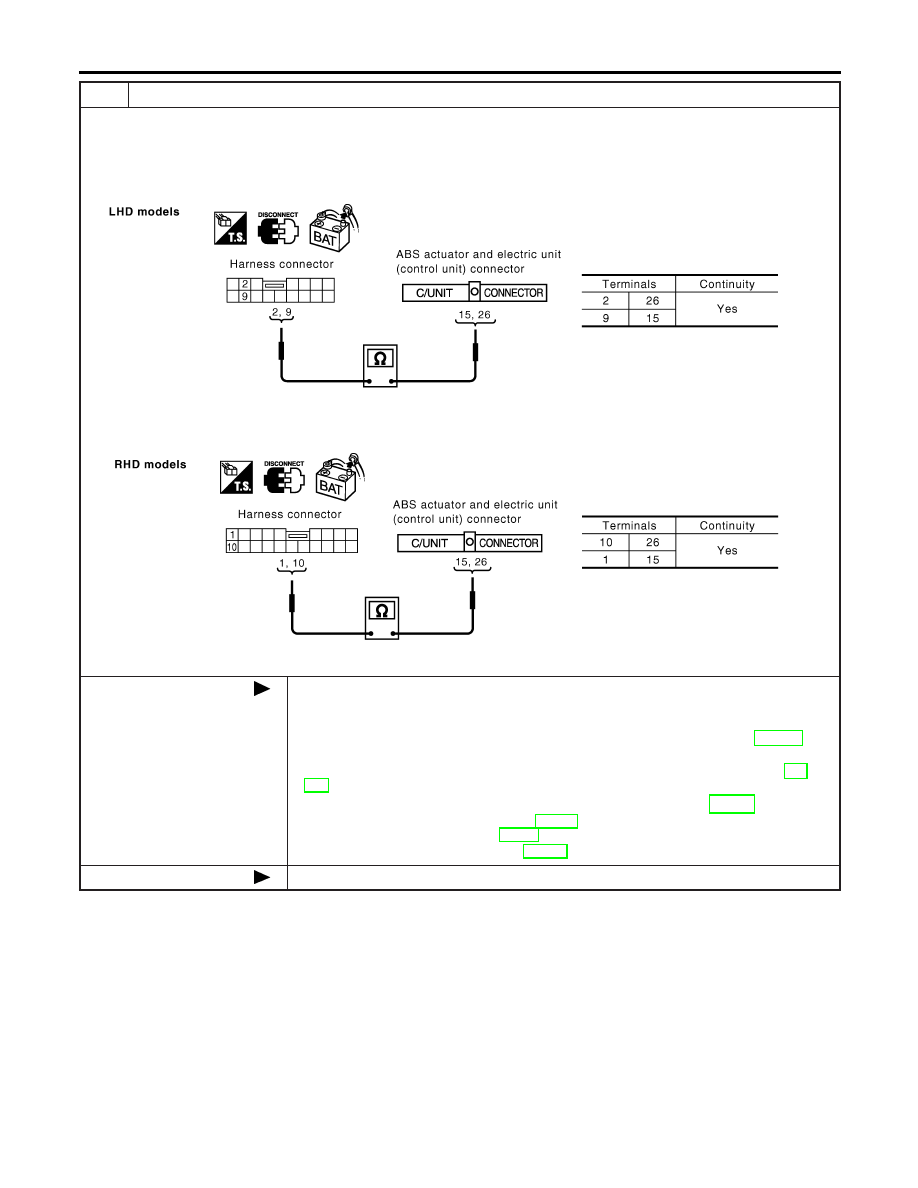

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check the following.
LHD models

Continuity between harness connector E106 terminals 2 (L), 9 (R) and ABS actuator and electric unit (control unit) con-
nector E142 terminals 26 (L), 15 (R)

YEL448E

RHD models

Continuity between harness connector E145 terminals 10 (L), 1 (R) and ABS actuator and electric unit (control unit) con-
nector E142 terminals 26 (L), 15 (R)

YEL449E

OK or NG

OK

Reconnect all connectors to perform “SELF-DIAG RESULTS” and “DATA MONITOR” for
“ENGINE”, “A/T”, “ABS” and “SMART ENTRANCE” displayed on CONSULT-II. Refer to
the following.

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITH EURO-OBD) (EC-145) for
“ENGINE”

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITHOUT EURO-OBD) (EC-
651)
for “ENGINE”

“DTC U1000 CAN COMMUNICATION LINE” (WITH EURO-OBD) (AT-194) for “A/T”

“CAN COMMUNICATION LINE” (All) (AT-399) for “A/T”

“CAN Communication System” (BR-73) for “ABS”

“CAN Communication Line Check” (EL-351) for “SMART ENTRANCE”

NG

Repair harness.

CAN SYSTEM (TYPE 4)

Trouble Diagnoses (Cont’d)

EL-544

CIRCUIT CHECK BETWEEN ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) AND
SMART ENTRANCE CONTROL UNIT

=NLEL0656S06

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check following terminals and connector for damage, bend and loose connection (connector side and harness side).
LHD models

I

Harness connector E125

I

Harness connector M82

RHD models

I

Harness connector E145

I

Harness connector M80

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

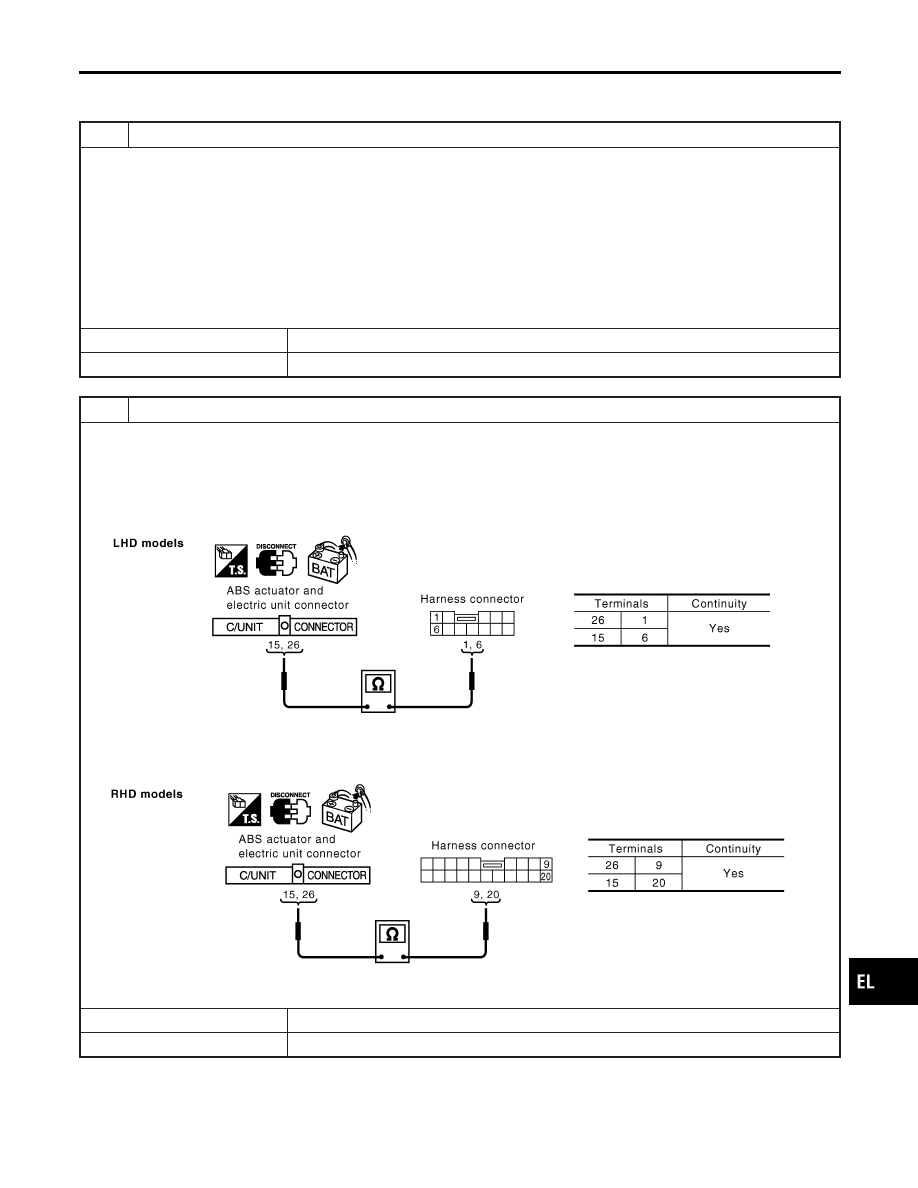

2

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E125 (LHD models) or har-

ness connector E145 (RHD models).

2. Check the following.
LHD models

I

Continuity between ABS actuator and electric unit (control unit) harness connector E142 terminals 26 (L), 15 (R) and
harness connector E125 terminals 1 (L), 6 (R)

YEL450E

RHD models

I

Continuity between ABS actuator and electric unit (control unit) harness connector E142 terminals 26 (L), 15 (R) and
harness connector E145 terminals 9 (L), 20 (R)

YEL451E

OK or NG

OK

©

GO TO 3.

NG

©

Repair harness.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 4)

Trouble Diagnoses (Cont’d)

EL-545

3

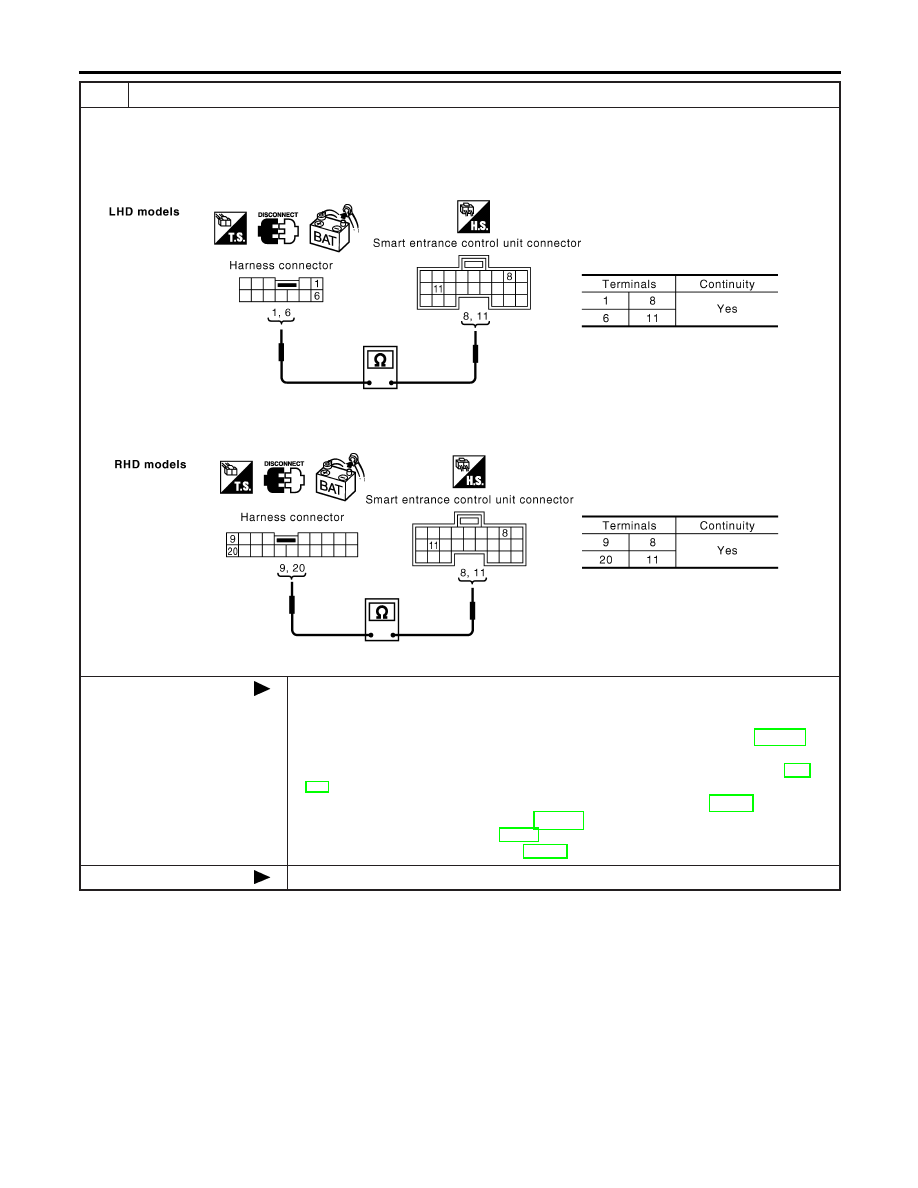

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect smart entrance control unit connector.
2. Check the following.
LHD models

Continuity between harness connector M82 terminals 1 (L), 6 (R) and smart entrance control unit connector M99 termi-
nals 8 (L), 11 (R)

YEL452E

RHD models

Continuity between harness connector M80 terminals 9 (L), 20 (R) and smart entrance control unit connector M99 termi-
nals 8 (L), 11 (R)

YEL453E

OK or NG

OK

Reconnect all connectors to perform “SELF-DIAG RESULTS” and “DATA MONITOR” for
“ENGINE”, “A/T”, “ABS” and “SMART ENTRANCE” displayed on CONSULT-II. Refer to
the following.

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITH EURO-OBD) (EC-145) for
“ENGINE”

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITHOUT EURO-OBD) (EC-
651)
for “ENGINE”

“DTC U1000 CAN COMMUNICATION LINE” (WITH EURO-OBD) (AT-194) for “A/T”

“CAN COMMUNICATION LINE” (All) (AT-399) for “A/T”

“CAN Communication System” (BR-73) for “ABS”

“CAN Communication Line Check” (EL-351) for “SMART ENTRANCE”

NG

Repair harness.

CAN SYSTEM (TYPE 4)

Trouble Diagnoses (Cont’d)

EL-546

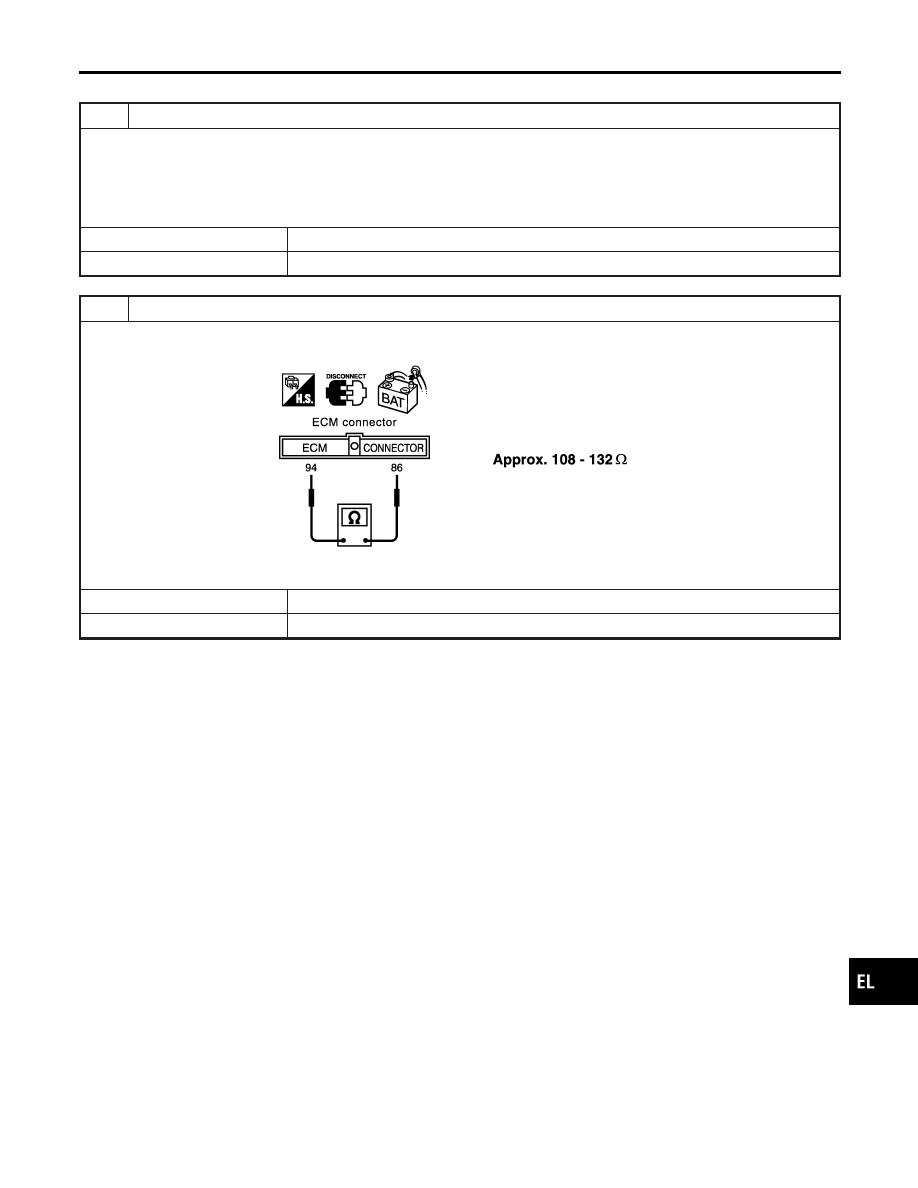

ECM CIRCUIT CHECK

=NLEL0656S07

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check the terminals and connector of ECM for damage, bend and loose connection (control module side and harness

side).

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect ECM connector.
2. Check resistance between ECM harness connector M107 terminals 94 (L) and 86 (R).

SEL812Y

OK or NG

OK

©

Replace ECM.

NG

©

Repair harness between ECM and TCM.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 4)

Trouble Diagnoses (Cont’d)

EL-547
