Nissan Almera Tino V10. Manual - part 608





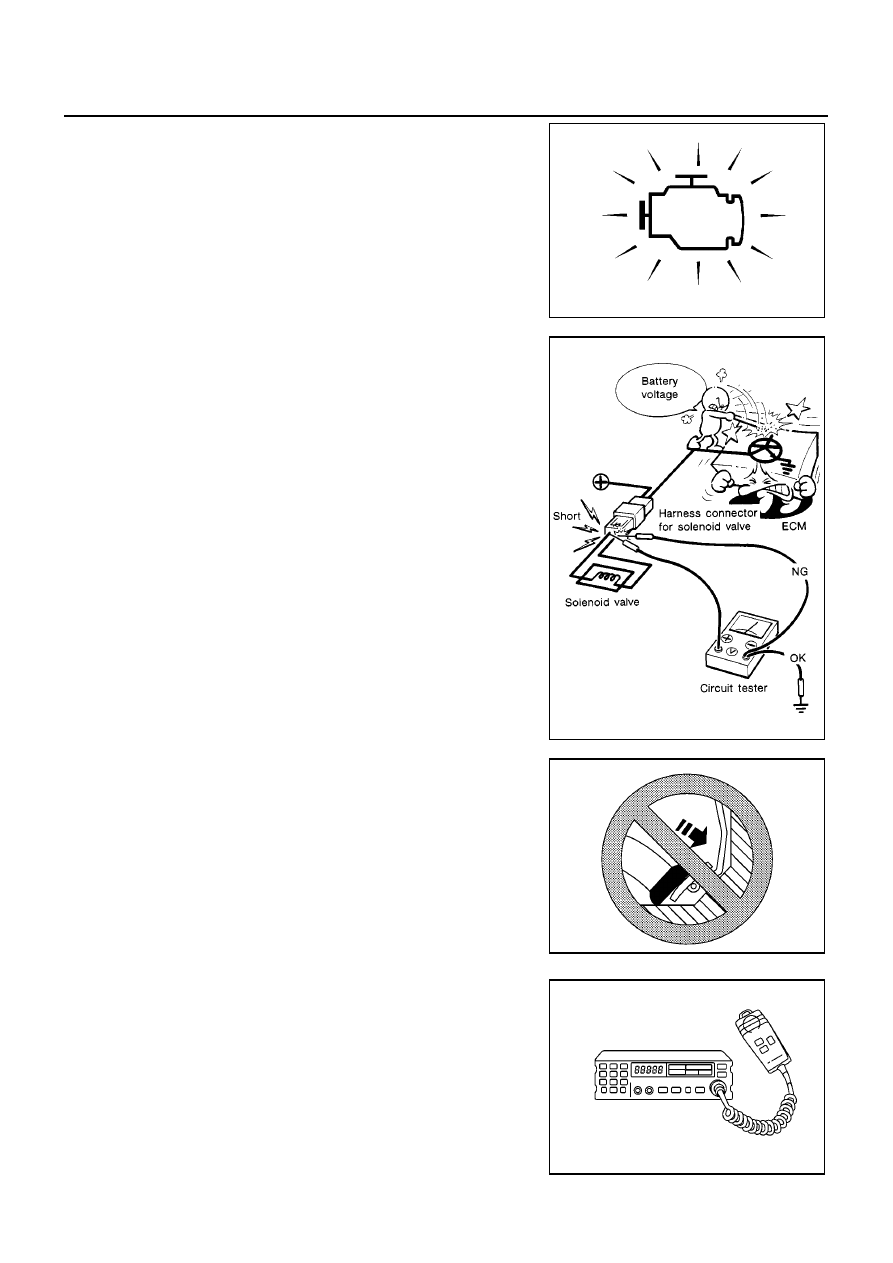

EC-1258

[YD (WITHOUT EURO-OBD)]

PRECAUTIONS

After performing each TROUBLE DIAGNOSIS, perform DTC
Confirmation Procedure or Overall Function Check.
The DTC should not be displayed in the DTC Confirmation
Procedure if the repair is completed. The Overall Function
Check should be a good result if the repair is completed.

When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.

Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the ECM's
transistor. Use a ground other than ECM terminals, such as
the ground.

Do not disassemble fuel pump.
If NG, take proper action.

Do not disassemble fuel injector.
If NG, replace fuel injector.

Do not depress accelerator pedal when staring.

Immediately after staring, do not rev up engine unnecessar-
ily.

Do not rev up engine just prior to shutdown.

When installing C.B. ham radio or a mobile phone, be sure
to observe the following as it may adversely affect elec-
tronic control systems depending on installation location.

Keep the antenna as far as possible from the electronic
control units.

Keep the antenna feeder line more than 20 cm (8 in) away
from the harness of electronic controls.
Do not let them run parallel for a long distance.

Adjust the antenna and feeder line so that the standingwave
radio can be kept smaller.

Be sure to ground the radio to vehicle body.

SAT652J

SEF348N

SEF709Y

SEF708Y

PRECAUTIONS

EC-1259

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Wiring Diagrams and Trouble Diagnosis

EBS014S9

When you read Wiring diagrams, refer to the following:

GI-11, “HOW TO READ WIRING DIAGRAM”

EL-11, “POWER SUPPLY ROUTING” for power distribution circuit

When you perform trouble diagnosis, refer to the following:

GI-32, “How to Follow Test Groups in Trouble Diagnoses”

GI-21, “HOW TO PERFORM EFFICIENT DIAGNOSES FOR AN ELECTRICAL INCIDENT”

EC-1260

[YD (WITHOUT EURO-OBD)]

PREPARATION

PREPARATION

PFP:00002

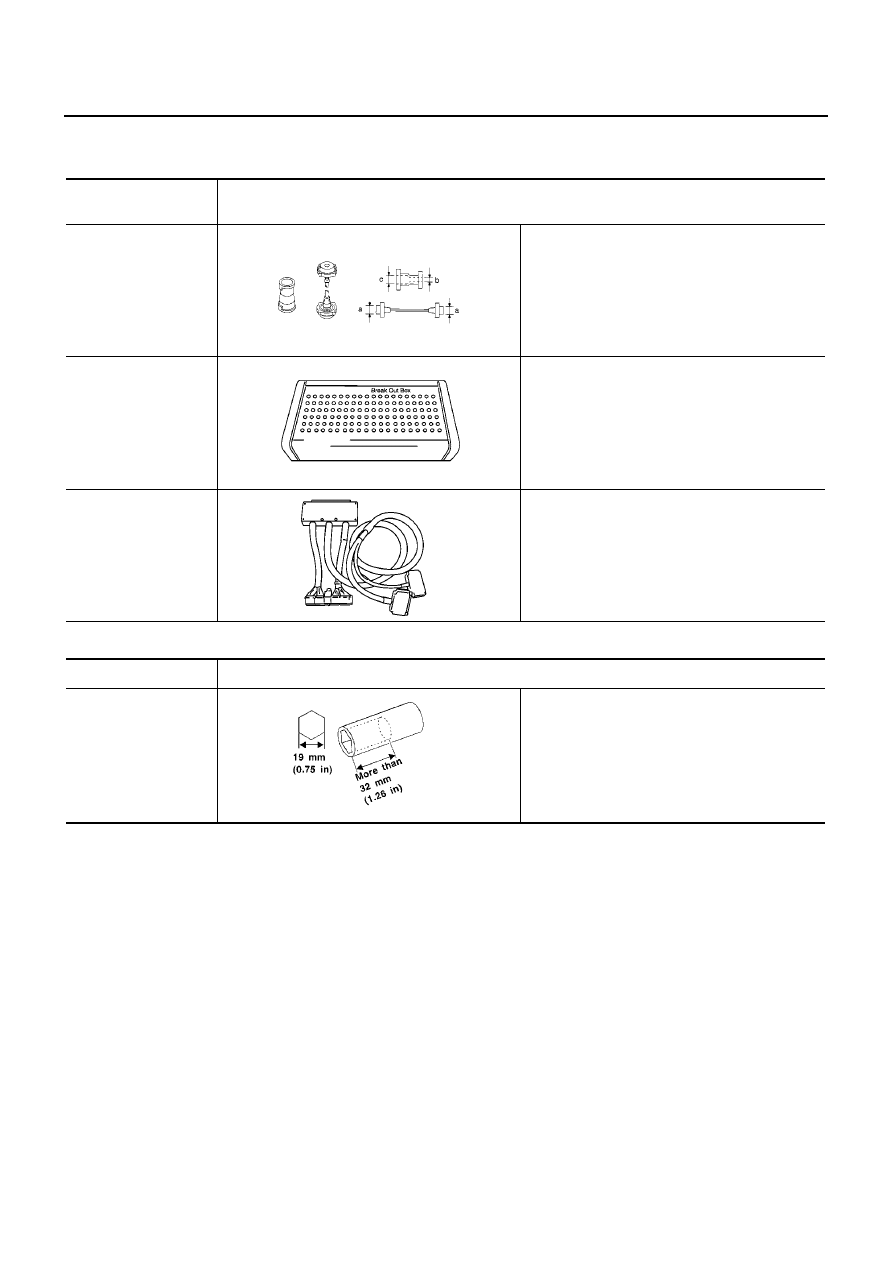

Special Service Tools

EBS014SA

Commercial Service Tools

EBS014SB

Tool number
Tool name

Description

EG17650301
Radiator cap tester
adapter

Adapting radiator cap tester to radiator cap and
radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

KV109E0010
Break-out box

Measuring the ECM signals with a circuit tester

KV109E0080
Y-cable adapter

Measuring the ECM signals with a circuit tester

S-NT564

S-NT825

S-NT826

Tool name

Description

Socket wrench

Removing and installing engine coolant
temperature sensor

S-NT705

ENGINE CONTROL SYSTEM

EC-1261

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

ENGINE CONTROL SYSTEM

PFP:23710

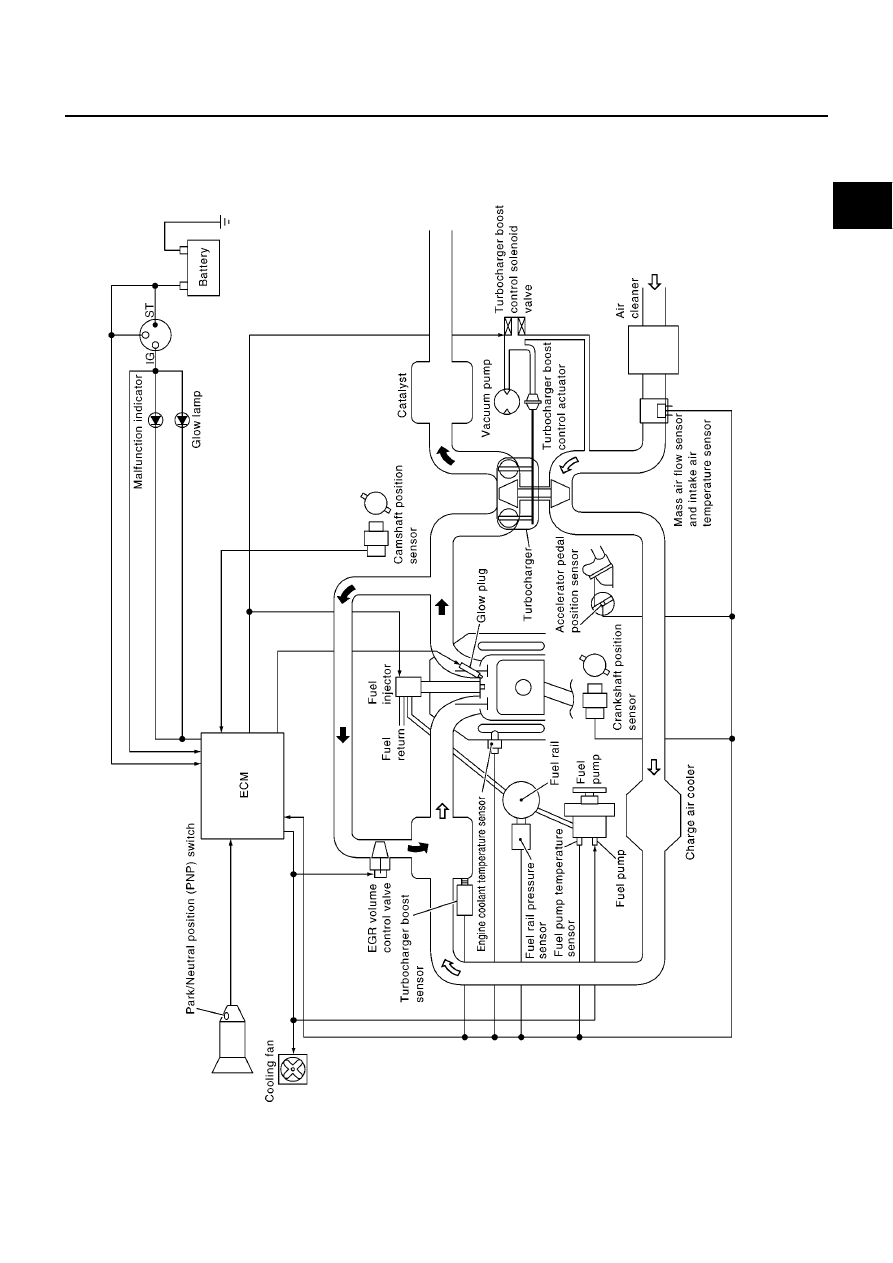

System Diagram(YD22DDTi Engine Models)

EBS014SC

MBIB0608E
