Nissan Pathfinder. Manual

PB-12

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Parking Drum Brake

INFOID:0000000009177225

Unit: mm (in)

Parking Brake Control

INFOID:0000000009177226

Item

Limit

Brake lining

Thickness

3.33 (0.131)

Wear thickness

1.5 (0.059)

Drum

Inner diameter

190 (7.480)

Wear limit of inner diameter

191 (7.520)

Item

Standard

Number of notches [under force of 196 N (20.0 kg-f, 44.1 lb-f)]

5 – 6 notches

Number of notches when brake warning lamp turns ON

1 notch

PCS-2

PREPARATION .................................................

Special Service Tool ...............................................

SYSTEM DESCRIPTION ............................

COMPONENT PARTS .......................................

Component Parts Location .....................................

SYSTEM .............................................................

POWER DISTRIBUTION SYSTEM ...........................

POWER DISTRIBUTION SYSTEM : System Dia-
gram .......................................................................

POWER DISTRIBUTION SYSTEM : System De-
scription ..................................................................

DIAGNOSIS SYSTEM (BCM) ............................

COMMON ITEM ........................................................

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) ....................................................

INTELLIGENT KEY ...................................................

INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY) ...............................................

ECU DIAGNOSIS INFORMATION ..............

BCM, IPDM E/R .................................................

List of ECU Reference ............................................

WIRING DIAGRAM .....................................

POWER DISTRIBUTION SYSTEM ...................

Wiring Diagram .......................................................

BASIC INSPECTION ...................................

DIAGNOSIS AND REPAIR WORK FLOW ........

Work Flow ...............................................................

DTC/CIRCUIT DIAGNOSIS .........................

U1000 CAN COMM CIRCUIT ............................

Description ..............................................................

DTC Logic ...............................................................

Diagnosis Procedure ..............................................

U1010 CONTROL UNIT (CAN) .........................

DTC Logic ...............................................................

Diagnosis Procedure ..............................................

B260A IGNITION RELAY ..................................

DTC Logic ...............................................................

Diagnosis Procedure ..............................................

B2614 ACC RELAY CIRCUIT ...........................

DTC Logic ...............................................................

Diagnosis Procedure ..............................................

Component Inspection (Relay) ...............................

B2615 BLOWER RELAY CIRCUIT ...................

DTC Logic ...............................................................

Diagnosis Procedure ...............................................

Component Inspection (Relay) ...............................

B2616 IGNITION RELAY CIRCUIT ...................

DTC Logic ...............................................................

Diagnosis Procedure ...............................................

Component Inspection (Relay) ...............................

B2618 BCM .......................................................

DTC Logic ...............................................................

Diagnosis Procedure ...............................................

B261A PUSH-BUTTON IGNITION SWITCH .....

DTC Logic ...............................................................

Diagnosis Procedure ...............................................

B26F1 IGNITION RELAY ..................................

DTC Logic ...............................................................

Diagnosis Procedure ...............................................

B26F2 IGNITION RELAY ..................................

DTC Logic ...............................................................

Diagnosis Procedure ...............................................

B26F6 BCM .......................................................

DTC Logic ...............................................................

Diagnosis Procedure ...............................................

PUSH-BUTTON IGNITION SWITCH .................

Component Function Check ..................................

Diagnosis Procedure ...............................................

Component Inspection ............................................

POWER SUPPLY AND GROUND CIRCUIT .....

BCM ...........................................................................

BCM : Diagnosis Procedure ....................................

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) ..............................

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure .....................................................................

SYMPTOM DIAGNOSIS ............................

PUSH-BUTTON IGNITION SWITCH DOES
NOT OPERATE .................................................

Description ..............................................................

Diagnosis Procedure ...............................................

REMOVAL AND INSTALLATION ..............

BCM (BODY CONTROL MODULE) ..................

Removal and Installation .........................................

PUSH BUTTON IGNITION SWITCH .................

Exploded View ........................................................

Removal and Installation .........................................

PCS

PRECAUTIONS

PCS-3

< PRECAUTION >

[IPDM E/R]

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009726131

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

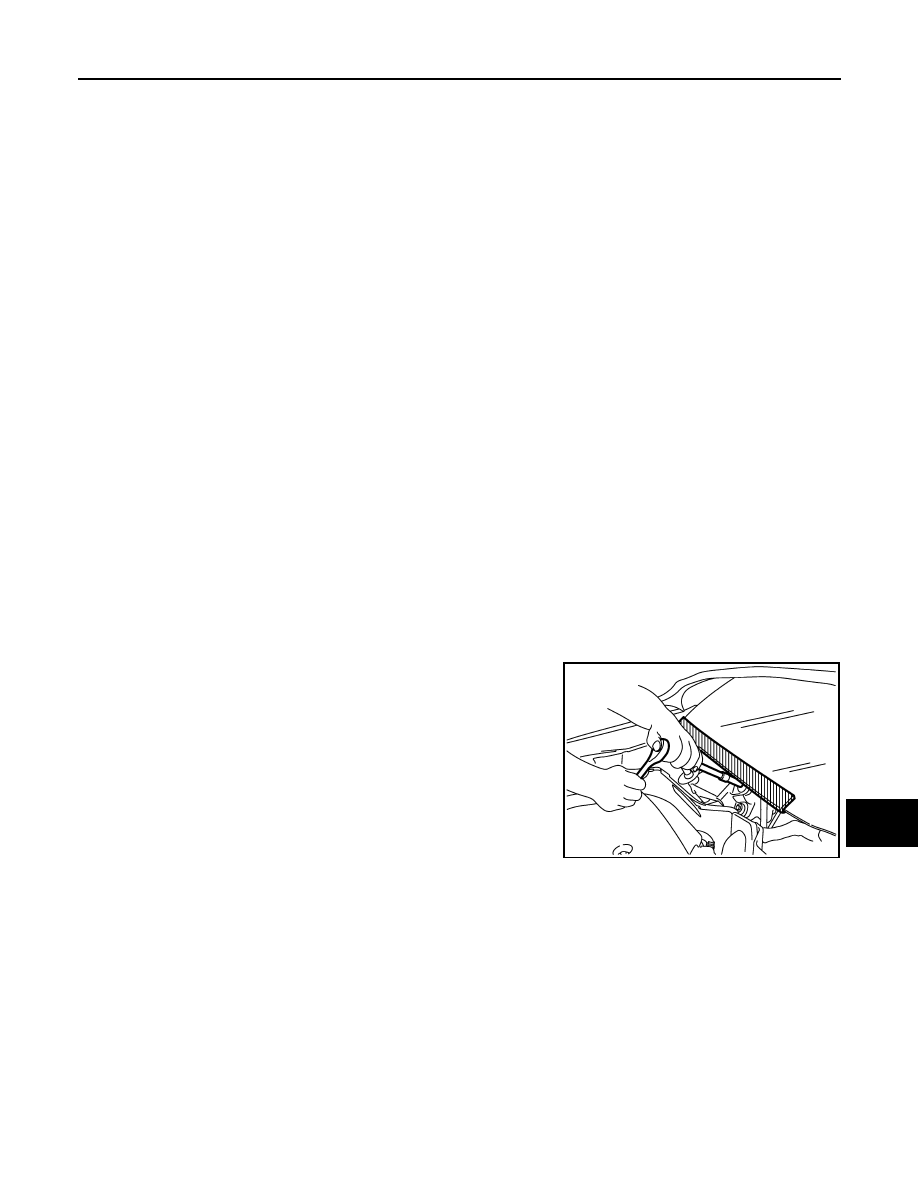

Procedure without Cowl Top Cover

INFOID:0000000009175182

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc. to prevent damage to

the windshield.

PIIB3706J
