COWL TOP

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

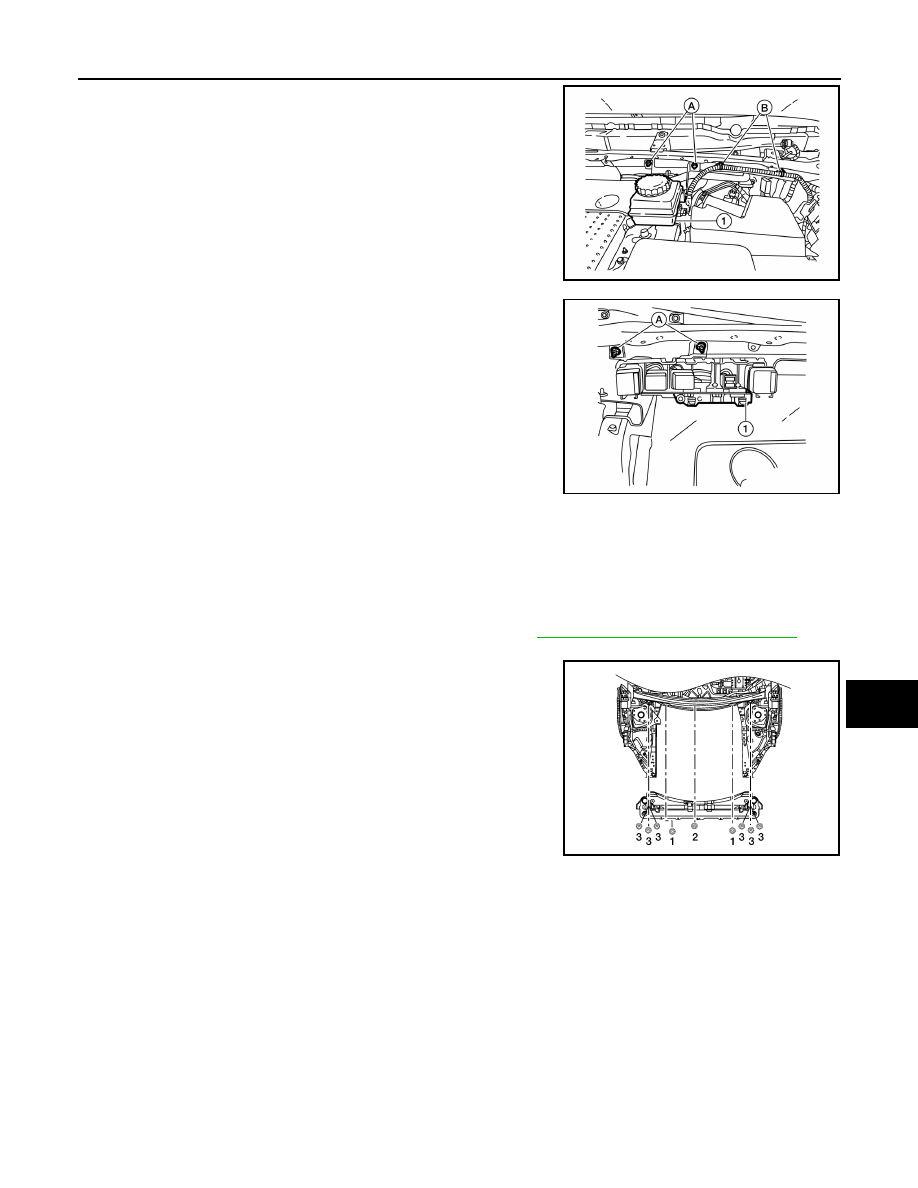

2. Remove the brake reservoir bracket nuts (A), release the brake

level sensor harness clips (B) and position the brake reservoir

(1) aside.

3. Remove the fuse and relay box nuts (A) and position the fuse

and relay box (1) aside.

4. Remove the cowl top extension bolts and the cowl top extension.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing cowl top cover, check that clips are securely placed in panel holes on body and then

press them in.

• After installing, perform adjustment of wiper arms. Refer to

WW-62, "Removal and Installation"

.

NOTE:

When installing the cowl top extension, tighten the bolts in the order

shown.

ALKIA2465ZZ

ALKIA2466ZZ

ALKIA2908ZZ

EXT-28

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

FENDER PROTECTOR

FENDER PROTECTOR

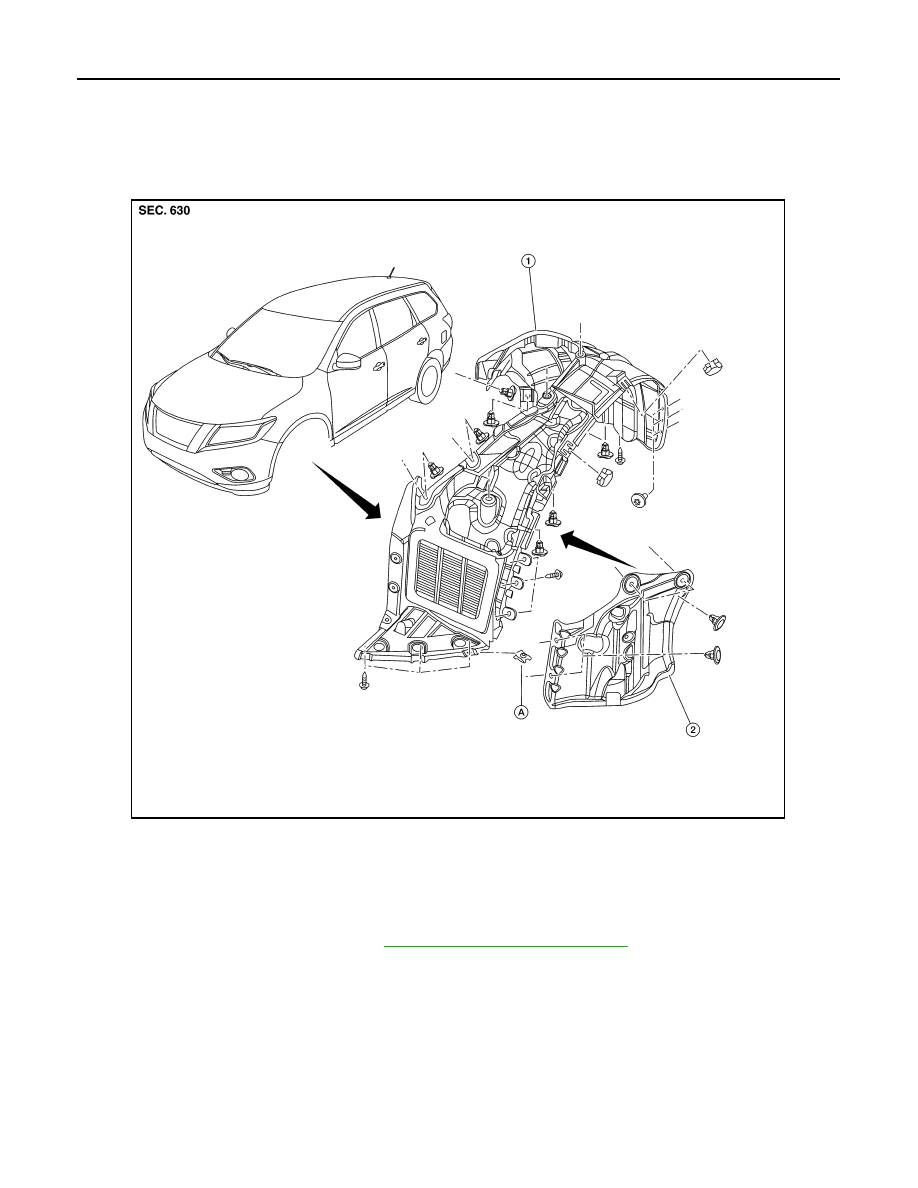

FENDER PROTECTOR : Exploded View

INFOID:0000000009176342

FENDER PROTECTOR : Removal and Installation

INFOID:0000000009176343

REMOVAL

1. Remove the front under cover. Refer to

EXT-30, "Removal and Installation"

.

2. Position the front wheels as necessary to remove screws and clips.
3. Remove the front fender protector side cover clips and remove.
4. Release the front fender protector clips, remove the front fender protector screws and the front fender pro-

tector.

INSTALLATION

Installation is in the reverse order of removal.

REAR WHEEL HOUSE PROTECTOR

1.

Front fender protector

2.

Front fender protector side cover A.

J-nut

AWKIA2253ZZ

FENDER PROTECTOR

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

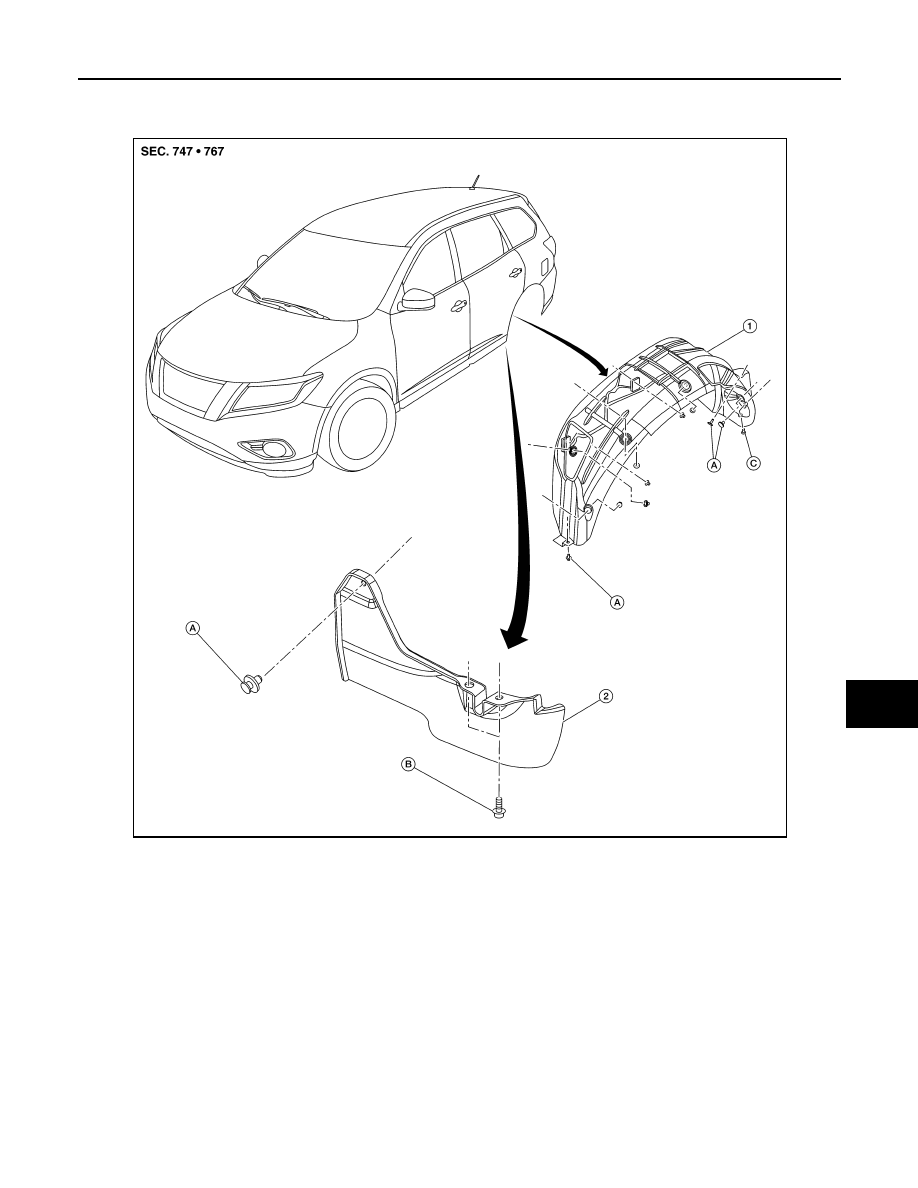

REAR WHEEL HOUSE PROTECTOR : Exploded View

INFOID:0000000009176344

REAR WHEEL HOUSE PROTECTOR : Removal and Installation

INFOID:0000000009176345

REMOVAL

1. Remove the rear wheel house protector clips.
2. Remove rear wheel house protector plastic nuts and rear bumper fascia screw then remove rear wheel

house protector.

3. Remove rear wind deflector bolts and clip and the rear wheel wind deflector.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear wheel house protector

2.

Rear wind deflector

A. Clip

B. Rear wind deflector bolt

C. Rear bumper fascia screw

AWKIA2254ZZ

EXT-30

< REMOVAL AND INSTALLATION >

FRONT UNDER COVER

FRONT UNDER COVER

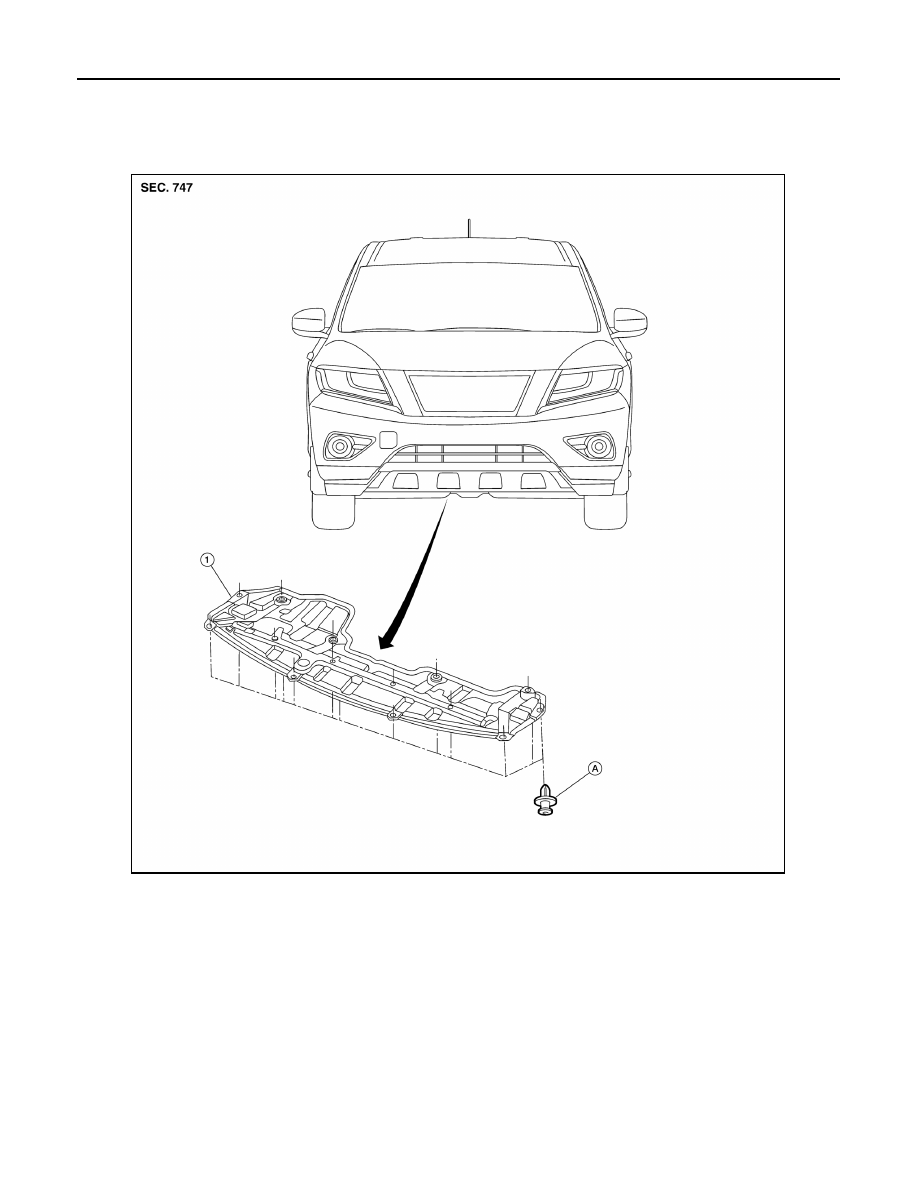

Exploded View

INFOID:0000000009176346

Removal and Installation

INFOID:0000000009176347

REMOVAL

Release the front under cover clips and remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Front under cover

A. Clip

AWKIA2633ZZ
