EXL-144

< REMOVAL AND INSTALLATION >

FRONT FOG LAMP

FRONT FOG LAMP

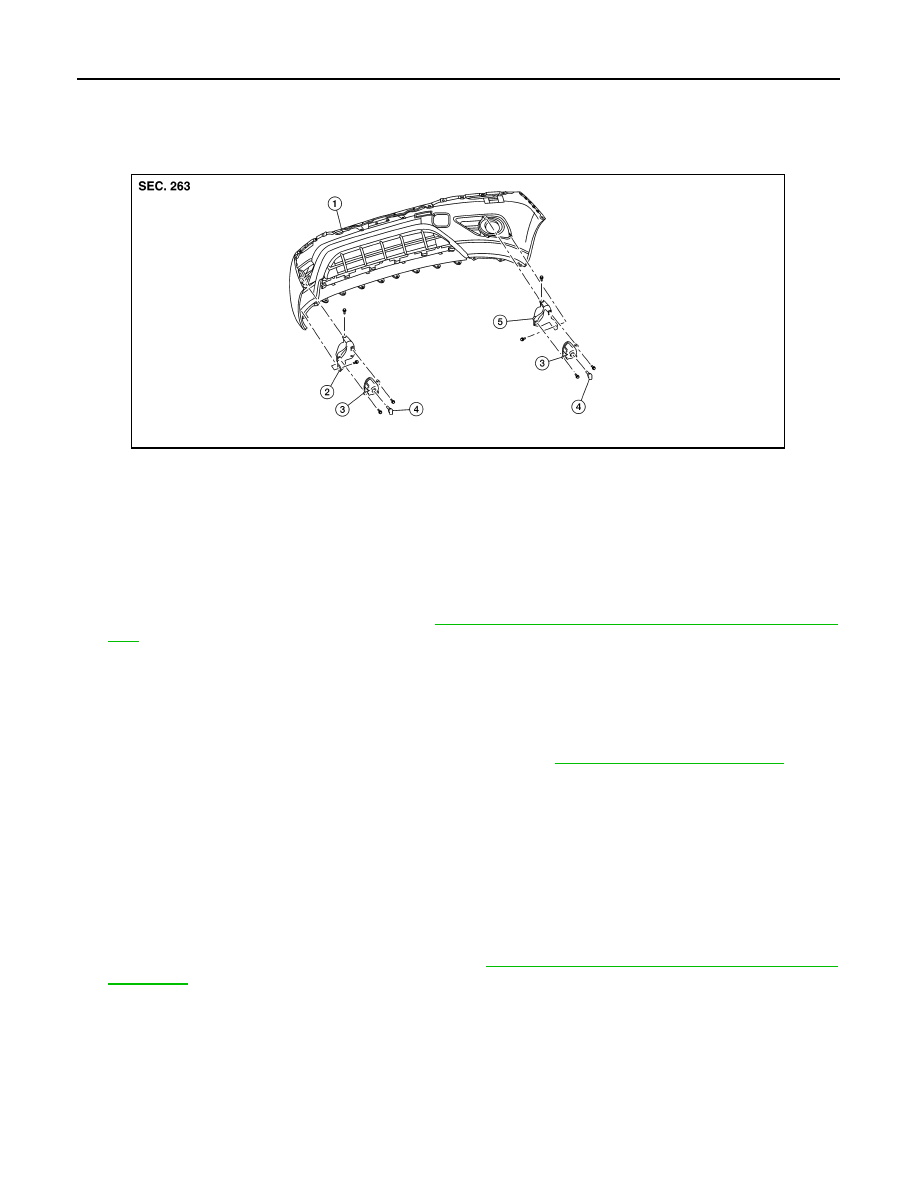

Exploded View

INFOID:0000000009175405

Removal and Installation

INFOID:0000000009175406

FRONT FOG LAMP

Removal

1. Partially remove the fender protector. Refer to

EXT-28, "FENDER PROTECTOR : Removal and Installa-

tion"

.

2. Disconnect the harness connector(s) from the front fog lamp and daytime running lamp (if equipped).
3. Remove bolts and front fog lamp.

Installation

Installation in the reverse order of removal.

CAUTION:

After installation, perform fog lamp aiming adjustment. Refer to

EXL-140, "Aiming Adjustment"

.

FRONT FOG LAMP BULB

WARNING:

Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

Removal

1. Partially remove the front fender protector. Refer to

EXT-28, "FENDER PROTECTOR : Removal and

Installation"

.

1.

Front bumper fascia

2.

Front fog lamp bracket (LH)

3. Front fog lamp (LH/RH)

4.

Front fog lamp bulb

5.

Front fog lamp bracket (RH)

A. Bolts

ALLIA1252ZZ

FRONT FOG LAMP

EXL-145

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

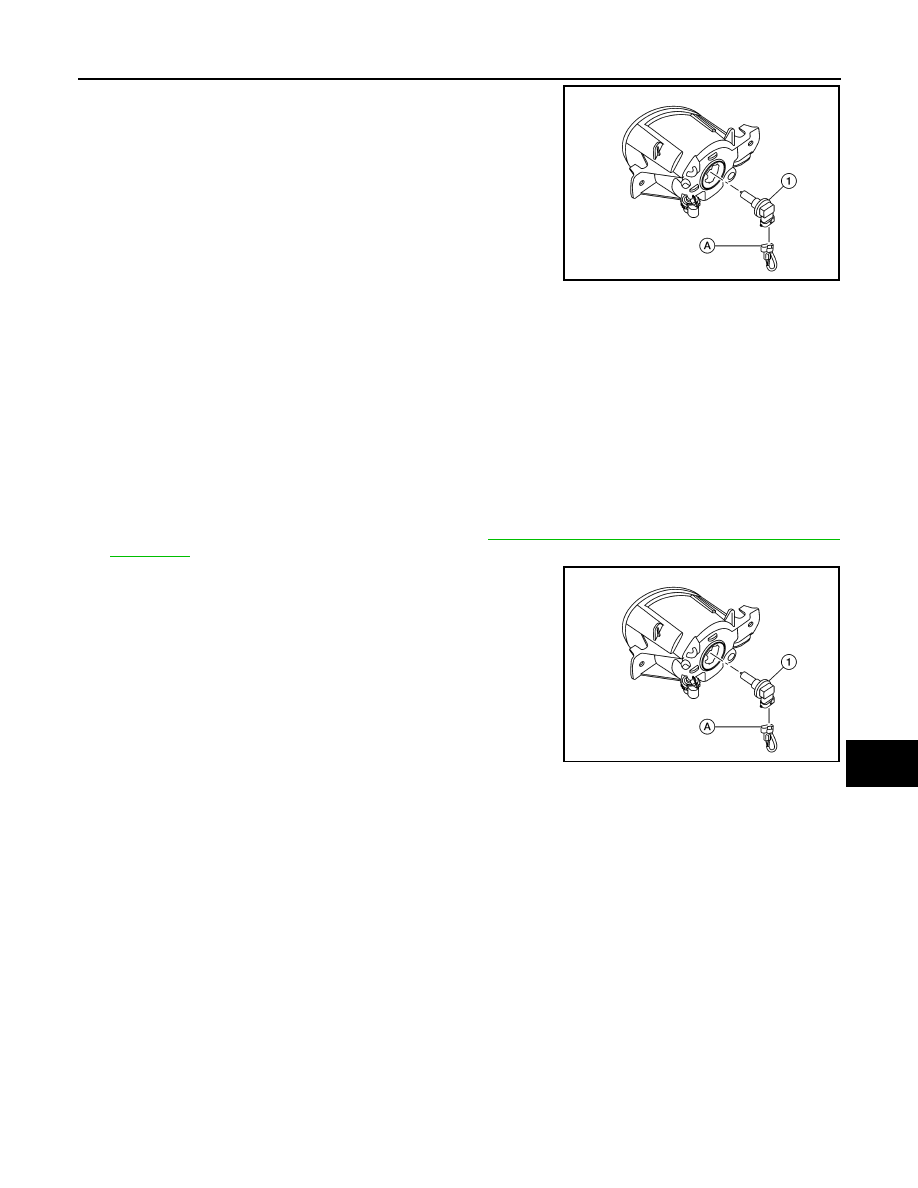

2. Disconnect the harness connector (A) from the front fog lamp.
3. Rotate bulb (1) counterclockwise and remove.

Installation

Installation is in the reverse order of removal.

DAYTIME LAMP BULB (CANADA ONLY)

WARNING:

Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

Removal

1. Partially remove the front fender protector. Refer to

EXT-28, "FENDER PROTECTOR : Removal and

Installation"

.

2. Disconnect the harness connector (A) from the daytime lamp

bulb (1).

3. Rotate bulb (1) counterclockwise and remove.

Installation

Installation is in the reverse order of removal.

AWLIA2050ZZ

AWLIA2050ZZ

EXL-146

< REMOVAL AND INSTALLATION >

OPTICAL SENSOR

OPTICAL SENSOR

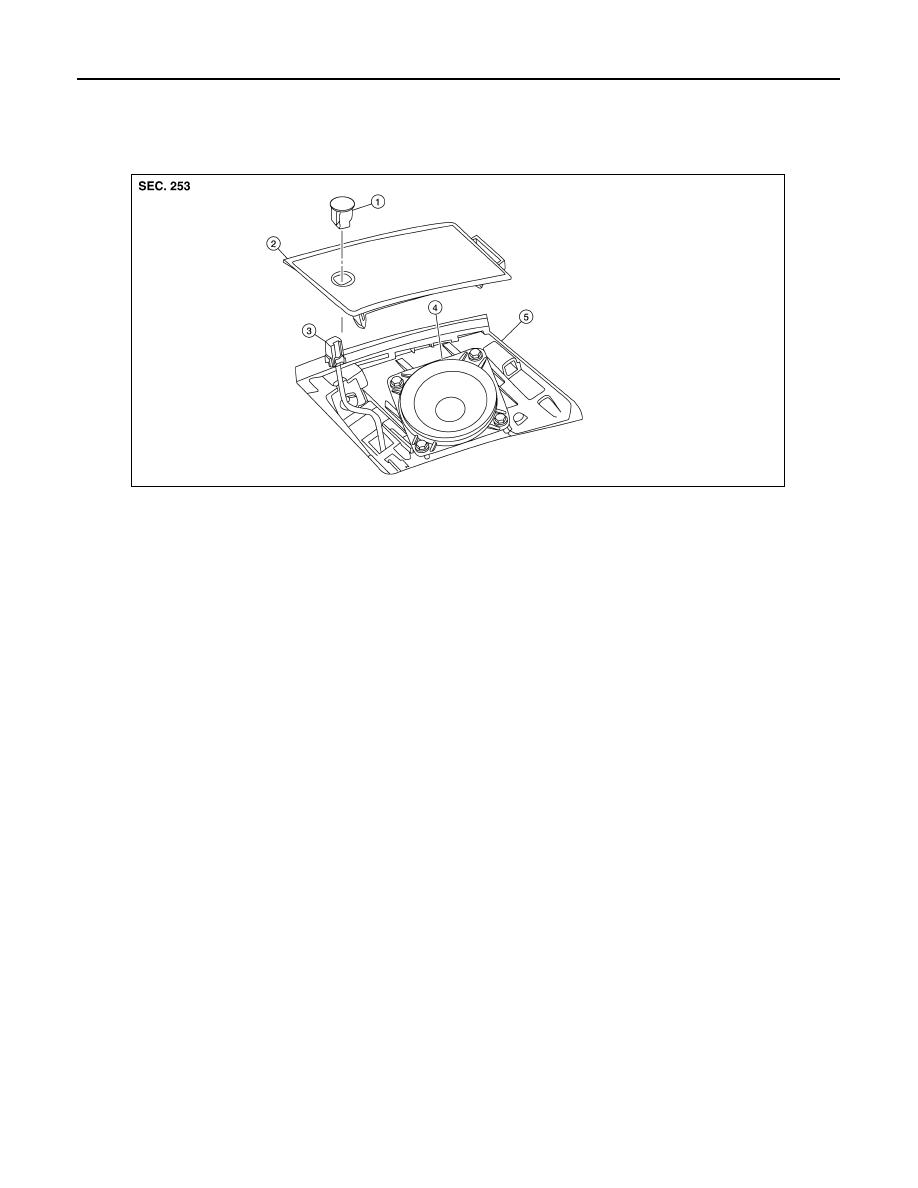

Exploded View

INFOID:0000000009175407

Removal and Installation

INFOID:0000000009175408

REMOVAL

1. Remove the instrument panel tweeter grille (RH) using a suitable tool.
2. Disconnect the harness connector from the optical sensor.
3. Release pawls and remove the optical sensor from the instrument panel tweeter grille (RH).

INSTALLATION

Installation is in the reverse order of removal.

1.

Optical sensor

2.

Instrument panel tweeter grille (RH) 3.

Optical sensor harness connec-
tor

4.

Instrument panel tweeter (RH) 5.

Instrument panel

ALLIA0900ZZ

LIGHTING & TURN SIGNAL SWITCH

EXL-147

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHTING & TURN SIGNAL SWITCH

Removal and Installation

INFOID:0000000009175409

The lighting and turn signal switch is integrated into the combination switch and is replaced as an assembly.

Refer to

BCS-81, "Removal and Installation"

.
