BCM, IPDM E/R

ECU DIAGNOSIS INFORMATION

BCM, IPDM E/R

List of ECU Reference

INFOID:0000000009175352

ECU

Reference

BCM

BCS-30, "Reference Value"

BCS-50, "Fail Safe"

BCS-50, "DTC Inspection Priority Chart"

BCS-52, "DTC Index"

IPDM E/R

PCS-12, "Reference Value"

PCS-19, "Fail Safe"

PCS-20, "DTC Index"

HEADLAMP

EXL-21

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

WIRING DIAGRAM

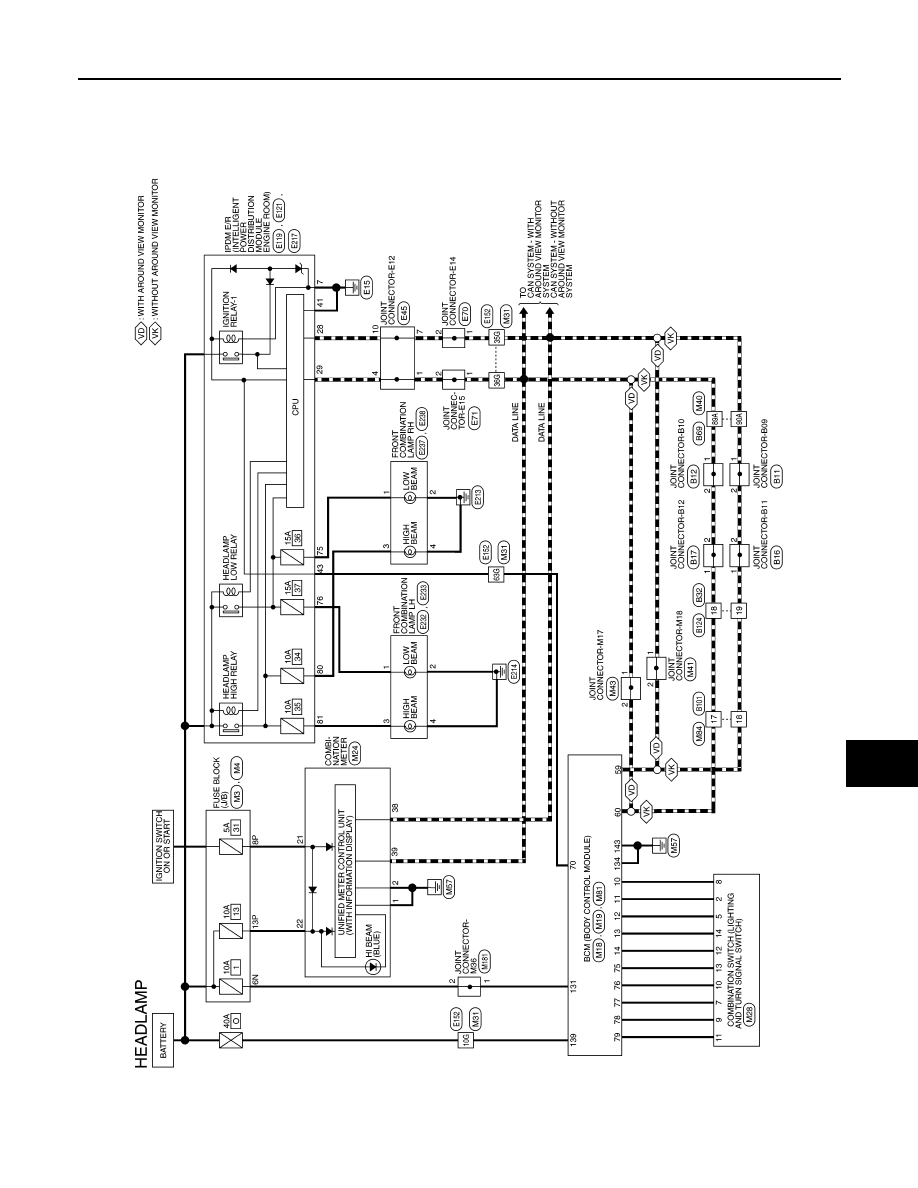

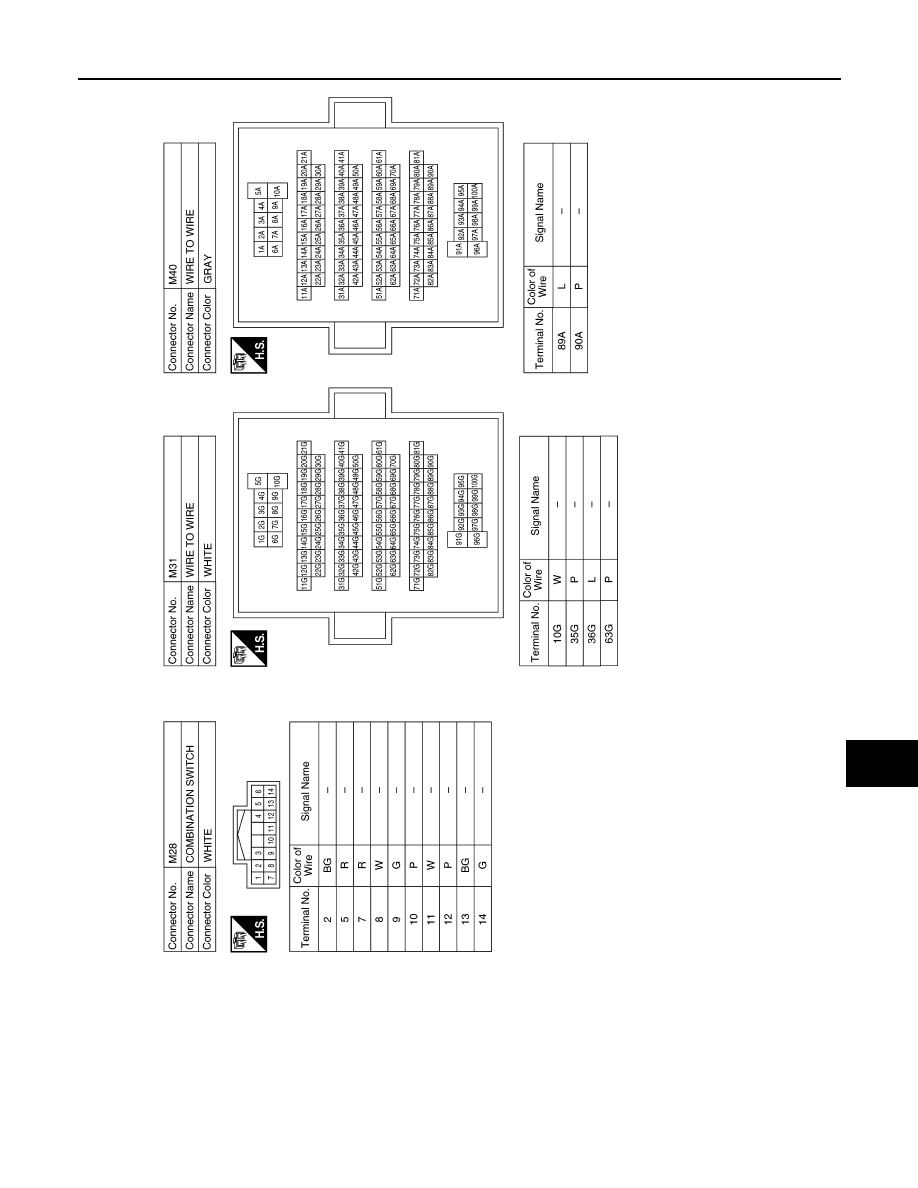

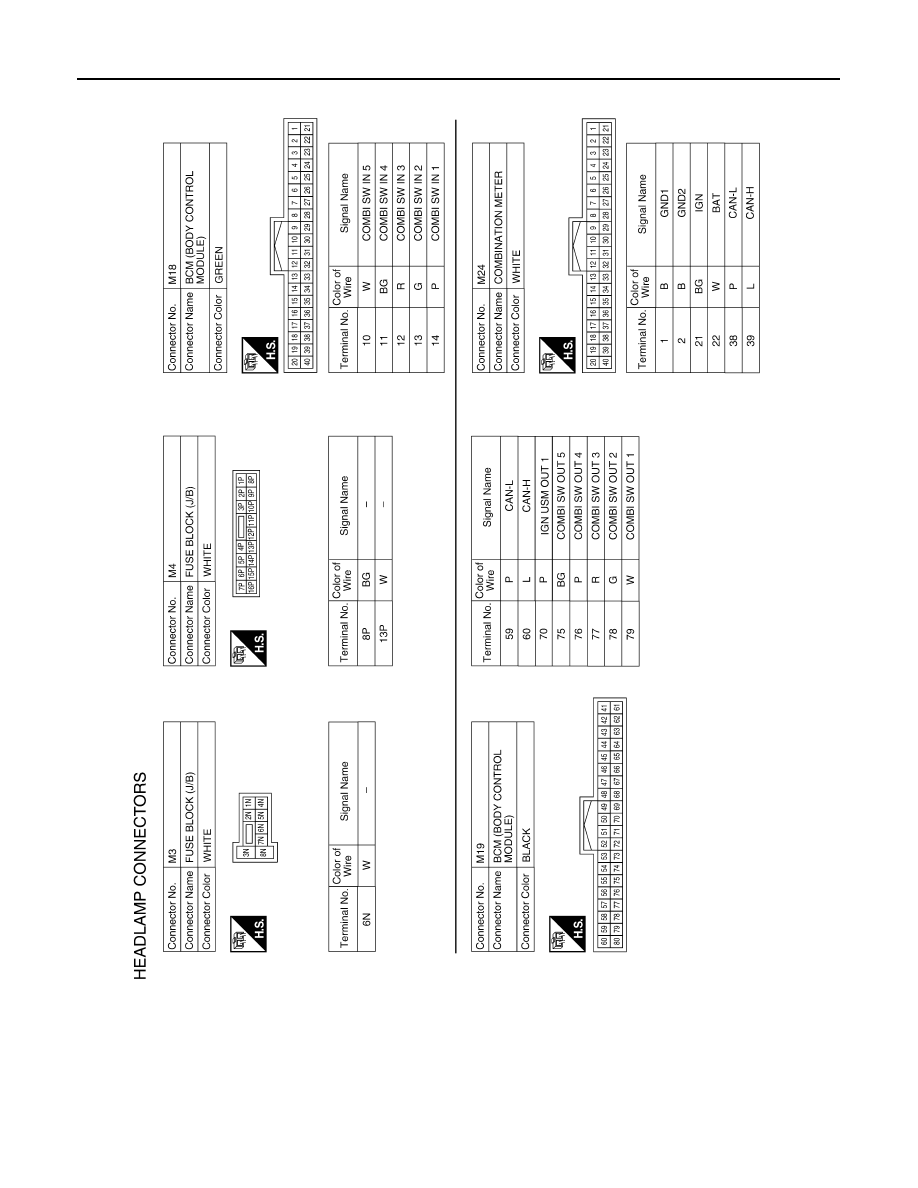

HEADLAMP
