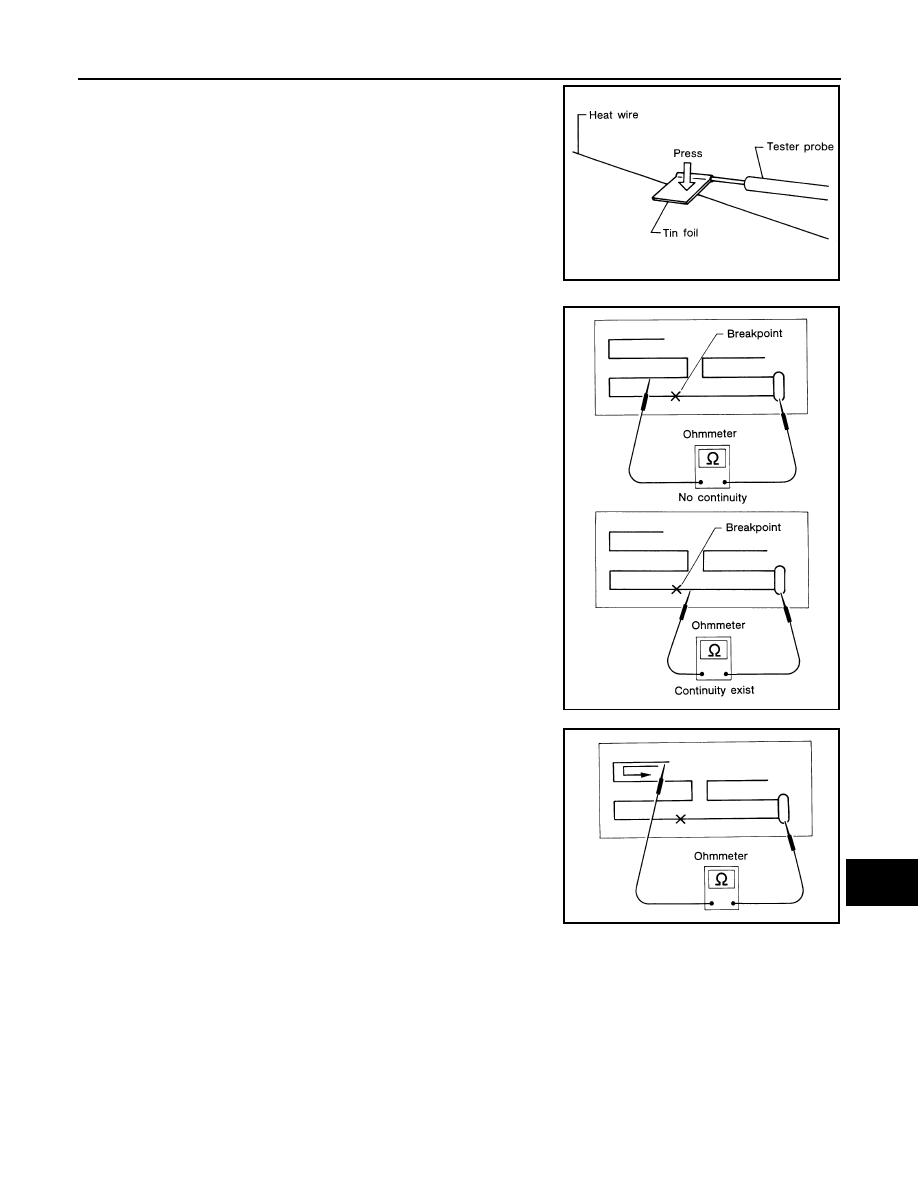

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

SEL122R

SEL252I

SEL253I

AV-636

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

GPS ANTENNA

GPS ANTENNA

Removal and Installation

INFOID:0000000009174824

REMOVAL

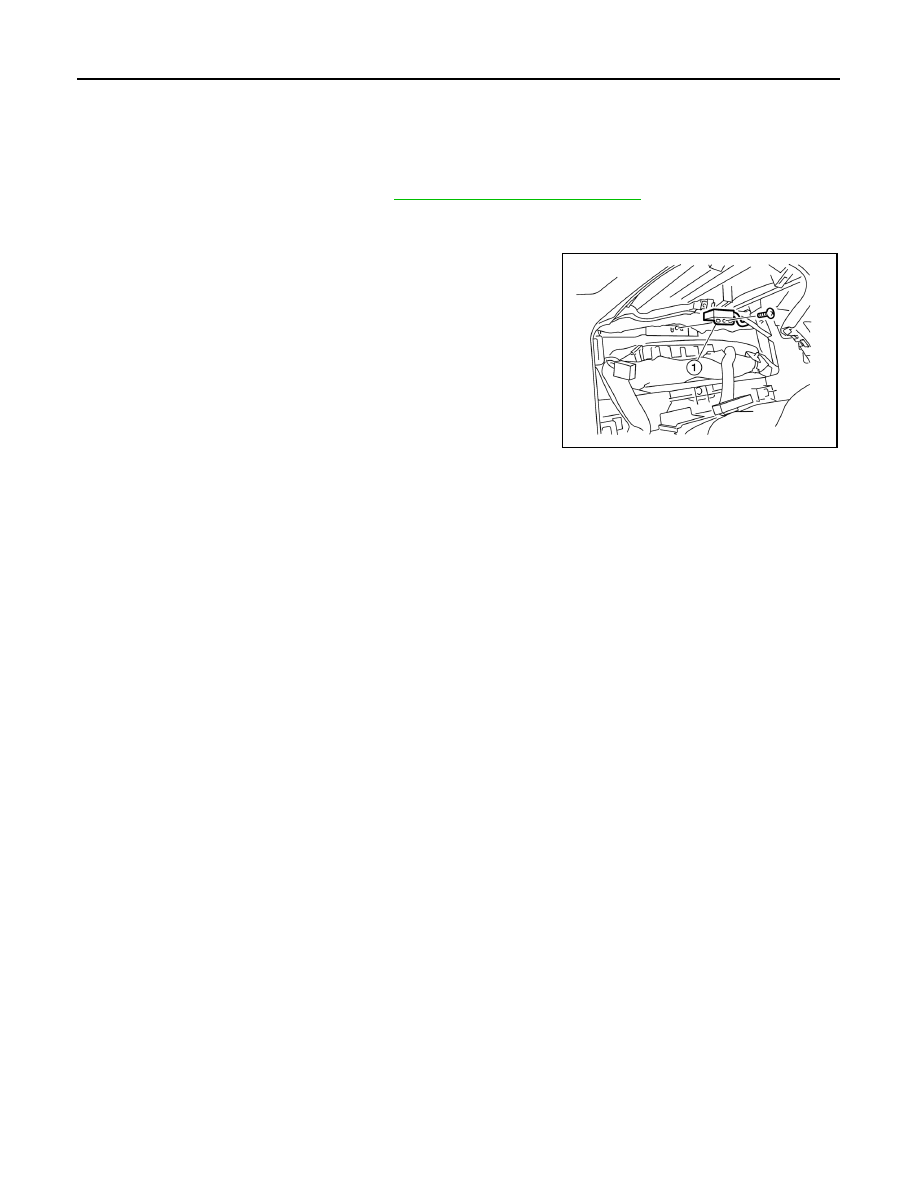

1. Remove the combination meter. Refer to

MWI-82, "Removal and Installation"

.

2. Disconnect the harness connector from AV control unit.
3. Release the harness feeder clips.
4. Remove GPS antenna screw and the GPS antenna (1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA2586ZZ

AV

SATELLITE RADIO ANTENNA

AV-637

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000009763984

REMOVAL

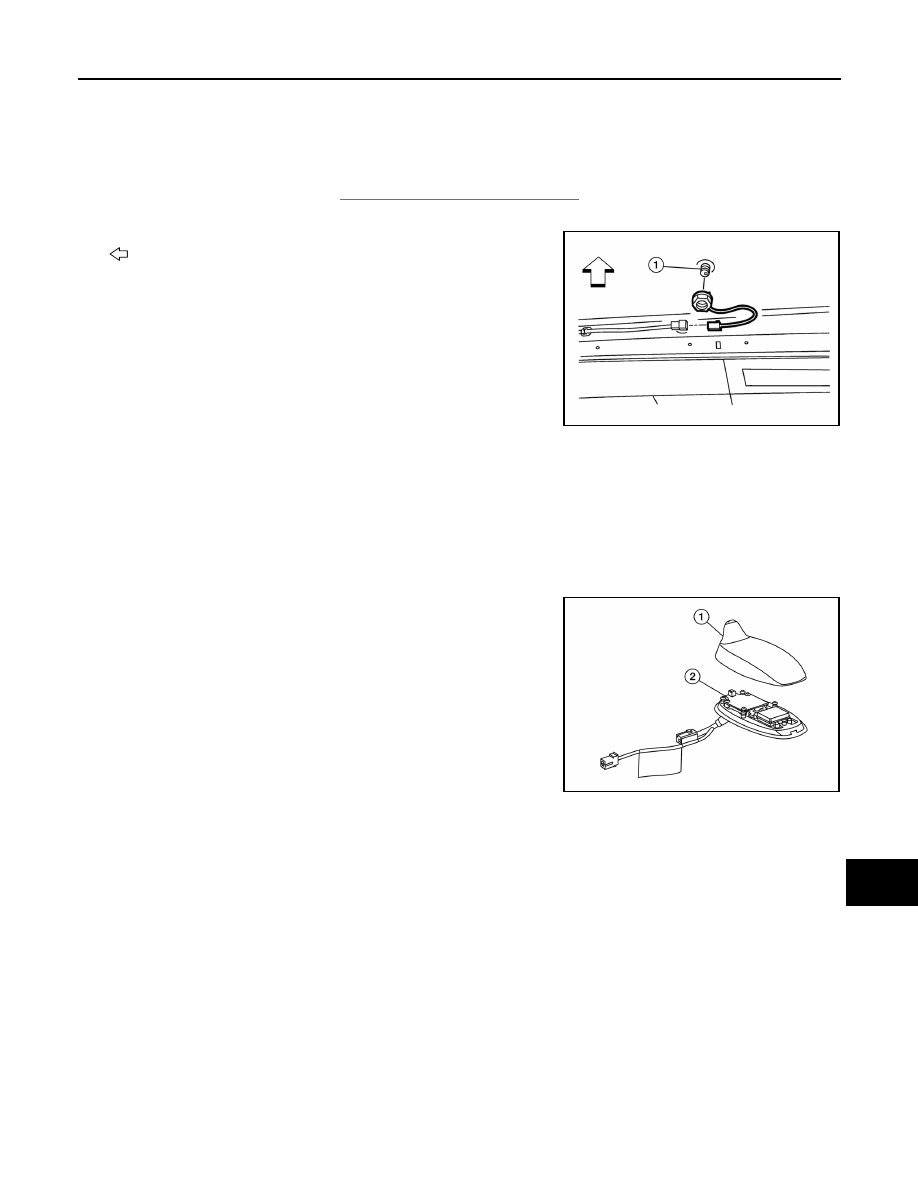

1. Lower headlining (rear). Refer to
