RF-82

< ON-VEHICLE REPAIR >

SUNROOF MOTOR ASSEMBLY

SUNROOF MOTOR ASSEMBLY

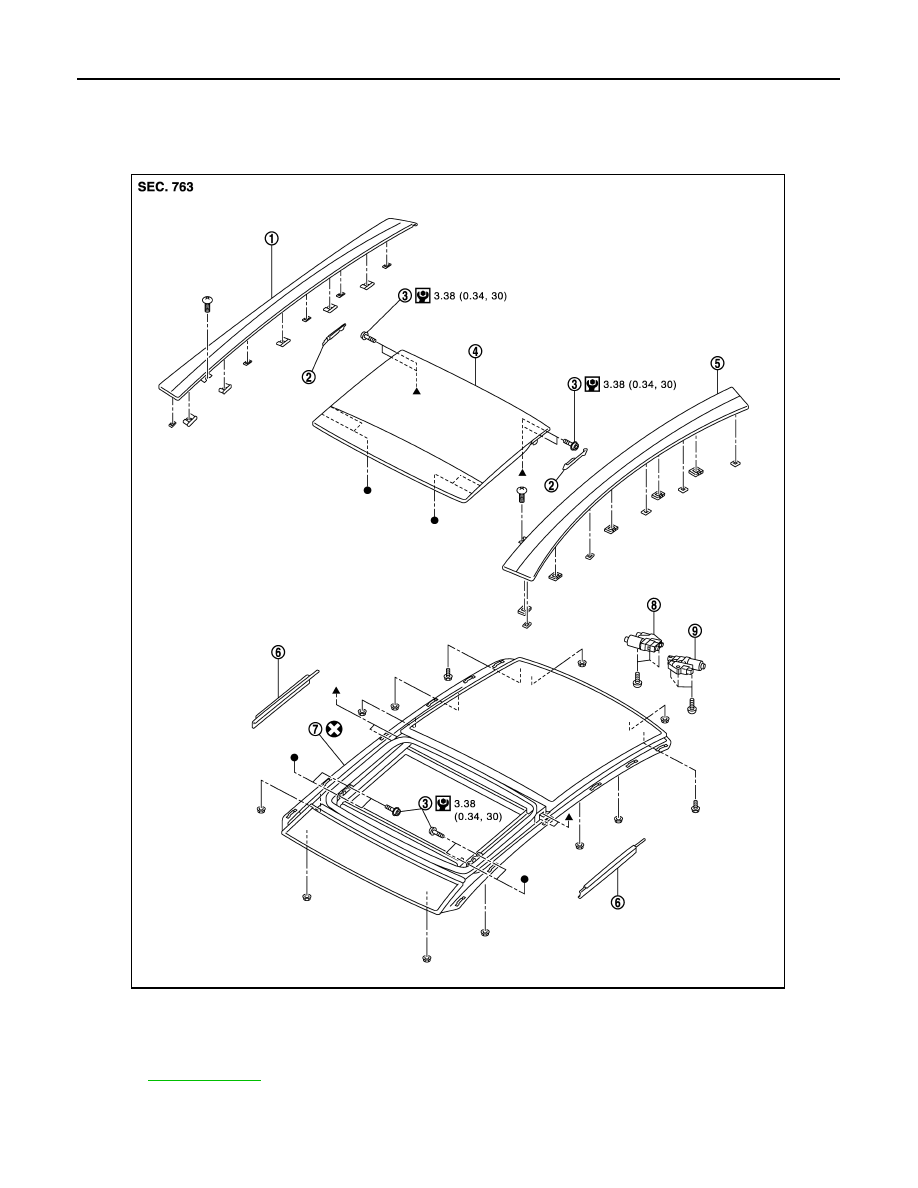

Exploded View

INFOID:0000000003812887

1.

Roof side finisher RH

2.

Rear link cover

3.

TORX bolt

4.

Glass lid

5.

Roof side finisher LH

6.

Inner blind

7.

Sunroof unit assembly

8.

Sunroof motor assembly

9.

Sunshade motor assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2488GB

SUNROOF MOTOR ASSEMBLY

RF-83

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Removal and Installation

INFOID:0000000003812888

REMOVAL

CAUTION:

• Before removing sunroof motor, check that glass lid is fully closed.
• After removing sunroof motor, never attempt to rotate sunroof motor assembly as a single unit.

1.

Remove the headlining. Refer to

INT-54, "SUNROOF : Removal and Installation"

.

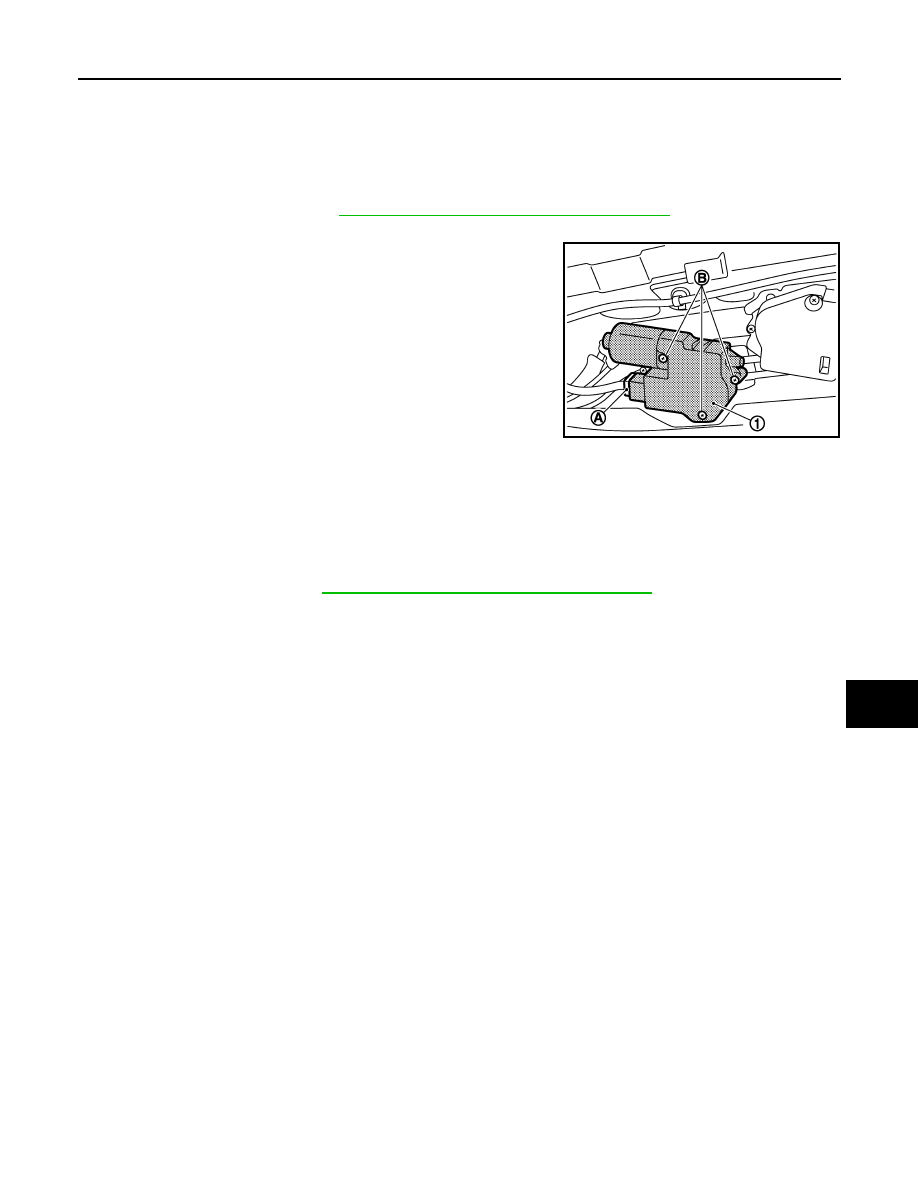

2.

Remove th sunroof motor assembly.
• Disconnect connector (A) from sunroof motor assembly (1).
• Remove sunroof motor assembly mounting screws (B), and

then remove sunroof motor assembly (1).

INSTALLATION

CAUTION:

Before installing the sunroof motor assembly, always place the link and wire assembly in the symmet-
rical and fully closed position.

1.

Move the sunroof motor assembly laterally a little so that the gear is completely engaged into the wire on
the sunroof unit assembly and mounting surface becomes parallel. Then secure the sunroof motor
assembly with screws.

2.

Install the headlining. Refer to

INT-54, "SUNROOF : Removal and Installation"

.

JMKIA2492ZZ

RF-84

< ON-VEHICLE REPAIR >

SUNSHADE MOTOR ASSEMBLY

SUNSHADE MOTOR ASSEMBLY

Exploded View

INFOID:0000000003812889

1.

Roof side finisher RH

2.

Rear link cover

3.

TORX bolt

4.

Glass lid

5.

Roof side finisher LH

6.

Inner blind

7.

Sunroof unit assembly

8.

Sunroof motor assembly

9.

Sunshade motor assembly

Refer to

GI-3, "Contents"

 for symbols in the figure.

JMKIA2488GB

SUNSHADE MOTOR ASSEMBLY

RF-85

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Removal and Installation

INFOID:0000000003812890

REMOVAL

CAUTION:

• Before removing sunshade motor, check that glass lid is fully closed.
• After removing sunshade motor, never attempt to rotate sunshade motor assembly as a single unit.

1.

Remove the headlining. Refer to

INT-54, "SUNROOF : Removal and Installation"

.

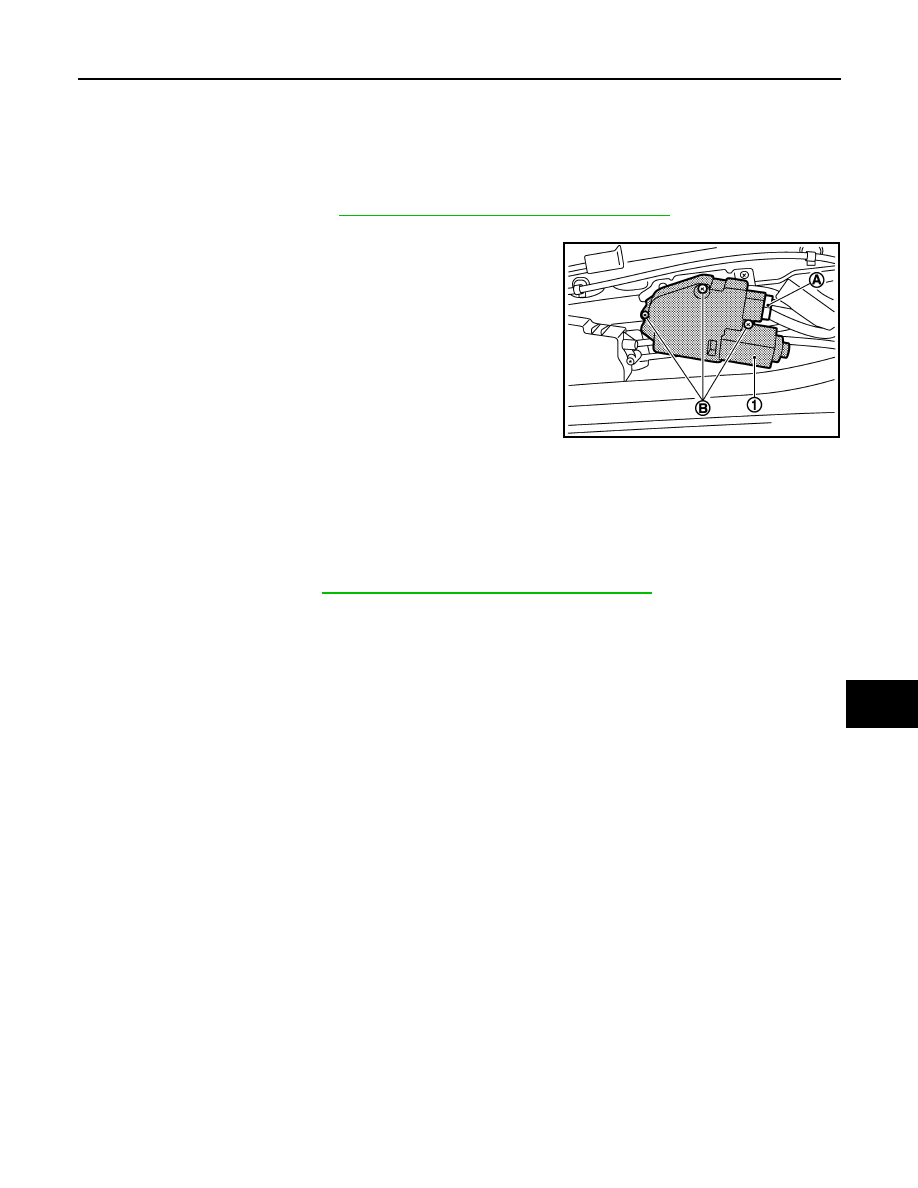

2.

Remove the sunroof motor assembly.
• Disconnect connector (A) from sunshade motor assembly (1).
• Remove sunshade motor assembly mounting screws (B), and

then remove sunshade motor assembly (1).

INSTALLATION

CAUTION:

Before installing the sunshade motor assembly, always place the link and wire assembly in the sym-
metrical and fully closed position.

1.

Move the sunshade motor assembly laterally a little so that the gear is completely engaged into the wire
on the sunroof unit assembly and mounting surface becomes parallel. Then secure the sunshade motor
assembly with screws.

2.

Install the headlining. Refer to

INT-54, "SUNROOF : Removal and Installation"

.

JMKIA2493ZZ
